O
E
PTIONAL
QUIPMENT
VCR and Cable Box Connection (Cont.)
Recording a premium (scrambled) cable channel
Procedure
Press the TV/VIDEO button on the remote control to
select the video input (VIDEO 1, VIDEO 2, etc.)
connected to your VCR.
Turn the VCR ON.
Tune the VCR to Channel 3 or 4, depending on the
switch setting on the back of VCR.
Using your cable box, tune to the premium cable channel
you want to record.
Begin recording.
To view a different channel while recording:
Press the TV/VIDEO button on the remote control to
select TV mode.
Tune the television to a program (except another
premium cable channel).

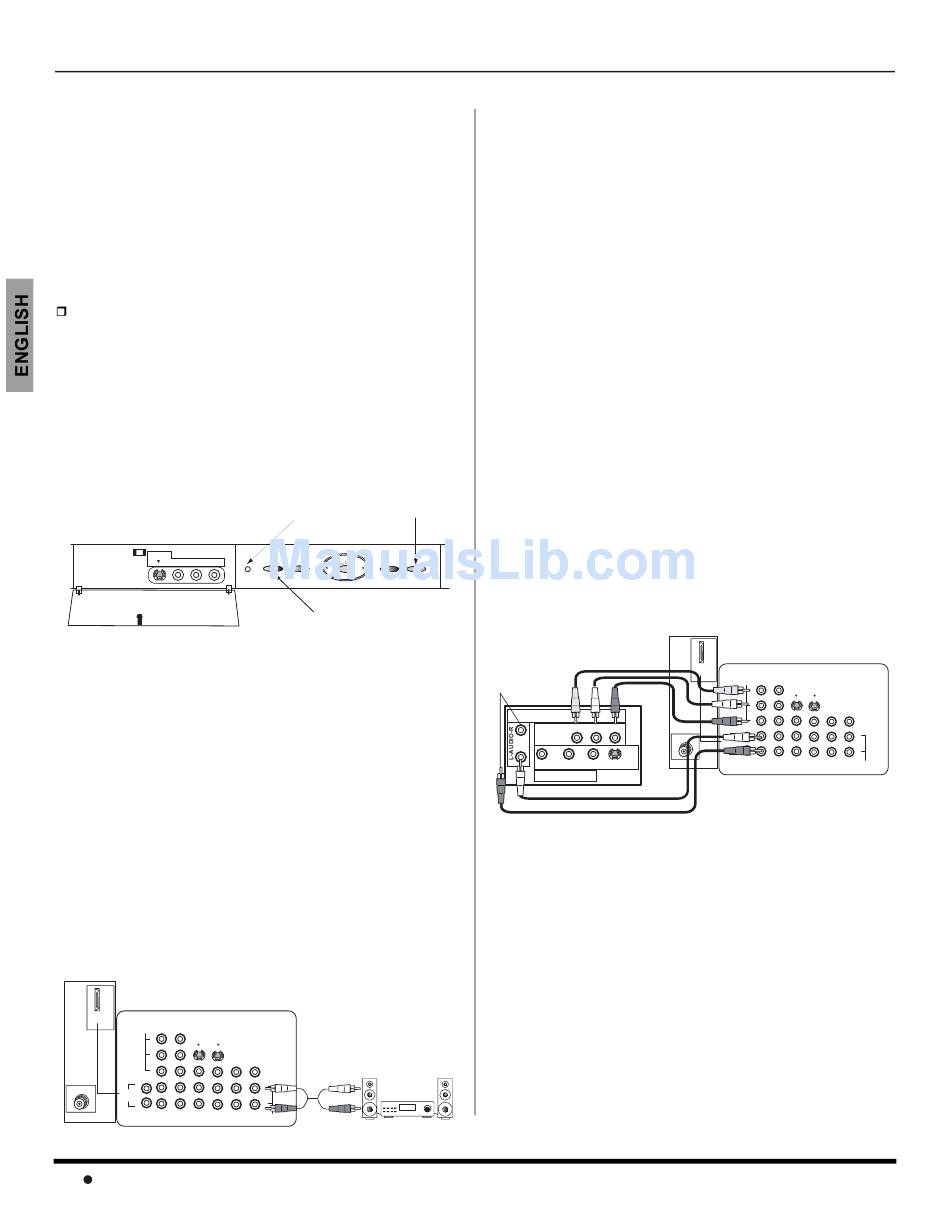

Front Control Panel

The front control panel can be used to access menus and
switch video mode when the remote control is not available.
Note:
The ON/OFF indicator LED (red) will be lit when set is
on.
Front Panel
S-VIDEO
VIDEO 4
L - AUDIO - R
Note:
For model CT-30WC14 front A/V is labelled
VIDEO 3.
A second VCR, Camcorder, a video disc player, video game
equipment or DSS equipment can also be connected to the
video inputs. See the optional equipment manual for details
Procedure
Connect equipment to front Audio/Video input jacks.
Press TV/VIDEO button to select front VIDEO input
mode.
Operate optional equipment as instructed in equipment
manual.
Amplifier Connection (TO AUDIO AMP)
To listen through a separate stereo system, connect an
external audio amplifier to TO AUDIO AMP outputs on back
of television.
Note:
TO AUDIO AMP terminals cannot be connected directly
to external speakers.
TERMINALS ON BACK OF TELEVISION
HDMI
AV IN
VIDEO
Y
P
B
S-VIDEO
P
R
L
ANT
AUDIO
IN
R
1
2
INPUT
INPUT
INPUT
COMPONENT
1
2
VIDEO INPUT
CABLES NOT INCLUDED
8
C
ONNECTIONS
ON /OFF INDICATOR
INFRARED SENSOR
CH
POWER
TV/VIDEO
BBE
VOL
VOL
CH
POWER ON/OFF
VIDEO
EXTERNAL AMPLIFIER
L
R
90.7 MHZ
PROG
TO AUDIO
3
OUT
AMP
Audio Adjustments
Select SPEAKERS ON located in the onscreen AUDIO
menu.
Set amplifier volume to minimum.
Adjust television volume to desired level.
Adjust amplifier volume to match the television.
Select SPEAKERS OFF & VARIABLE AUDIO OUT from
AUDIO menu.
Note:
Variable Audio Out is not available in model
CT-30WC14.
Volume, mute, bass, treble and balance are now
controlled through the television.
Note:
Select SPEAKERS OFF & FIXED AUDIO OUT to control
audio functions through the external amplifier.
Digital TV - Set-Top Box (DTV-STB) or DVD
Connection
This television is capable of displaying 1080i and 480p DTV
signals when connected to a DTV tuner set-top-box (STB). In
order to view DTV programming, the STB must be connected
to the component video inputs (Y,PB,PR) of the television. A
DTV signal must be available in your area. Select the output of
the STB to either 1080i or 480p.
This television also utilizes a progressive scan doubler, which
de-interlaces the NTSC signal and progressively scans the
image. This allows you to sit close to the TV and not see the
thin black horizontal lines (venetian blind effect) associated
with interlaced TV pictures.
Use this diagram to connect the DTV-STB or DVD player to
the back of your television.
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
DIGITAL TV OUTPUT
.
Y
P
P
B
R
MAIN
VIDEO
R-AUDIO-L - VIDEO S-VIDEO
NTSC OUTPUT
Note:
There are three video jacks, Y, P
component color inputs provide luminance and color
separation. Use the L (left) and R (right) audio inputs.
TERMINALS ON BACK OF TELEVISION
HDMI
AV IN
VIDEO
Y
P
B
S-VIDEO
VIDEO
P
R
L
L
ANT
AUDIO
IN
R
R
1
2
INPUT
INPUT
INPUT
PROG
COMPONENT
1
2
3
OUT
VIDEO INPUT
CABLES NOT INCLUDED
, and P
. Separate
B
R
TO AUDIO
AMP
