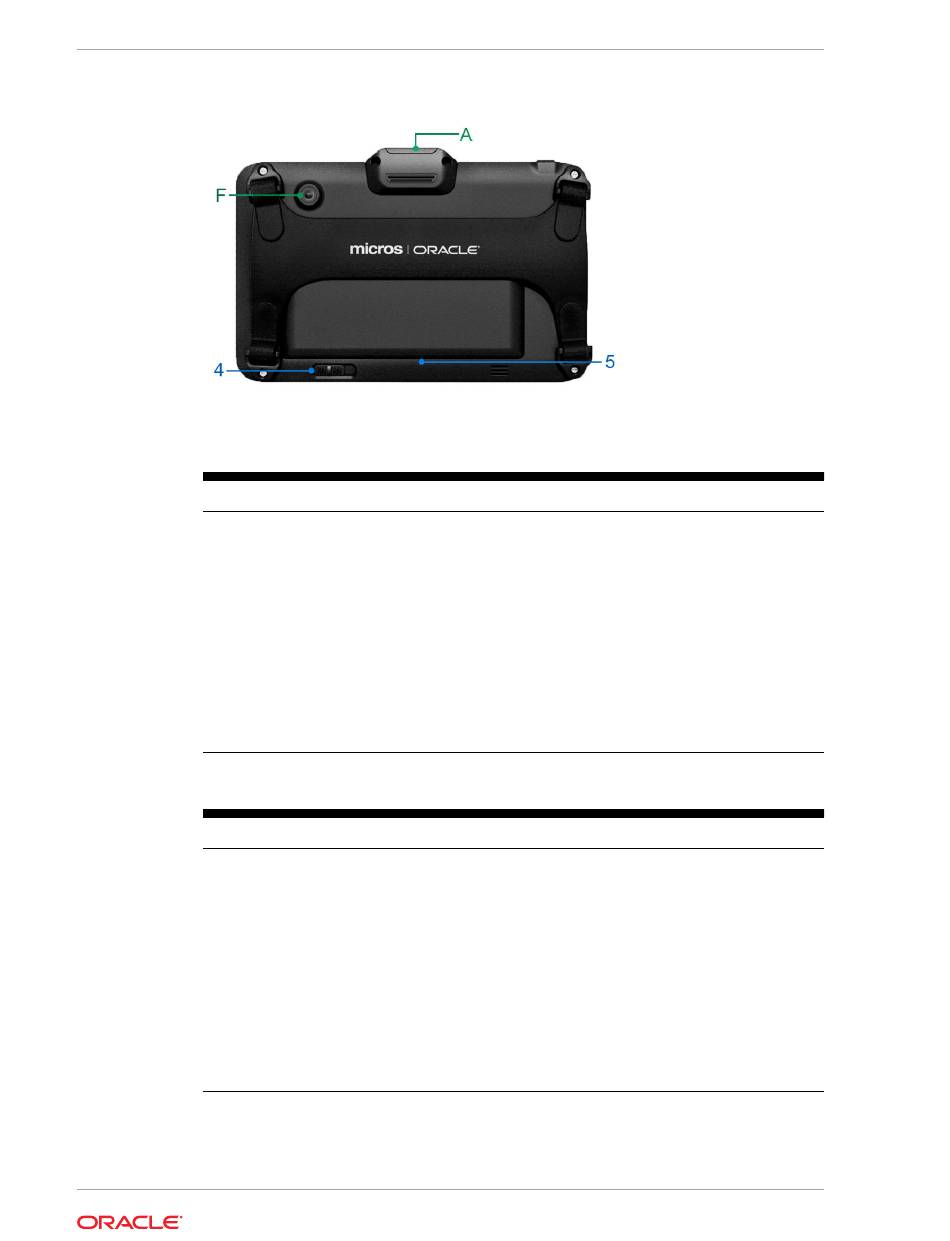

Figure 1-3 The Features of the Oracle MICROS Tablet 721 — Back View
Table 1-2 Input/Output Port on the Oracle MICROS Tablet 721
Feature
A. Barcode Scanner (Optional)
B. Magnetic Stripe Reader (MSR)
C. Headphone Jack
D. USB Port
E. 12V DC Power Input
F. Camera
Table 1-3 Button Functions on the Oracle MICROS Tablet 721
Feature
1. Power Button
2. Scanner Trigger
3. Battery/Power LED
4. Battery Latch
5. Battery Sensor
Description
Captures and reads information contained in a
bar code.
Reads the information encoded in the
magnetic stripe of payment cards.
Use to connect a headphone, a microphone,
or a headset.
Use to connect peripherals such as storage
devices, printers, and displays.
Use to connect a power supply to provide
power to your tablet and charge the battery.
Use to take photographs.
Description
Turns the tablet on or off.
Use to activate the barcode scanner.
Indicates the power and battery status.
Battery LED Status has more information on
the behavior of the LED.
Use to unlock and remove the battery.
Senses the presence of a battery. Located in
the battery compartment under the battery.
Inadvertently pressing this when the battery is
removed disables the "hot swap" capability
and causes the tablet to power off.
