EPA6220 / EPA6236

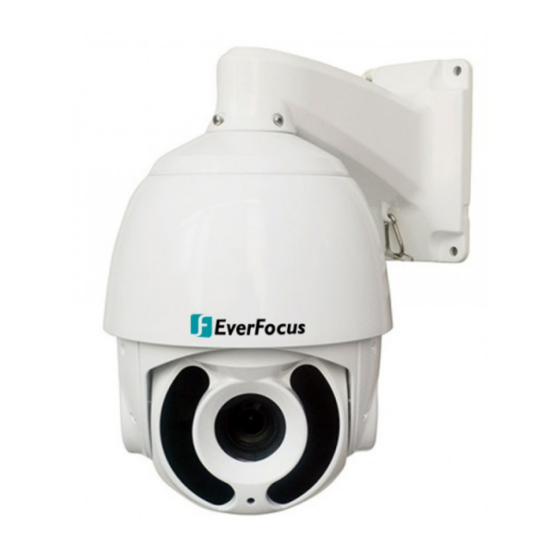

AHD 1080p IR / IP66 Outdoor Speed Dome
True Day/Night and WDR (20x / 36x Optical Zoom)
Disclaimer
All the images including product pictures or screen shots in this document are for example only. The
images may vary depending on the product and software version. Information contained in this document
is subject to change without notice.
Copyright
All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form
or by any means without written permission of the EverFocus Electronics Corporation.
Copyright © EverFocus Electronics Corp.
Release Date: May, 2020
Quick Installation Guide
Advertisement
Table of Contents
Related Manuals for EverFocus EPA6220
Summary of Contents for EverFocus EPA6220
- Page 1 Information contained in this document is subject to change without notice. Copyright All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation.
- Page 2 (please refer to Appendix A Shortcut Commands in the User’s Manual). EPA6220 / EPA6236 provides variable pan / tilt speeds for fast and accurate monitoring. A maximum of 220 preset points can be configured for precise location of target areas. Features like A-B scan, 4 patterns, 8 tours are all provided.
- Page 3 Note: Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. Please also keep the shipping carton for possible future use. 2. Contact the shipper if any items appear to have been damaged in the shipping process.
- Page 4 2. Installation 2.1 Wall Mounting You can use the supplied Wall Mount Bracket to install the speed dome camera to the concrete wall. Note that the wall should be withstood at least 4 times the weight of the speed dome camera. Wall Mount Bracket 1.
- Page 5 2.2 Corner Mounting You can purchase the Corner Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed dome camera to the concrete corner wall with 90°angle. Note that the wall should be withstood at least 4 times the weight of the speed dome camera. Corner Mount Bracket 1.
- Page 6 2.3 Pole Mounting You can purchase the Pole Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed dome camera to a pole structure with diameter between 130-152mm (max. 6 inches). Note that the pole structure should be withstood at least 4 times the weight of the speed dome camera. Pole Mount Bracket 1.
- Page 7 2.4 Ceiling Mounting You can purchase the Ceiling Mount Bracket (please refer to 1.4 Optional Accessories) to install the speed dome camera to the ceiling. Note that the ceiling should be withstood at least 4 times the weight of the speed dome camera.
- Page 8 TEL: +81-3-5625-8188 www.everfocus.com FAX: +81 3 5625 8189 sales@everfocus.com www.everfocus.co.jp info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
