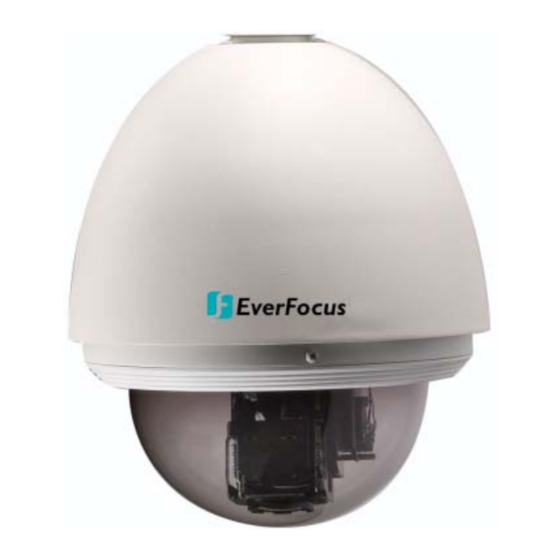

Speed Dome
EPTZ900/500
USER MANUAL
Date: June 2006

Advertisement

Table of Contents
loading

Related Manuals for EverFocus Speed Dome EPTZ900

Summary of Contents for EverFocus Speed Dome EPTZ900

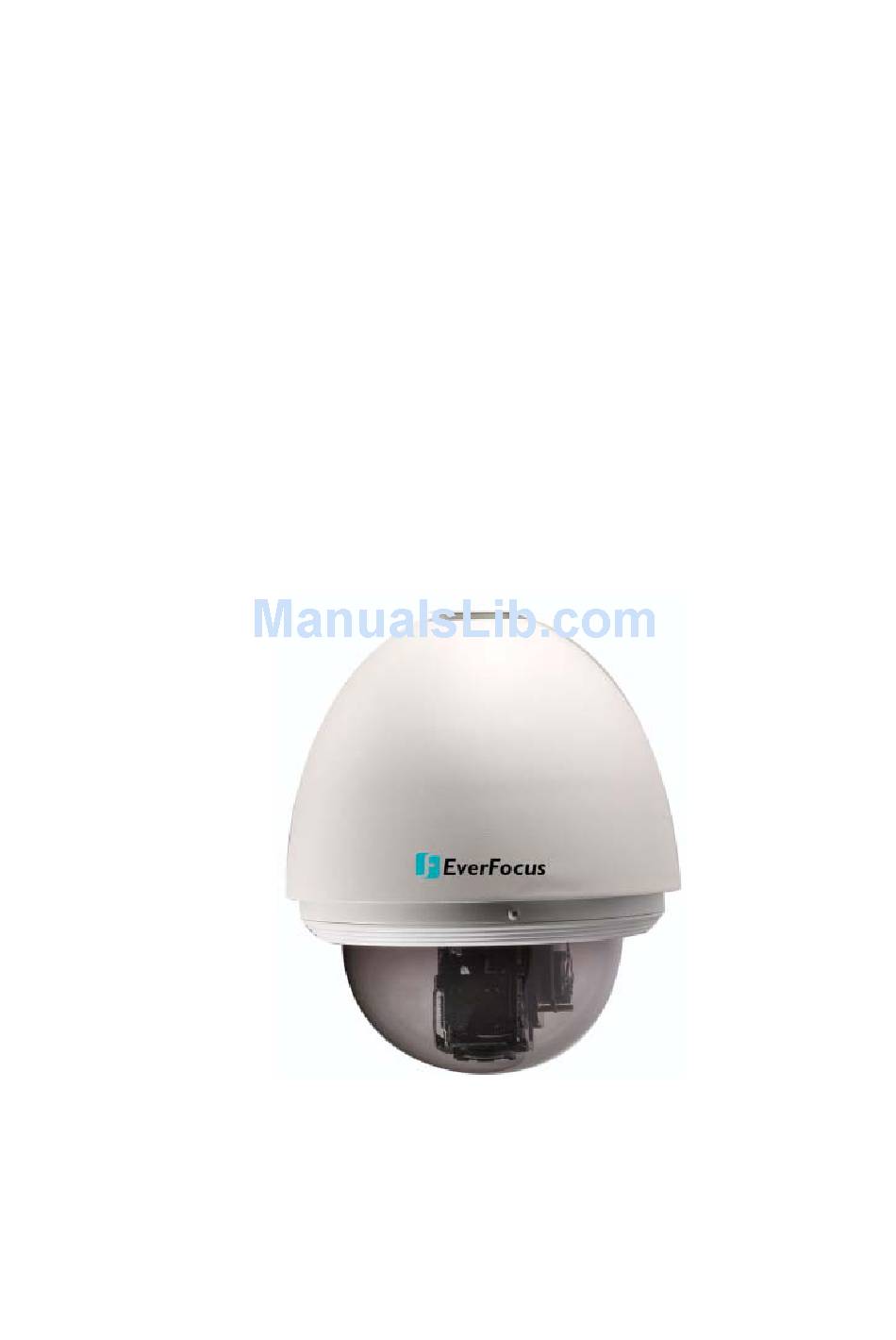

  • Page 1 Speed Dome EPTZ900/500 USER MANUAL Date: June 2006...

  • Page 2: Table Of Contents

    Table of Contents EPTZ900/500 OVERVIEW ..........1-3     1.1. Introduction .....................1-3     1.2.   Specifications ..................1-5   1.3. Feature .....................1-7     1.3.1. Profile of EPTZ900/500 ..............1-7     1.3.2.   Base Board ..................1-8   1.3.3. EPTZ900/500 Control Board ............1-9  ...
  • Page 3 2.4.1. Installation Requirements .............. 2-20     2.4.2.   EPTZ900 Dome Camera Wall Mount Installation ......2-20   2.4.3. EPTZ500 Dome Camera Installation ..........2-24     2.5. Separately Sold Accessories ..............2-27     2.5.1.   Pole mount ..................2-27  ...

  • Page 4: Eptz900/500 Overview

    1. EPTZ900/500 OVERVIEW 1.1. Introduction EPTZ900/500, an intelligent high-speed dome camera is ready to secure your property with its omni-directional and exact monitoring. An 18X optical and 12X digital zoom combining with a high-performance chip makes captured images clear and vivid.
  • Page 5 All of the features make the intelligent high-speed dome camera works for a wide range and demanding application such as banks, airports, stations, casinos, streets of cities, intelligent buildings, and etc.

  • Page 6: Specifications

    1.2. Specifications Model EPTZ900 EPTZ500 Pickup Device 1/4" type Sony Super HAD CCD Video Format NTSC or PAL Scanning System NTSC: 525 TV lines, 60 fields/sec PAL: 625 TV lines, 50 fields/sec Picture Elements 768 x 494 ( NTSC ) , 752 x 582 ( PAL ) Horizontal Resolution 480 TVL Sensitivity...
  • Page 7 1－239 grade available,0.1º/s - 360º/s Running To Position Speed 1－239 second available Dwell Time At Preset Position Tour 16 group Tour Point Per Group 16 preset positions Fan, Heater (EPTZ900) Fan & Heater auto starts Position Accuracy ±0.1° Alarm 4 in 1 out with tour/position auto triggering Proportional Pan Speed Built-in menu for functions Built-in Protocols...

  • Page 8: Feature

    1.3. Feature 1.3.1. Profile of EPTZ900/500 EPTZ900 Wall Mount Bracket M5 Bolt (Hex) x3 Base PCB board Control board Connection Bus Housing Power Cable Inner Housing BNC Cable RS485 Cable M3 Bolt x3 Mechanical Part Bulb Camera Module EPTZ500 Power Cable Base PCB board BNC Cable RS485 Cable...

  • Page 9: Base Board

    1.3.2. Base Board The base board that is on the bottom of the housing connects to power cable, video cable, control cable, alarm cable, fan and heater (fan and heater are for EPTZ900 only). In order to connect to cables, the board needs to be taken off, and put back after finishing connecting to all cables.

  • Page 10: Eptz900/500 Control Board

    RELAY EPTZ500 Baseboard 1.3.3. EPTZ900/500 Control Board The PCB board with two dipswitches is the control board of speed dome. The two switches are used to set address, protocol, Baud Rate, video format and terminator resistance.

  • Page 11: Eptz900/500 Connection

    1.4. EPTZ900/500 Connection 110V AC 24V AC POWER 24V AC / 3.5 A Adapter Video Out Ω 1.0Vpp ± 0.2V, 75 RS485 Tx(+) RS485 Control Line RS485 Tx(-) EPTZ900/500 Alarm 1 Alarm 2 Alarm 3 4 ALARM INPUTS Alarm 4 GROUND ALARM OUTPUTS N.C.

  • Page 12: Eptz900/500 Quick Operation Guide (Work With Ekb500)

    1.5. EPTZ900/500 Quick Operation Guide (Work with EKB500) EPTZ900/500 and EKB500 (Keyboard) can work together by using factory default setting. You just need to connect cables by following the steps: 1. Connect the RS485 cable to EPTZ900/500 and a Keyboard (EKB500). 2.

  • Page 13: Eptz900/500 Installation

    2. EPTZ900/500 INSTALLATION 2.1. Packing List There are 3 boxes that are housing, bulb and mechanical part with a camera module, one wall mount bracket, one power adapter and one accessory packet in the package. The detail accessories list below: Housing x1 Bulb x1 Mechanical part with a camera module x1...

  • Page 14: Video Cable

    Video Cable A BNC cable is used for connecting a speed dome to a DVR or a monitor. An amplifier may be needed if the video cable is too long. Control Cable Basically, EPTZ900/500 uses a differential pair to connect to other devices by cascading.

  • Page 15: Address Setting

    2.3.1. Address Setting The address code of the EPTZ900/500 should be set to correspond properly with a control device to control multiple dome cameras. The address codes are made up by the dipswitch SW1 (8 bits) on the PCB board. The 8 bits dipswitch indicates the binary coded of the address, and there are 256 addresses can be selected (0 ~ 255, 2 = 256).
  • Page 16 Switch Address Switch Switch Switch Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Switch Switch Switch Switch Address Address Address Address Address 2-15...
  • Page 17 Switch Address Switch Switch Switch Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Switch Switch Switch Switch Address Address Address Address Address 2-16...

  • Page 18: Communication Protocol Setting

    2.3.2. Communication Protocol Setting The 1 and 3 bits of the SW2 are used to set communication protocol. The factory default protocol is EVF. EVF - 1 PELCO-D PELCO-P TYPE-A Protocol Baud Rate PAL / NTSC Maching Resistance Notice: Please make sure the power is off before setting, and restart the speed dome to enable a new value after changing.

  • Page 19: Video Format Setting

    2.3.4. Video Format Setting The 6 bits of the SW2 on the PCB board are used to set the video format. The default video format depends on the factory setting. Please do not change it. NTSC Protocol Baud Rate PAL / NTSC Maching Resistance Notice: Please make sure the power is off before setting, and restart the speed dome to enable a new value after changing.
  • Page 20 n ≦ 255 RS485 Keyboard Ternimator Control Unit CAM-0 CAM-1 CAM-n Resistance Note: When the dome is out of control, or does not work under control well, try to switch the terminator resistance ON. Notice: Please make sure the power is off before setting, and restart the speed dome to enable a new value after changing.

  • Page 21: Rack And Speed Dome Installation

    2.4. Rack and Speed Dome Installation 2.4.1. Installation Requirements 1. Installation should be handled by a qualified service agent and should comply with all local regulations. Service personnel should expect potential problems such as surface strength, surface material, falling objects, outer breaches, building vibration or other similar conditions.
  • Page 22 2. Thread the cable through the hole in the wall mount bracket, and screw in 4 M8 nuts for mounting the bracket. 3. Take off the housing from the packing, and take off the baseboard (4 bolts on it.) inside the housing. Thread the cable through the top of the housing. Fix the housing on the wall mount bracket, and screw in 3 M5 bolts (Hex) on the top of the bracket with the attached Hex Allen wrench to fix the housing.
  • Page 23 5. Align the two screw holes on the bottom of mechanical part to the two bolts on the base of the housing, and twist the mechanical part clockwise a little bit in order to engage it with the base. Screw the two bolts on the base, and then connect and fix the connection bus to the PCB board on the mechanical part.
  • Page 24 Notice: In order to protect the bulb from dirt and scrape, please put on the gloves before installing the bulb. 7. Turn on the power, and start to operate the EPTZ900. Note: When turning on the power, the EPTZ900 will enter self-inspection mode, and carry out a self-testing program.

  • Page 25: Eptz500 Dome Camera Installation

    2.4.3. EPTZ500 Dome Camera Installation 1. Take off the housing from the packing, and take off he PCB board (4 bolts on it) inside the housing. 2. Cut the ceiling against the housing’s shape with a saw. 3. Thread the cable through the screw and the hole on the top of the housing, and tighten up the screw to fix the cable 4.
  • Page 26 Notice: Please notice the polarity of control line. The EPTZ500 will not work if the polarity of control line is mis-connected. 6. Align the two screw holes on the bottom of mechanical part to the two bolts on the base of the housing, and twist the mechanical part clockwise a little bit in order to engage it with the base.
  • Page 27 Connection wire Button Button GLOVE Notice: In order to protect the bulb from dirt and scrape, please put on the gloves before installing the bulb. 8. Turn on the power, and start to operate the EPTZ500. 2-26...

  • Page 28: Separately Sold Accessories

    2.5. Separately Sold Accessories 2.5.1. Pole mount The pole mount is used for installing a speed dome on the ceiling indoors or outdoors. The extension poles are available for the pole mount. 2.5.2. Pole adapter The pole adapter is used for installing a wall mount bracket to a pole indoors or outdoors.

  • Page 29: Eptz900/500 Camera Setup Menu

    3. EPTZ900/500 CAMERA SETUP MENU In this section, setup and operation guide of EPTZ900/500 will be introduced. There are 22 items of the setting menu. However, there is only one line on the line display, so using some combination keys to operate is necessary. 3.1.

  • Page 30: Camera Setup Menu

    3.1.1. Camera Setup Menu Press MENU to enter camera setup menu. Press Shift + Joystick up/down to change subentries, and right/left to change the setting. 1. CAM ID： The name assigned to the camera. 2. DZOOM： Digital zoom enable or disable. ON: Enable a digital zoom.
  • Page 31 6. DISPLAY： Display system information and status. ON: To display the system information and status on the screen. OFF: Not to display the system information and status on the screen. 7. BACKLIGHT： Backlight compensation. ON: Enable backlight compensation. OFF: Disable backlight compensation. 8.
  • Page 32 12. ALM-IN2 SET： The status of input alarm 2. N.O.: Enable a normal open alarm input. N.C.: Enable a normal close alarm input. OFF: Disable alarm input. 13. ALM-IN3 SET： The status of input alarm 3. N.O.: Enable a normal open alarm input. N.C.: Enable a normal close alarm input.
  • Page 33 17. LOAD DEFAULT： Load default setting. Select this item, and then press “Enter” to load default setting. Press “Clr” + “Menu” whenever you want to quit menu setting. 18. EXIT : To exit. Select this item, and then press “Enter” to quit setting. Press “Clr”...

  • Page 34: Eptz900/500 Function Setup And Operation

    4. EPTZ900/500 FUNCTION SETUP AND OPERATION 4.1. Manual Control Mode Manual control: Shift Joystick Up/Down/Left/Right, and turn it Clockwise/Counterclockwise to control speed dome. Use the control keys which are Zoom, Focus and IRIS function keys on the keyboard to zoom In/Out, focus N (near)/F (Far), or IRIS +/-. HOME Mode: The camera view will go back to the home position when there is no keyboard operation in a specific time.

  • Page 35: Tour Mode

    Preset a position: Shift the Joystick to the position you would like to preset, and then press Shift + Position. The system will ask you to enter the preset position number (1~239), and then press Enter to save the position. There are up to 192 positions can be preset.

  • Page 36: Alarm Link To A Position/Tour

    ask you to enter the tour number you would like to run, and starts the tour after pressing Enter. To preset a tour before running it is necessary. Note: The difference between the One-way tour mode and To-and-fro tour mode is their return modes.
  • Page 37 APPENDIX A: The Alarm I/O Connection There are 4 alarm inputs and 1 alarm output available. The alarm I/O connector that is marked as JP5 is a nine-pin connector. It is located on the PCB board of the housing. RELAY RELAY Video + Video -...

  • Page 38: Appendix B: Protocol

    APPENDIX B: Protocol ================================================= Speed Dome Control Protocol ================================================= 1-1. Format A. Fixed 7 bytes packet Byte1 (cmd1 = 0xFA) Byte2 (cmd2) Byte3 (ID high byte) Byte4 (ID low byte) Byte5 (data1) Byte6 (Keyboard-ID) Byte7 (checksum) B. Fixed 8 bytes pcket Byte1 (cmd1 = 0xFC) Byte2 (cmd2) Byte3 (ID high byte)
  • Page 39 2-1. Part-I ============================================================================================================== | (B1) (B2) (B3) (B4) (B5) (B6) (B7) | FUNCTION | CMD1 CMD2 DATA1 KB-ID CSUM | DESCRIPTION ------------------------------+------ ------ ----- ----- ------- ----- -----+--------------------------------- | FA 00-1F 00-1F speed 00-5F cs | speed=00-EFh Down | FA speed cs | Left...
  • Page 40 ------------------------------+ ----- ------ ----- ----- ------- ----- -----+--------------------------------- Set Single Point Alarm Linkage| FA 7A-7D cs | pp=1-192 (position) Clr Single Point Alarm Linkage| FA 7E-81 cs | Cruise Alarm Linkage Set | FA 82-85 group cs | group=1-16 Cruise Alarm Linkage Cancel | FA 86-89 cs |...
  • Page 41 ------------------------------+------ ----- ----- ----- ------ ----- ----- -----+--------------------------- set preset position title | FC x-coor char cs | x-coor=0-19 | char=ASCII code | notice: | make sure you already send | "FA A0" command, befoe send | this command. clean preset position title | FC cs | PP=1-192 ------------------------------+------ ----- ----- ----- ------ ----- ----- -----+---------------------------...
  • Page 42 EverFocus Electronics Corp. China Office: Head Office: Room 609, Technology Trade Building, 12F, No.79 Sec. 1 Shin-Tai Wu Road, Shandgdi Information Industry Base, Hsi-Chih, Taipei, Taiwan Haidian District, Beijing,China TEL: +886-2-26982334 TEL: +86-10-62971096 FAX: +886-2-26982380 FAX: +86-10-62971432 www.everfocus.com.tw www.everfocus.com.cn USA Office: Japan Office: 1801 Highland Ave.
