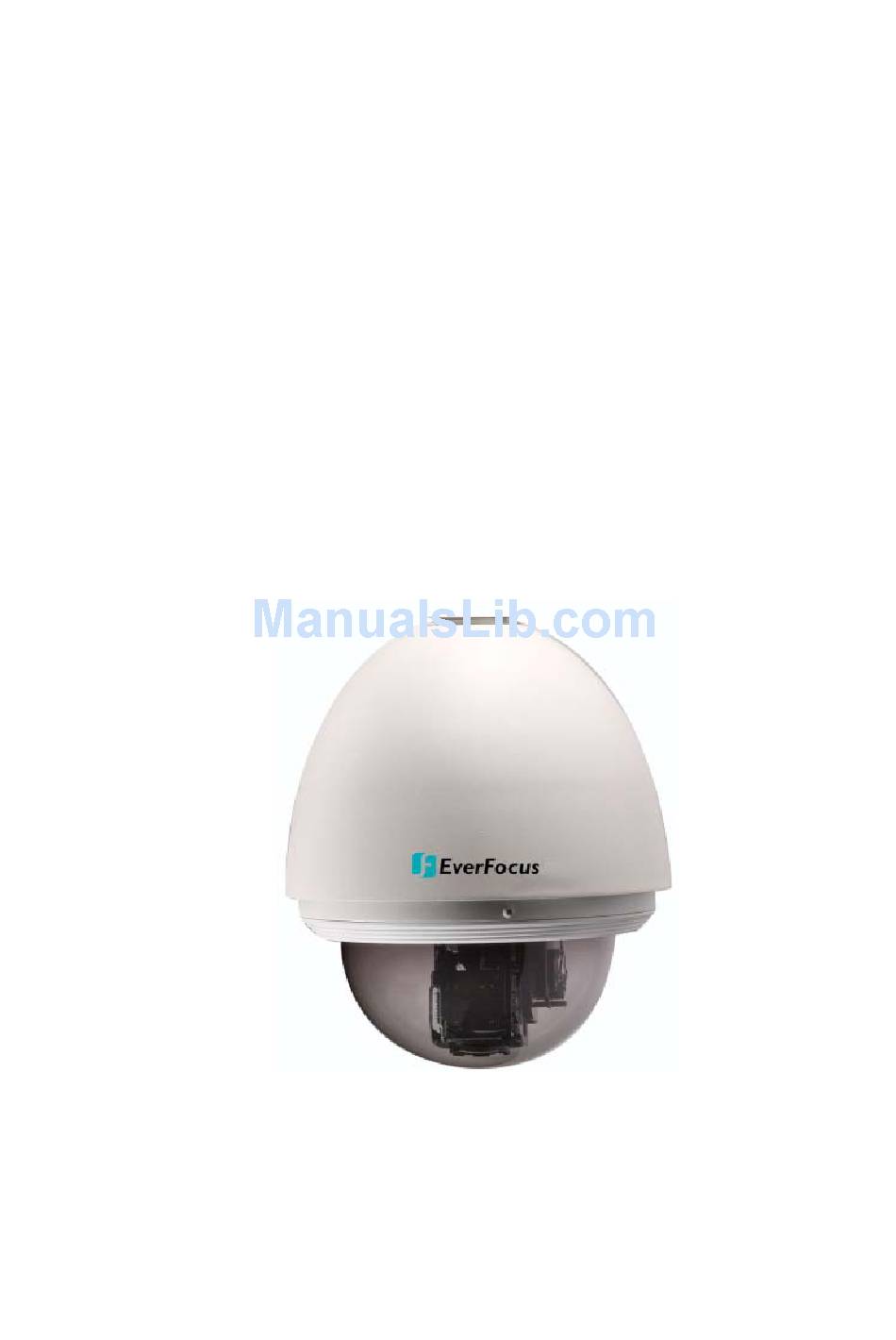

Speed Dome
EPTZ1000
USER MANUAL
Date: Mar 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speed Dome EPTZ1000 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus Speed Dome EPTZ1000

Summary of Contents for EverFocus Speed Dome EPTZ1000

  • Page 1 Speed Dome EPTZ1000 USER MANUAL Date: Mar 2009...

  • Page 2: Table Of Contents

    Table of Contents EPTZ1000OVERVIEW ............1-3     1.1. Introduction .....................1-3     1.2.   Specifications ....................1-5   1.3. Feature ......................1-7     1.3.1. Hardware Overview ................1-7     1.3.2.   Base Board ..................1-8   1.3.3. EPTZ1000Control Board ..............1-8    ...
  • Page 3 2.5.3. Corner mount ................. 2-22     2.5.4.   Multi-Function Keyboard Controller ........... 2-22   EPTZ1000CAMERA SETUP MENU ....... 3-23     3.1. Structure of the Setup Menu................. 3-23     3.1.1.   Camera Setup Menu ............... 3-24   EPTZ1000FUNCTION SETUP AND OPERATION ..4-30  ...

  • Page 4: Eptz1000Overview

    1. EPTZ1000OVERVIEW 1.1. Introduction EPTZ1000, an intelligent high-speed dome camera is ready to secure your property with its omni-directional and exact monitoring. An 18X optical and 12X digital zoom combining with a high-performance chip makes captured images clear and vivid. The other powerful camera functions this type of speed dome equips with: PAL / NTSC image format suppose.
  • Page 5 All of the features make the intelligent high-speed dome camera works for a wide range and demanding application such as banks, airports, stations, casinos, streets of cities, intelligent buildings, and etc.

  • Page 6: Specifications

    1.2. Specifications Pickup Device 1/4'' SONY Type EXview HAD CCD Video Format NTSC or PAL Scanning System NTSC: 525 TV lines, 60 fields/sec PAL: 625 TV lines, 50 fields/sec Picture Elements 768 x 494 ( NTSC ) , 752 x 582 ( PAL ) Horizontal Resolution 480 TVL Sensitivity...
  • Page 7 Preset Positions 192 positions 1－239 grade available,0.1º/s - 360º/s Running to Position Speed Dwell Time at Preset 1~239 second available Position Tour 16 groups Tour Point per Group 16 preset positions Fan & Heater Fan & Heater auto starts Position Accuracy ±0.1°...

  • Page 8: Feature

    1.3. Feature 1.3.1. Hardware Overview EPTZ1000 Wall Mount Bracket M5 Bolt (Hex) x3 Base PCB board Control board Connection Bus Housing Power Cable Inner Housing BNC Cable RS485 Cable M3 Bolt x3 Mechanical Part Bulb Camera Module...

  • Page 9: Base Board

    1.3.2. Base Board The base board that is on the bottom of the housing connects to power cable, video cable, control cable, alarm cable, fan and heater (fan and heater are for EPTZ1000 only). In order to connect to cables, the board needs to be taken off, and put back after finishing connecting to all cables.

  • Page 10: Eptz1000Connection

    1.4. EPTZ1000Connection 110V AC 24V AC POWER 24V AC / 3.5 A Adapter Video Out Ω 1.0Vpp ± 0.2V, 75 RS485 Tx(+) RS485 Control Line RS485 Tx(-) EPTZ1000DN/ Alarm 1 EPTZ500DN Alarm 2 Alarm 3 4 ALARM INPUTS Alarm 4 GROUND ALARM OUTPUTS N.C.

  • Page 11: Eptz1000 Quick Operation Guide

    1.5. EPTZ1000 Quick Operation Guide EPTZ1000and EKB500 (Keyboard) can work together by using factory default setting. You just need to connect cables by following the steps: 1. Connect the RS485 cable to EPTZ1000and a Keyboard (EKB500). 2. Connect a video cable from EPTZ1000to a monitor. 3.

  • Page 12: Eptz1000Installation

    2. EPTZ1000INSTALLATION 2.1. Packing List There are 3 boxes that are housing, bulb and mechanical part with a camera module, one wall mount bracket, one power adapter and one accessory packet in the package. The detail accessories list below: Housing x1 Bulb x1 Mechanical part with a camera module x1 Wall mount bracket x1...

  • Page 13: Initial Setup

    - Video Cable A BNC cable is used for connecting a speed dome to a DVR or a monitor. An amplifier may be needed if the video cable is too long. - Control Cable Basically, EPTZ1000uses a differential pair to connect to other devices by cascading. A cable that has low signal decline can be used as a control cable.

  • Page 14: Address Setting

    2.3.1. Address Setting The address code of the EPTZ1000should be set to correspond properly with a control device to control multiple dome cameras. The address codes are made up by the dipswitch SW1 (8 bits) on the PCB board. The 8 bits dipswitch indicates the binary coded of the address, and there are 256 addresses can be selected (0 ~ 255, 2 = 256).
  • Page 15 Switch Address Switch Switch Switch Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Switch Switch Switch Switch Address Address Address Address Address 2-14...
  • Page 16 Switch Address Switch Switch Switch Address Address Address Switch Switch Switch Switch Address Address Address Address Switch Switch Switch Switch Switch Address Address Address Address Address 2-15...

  • Page 17: Communication Protocol Setting

    2.3.2. Communication Protocol Setting The 1 and 3 bits of the SW2 are used to set communication protocol. The factory default protocol is EVF. EVF - 1 PELCO-D PELCO-P TYPE-A Protocol Baud Rate PAL / NTSC Maching Resistance Notice: Please make sure the power is off before setting, and restart the speed dome to enable a new value after changing.

  • Page 18: Video Format Setting

    2.3.4. Video Format Setting The 6 bits of the SW2 on the PCB board are used to set the video format. The default video format depends on the factory setting. Please do not change it. NTSC Protocol Baud Rate PAL / NTSC Maching Resistance Notice: Please make sure the power is off before setting, and restart the speed dome to enable a new value after changing.

  • Page 19: Rack And Speed Dome Installation

    2.4. Rack and Speed Dome Installation 2.4.1. Installation Requirements 1. Installation should be handled by a qualified service agent and should comply with all local regulations. Service personnel should expect potential problems such as surface strength, surface material, falling objects, outer breaches, building vibration or other similar conditions.
  • Page 20 2. Thread the cable through the hole in the wall mount bracket, and screw in 4 M8 nuts for mounting the bracket. 3. Take off the housing from the packing, and take off the baseboard (4 bolts on it.) inside the housing. Thread the cable through the top of the housing. Fix the housing on the wall mount bracket, and screw in 3 M5 bolts (Hex) on the top of the bracket with the attached Hex Allen wrench to fix the housing.
  • Page 21 5. Align the two screw holes on the bottom of mechanical part to the two bolts on the base of the housing, and twist the mechanical part clockwise a little bit in order to engage it with the base. Screw the two bolts on the base, and then connect and fix the connection bus to the PCB board on the mechanical part.
  • Page 22 Notice: In order to protect the bulb from dirt and scrape, please put on the gloves before installing the bulb. 7. Turn on the power, and start to operate the EPTZ1000. Note: When turning on the power, the EPTZ1000 will enter self-inspection mode, and carry out a self-testing program.

  • Page 23: Separately Sold Accessories

    2.5. Separately Sold Accessories 2.5.1. Pole mount The pole mount is used for installing a speed dome on the ceiling indoors or outdoors. The extension poles are available for the pole mount. 2.5.2. Pole adapter The pole adapter is used for installing a wall mount bracket to a pole indoors or outdoors.

  • Page 24: Eptz1000Camera Setup Menu

    3. EPTZ1000CAMERA SETUP MENU In this section, setup and operation guide of EPTZ1000will be introduced. There are 25 items of the setting menu. However, there is only one line on the line display, so using some combination keys to operate is necessary. 3.1.

  • Page 25: Camera Setup Menu

    3.1.1. Camera Setup Menu Press MENU to enter camera setup menu. Press Shift + Joystick up/down to change subentries, and right/left to change the setting. 1. CAM ID： The name assigned to the camera. 2. DZOOM： Digital zoom enable or disable. ON: Enable a digital zoom.
  • Page 26 6. S.SHUTTER : (this function is only available for EPTZ1000) OFF: Disable auto slow shutter. AUTO: Auto Slow electrical shutter. In order to enhance the view in the low lux environment, slow shutter allows more light go through the shutter. 7.
  • Page 27 12. AUTO FLIP： Flip the camera when it tilts to the 90° end. ON: Enable auto flip. OFF: Disable auto flip. 13. ALM-IN1： The status of input alarm 1. NIGHT N.O.: Dome turns to “Night mode” if external contact open. Dome turns to “Day mode”...
  • Page 28 OFF: Disable alarm input. 17. ALM-IN PRIO： The priority of alarms. 1234: The alarm priority is 1>2>3>4. 2341: The alarm priority is 2>3>4>1. 3412: The alarm priority is 3>4>1>2. 4123: The alarm priority is 4>1>2>3. 18. ALM-OUT： Duration time of the alarm output. OFF: Disable alarm output.
  • Page 29 For Tour setting: Shift joystick to right and left (< >) for changing Set Numeral (T01A~T16A), then press “Enter” to confirm. Shift joystick to right and left for selecting PRE Numeral (position) from 01~99, then press “Enter” to confirm. Shift joystick up and down to adjust DWL (dwell) time from 0~99 sec, then press “Enter” to confirm.
  • Page 30 Select this item, and then press “Enter” to load default setting. Press “Clr” + “Menu” whenever you want to quit menu setting. 25. EXIT : To exit. Select this item, and then press “Enter” to quit setting. Press “Clr” + “Menu” whenever you want to quit menu setting. 3-29...

  • Page 31: Eptz1000Function Setup And Operation

    4. EPTZ1000FUNCTION SETUP AND OPERATION 4.1. Manual Control Mode Manual control: Shift Joystick Up/Down/Left/Right, and turn it Clockwise/Counterclockwise to control speed dome. Use the control keys which are Zoom, Focus and IRIS function keys on the keyboard to zoom In/Out, focus N (near)/F (Far), or IRIS +/-. Note: Zoom In/Out control keys will be disabled when entering to OSD menu mode.

  • Page 32: Position Setting

    to enter 360° auto pan speed (1~239). The camera will turn 360° automatically, but not tilt. 4.3. Position Setting Focus on a preset position: Press the number key, and then press Position to focus on the number of preset position; or you can press Position, then enter the preset position number, and then press Enter to focus on the number of preset position.

  • Page 33: Tour Mode

    Dwell time: default is 2 sec; It can be changed by EVF Keyboard Set + A.Pan setting dwell time of A pos or B pos. 99 => Auto scan (360 degree) Default speed is 32. It can be changed by EVF Keyboard (Shift + A.Pan setting speed).

  • Page 34: Alarm Link To A Position/Tour

    One-way tour Mode: Press Tour to enter the tour mode. The system will ask you to enter the tour number you would like to run, and starts the tour after pressing Enter. To preset a tour before running it is necessary. Preset a one-way tour: Press Set + Tour to preset a one-way tour.

  • Page 35: Other Operations

    If you set the position number to 99, the dome will do a 360 degree auto scan or AB two point pan if limit is ON. If you set the position number to 98, the dome will do a frame scan. Delete an alarm link: Press Clr + F1 to delete a link of alarm to position/tour.
  • Page 36 APPENDIX A: The Alarm I/O Connection There are 4 alarm inputs and 1 alarm output available. The alarm I/O connector that is marked as JP5 is a nine-pin connector. It is located on the PCB board of the housing. RELAY RELAY Video + Video -...
  • Page 37 Fax: 631-436-5027 TEL : +81-43-212-8188 FAX : +81-43-297-0081 www.everfocus.com www.everfocus.com Your EverFocus product is designed and Ihr EverFocus Produkt wurde entwickelt und manufactured with high quality materials and hergestellt mit qualitativ hochwertigen Materialien components which can be recycled and reused.
