Range Top with Shelf

Coverage for range w/backshelf is 21" wide by 28" long (deep) per nozzle. The ADP nozzle must be
positioned at the center (left-right) of the protected area. Additional nozzle(s) must be used for ranges
exceeding 21" in width, provided no single nozzle coverage exceeds 21" max-width. Refer to Figure 31 for
an example of modular coverage using 2 nozzles.
All dimensions fixed unless otherwise noted (e.g., min/max).
NOTE: Appliance Drop Fittings Must Not be Sealed with Pipe Dope or Teflon Tape.
32"
11"
Max
2
28" Max
per
Nozzle
1. ADP Nozzle
2. Shelf - 11" maximum distance from the rear
edge of the cooking hazard to the front edge
of the shelf.

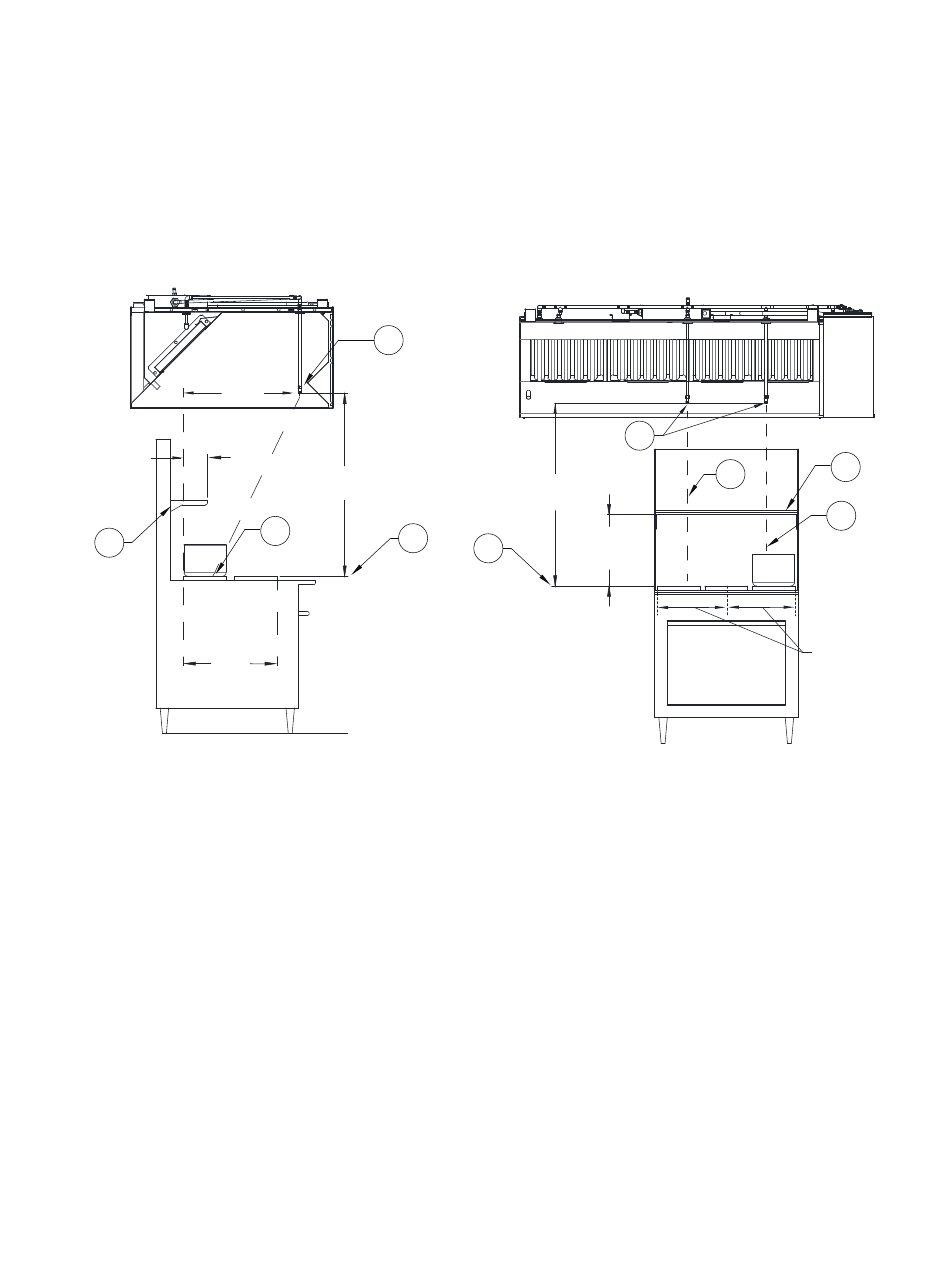

Figure 31 - Range Top with Shelf
1
40"
3
4
1
40"
18"
4
Min
3. Distance from rear edge of cooking hazard to
aim point (on the cooking surface) of the
nozzle is 4.5".
4. Top of Cooking Surface
5. Nozzle aim point at centerline of protected
module.
31
2
5
5
21" Max
per
Nozzle
