Charcoal Charbroiler (Natural/Mesquite)

ADP Nozzle mounted 24" minimum to 48" maximum from the midpoint of the cooking surface to the nozzle
tip, at an angle of 45° or more from the horizontal, aimed at the midpoint of the cooking surface.
Depth of the charcoal is limited to 6" maximum. Mesquite logs or wood are not acceptable.
NOTE: Appliance Drop Fittings Must Not be Sealed with Pipe Dope or Teflon Tape.
48 in. (1219 mm)

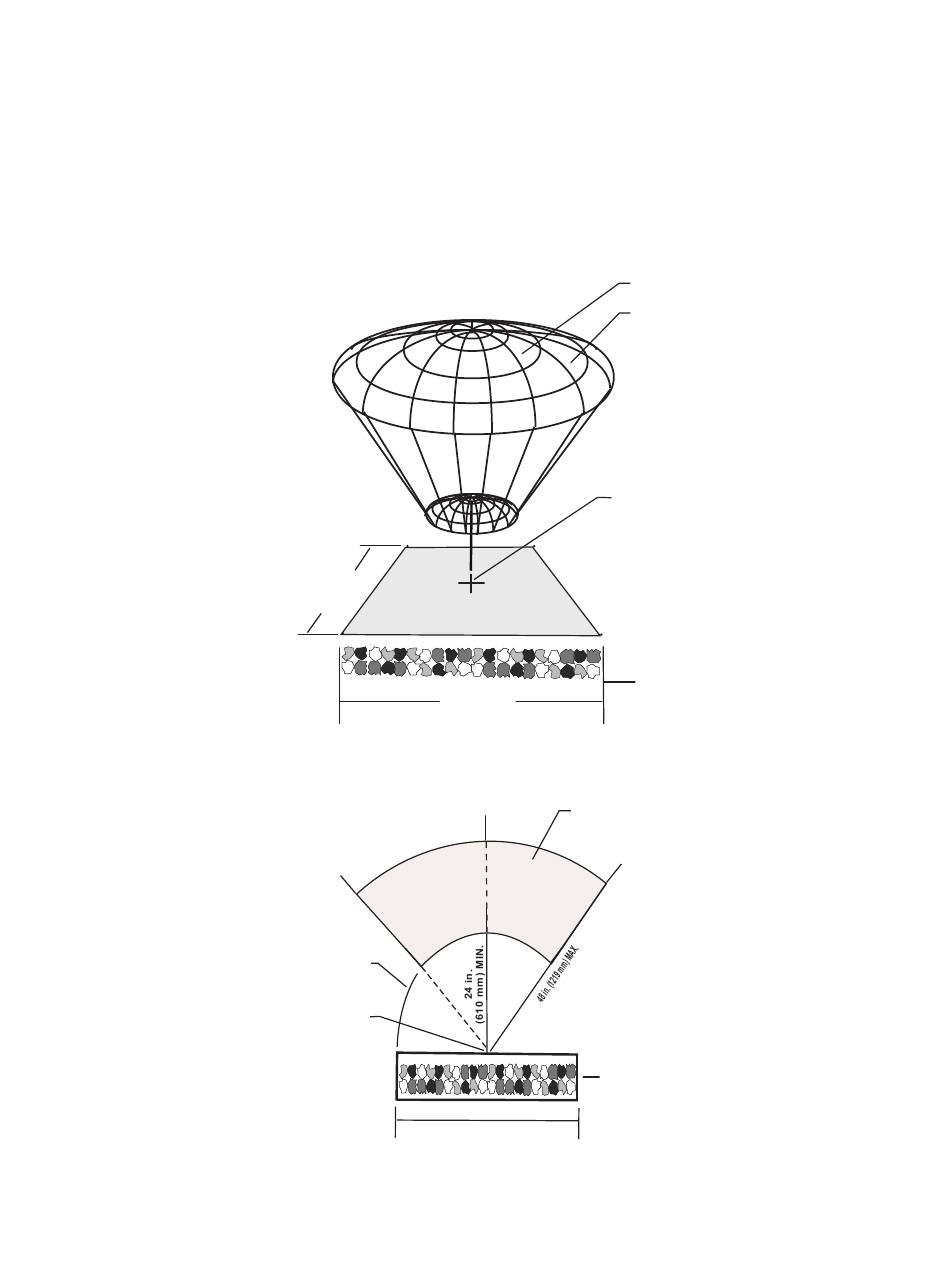

Figure 30 - Charcoal Charbroiler
48 in. (1219 mm)
MAX.
24 in. (610 mm) MAX.
24 in.
(610 mm)
MAX.
NOZZLE LOCATION
45
o
OR MORE FROM
HORIZONTAL
AIM POINT:
MIDPOINT OF
HAZARD AREA
24 in. (610 mm) MAX.
APPLIANCE AREA
FRONT VIEW
MAX.
24 in.
(610 mm)
MAX.
SIDE VIEW
AN ADP NOZZLE MAY BE
LOCATED ANYWHERE
WITHIN THE GRID
6 in. (152 mm)
MAX. FUEL
30
AN ADP NOZZLE MAY BE LOCATED
ANYWHERE WITHIN THE GRID
DIAGONAL FROM
AIM POINT
48 in. (1219 mm)
MAX.
AIM POINT: MIDPOINT
OF HAZARD AREA
6 in. (152 mm)
MAX. FUEL
