Broiler Protection

Closed-Top Chain Broiler

ADP Nozzle mounted at one corner of the chain broiler opening, vertically centered in the opening above
the conveyor, aimed at the opposite back corner.
Discharge shall not be obstructed by any structural part of the broiler.
NOTE: Appliance Drop Fittings Must Not be Sealed with Pipe Dope or Teflon Tape.

Open-Top Chain Broiler

Two ADP Nozzles are used to protect an open-top chain broiler.
Nozzle 1: mounted at one corner of the chain broiler, vertically centered in the front opening above the
conveyor, 1" back from the opening, aimed at the opposite back corner.
Nozzle 2: centered over top opening, mounted 12" to 48" above the top of the appliance.
Discharge shall not be obstructed by any structural part of the broiler.
NOTE: Appliance Drop Fittings Must Not be Sealed with Pipe Dope or Teflon Tape.
FIRST NOZZLE:
CENTERED
VERTICALLY IN
OPENING ABOVE
CHAIN
FRONT VIEW

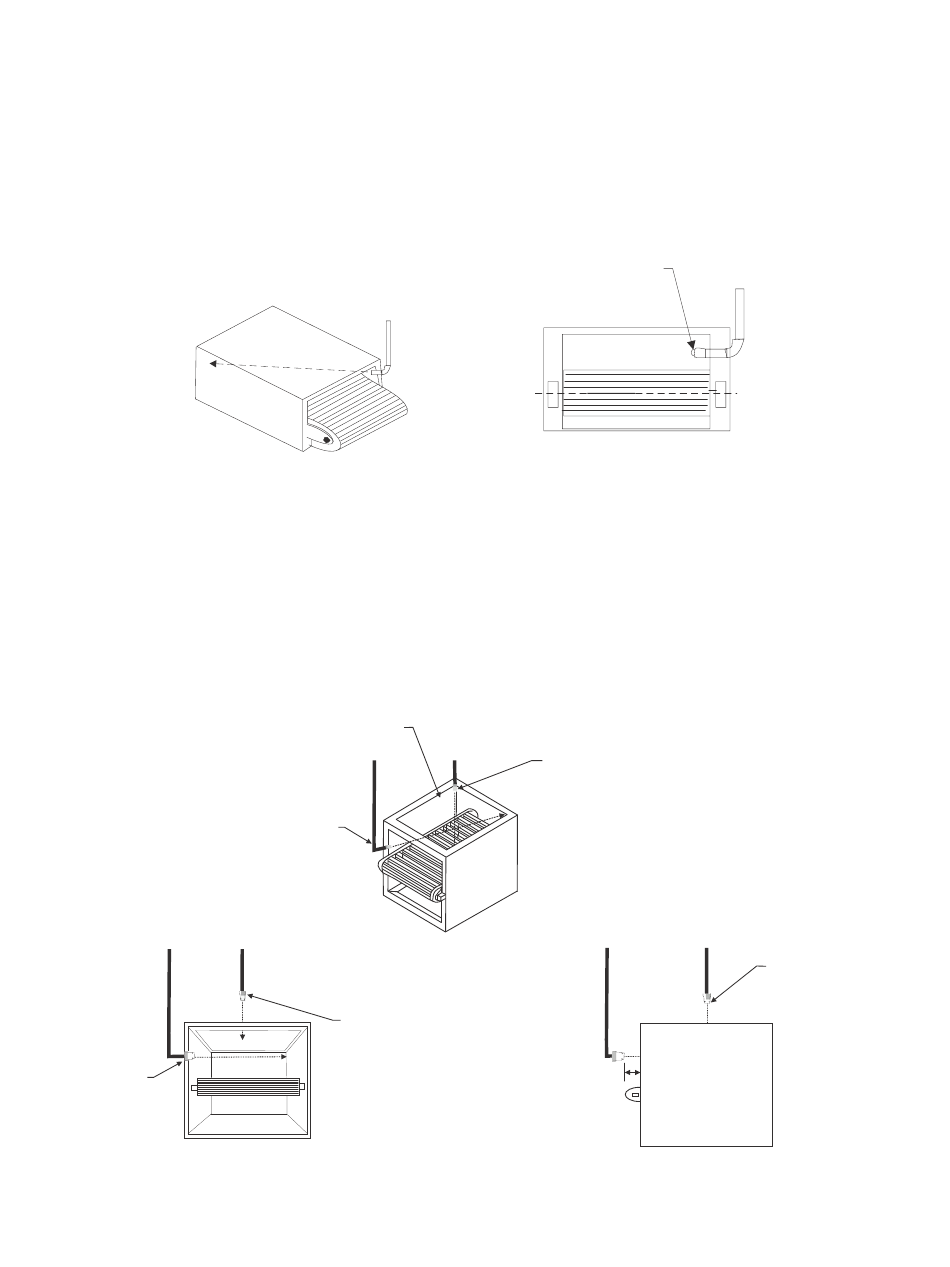

Figure 28 - Closed-Top Chain Broiler
Figure 29 - Open-Top Chain Broiler
TOP OPENING
NOZZLE CENTERED
VERTICALLY IN
OPENING ABOVE
CHAIN
SECOND NOZZLE:
CENTERED OVER
TOP OPENING OF
BROILER
12 in. (305 mm) MIN.
48 in. (1219 mm) MAX.
NOZZLE CENTERED
VERTICALLY IN OPENING
ABOVE CHAIN
SECOND NOZZLE:
CENTERED
OVER TOP OPENING OF
BROILER
12 in. (305 mm) MIN.
48 in. (1219 mm) MAX.
(1 in.)
(25 mm)
29
SECOND NOZZLE:
CENTERED OVER
TOP OPENING OF
BROILER
12 in. (305 mm) MIN.
48 in. (1219 mm) MAX.
SIDE VIEW
