Model EWC (Electric Wet Chemical) Extinguishing System
Installation, Operation, and Maintenance Manual

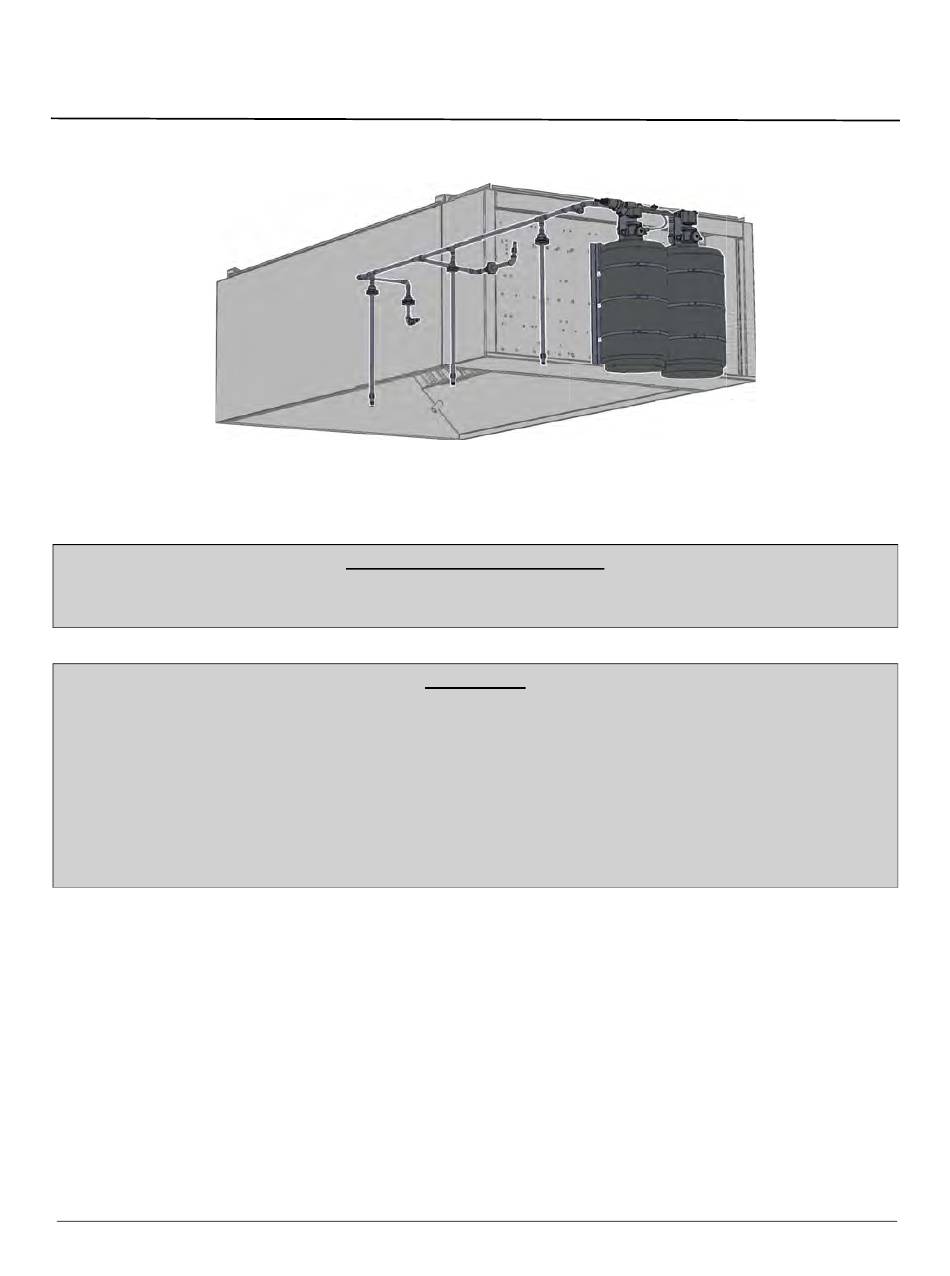

EWC Extinguishing System Typical Hood End Cabinet Installation
RECEIVING AND INSPECTION
Check for any signs of damage upon receipt, and if found, report it immediately to the carrier.
Check that all items are accounted for and free of damage.
WARNING!!
The Electric Wet Chemical (EWC) extinguishing system unit is to be installed, inspected,
recharged and maintained in accordance with NFPA 17A, NFPA 96, and the National Fire Code of
Canada as applicable.
Installation and maintenance of the EWC extinguishing system must be performed in
accordance with this manual by a factory trained and authorized distributor. Improper
installation poses serious risk of injury due to electric shock and other potential hazards. Read
this manual thoroughly before installing or servicing this equipment. ALWAYS disconnect
power prior to working on equipment.
Save these instructions. This document is the property of the owner of this equipment and is required
for future maintenance. Leave this document with the owner when installation or service is complete.
Part No. A0029342
UL EX27953
August 2020 Rev. 6

Advertisement

Table of Contents
loading

Related Manuals for CaptiveAire EWC

Summary of Contents for CaptiveAire EWC

  • Page 1 Check that all items are accounted for and free of damage. WARNING!! The Electric Wet Chemical (EWC) extinguishing system unit is to be installed, inspected, recharged and maintained in accordance with NFPA 17A, NFPA 96, and the National Fire Code of Canada as applicable.

  • Page 3: Table Of Contents

    Cleaning Nozzles ..............66 Appliance Protection ...............21 Flushing the Distribution Pipe Network ........67 Overlapping Appliance Protection ........21 Flushing Procedure with Spare/Test EWC Cylinder ....67 Group Protection..............23 Flushing Procedure with an External Water Supply....68 Overlapping Protection ............23 Cylinder Maintenance ............68 Overlapping Coverage - Group Protection ......23...

  • Page 4: Warranty

    WARRANTY Model EWC extinguishing system is warranted to be free from defects in materials and workmanship, under normal use and service, for a period of 60-months from date of shipment. Warranty does not cover consumable products such as batteries, nitrogen, and nozzle caps. This warranty is null and void if: 1.

  • Page 5: Components

    COMPONENTS The following section lists the major components used in the Model EWC extinguishing system. Figure 1 - Shipping/Test View 1. Unit is shown in Shipping/Test Position 2. Tank Straps 3. Tank Mounting Bracket (Secured to cabinet with rivets) 4. Cylinder Tanks (Up to four tanks may be installed depending on cabinet size.)

  • Page 6: Cylinder Assembly

    Cylinder Assembly The EWC cylinder assembly (p/n 87-300001-001) uses a mild steel cylinder, conforming to 4BW250 DOT & 4BWM-17 TC specifications, and a nickel-plated brass valve with pressure indicator gauge. Each valve includes a Schrader port for connection to the primary actuator hose (for primary cylinders) or the optional supervisory pressure switch (for secondary cylinders).

  • Page 7: Cylinder And Actuator Bracket

    Figure 4 - Cylinder and Actuator Bracket Discharge Adapter The discharge adapter (p/n WK-283952-000) is used to connect the EWC cylinder valve outlet to the agent distribution pipe network. The 1/2-inch NPT internal thread of the discharge adapter outlet is connected to the supply line via an elbow and adapter.

  • Page 8: Primary Actuator Kit (Pak)

    Primary Actuator Kit (PAK) The Primary Actuator Kit (PAK) (p/n 87-300030-001) is installed on each primary cylinder assembly to pneumatically open the cylinder valve and provide actuation pressure for up to three secondary valve actuators. The PAK consists of a pneumatic actuator, 24V DC solenoid valve, check valve, primary actuator hose, and associated fittings.

  • Page 9: Secondary Valve Actuator (Sva) And Hose

    Secondary Valve Actuator (SVA) and Hose A Secondary Valve Actuator (SVA) (p/n 87-120042-001) is installed on each secondary cylinder assembly to pneumatically open the cylinder valve(s). The SVA has 1/8” NPT inlet and outlet ports for connection to the system actuation line via the SVA hose. All secondary hoses require a 1” minimum bend radius. The SVA includes a spring-loaded locking pin that locks the actuator piston in the discharge position, ensuring complete discharge of the cylinder contents.

  • Page 10: Nozzles

    Nozzles There are various types of nozzles utilized in the EWC extinguishing system. The TF1 nozzle (p/n 87- 300021-001) is a 2 flow nozzle and is used for all zone protection. The ADP nozzle (p/n 87-300020-001) is a 1 flow nozzle and is used for plenum, duct, and dedicated appliance coverage (e.g., salamanders, upright broilers, chain broilers, and range with shelf).

  • Page 11: Gas Shut-Off Valves

    Electric gas shut-off valves are used to shut down the flow of fuel gas to the kitchen appliances upon actuation of the EWC suppression system. An energized solenoid is used to hold the gas valve in the open position. The solenoid closes the valve when de-energized via the output relay of the control panel. They are available in 120V AC and 24V DC, ranging from 3/4”...

  • Page 12: Installation

    In a fire condition or upon manual actuation, the EWC solenoid valve is opened, allowing pressure from the primary cylinder to flow to the primary and secondary cylinder valve actuators, opening the cylinder valves and discharging EWC liquid fire suppressant to the protected hazard areas.

  • Page 13: Vent Plug

    Vent Plug The vent plug is factory-installed in the agent distribution supply line. The vent plug can be installed in the outlet or run off a tee in the distribution pipe network. The vent plug must be installed from a horizontal to vertically up position to ensure that it will open upon slight rises in pipe system pressure (e.g., due to ambient temperature fluctuation).

  • Page 14: Primary Actuator Kit (Pak)

    Primary Actuator Kit (PAK) Figure 16 - Actuator Valve Set Position The primary actuator kit is mounted to the primary cylinder bracket during shipment and when testing the system. With the cylinders securely mounted and connected to the system piping, the primary actuator kit can be installed onto the primary cylinder for the final setup.

  • Page 15: Supervisory Pressure Switch

    Supervisory Pressure Switch A supervisory pressure switch will always be located on the primary cylinder by the Primary Actuator Kit (PAK). For secondary cylinders, this is an optional component that may be added on. For primary cylinders, the pressure switch is mounted on the primary actuator kit. For all secondary cylinders, the pressure switch is mounted on the Schrader fitting on the cylinder valve.

  • Page 16: Duct And Plenum Protection

    Duct and Plenum Protection The EWC extinguishing system for duct and plenum coverage can be provided by independent EWC tanks and piping or integrated with the EWC tanks and piping used for protection of the appliances. Plenum Protection The ADP nozzle is used to protect plenum areas in both single bank and v-bank plenum configurations. A single ADP nozzle will protect up to a 4' wide x 10' long plenum section.

  • Page 17: Duct Protection

    Figure 19 - Dual V-Bank Filter Plenum SIDE VIEW TOP VIEW *Isolated Plenum Place for Clarity *Isolated Plenum Place for Clarity 4' Max Plenum Nozzle Height 10' Max Filter Filter 0-6" Plenum Nozzle 4' Max Duct Protection The ADP nozzle is used for the protection of exhaust ductwork and can protect any duct cross-section type (e.g.
  • Page 18 Table 3 - Rectangular Duct Coverage Maximum Two ADP Nozzle Duct Coverage Single Nozzle Duct Coverage (50 to 100 inches perimeter) (50 inches or less perimeter) Side A (Inches) Maximum Side B (Inches) Side A (Inches) Maximum Side B (Inches) 44”...
  • Page 19 Nozzles must be installed from 0" to 6" into the protected area of the duct. When more than 1 ADP nozzle is required (modular protection), each nozzle must be located at the center of its protected module area. Additional nozzles are not required for changes in direction*. Duct obstructions and common ductwork must be protected in accordance with this manual, NFPA 17A and NFPA 96.

  • Page 20: Ventilation Exhaust And Dampers

    Ventilation Exhaust and Dampers The EWC extinguishing system can be used with the exhaust fan either on or off when the system is discharged. It is recommended that the exhaust fan remain on at the time of discharge to aid in the removal of smoke, gases, and other airborne materials from the hazard area in the event of a fire.

  • Page 21: Appliance Protection

    Appliance Protection The EWC system utilizes both overlapping and dedicated nozzle appliance coverage, depending on the type of cooking appliance(s) requiring protection. Overlapping appliance coverage allows a given area under the hood, defined as the hazard zone, to be protected by overlapping (TF1) nozzles. Nozzles are evenly spaced at the same height and alignment (front-to-back) relative to the hazard zone.
  • Page 22 8. When the depth of the appliance exceeds maximum cooking hazard dimensions, a second row of nozzle coverage should be added. Figure 23 illustrates the placement of nozzles for EWC overlapping protection.

  • Page 23: Group Protection

    Group Protection Overlapping protection provides coverage for a continuous hazard zone, with all TF1 nozzles at consistent position (i.e. zone centerline), spacing, and height. When there is an area within a hazard zone for which continuous overlapping coverage is not applicable, the overlapping protection zone must be ended, and a new zone started for the new group of appliances.
  • Page 24 Group Protection Example 1 – Appliance line separated by unprotected space. End nozzles must be located 12” or less (horizontally) from the end of the hazard zone. Overlapping nozzles must be spaced no further than the maximum allowed interval 24” on center. Figure 24 - Example 1 Overlapping Hazard Zone 12”...
  • Page 25 Example 2 – Appliance line separated by appliance requiring dedicated appliance protection (e.g., Salamander, upright broiler, range with obstruction). Figure 25 - Example 2 Overlapping Hazard Zone 12” 12” 12” 12” DEDICATED ZONE 1 ZONE 2 APPLIANCE A. Zone 1 Overlapping Nozzle Spacing C.
  • Page 26 Example 3 – Appliance lines with overlapping nozzles at different heights Figure 26 - Example 3 Overlapping Hazard Zone 12” 12” 12” 12” ZONE 1 ZONE 2 A. Zone 1 Overlapping Nozzle Spacing C. Zone 2 Overlapping Nozzle Spacing B. Zone 1 Overlapping Nozzle Height D.

  • Page 27: Dedicated Appliance Protection

    Charcoal Char-broiler wide, max 6 inch fuel depth (Natural/Mesquite) 28 inches deep x 21 inches wide EWC Appliance with Shelf 26 inches deep x 18 inches wide EWC Appliance with Obstruction Notes: 1. Dimensions above for the Upright/Salamander Broiler and Chain broilers are referencing the inside broiler compartment.

  • Page 28: Upright Broiler/Salamander Protection

    Upright Broiler/Salamander Protection Install union in pipe leading to nozzle to allow for appliance removal and cleaning. ADP Nozzle mounted within top 4” of broiler compartment, near the front opening, and aimed through grill toward center of grease drain opening. Discharge shall not be obstructed by any structural part of the broiler.

  • Page 29: Broiler Protection

    Broiler Protection Closed-Top Chain Broiler ADP Nozzle mounted at one corner of the chain broiler opening, vertically centered in the opening above the conveyor, aimed at the opposite back corner. Discharge shall not be obstructed by any structural part of the broiler. NOTE: Appliance Drop Fittings Must Not be Sealed with Pipe Dope or Teflon Tape.

  • Page 30: Charcoal Charbroiler (Natural/Mesquite)

    Charcoal Charbroiler (Natural/Mesquite) ADP Nozzle mounted 24” minimum to 48” maximum from the midpoint of the cooking surface to the nozzle tip, at an angle of 45° or more from the horizontal, aimed at the midpoint of the cooking surface. Depth of the charcoal is limited to 6”...

  • Page 31: Range Top With Shelf

    Range Top with Shelf Coverage for range w/backshelf is 21" wide by 28" long (deep) per nozzle. The ADP nozzle must be positioned at the center (left-right) of the protected area. Additional nozzle(s) must be used for ranges exceeding 21” in width, provided no single nozzle coverage exceeds 21” max-width. Refer to Figure 31 for an example of modular coverage using 2 nozzles.

  • Page 32: Range With Obstruction

    Range with Obstruction Coverage for range w/obstruction is 18" wide by 26" long (deep) per nozzle. The R nozzle must be positioned at the left and/or right edge and centered on the depth of the protected area. One R nozzle can provide protection for ranges 18 inches wide by 26 inches deep.

  • Page 33: Range With Upright Obstruction

    Range with Upright Obstruction Salamander/Cheesemelters that are mounted over range(s) require dedicated coverage. Coverage for range w/upright obstruction is 18" wide by 26" long (deep) per nozzle. The R nozzle must be positioned at the left to right edge and centered on the depth of the protected area. One R nozzle can provide protection for ranges 18 inches wide by 26 inches deep.

  • Page 34: Agent Distribution Piping

    Agent Distribution Piping The agent distribution piping shall be 3/8” NPT Schedule 40 black iron, chrome-plated or stainless-steel pipe and fittings. Fittings shall be minimum class 150. The pipe for the nozzle drops cannot be sleeved in steel but can be made from polished stainless steel, or polished chrome-plated black iron. Galvanize pipe or fittings must not be used.

  • Page 35: Single Cylinder Nozzle And Piping Parameters

    Single Cylinder Nozzle and Piping Parameters A single cylinder supports up to 6 flow points. Table 6 - Single Cylinder System Configurations TF1 Nozzle Qty ADP Nozzle Qty 2 Max Table 7 - Agent Distribution Piping Limitations for Single Cylinder System Pipe Section Max Pipe Length (ft) Max Number of Elbows...
  • Page 36 Table 8 - Single Cylinder with Additional ADP Nozzles (Recommended) Max Total Max Total Max Total Max Total Max Total TF Nozzle ADP Nozzle Max Total Max Supply Overlapping Appliance Combined Overlapping Appliance System Pipe Line Pipe Branch Branch Branch Branch Pipe Branch Pipe Elbow...

  • Page 37: Dual Cylinder Nozzle And Piping Parameters

    Dual Cylinder Nozzle and Piping Parameters A dual cylinder system supports up to 12 flow points. Dual cylinder can be piped in series or parallel with a maximum of 24” of pipe between cylinders. Table 9 - Dual Cylinder System Configurations TF1 Nozzle Qty ADP Nozzle Qty 2 Max...
  • Page 38 Table 11 - Dual Cylinder with Additional ADP Nozzles (Recommended) Total Total Total Total Total Total Supply Nozzle Nozzle Overlapping Appliance Overlapping Appliance Combined System Line Branch Branch Branch Branch Branch Pipe Pipe Pipe Pipe Elbow Elbows Elbows 4 Max 70’...

  • Page 39: Nozzles

    NOTE: The EWC extinguishing system design must be reviewed if any hazard changes have been made, including (but not limited to): appliance type, appliance sizes, appliance location, factory pre-piping or nozzles, plenum size or configuration, and duct size or configuration.

  • Page 40: Gas Shut-Off Valves

    Gas Shut-Off Valves The electric gas valve is held open in the energized state, and closes when de-energized via the output relay of the control panel. A listed manual reset relay is required to ensure manual reset prior to fuel being restored in accordance to NFPA17A.

  • Page 41: Fire Protection System Firestat

    Fire Protection System Firestat NOTE: There must be adequate clearance above the hood to access components. 18-inches of service clearance is recommended. The Firestat is a device installed in the riser of the hood, at the duct connection, that measures temperature.
  • Page 42 Figure 36 - Firestat Table 13 - Firestat Components Item Number Part Number Description 12-F28021-005360 Normally Open, Close on Rise @ 360°F Series 08-80 Normally Open, Close on Rise @ 360°F 32-00002 1/2” NPT Quik Seal (Adapter Body) 32-00002 1/2” NPT Quik Seal (Gasket) Hood/Duct (External Surface) 1-1/8”...

  • Page 43: Fire Protection Manual Actuation Device

    Fire Protection Manual Actuation Device Figure 37 - Activation Device The push/pull station is a remote manual actuation device to activate the fire system. This remote manual actuation device (push/pull station) contains one set of normally open contacts and mounts to any standard single gang junction box.

  • Page 44: Battery Backup

    Battery Backup Important!! The battery backup system requires that the batteries be changed every 2 years, from the date of fire system commissioning, maximum. Failure to do this will result in a void in product reliability and may cause severe damage to facility due to loss of fire protection. Figure 39 - Battery Backup The fire protection system contains a battery backup.

  • Page 45: Fire Protection System Printed Circuit Board

    Fire Protection System Printed Circuit Board The fire protection system printed circuit board (PCBCORE) is a microprocessor-based controller that provides all the necessary monitoring, timing, and supervision functions required for the reliable operation of the fire system. Under normal conditions, the “Fire System Activated” light is flashing one brief flash every 3 seconds, indicating the system is armed and ready.
  • Page 46 Connector Descriptions Note: Some connections may not be used dependent on system configurations. Connector J1 contains battery pack connections for battery charging and monitoring. Pin 1 – Battery Positive Pin 2 – Battery Negative Connector J2 contains Supervised Sensor Loop connections Pin 1 –...
  • Page 47 Connector J5 and J6 is for RJ-45 connections These two connections are for the Modbus Network. This network may be used by non-fire system related equipment to monitor operating conditions of the electrical (PCBCORE) board. Connector J7 Interlock Network connections Pin 1 –...

  • Page 48: Electrical

    ELECTRICAL WARNING!! Disconnect power before installing or servicing control. High voltage electrical input is needed for this equipment. A qualified electrician should perform this work. Before connecting power to the control package, read and understand the entire section of this document. As-built wiring diagrams are furnished with each control package from the factory and are either attached to the door of the unit or provided with the paperwork packet.

  • Page 49: Wire Ampacity Rating

    Wire Ampacity Rating The load current rating and the over-current protection for conductor types shall not exceed 15 amperes for 14 AWG, 20 amperes for 12 AWG, and 30 amperes for 10 AWG aluminum and copper-clad aluminum after any correction factors for ambient temperature and number of conductors have been applied. Table 15 - Copper Wire Ampacity @ 75°C Wire Size AWG Maximum Amps...

  • Page 50: Fire Group

    Fire Group Fire Groups are for the purpose of using multiple CORE controlled fire systems and grouping specific fire systems together. This will allow the user the ability to assign different zones for independent activation. In order to set a fire group, you will need to set the CORE board DIP switches to: Table 17 - Fire Group DIP Switch Position Fire Group Number Open...

  • Page 51: Fire Protection System Supervised Loops

    Fire Protection System Supervised Loops NOTE: There must be adequate clearance above the hood to access components. Service clearance of 18-inches is recommended. The supervised loops are integral to proper operation and activation of the Fire Protection System. All systems have two supervised loops; each loop consists of two conductors, one positive and one negative. One loop is dedicated to all sensors, while the other is dedicated to all manual actuation devices (push/pull stations).

  • Page 52: Operation

    OPERATION The EWC extinguishing system is electrically operated via the applicable fire alarm control panel. The system can be activated automatically via an electric thermal detector or manually via a remote manual actuator. The EWC extinguishing system is electrically operated via the PCBCORE control board. The system can be activated automatically via a Firestat or manually via a remote manual actuator.

  • Page 53: Reset Overview

    Reset Overview There are multiple actions required to reset the fire system. The following must be completed by a Certified Fire System Technician. 1. The duct firestat must be cooled below its internal set point. 2. The remote manual actuation device (push/pull station) must be reset by twisting the button clockwise until it resets.
  • Page 54 When a building fire alarm system is present, the fire alarm control panel must be connected in accordance with the NFPA 72 such that the actuation of the EWC extinguishing system also activates the fire alarm. Reference the applicable control panel manual for wiring and compatibility.

  • Page 55: Troubleshooting

    TROUBLESHOOTING Table 19 lists out causes and corrective actions for possible problems with the system. Review this list prior to consulting manufacturer. Table 19 - Fire Protection System Troubleshooting Problem Potential Cause Corrective Action Broken supply fan belt Replace fan belt. Exhaust Fan On and Supply Fan Fire system distributor must arm will not Start...

  • Page 56: Appliance Shutdown In Fault Conditions

    Appliance Shutdown in Fault Conditions The Fire Protection System is equipped to shut down the appliances if a fault condition is present. Table 20 shows which fault condition affects the appliances’ fuel and power sources, alarm muting, and local trouble relay. Table 20 - Appliance Fault Conditions Shut Down Shunt Trip Mute...

  • Page 57: Supervised Loop Wiring Troubleshooting

    Supervised Loop Wiring Troubleshooting NOTE: Place the panel in test mode during diagnostic testing. Prior to troubleshooting, verify all CORE power supplies are set to 27.5 volts. Check all supervised loop connections. Verify wiring is properly connected and secure. If any of the “Normal Operating Voltages” are out of range, there is an issue with that loop or associated components/wiring.

  • Page 58: Dip Switch Settings

    DIP Switch Settings When set from the factory, switches 1, 5, and 8 are in the Closed (On) positions. Switch 2, 3, 4, 6, 7 are in the Open (Off) position. These should be considered the default positions and should not be changed. Table 21 - DIP Switch Settings DIP Switch # Description...

  • Page 59: Typical Dip Switch Arrangement

    Typical DIP Switch Arrangement Only One Fire Protection System Panel on the network: Core Board # DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8 #1 (Hood Master) Closed Open Open Open Closed Open Open Closed...

  • Page 60: Inspection And Test

    INSPECTION AND TEST Once installation has been completed, the EWC suppression system must be checked for proper installation and operation before it can be put into service. Start-up/Test Procedure Preparing System for Test 1. Verify that all solenoid wires are secured and not touching hood.

  • Page 61: Test Procedure

    Test Procedure 1. Remove threaded nozzle caps. 2. Remove hood filters. This will expose the Firestat(s) and the duct and plenum drops. 3. Place testing balloons over all nozzles (appliance, duct, and plenum). 4. Turn the Nitrogen Service Cylinder on to pressurize the system. CAUTION!: Supplied Nitrogen Pressure Must be 25 psig Minimum to 200 psig Maximum.

  • Page 62: Disconnecting Service Tank/Re-Arming System

    Disconnecting Service Tank/Re-arming System 1. Relieve pressure in the primary actuator hose by slowly disconnecting the 1/4” refrigerant test hose from the Nitrogen Service Cylinder. 2. Relieve pressure in the actuation line by slowly disconnecting the 1/4” refrigerant test hose from the PAK service port, as well as removing the 1/4”...

  • Page 63: Maintenance

    This chapter contains the inspection and maintenance instructions for the EWC extinguishing system. These procedures must be performed in accordance with NFPA 17A and the National Fire Code of Canada as applicable.

  • Page 64: Every Six Months (Authorized Distributor)

    Every Six Months (Authorized Distributor) All systems shall be inspected and serviced semi-annually by an authorized distributor. 1. Place the control panel in test mode and ensure there are no supervision faults (refer to “Reset Overview” on page 53. 2. Disconnect the primary actuator hose from primary cylinder. 3.

  • Page 65: Conditional Maintenance

    Conditional Maintenance Replacing A Primary Actuation Kit If a PAK fails to operate during system testing, follow these steps to replace the PAK: 1. Ensure the primary actuation hose is not connected to the primary cylinder or a nitrogen pressure supply system.

  • Page 66: Post-Discharge Maintenance

    Clean up should be completed within 24 hours of any system discharge. EWC cylinders need to be recharged or replaced every 12 years, and after any system discharge. Appliance Cleanup No unusual cleanup procedure is required.

  • Page 67: Flushing The Distribution Pipe Network

    The pipe network can also be flushed utilizing an external water supply if available. Flushing Procedure with Spare/Test EWC Cylinder 1. Check the pressure gauge on each cylinder to ensure it has been depressurized.

  • Page 68: Flushing Procedure With An External Water Supply

    14. Complete the Start-up/Test Procedure. Refer to “Start-up/Test Procedure” on page 60. Cylinder Maintenance EWC cylinders need to be recharged or replaced every 12 years, and after any system discharge. WARNING! Never assume that a cylinder is unpressurized. Handle all cylinders as if they are pressurized until verified otherwise.

  • Page 69: Removing A Cylinder

    Removing a Cylinder Follow these steps when removing a cylinder: 1. On the primary cylinder, disconnect the hose that connects the PAK with the cylinder. 2. Remove the mounting bolts connecting the PAK to the primary cylinder. Lift the PAK up and place the PAK into the bracket in the ship/test position.

  • Page 70: Depressurizing A Cylinder

    Depressurizing a Cylinder WARNING! Failure to correctly secure the hose could result in death, serious bodily injury, and/or property damage. 1. Secure the cylinder in a chain vice, strap vice, or similar device. 2. Prepare high-pressure discharge hose with a spare ADP or TF1 nozzle on the end. 3.

  • Page 71: Rebuilding The Valve/Siphon Tube Assembly

    Rebuilding the Valve/Siphon Tube Assembly CAUTION! Only use new components when rebuilding a valve. All necessary replacement components are included in the Valve Rebuild Kit P/N 87-120067-001. Do not rebuild a valve with any other components (e.g used or aftermarket). When rebuilding the valve, use Valve Rebuild Kit P/N 87-120067-001.

  • Page 72: Charging Cylinders

    Do not attempt to recharge any cylinder without first checking for most recent hydrostatic test date. In accordance with DOT and TC regulations, the EWC wet chemical cylinder must not be recharged or transported without first being inspected internally and externally, and hydrostatically tested if more than 5 (five) years have elapsed since the date of the last hydrostatic test.

  • Page 73: Recharging An Ewc Cylinder

    2. Ensure the cylinder has been hydrostatically tested, if applicable, and has been cleaned and inspected. 3. Fill the cylinder with Liquid Fire Suppressant recharge P/N 87-300101-001. The EWC recharge is factory filled to the correct quantity for refill. Ensure the complete contents of the refill are used.

  • Page 74: Charging A Spare/Test Cylinder

    Charging a Spare/Test Cylinder 1. Secure the cylinder in a chain vice, strap vice, or similar. 2. Ensure the cylinder has been hydrostatically tested, if applicable, and has been cleaned and inspected. 3. Fill the cylinder with approximately 4 gallons of clean water. 4.

  • Page 75: Ewc Suppression System Parts

    EWC SUPPRESSION SYSTEM PARTS Table 24 - System Components Description Part Number A/X Number 87-300001-001 A0030114 EWC Cylinder Assembly, Filled & Pressurized Bracket, EWC Cylinder EWC-UCTANKBRACKET Discharge Adapter WK-283952-000 A0030115 O-Ring for Discharge Adapter WK-108019-000 A0030738 Vent Plug, Distribution Piping...

  • Page 76: Start-Up And Maintenance Documentation

    Start-Up and Maintenance Documentation START-UP AND MEASUREMENTS SHOULD BE PERFORMED AFTER THE SYSTEM HAS BEEN INSTALLED (Warranty will be void without completion of this form) Job Information Job Name Service Company Address Address City City State State Phone Number Phone Number Fax Number Fax Number Contact...
