INSTALLATION
1. ATTACH SLIDING RADIAL DAMPER
TO TOP SIDE OF NECK (NOT USED
FOR DI-RETURN).
3. USE MINIMUM 12 SWG STEEL WIRE TO
SUPPORT THE CORNERS OF THE DIFFUSER.
MINIMUM OF TWO DIAGONAL CORNERS
MUST BE SUPPORTED BY CEILING JOISTS.

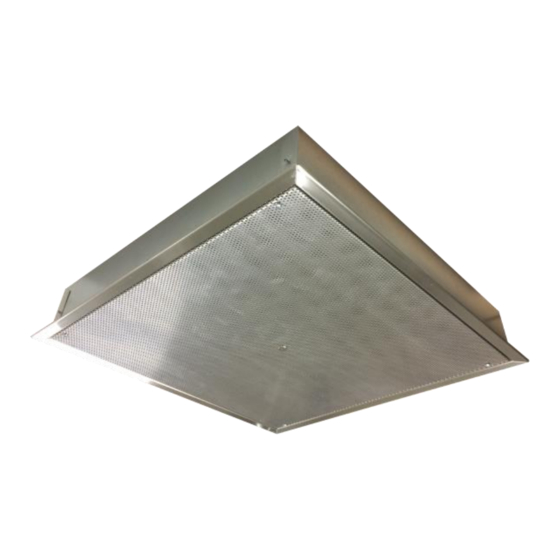

DROP-IN DIFFUSER & RETURN
2. PLACE THE PLENUM IN THE DESIRED LOCATION
OF THE 24" X 24" T-BAR CEILING GRID.
4. ATTACH SUPPLY DUCT TO PLENUM NECK
USING A STEEL CLAMP OR 16 SWG MINIMUM
STEEL WIRE. THE DUCT CONNECTION MUST
NOT INTERFERE WITH DAMPER OPERATION.
MODELS: DI-PSP
DI-FUSE
DI-RETURN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CaptiveAire DI-PSP
Summary of Contents for CaptiveAire DI-PSP
- Page 1 DROP-IN DIFFUSER & RETURN MODELS: DI-PSP DI-FUSE DI-RETURN INSTALLATION 1. ATTACH SLIDING RADIAL DAMPER 2. PLACE THE PLENUM IN THE DESIRED LOCATION TO TOP SIDE OF NECK (NOT USED OF THE 24” X 24” T-BAR CEILING GRID. FOR DI-RETURN). 3. USE MINIMUM 12 SWG STEEL WIRE TO 4.
- Page 2 OPERATION • TO ACCESS THE SLIDING RADIAL DAMPER FOR VOLUME ADJUSTMENT, REMOVE THE STEEL PLUG AT THE CENTER OF THE BOTTOM PERFORATED PANEL. • THE DAMPER CAN BE ADJUSTED USING A FLAT-HEAD SCREWDRIVER OR 3/8” SOCKET (MINIMUM 8” BLADE LENGTH REQUIRED). •...
