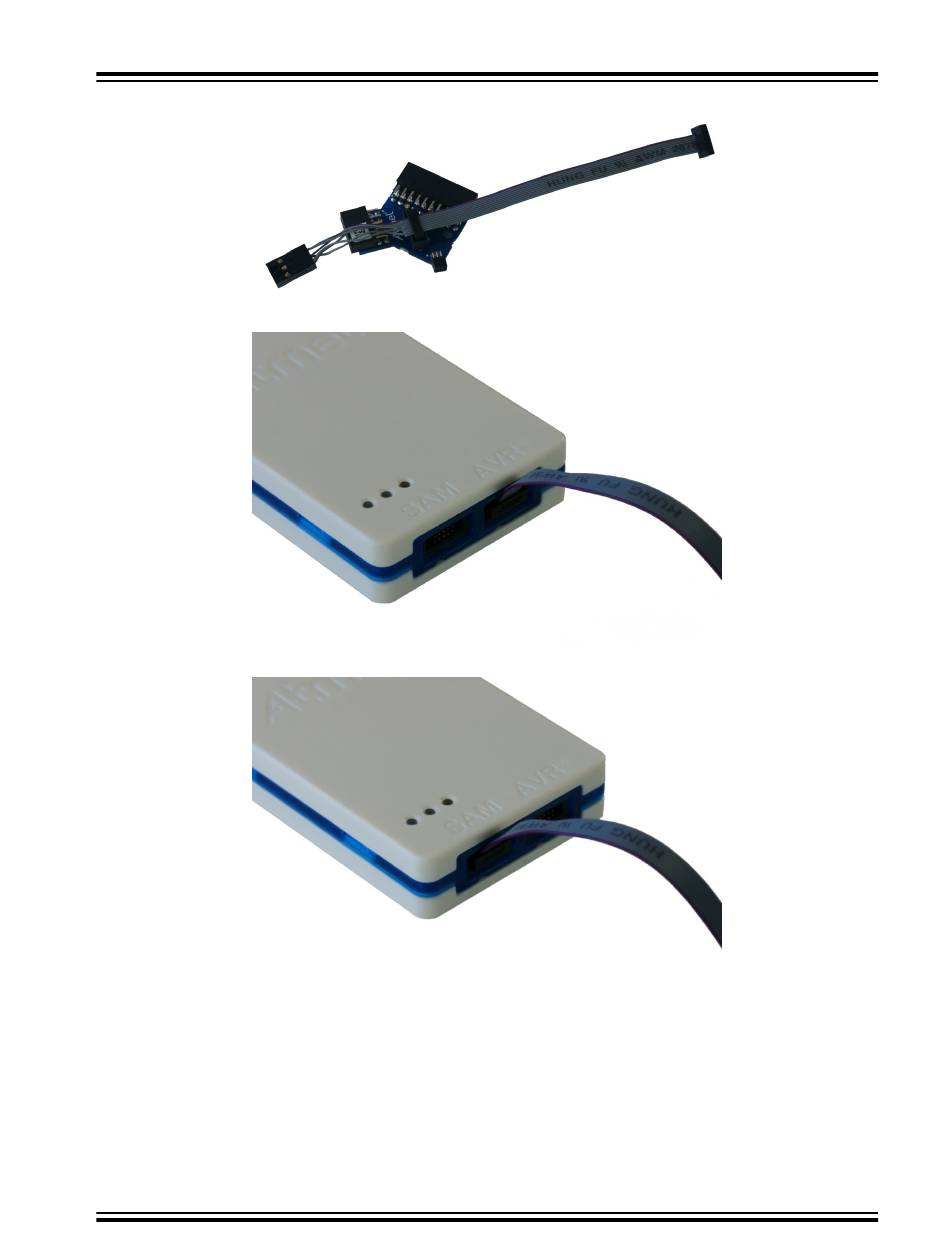

Figure 2-9. Atmel-ICE Cable Connection
®
Figure 2-10. Atmel-ICE AVR Probe Connection
Figure 2-11. Atmel-ICE SAM Probe Connection
2.7

Opening the Atmel-ICE

Note:
For normal operation, the Atmel-ICE unit must not be opened. Opening the unit is done at your own risk. Anti-static
precautions should be taken.
The Atmel-ICE enclosure consists of three separate plastic components - top cover, bottom cover, and blue belt -
which are snapped together during assembly. To open the unit, insert a large flat screwdriver into the openings in the
