3.

Connecting the Atmel-ICE

3.1
Connecting to AVR
The Atmel-ICE is equipped with two 50-mil 10-pin JTAG connectors. Both connectors are directly electrically
connected, but conform to two different pinouts; the AVR JTAG header and the Arm Cortex Debug header. The
connector should be selected based on the pinout of the target board, and not the target MCU type - for example, a
SAM device mounted in an AVR STK600 stack should use the AVR header.
Various cabling and adapters are available in the different Atmel-ICE kits. An overview of connection options is
shown.

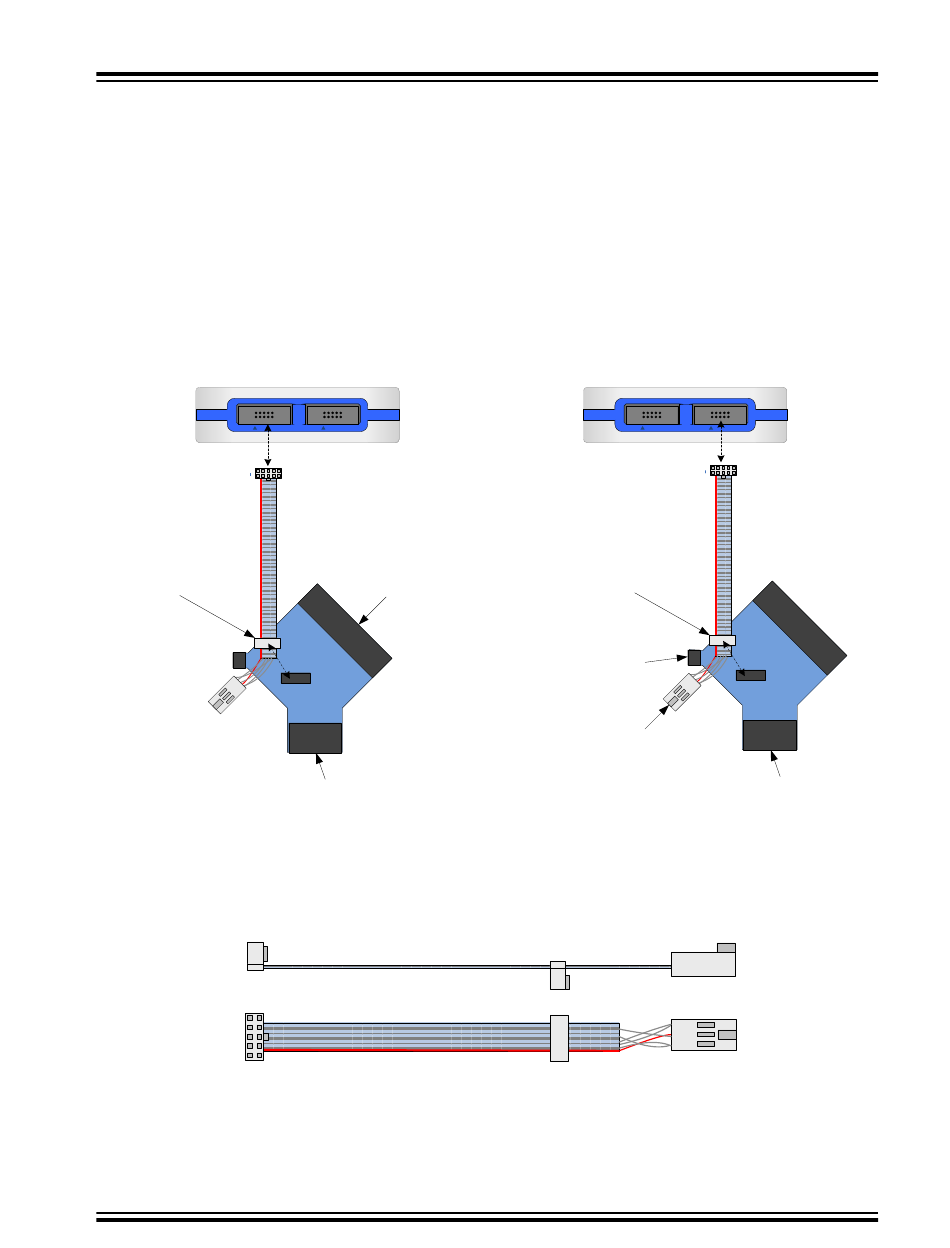

Figure 3-1. Atmel-ICE Connection Options
10-pin 50-mil JTAG/SWD
®
(Cortex
debug header)
The red wire marks pin 1 of the 10-pin 50-mil connector. Pin 1 of the 6-pin 100-mil connector is placed to the right of
the keying when the connector is seen from the cable. Pin 1 of each connector on the adapter is marked with a white
dot. The figure below shows the pinout of the debug cable. The connector marked A plugs into the debugger while
the B side plugs into the target board.
Figure 3-2. Debug Cable Pinout
©
2020 Microchip Technology Inc.
®

and SAM Target Devices

®
SAM
AVR
20-pin 100-mil SAM
header
(for EVKs etc)
10-pin 100-mil
JTAG/SWD header
A
2
1
10
9
Programmers and Debuggers
Connecting the Atmel-ICE
SAM
10-pin 50-mil AVR
JTAG header
6-pin 50-mil AVR
®
ISP/
debugWIRE/PDI/aWire/
TPI header
6-pin 100-mil AVR
debugWIRE/PDI/aWire/
TPI header
10
9
2
1
User Guide
®
AVR
®
®
ISP/
®
10-pin 100-mil AVR
JTAG header
B
1
2
5
1
DS50002999A-page 12
