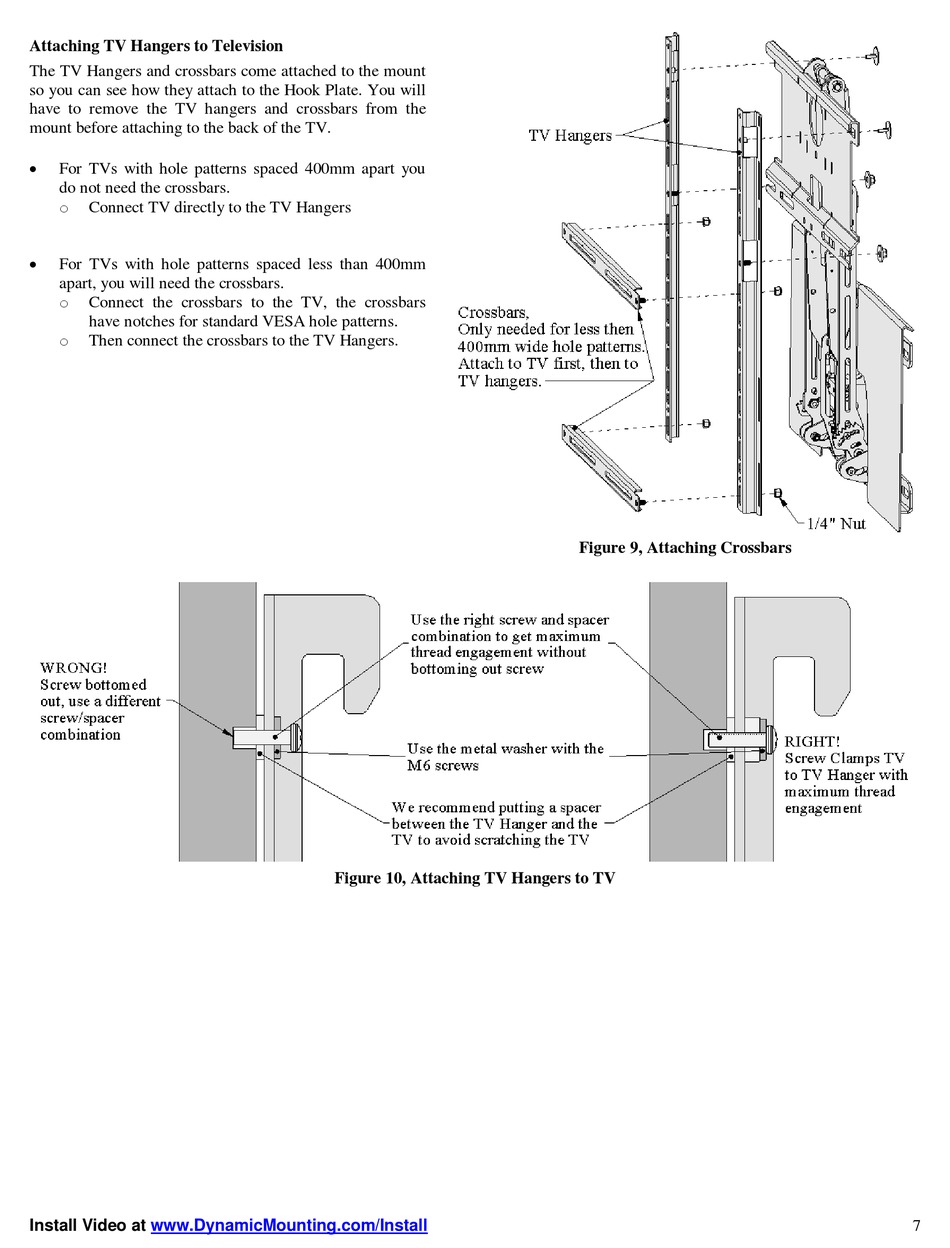

Attaching TV Hangers to Television
The TV Hangers and crossbars come attached to the mount
so you can see how they attach to the Hook Plate. You will
have to remove the TV hangers and crossbars from the
mount before attaching to the back of the TV.
For TVs with hole patterns spaced 400mm apart you
do not need the crossbars.
o
Connect TV directly to the TV Hangers
For TVs with hole patterns spaced less than 400mm
apart, you will need the crossbars.
o
Connect the crossbars to the TV, the crossbars
have notches for standard VESA hole patterns.
o
Then connect the crossbars to the TV Hangers.
Install Video at
www.DynamicMounting.com/Install
Figure 10, Attaching TV Hangers to TV
Figure 9, Attaching Crossbars
7
