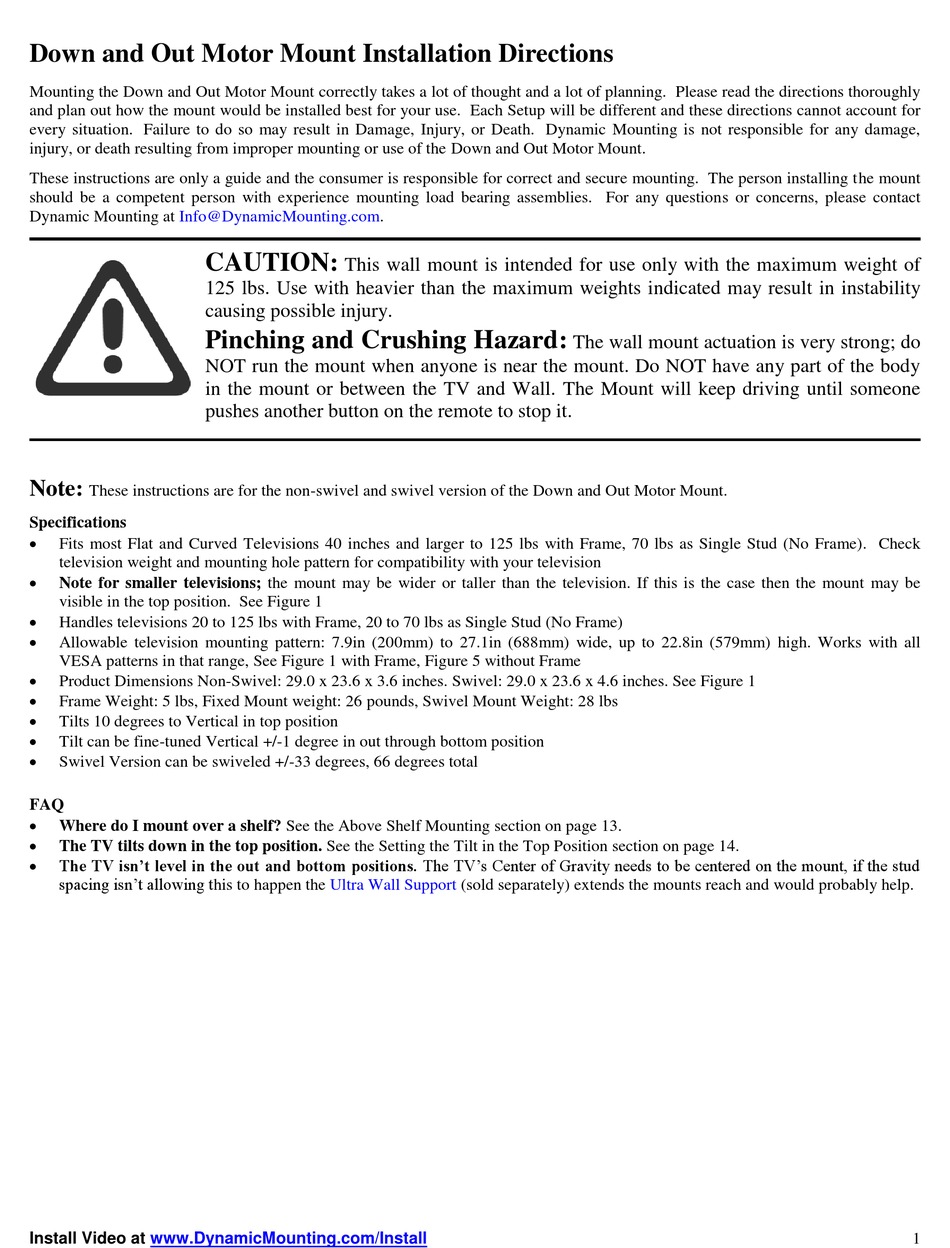

Down and Out Motor Mount Installation Directions
Mounting the Down and Out Motor Mount correctly takes a lot of thought and a lot of planning. Please read the directions thoroughly
and plan out how the mount would be installed best for your use. Each Setup will be different and these directions cannot account for
every situation. Failure to do so may result in Damage, Injury, or Death. Dynamic Mounting is not responsible for any damage,
injury, or death resulting from improper mounting or use of the Down and Out Motor Mount.
These instructions are only a guide and the consumer is responsible for correct and secure mounting. The person installing the mount
should be a competent person with experience mounting load bearing assemblies. For any questions or concerns, please contact
Dynamic Mounting at Info@DynamicMounting.com.
CAUTION:
125 lbs. Use with heavier than the maximum weights indicated may result in instability
causing possible injury.
Pinching and Crushing Hazard:
NOT run the mount when anyone is near the mount. Do NOT have any part of the body
in the mount or between the TV and Wall. The Mount will keep driving until someone
pushes another button on the remote to stop it.
Note:
These instructions are for the non-swivel and swivel version of the Down and Out Motor Mount.
Specifications
Fits most Flat and Curved Televisions 40 inches and larger to 125 lbs with Frame, 70 lbs as Single Stud (No Frame). Check
television weight and mounting hole pattern for compatibility with your television
Note for smaller televisions; the mount may be wider or taller than the television. If this is the case then the mount may be
visible in the top position. See Figure 1
Handles televisions 20 to 125 lbs with Frame, 20 to 70 lbs as Single Stud (No Frame)
Allowable television mounting pattern: 7.9in (200mm) to 27.1in (688mm) wide, up to 22.8in (579mm) high. Works with all
VESA patterns in that range, See Figure 1 with Frame, Figure 5 without Frame
Product Dimensions Non-Swivel: 29.0 x 23.6 x 3.6 inches. Swivel: 29.0 x 23.6 x 4.6 inches. See Figure 1
Frame Weight: 5 lbs, Fixed Mount weight: 26 pounds, Swivel Mount Weight: 28 lbs
Tilts 10 degrees to Vertical in top position
Tilt can be fine-tuned Vertical +/-1 degree in out through bottom position
Swivel Version can be swiveled +/-33 degrees, 66 degrees total
FAQ
Where do I mount over a shelf? See the Above Shelf Mounting section on page 13.
The TV tilts down in the top position. See the Setting the Tilt in the Top Position section on page 14.
The TV isn't level in the out and bottom positions. The TV's Center of Gravity needs to be centered on the mount, if the stud
spacing isn't allowing this to happen the
Install Video at
www.DynamicMounting.com/Install
This wall mount is intended for use only with the maximum weight of
Ultra Wall Support
(sold separately) extends the mounts reach and would probably help.
The wall mount actuation is very strong; do
1
