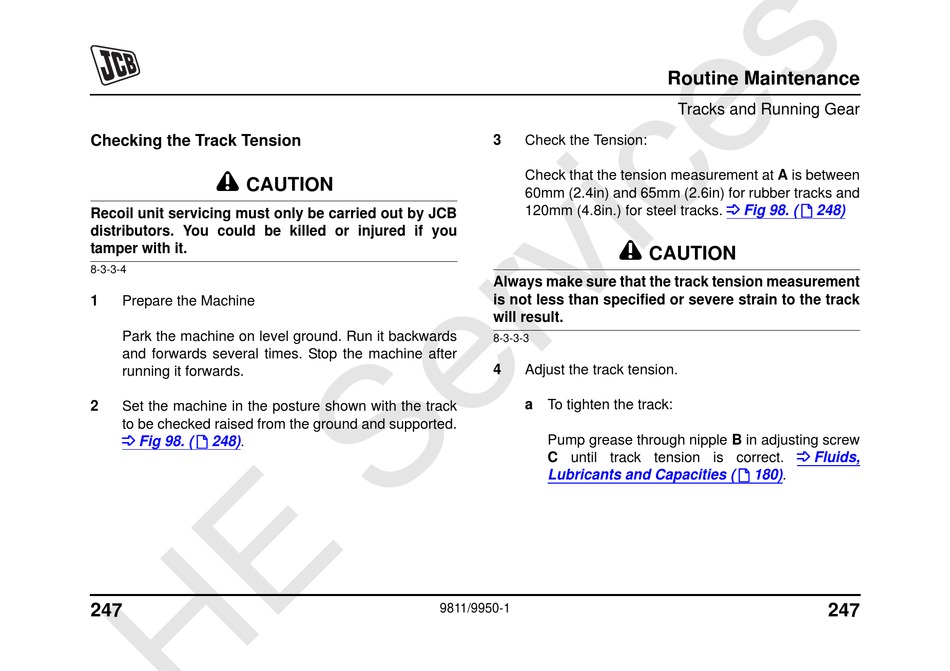

Checking the Track Tension
!M
CAUTION
Recoil unit servicing must only be carried out by JCB
distributors. You could be killed or injured if you
tamper with it.
8-3-3-4
1 Prepare the Machine
Park the machine on level ground. Run it backwards
and forwards several times. Stop the machine after
running it forwards.
2 Set the machine in the posture shown with the track
to be checked raised from the ground and supported.
K Fig 98. ( T
248).
247
3 Check the Tension:
Check that the tension measurement at A is between
60mm (2.4in) and 65mm (2.6in) for rubber tracks and
120mm (4.8in.) for steel tracks.
!M
Always make sure that the track tension measurement
is not less than specified or severe strain to the track
will result.
8-3-3-3
4 Adjust the track tension.
a To tighten the track:
Pump grease through nipple B in adjusting screw
C until track tension is correct.
Lubricants and Capacities ( T
9811/9950-1
Routine Maintenance
Tracks and Running Gear
K Fig 98. ( T 248)
CAUTION
K Fluids,
180).
247
