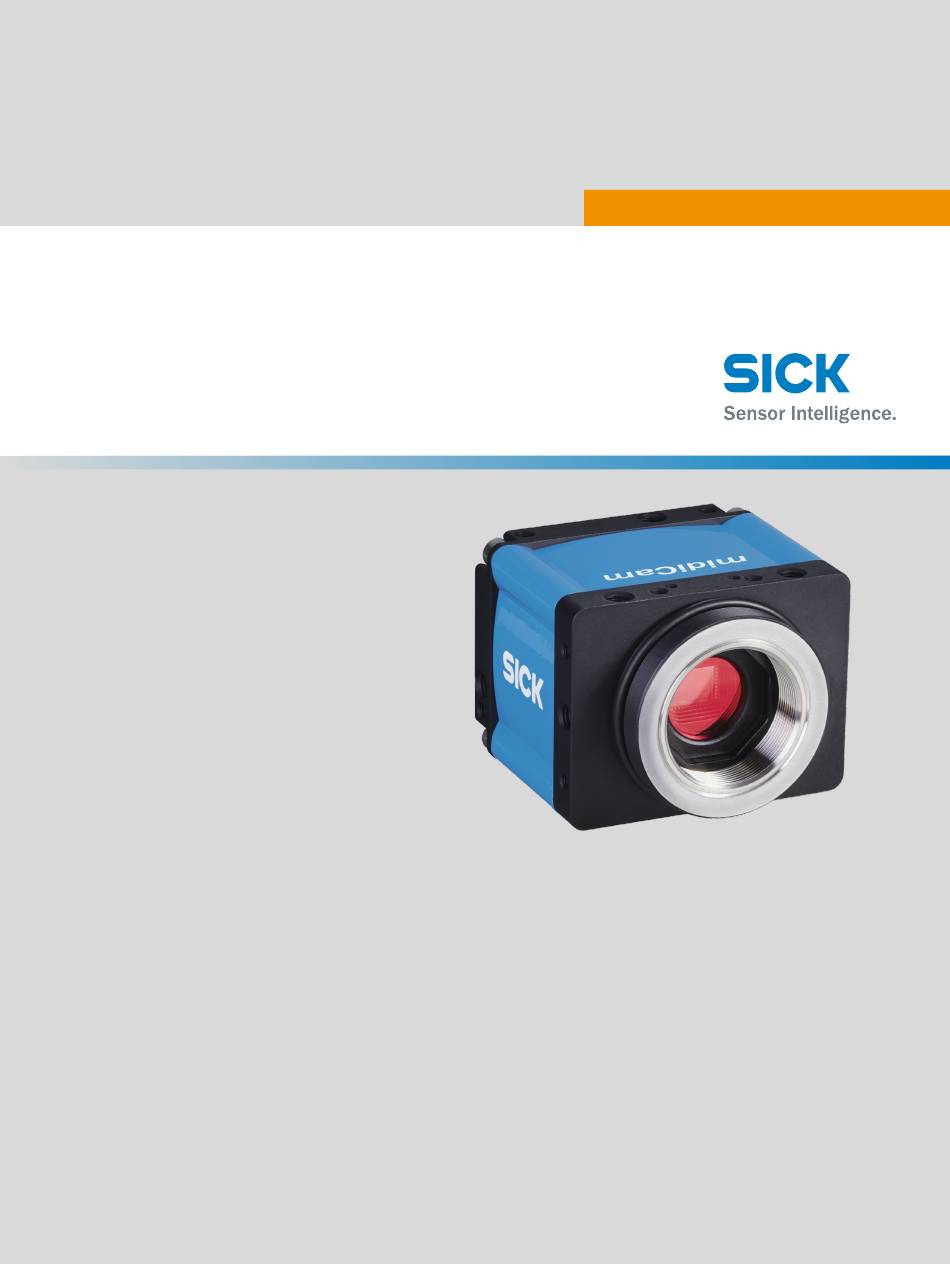

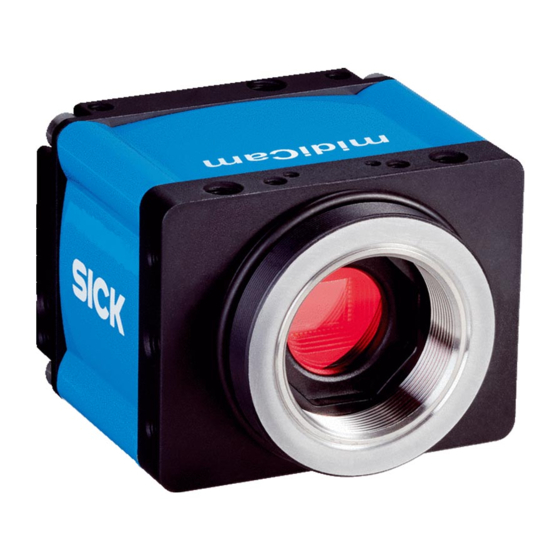

- Page 1 O P E R A T I N G I N S T R U C T I O N S midiCam2 2D vision...
- Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice...
-
Page 3: Table Of Contents
Troubleshooting................. 18 General faults, warnings, and errors............Repairs...................... Returns...................... 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... - Page 4 12.1 EU declaration of conformity / Certificates..........12.2 Copyright notices..................12.3 General cybersecurity notice..............O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice...
-
Page 5: About This Document
… highlights useful tips and recommendations as well as information for efficient and trouble-free operation. 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 6: Further Information
Other publications related to the devices described here • Publications dealing with accessories O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 7: Safety Information
Use of unauthorized spare parts, consumables, and accessories ■ 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 8: Modifications And Conversions
Knowledge of the software and hardware environment for the ■ particular application O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 9: Operational Safety And Particular Hazards
8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 10: Product Description
LED 2 lights up green and Network connection with data transmission red alternately O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 11: Transport And Storage
For storage periods of longer than 3 months, check the general condition of all ■ components and packaging on a regular basis. 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 12: Mounting
The LED flashes green. Align the device so that the desired object is recorded. O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK... -
Page 13: Electrical Installation
8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 14: Connecting The Device Electrically
(Power over Ethernet). The device must not be supplied from both sources at the same time as this can lead to irreparable damage to the device. O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK... - Page 15 Trigger input, with optocoupler (-) General Purpose I/O (GPIO) 2, 3.1 V 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice...
-
Page 16: Operation
The most up-to-date version of the SICK Vision Suite software can be downloaded from www.sick.com/midiCam2 under Downloads. O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 17: Maintenance
Clean using a dry towel or an industrial vacuum cleaner. Do not use cleaning agents. 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 18: Troubleshooting
Separate the recyclable materials by type and place them in recycling containers. ■ O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 19: Technical Data
Streaming, flexible Sensor I2DxxxC: CMOS Color I2DxxxM: CMOS Monochrome 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 20: Mechanics/Electronics
I2Dx12x: 0.046 ms ... 2,000 ms Pixel size 3.45 μm O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 21: Interfaces
–20 °C ... +60 °C Relative humidity: 0 % ... 100 %. 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... -
Page 22: Accessories
Accessories and where applicable mounting information can be found online at: • www.sick.com/midiCam2 O P E R A T I N G I N S T R U C T I O N S | midiCam2 8025780/0000/2020-07 | SICK Subject to change without notice... -
Page 23: Annex
Information on Cybersecurity can be found at: www.sick.com/psirt 8025780/0000/2020-07 | SICK O P E R A T I N G I N S T R U C T I O N S | midiCam2 Subject to change without notice... - Page 24 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
