FUTABA GYA460 Quick Reference

6-axis Flight Control
Quick Reference

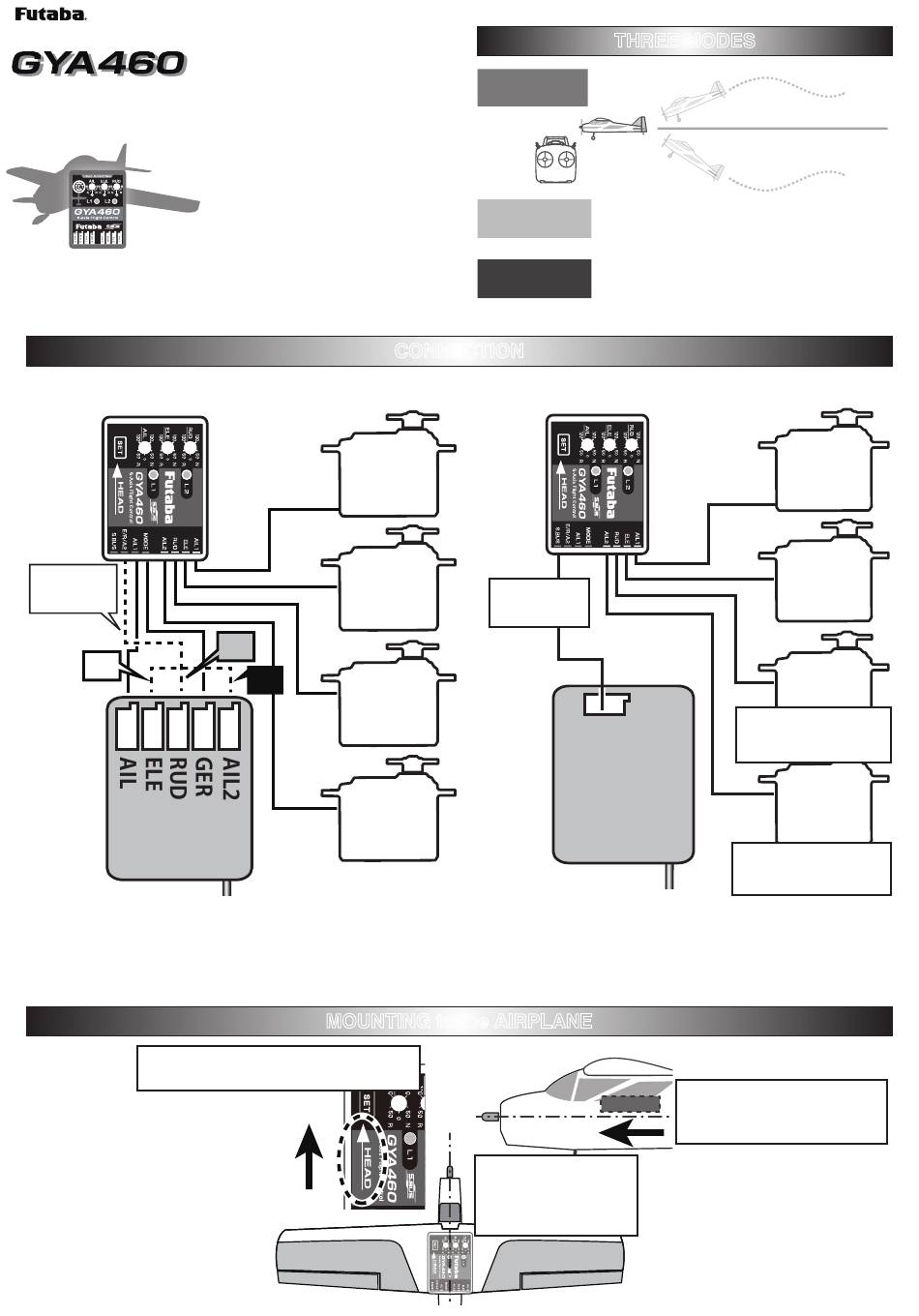

CONVENTIONAL CONNECTION
3-Signal
Cord
Ｗ
1 2 4 5 6
Normal
Receiver
・GYA460 : MODE ⇔ Extension Cord ⇔ RECEIVER : CH5
・GYA460 : AIL1 ⇔ Extension Cord ⇔ RECEIVER : CH1(AIL)
・GYA460 : E/R/A2 ⇔ 3-Signal Cord ⇔
White : ELE Red : RUD Black : AIL2
Mount the gyro facing forward
inside the fuselage.
Firmly stick with the double side
tape supplied. Mount at a level
place near the center of gravity of
the fuselage where there is little
vibration.
*Depending on the airframe material such
as balsa, etc., the adhesive strength of the
double sided tape may drop. In the case
of mounting on a less adhesive surface,
prepare the surface the best possible be-
fore mounting.
Thank you for purchasing a
GYA460 flight control.
This document summarizes
the simple method of using the
GYA460.
For the detailed usage method
and precautions, refer to the
GYA460 6-axis Flight Control
instruction manual.
*For first flight aircraft, before
m o u n t i n g t h e G YA460 h a v e
a v e t e r a n f l i e r m a k e f l i g h t
adjustments without the GYA460
connected.
Aileron
Elevator
Ｒ
Ｂ
Rudder
Aileron2
MOUNTING to the AIRPLANE
Beginner-MODE
＜Blue＞
GYRO-OFF
＜Yellow＞
GYRO-MODE
＜Red＞
CONNECTION
Extension
Cord
Receiver
・GYA460 : S.BUS ⇔ Extension Cord ⇔ RECEIVER : S.BUS
Transmitter function
1CH：AIL1 2CH：ELE 3CH：THR
4CH：RUD 5CH：GEAR 6CH：AIL2
The label of the
GYA460 faces up-
ward in the default
condition.
THREE MODES
・This mode is suitable for level flight training of
beginners.
・The fuselage flight attitude angle is limited to
approximately ± 80° .
・When the transmitter sticks (except the throt-
tle) are set to neutral, automatic horizontal
level control returns the airplane to the level
state.
・In this mode, the plane is not controlled by gyro
sensor.
・This mode is suitable for inverted flight and
acrobatics.
・The plane is controlled by gyro sensor only.
・Fuselage attitude angle limit and automatic
horizontal level control are turned off.
S.BUS CONNECTION
S.BUS channel
S.BUS Port
setting of each servo
is unnecessary.
S.BUS
The GYA460 can even
be used with servos
other than S.BUS.
Make sure the gyro is
mounted level inside the
fuselage.
*When mounting the to the side of the
airframe or when the label plate is at the
bottom, perform the mounting direction
setting described on pages 17 and 18 of
the instruction manual.
Aileron
Elevator
Rudder
Aileron2
