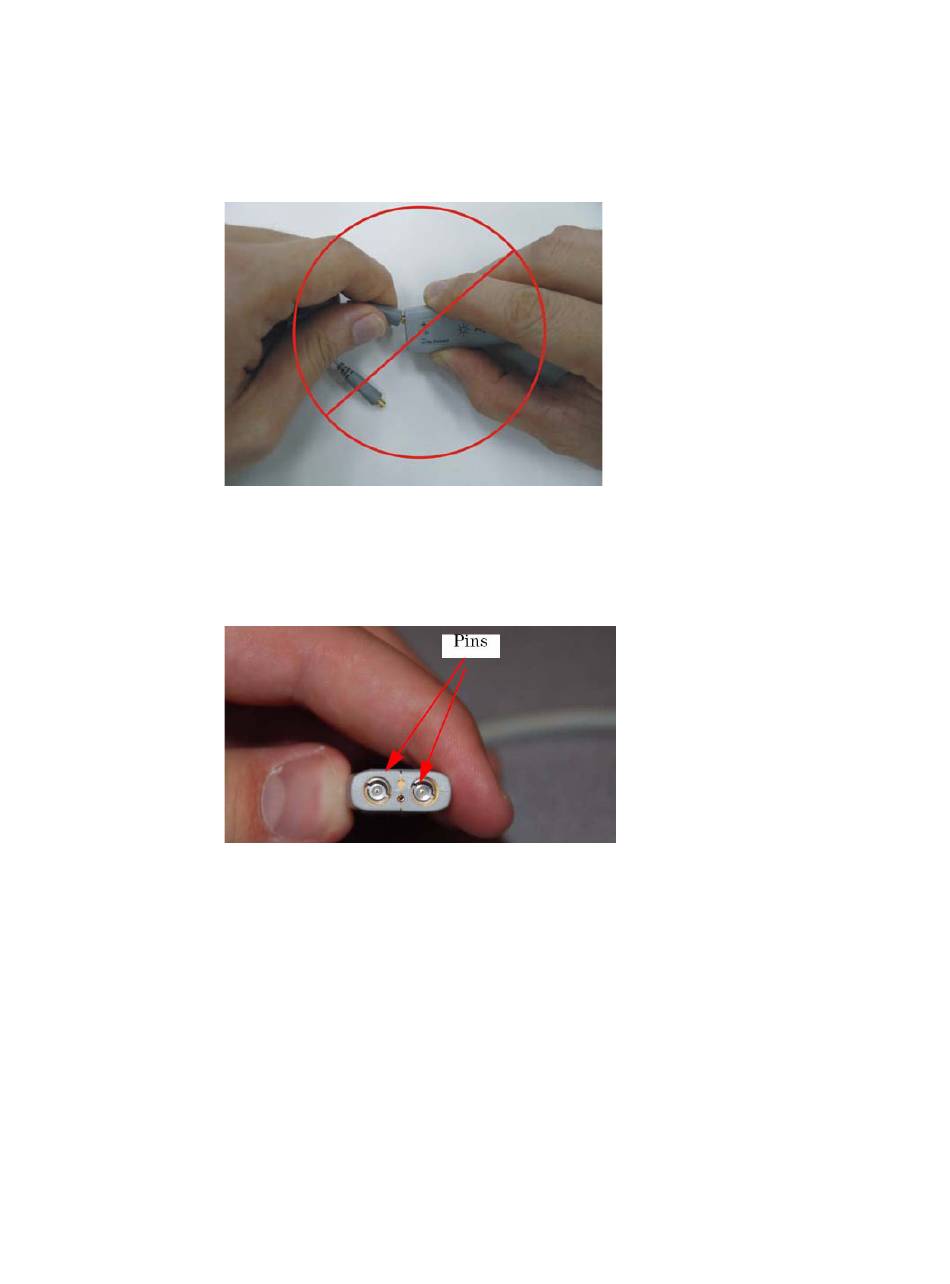

Figure 2-18 An Improper Way To Disconnect A Probe Head From An; Figure 2-19 Straight Pins In An Amplifier - Keysight Technologies U1818A Operating And Service Manual

Figure 2-18
To see if the pins in the probe amplifier are bent, visually inspect them by looking
in the sockets on the amplifier. Notice in
they should be).
Figure 2-19
If you connect and disconnect probe heads using the appropriate method, these
pins should not bend. Always remember to apply enough force to pull the probe
head straight out or push it straight in. Do not wiggle, twist, or bend it in any way.
Keysight U1818A/B Operating and Service Manual
An improper way to disconnect a probe head from an amplifier
Straight pins in an amplifier
Service and Maintenance
Figure 2-19 that the pins are straight (as
