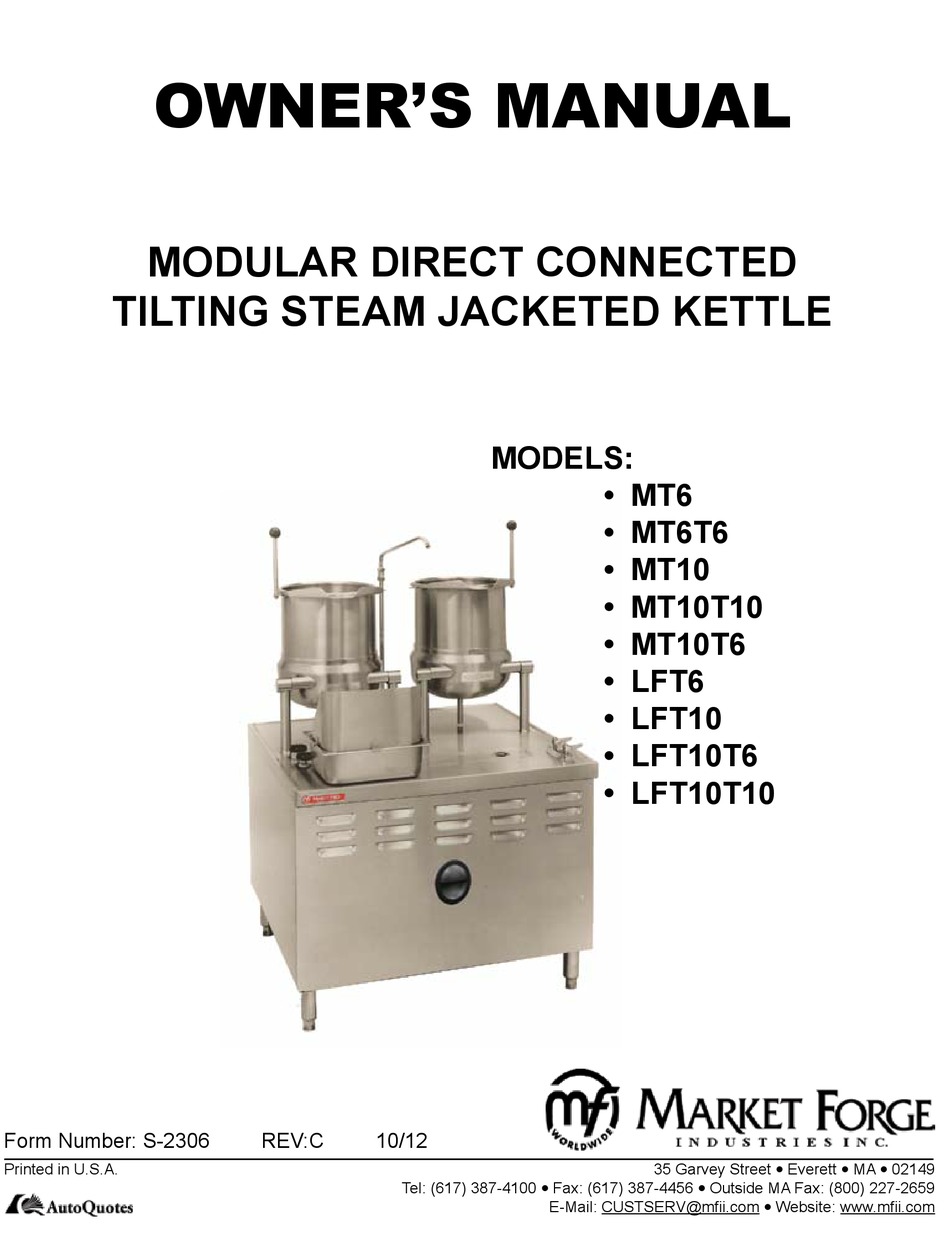

OWNER'S MANUAL
MODULAR DIRECT CONNECTED
TILTING STEAM JACKETED KETTLE
Form Number: S-2306
Printed in U.S.A.
REV:C
10/12
Tel: (617) 387-4100
MODELS:
•
•
MT6
MT6
•
•
MT6T6
MT6T6
•
•
MT10
MT10
•
•
MT10T10
MT10T10
•
•
MT10T6
MT10T6
•
•
LFT6
LFT6
•
•
LFT10
LFT10
•
•
LFT10T6
LFT10T6
•
•
LFT10T10
LFT10T10
35 Garvey Street
Fax: (617) 387-4456
E-Mail: CUSTSERV@mfi i.com
Everett
MA
Outside MA Fax: (800) 227-2659
Website: www.mfi i.com
02149
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Market Forge Industries MT6
Summary of Contents for Market Forge Industries MT6
- Page 1 OWNER’S MANUAL MODULAR DIRECT CONNECTED TILTING STEAM JACKETED KETTLE MODELS: • • • • MT6T6 MT6T6 • • MT10 MT10 • • MT10T10 MT10T10 • • MT10T6 MT10T6 • • LFT6 LFT6 • • LFT10 LFT10 • • LFT10T6 LFT10T6 •...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................ OPERATING ........................MAINTENANCE ........................REPAIR AND REPLACEMENT ................... 4-10 PARTS LIST ........................ -
Page 3: Introduction
DESCRIPTION: SERVICE: Market Forge MT6 and MT10 Tilting Steam Jacketed Modular kettles are exceptionally and durable cooking Kettles are mounted on a modular stainless steel cabi- equipment requiring a minimum of service other then net. -
Page 4: Operating
OPERATING Consult boiler information or instructions plate and Adjust subsequent cooking temperature by turning complete all start-up instructions. steam control valve. Turn clockwise to reduce heat ) and counterclockwise to increase heat steam flow OPERATE KETTLE AS FOLLOWS: steam flow Check pressure gauge of steam supply to ensure Close steam control valve and remove food from steam input is at approximately 15 PSI (... -
Page 5: Repair And Replacement
REPAIR AND REPLACEMENT In the event that the kettle fails to operate correctly, hinge are removed to lift the door out shown in figure the difficulty should first be isolated to either the kettle 6 on page 9 and 10. When doors are remounted, the itself or the steam supply which heats the kettle. -
Page 6: Parts List
PARTS LIST Fig. 1 MT6T6 Fig. 1 MT6T6 ITEM PART DESCRIPTION QTY. 97-5008 KNOB 97-5115 HANDLE 97-5116 NUT, ACORN - FOR HANDLE 10-5242 STEAM, VALVE, ANGLE 1/2” (SEE FIG. 5) 10-3556 FAUCET (SEE FIG. 5) 10-5753 SWING NOZZLE (SEE FIG. 5) 97-5117 END CAP 97-0662 6 GALLON 97-0663... - Page 7 PARTS LIST Fig. 2 Faucet ITEM PART DESCRIPTION 10-3108 MOUNTING BASE, RISER 10-3357 ADAPTER, 90 10-3741 REDUCING, BUSHING 91-0887 RISER, 15” 10-5753 SWING NOZZLE 10-3556 FAUCET 10-3684 COMPRESSION FITTING, MALE 10-1100 SWIVEL BODY...
- Page 8 PARTS LIST Fig. 3 Steam Valve ITEM PART DESCRIPTION 10-0105 STEAM VALVE HANDLE 10-5247 VALVE DISC 10-5242 STEAM CONTROL VALVE, ANGLE 1/2” Fig. 4 Steam Trap ITEM PART DESCRIPTION 10-4755 STEAM TRAP 1/2” 10-4937 THERMOSTAT, STEAM TRAP...
- Page 9 PARTS LIST NEW STYLE CABINET BASE Fig. 5 New Style Cabinet Base...
- Page 10 PARTS LIST NEW STYLE CABINET BASE ITEM PART DESCRIPTION QTY. QTY. QTY. QTY. QTY. 98-3681 BOILER, 200K GAS, 24” FRAME 98-3682 BOILER, 200K GAS, 36” FRAME 98-3983 BOILER, 300K GAS, 36” FRAME 98-3684 BOILER, ELECTRIC, 24” FRAME 98-3985 BOILER, ELECTRIC, 36” FRAME 98-3998 TOP, PLAIN, 200K GAS BOILER, 24”...
- Page 11 PARTS LIST OLD STYLE CABINET BASE Fig. 6 Old Style Cabinet Base...
- Page 12 PARTS LIST ITEM PART OLD STYLE CABINET BASE DESCRIPTION 10-2500 WASHER, LOCK ST. 1/4 10-0495 STRIP, FEATURE 91-8126 TRAY, HOSE 91-3348 CHANNEL, REAR FRAME SUPPORT 90-3210 BRACKET FOR DOOR MAGNET 10-5561 MAGNET, DOOR 91-5482 HINGE, LEFT, BOTTOM 91-5481 HINGE, RIGHT, BOTTOM 90-2663 BRACKET, SIDE AND REAR ST.
