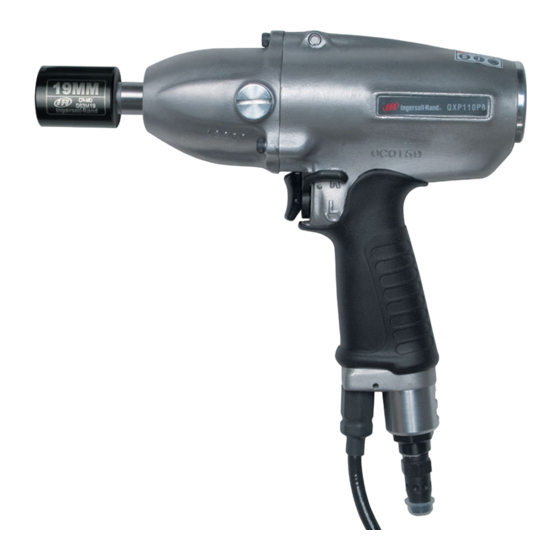

- Page 1 80194574 Edition 1 May 2006 Air Impulse Wrenches QXP70P6, QXP70Q4, QXP90P6, QXP110P8, QXP120P8 and QXP140P8 Maintenance Information Save These Instructions...
- Page 2 Bit Retaining Sleeve (112a) off the Drive Shaft (105) and remove the Bit Retaining Ball (112b). - Continue here for Model QXP70Q4 - Step 1 for Models QXP70P6, QXP90P6, QXP110P8, QXP120P8 and QXP140P8 Using copper covered vise jaws, carefully grasp the handle of the Motor Case (1) with the output end of the Drive Shaft upward.
- Page 3 Pressing Sleeve-Jig C to - Continue here for Model QXP70Q4 press the Liner Case downward off the components. - Step 1 for Models QXP70P6, QXP90P6, QXP110P8, (Refer to Dwg. TPD1268.) QXP120P8 and QXP140P8 PRESSING...
-
Page 4: General Instructions
(41) out of the Reverse Lever. Separate the Reverse Lever from the Reverse Valve. 8. For Models QXP70P6, QXP70Q4 and QXP90P6, using a punch, tap the Rubber Pad (30) of the Throttle Valve Assembly in order to push the Throttle Bushing Cap (34a) out of the back of the Throttle Bushing. - Page 5 Pin enters the hole in the face of the Upper Plate. (Refer and secure it with the Reverse Lever Pin (41). to Dwg TPD1276.) 5. For Models QXP70P6, QXP70Q4 and QXP90P6, place the Ball (34b) and Spring (32a) in the back of the Throttle VANE CYLINDER Valve (29).
- Page 6 This is a left-handed thread; rotate the wrench counterclockwise to tighten. (Refer to Dwg. TPD1280). Model Tightening Torque Blade QXP70P6, QXP70Q4, 23 - 29 ft-lb ( 31 - 39 Nm ) QXP90P6, QXP110P8 QXP120P8 30 - 37 ft-lb ( 40 - 50 Nm ) QXP140P8 33 - 41 ft-lb ( 45 - 55 Nm ) (Dwg.
- Page 7 Y-0187-0990-0003 QXP110P8 Pressing Sleeve - Jig C Y-0341-0990-0003 QXP120P8, QXP140P8 O-Ring Installer - Jig E 45P-E-PSS QXP70P6, QXP70Q4, QXP90P6, QXP110P8, QXP120P8, QXP140P8 O-Ring Installer - Jig E Y-0297-0990-0001 QXP70P6, QXP70Q4, QXP90P6 O-Ring Installer - Jig E Y-0187-0990-0005 QXP110P8 O-Ring Installer - Jig E...
-
Page 8: Related Documentation
Related Documentation For additional information refer to: Air Impulse Wrench Product Safety Information Manual 04584983. Air Impulse Wrench Product Information Manuals 80206675. Air Impulse Wrench Parts List Manuals 80206642. EN-8 80194574_ed1... - Page 9 Notes...
