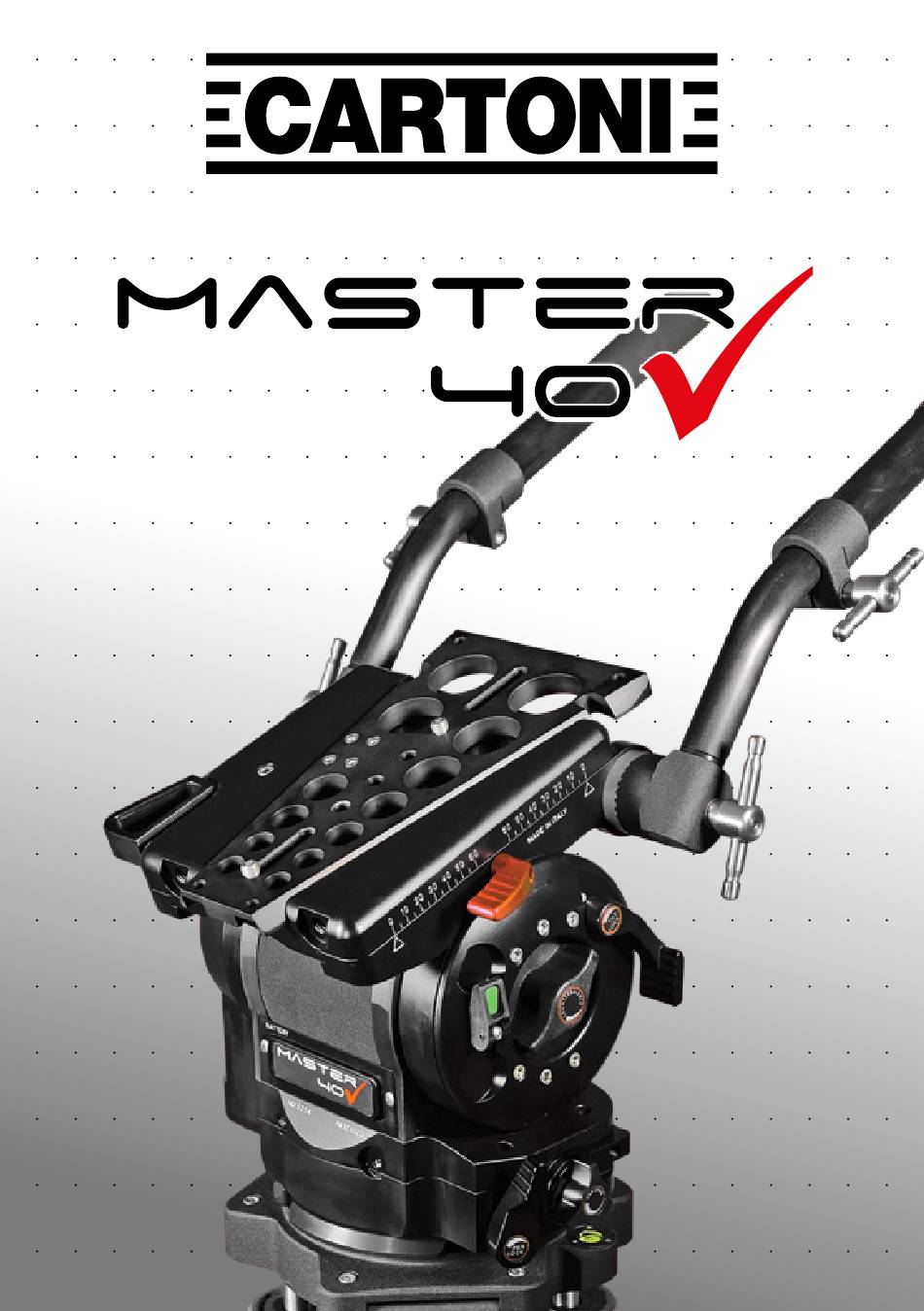

- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 3 & ccessorIes product lIne CARTONI ® All rights reserved © Manual Version: 1.0 Issue date: July 2019...

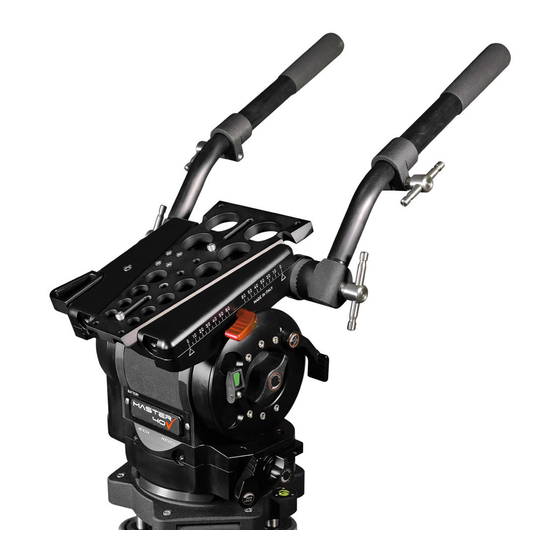

- Page 4 It features a V wedge plate for box lenses interface, installed on a wide sliding platform for perfect centering of the Camera. Extremely rugged and precise, the MASTER 40 is meant to become the ultimate industry standard. Before using the MASTER 40 Fluid Head, please make sure to read this user’s &...
- Page 5 Check that the Camera payload (including lenses and accessories) is lower than the maximum capacity of the MASTER 40 Fluid Head; Before installing the Camera make sure the MASTER 40 is in good conditions and bares no evident damages.
-
Page 6: Operating Elements
2. o peratIng elements ❶ ❷ ❸ ❹ ⓫ ❺ ❻ Sliding plate lock lever Tilt lock lever ❼ ❽ ❾ ❿ Horizontal lock lever Counterbalance selector Pan lock lever Pan drag selector Tie down knob Illuminated bubble level Illuminated bubble level and digital display light button Digital display Extensible handle attachment lever... - Page 7 ⓭ ⓮ ⓯ ⓰ ⓱ ⓲ ⓬ Extensible pan handle Camera plate Pan bar attachment rosette Pan bar attachment lever Camera plate lock lever Tilt drag selector Battery housing...
- Page 8 Open the Tripod to the desired height and lock all the safety knobs. Place the MASTER 40 Fluid Head on the Tripod base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the knob (7) underneath the flat base. Check the illuminated bubble level (8) and modify the legs angle if needed.
-
Page 9: Specifications
Set the counterbalance system by turning the counterbalance selector (4) to the appropriate tension. The Camera has to stay still at any tilt angle. If needed, fine tune the balance by adjusting the sliding plate. Push button (9) to activate illuminated digital displays (10), unlock Pan lock (5) and select the desired Fluid drag intensity on both Pan and tilt by turning Pan selector (6) and tilt selector (17). -
Page 10: Maintenance
(18). 6. W arranty All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty. - Page 11 This warranty does not apply to any CARTONI product that has been damaged in shipping or handling, abused, misused, operated contrary to instructions for use, neglected, normal wear or tear, modified or changed in design or construction or serviced by unauthorized parties.
- Page 12 PROFESSIONAL CAMERA SUPPORT CARTONI S.p.A Via di Portonaccio, 33/B - 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email: cartoni@cartoni.com www.cartoni.com...
