Page 3: Table Of Contents
Index 1. Introduction ............................. 1 2. Operating elements ......................... 2 3. Procedures ............................ 4 4. Specifications ........................... 5 5. Maintenance ............................ 5 6. Warranty ............................ 6 7. Accessories & product line ...................... 6 ... -
Page 4: Introduction

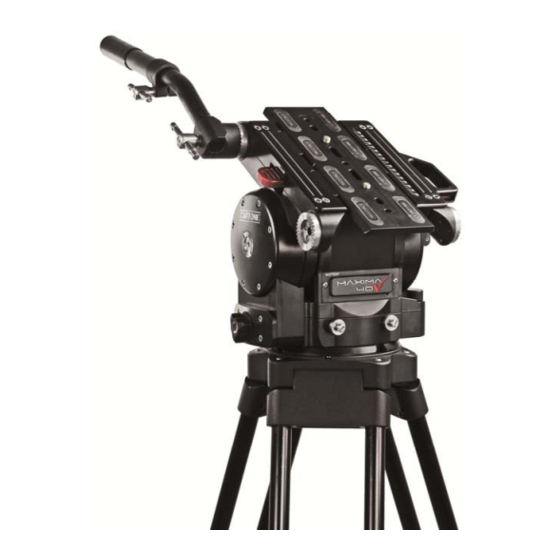

Introduction CARTONI introduces MAXIMA 40, an innovative compact design Fluid Action Head featuring an amazingly smooth patented counterbalance system. The MAXIMA 40 is the ideal support for all fully equipped Film Cameras and sophisticated broadcast packages. The MAXIMA 40 controls, knobs and levers, are ergonomically placed to ensure Camera operators complete ease‐of‐use in any situation, whether in the studio, location or during outside broadcasts while drag and counterbalance steps are monitored on a digital display. Payload capacity goes from zero (0) to 40 Kg (88 lbs) with a perfect balance throughout the entire 180° tilt range. The specifically designed continuous Fluid Drag System performs from almost freewheeling to extremely consistent drag for maximum versatility. The large sliding Camera plate is compatible with Arri and O'Connor slides for increased versatility and ease. Extremely rugged and precise, the MAXIMA 40 is meant to become the ultimate industry standard. Before using the MAXIMA 40 Fluid Head, please make sure to read this user’s & maintenance ... -
Page 5: Operating Elements
Operating elements 1) Sliding plate lock lever 10) Extensible handle 2) Horizontal lock lever attachment lever 3) Counterbalance selector 11) Extensible pan handle 4) Pan lock lever 12) Short handle 5) Pan drag selector 13) Short handle attachment 6) Tilt lock lever lever 7) Illuminated bubble level 14) Short handle attachment 8) Illuminated bubble level rosette and display light button 15) Camera plate 9) Digital display 16) Sliding plate ... - Page 6 17) Handle attachment lever 18) Handle attachment rosette 19) Slide release 20) Tilt drag selector 21) Tie down knob 22) Battery housing 3 ...
-
Page 7: Procedures
3. Procedures Open the tripod to the desired height and lock all the safety knobs. Place the MAXIMA 40 Fluid Head on the tripod base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the knob (21) underneath the flat base. Check the illuminated bubble level (7) and modify the legs angle if needed. In case of low visibility, press button (8) for illuminated bubble level and to activate the digital displays (9). Lights will turn off automatically after approximately 30 seconds. ... -
Page 8: Specifications
Pan range 360° Tilt range +/‐ 90° Temperature range ‐40 / + 60 °C ‐40 / +140 °F 5. Maintenance When needed, with indoor use just clean the Head and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use. However, use under rough conditions they will require special care. Salt water is very corrosive and can cause extreme damages. In attempt to avoid further damage the Fluid Head should be washed off with fresh water at the earliest opportunity and perfectly dried before storage. Sand and dirt are abrasive and should be removed using a semi‐stiff brush or Air spray. Disconnect the illuminated display & bubble level battery during long term storage; for battery replacement access the battery compartment (22). 5 ... -
Page 9: Warranty
Warranty claims must be submitted – in writing ‐ to the factory for verification or to an authorized distributor/dealer designated by CARTONI. It is the end user’s responsibility when ordering to ensure that the products ordered conform to his requirements. All freight of product to CARTONI must be prepaid. All implied warranties are limited to the time period set forth herein & subject to change without notice. No liability can be accepted for any variation. 7. Accessories & product line ...
