Jøtul Scan 65i Quick Start Manual

Before beginning the installation,
read these instructions to
familiarize yourself with the parts
and procedures.
NOTE: Stainless steel and glass components
retain fingerprints very well. Use the cotton
gloves supplied to help minimize smudg-
ing during installation.
Installation
1. Inspect the contents of the contents of
this kit and notify your dealer of any
damage or missing parts. Do not install
a damaged Surround assembly.
2. Confirm height adjustment of the
fireplace insert. Use the Riser Brackets on
the insert to adjust the insert height as
required for the surround you are
installing. Note that clearance to a
combustible mantel is dependant upon
the height of the Surround. See fig. 2
and the tables below for specifications.
The Mantel Heat Shield must be in-
stalled unless non-combustible materi-
als are used.
3. Remove the Air Deflector by loosening
the two hex nuts with the 7 mm wrench
or socket driver. Set aside for re-installa-
tion later. See fig. 2.
Air Deflector
Figure 2. Remove the air deflector from the
surround assembly. It is essential that this part
be re-installed in Step. 7.
Kit Contents:
• Stainless Steel or Powder Coated Surround Panel
• Sliding Glass Panel
• Mantel Heat Shield
• Glass Brackets, (2 Upper, 2 Lower)
• M6 x 7 mm hex nuts, (12)
• Cotton Gloves
Tools Required : : : : :
• 7 mm wrench or socket driver

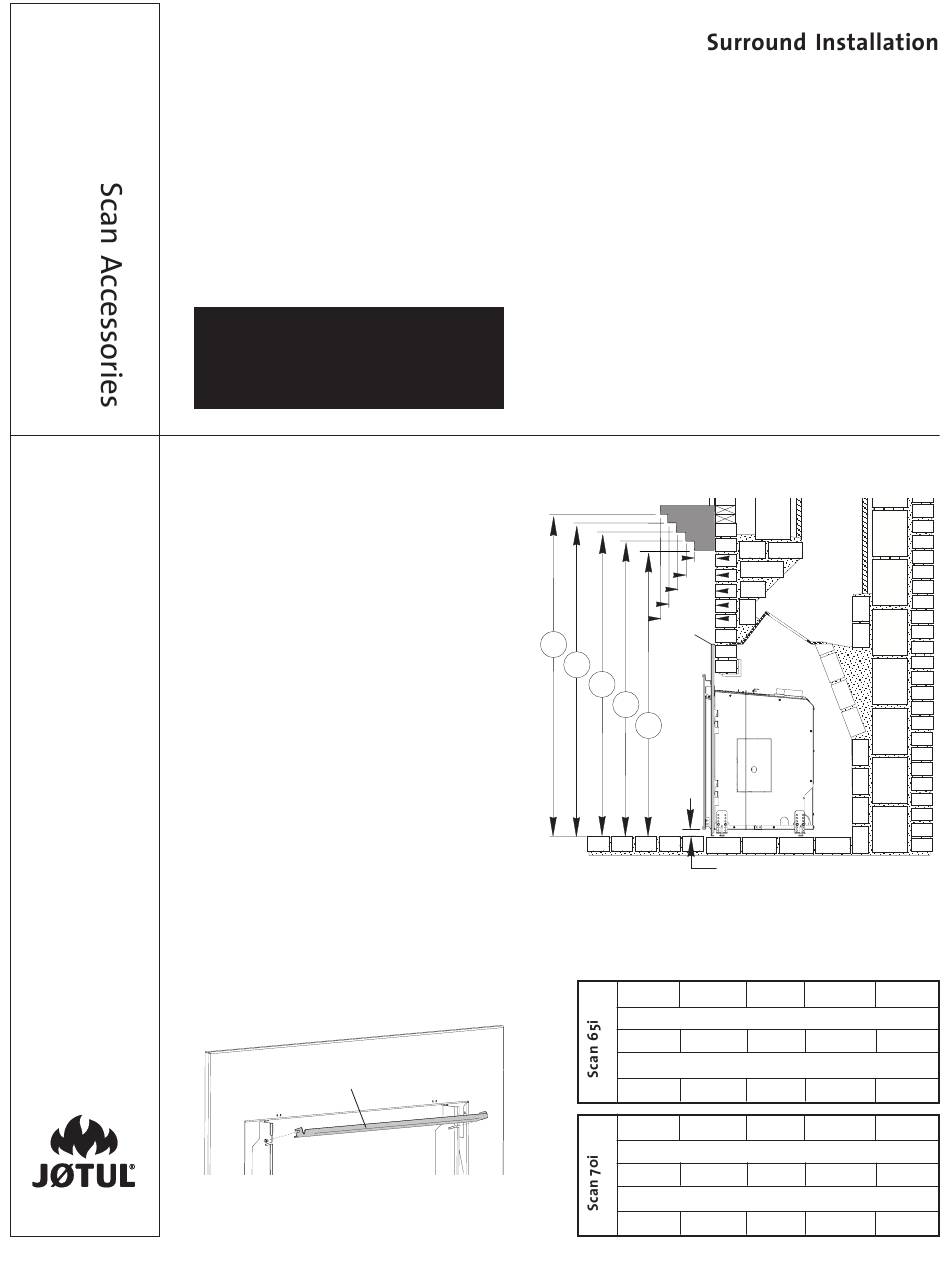

Figure 1.
Riser height adjustment and mantel clearances.
MANTEL
AREA
3.5”
5.5”
7.5”
9.5”
11.5”
A
Mantel
B
Heat
Shield
C
D
E
Mantel Clearance is measured from the surface that the
fireplace insert is resting on.
A B
With 1" Riser Height Adjustment
43" 41.5"
With 2" Riser Height Adjustment
44" 42.5"
A B
With 1" Riser Height Adjustment
50" 48.5"
With 2" Riser Height Adjustment
51" 49.5"
for the
Scan 65i
Scan 70i
Gas Fireplace Inserts
1” with Scan 65i 27” High Surround
or Scan 70i 31” High Surround
2” with Scan 65i 28” High Surround
or Scan 70i 32” High Surround
C D E
40" 38.5" 37"
41" 39.5" 38"
C D E
47" 45.5" 43"
48" 46.5" 44"
and
