Operating and Installation Instructions
Type range:

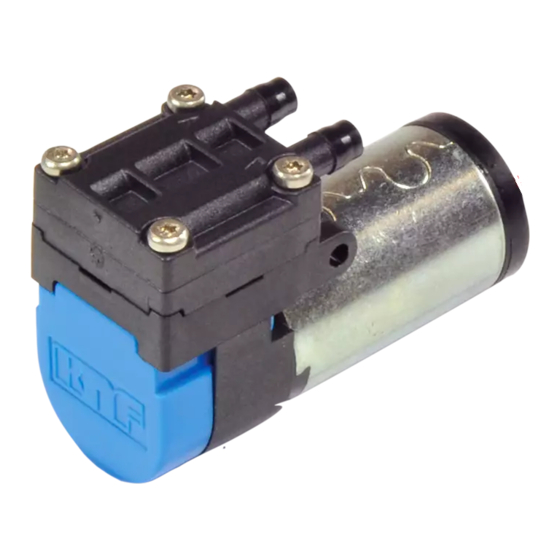

NMP 03 KP DC-B1
NMP 03 KP DC-B3
You have selected a high-quality KNF product; the following tips will help you operate it safely, and
reliably over a long period of time. Carefully study the Operating and Installation Instructions before using
the pumps and observe at all times the relevant instructions to avoid dangerous situations. The manual
was produced for the serial pumps stated above. With customer-specified projects (pump types starting
with "PJM" or "PMM") there could be differences in detail. For customer-specified projects please there-
fore take into account any agreed technical specifications, as well as these instructions.
KNF Micro AG
Zelglimatte 1b
CH-6260 Reiden
Switzerland
Tel.
+41(0) 62 787 88 88
Fax
+41(0) 62 787 88 99
E-mail: info@knf-micro.ch
www.knf-micro.ch
KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01
Translation of original Operating and Installation Instructions, English
Micro Diaphragm
Gas Sampling Pumps
Contents
1. About this document ................................................................. 2
2. Use ........................................................................................... 3
3. Safety ....................................................................................... 4
4. Technical data .......................................................................... 6
5. Assembly and function ............................................................. 8
6. Operation ................................................................................ 10
7. Servicing ................................................................................. 12
8. Troubleshooting ...................................................................... 13
9. Decontamination declaration .................................................. 14
NMP 03 KP DC-S
NMP 03 KP DC-M
NMP 03 KP DC-L
Page
Keep for future use
Advertisement
Table of Contents
Related Manuals for KNF NMP 03 KP DC-B1
Summary of Contents for KNF NMP 03 KP DC-B1
-
Page 1: Table Of Contents
NMP 03 KP DC-M NMP 03 KP DC-L You have selected a high-quality KNF product; the following tips will help you operate it safely, and reliably over a long period of time. Carefully study the Operating and Installation Instructions before using the pumps and observe at all times the relevant instructions to avoid dangerous situations. -
Page 2: About This Document
Other information and symbols This indicates a required activity (step). 1. This indicates the first step of a required activity. Additional consecutively numbered steps follow This symbol indicates important information KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English... -
Page 3: Use
Diaphragm Pump NMP 03 2.1. Intended use KNF pumps in the NMP 03 range are to transfer, evacuate and compress gases. Owner's responsibility Operating parameters and Only install and operate the pumps under the operating parameters conditions and conditions described in Chapter 4, Technical data. Only com- pletely installed pumps may be taken into service. -
Page 4: Safety
General Principles No. 1 No. 1.1.2. / 1.1.3. / 1.3.1. / 1.3.3. / 1.3.4. / 1.4.1. 1.5.1 /1.5.2 / 1.5.8. / 1.5.9./ 1.7.4. / 1.7.4.1. / 1.7.4.3. KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English... - Page 5 The pumps comply with the fundamental requirements of Directive 2011/65/EU (RoHS2). Customer service and repairs All repairs to the pump(s) must be carried out by the relevant KNF customer service team. KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English...
-
Page 6: Technical Data
Measured with air at 20°C / at atmospheric pressure At 3.3VDC control voltage Nominal use KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English... - Page 7 DC motor. The motor is vibration-free, non-arcing and silent, and features a compact design, high dynamics and an especially long service life. Detailed information for motor control is available from KNF. Contact information see www.knf.com Motor specification B3 (brushless with external electronic) B3 is the same as the B1 version but with external electronics.
-
Page 8: Assembly And Function
Note the proper polarity. For DC motors: red motor cable: + black motor cable: - In the case of brushless DC motors: incorrect polarity may damage to the electronics. KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English... - Page 9 The NMP 03 has two mounting points (d = 1.6mm), which allow an easy fixation of the pump with a M1.6 x 16mm screw DIN 912 M1.6 x 16 KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English...
-
Page 10: Operation
Please contact your local KNF partner for further information (www.knf.com). If the pump stops running, restore the system to normal atmos- Pump standstill pheric pressure. - Page 11 Short start and stop cycles may adversely affect the service life of the brushed motors If the pump is operated with short cycles in your application, please contact a KNF pump specialist for further information (Telephone number: see www.knf.com) Turning the pump on ...
-
Page 12: Servicing
Prior requirements Isolate the pump from the power supply. Pump must be free of any hazardous substances Hoses must be disconnected from the pump KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English... -
Page 13: Troubleshooting
Fault cannot be rectified If you are unable to identify any of the above causes, please send the pump to KNF customer service (see address on last page). 1. Isolate the pump from the power supply and remove the pump from the system. -
Page 14: Decontamination Declaration
Diaphragm Pump NMP 03 Decontamination declaration Decontamination declaration KNF shall only undertake to repair the pump on condition that the customer provides certification of the transferred media and the cleaning of the pump (decontamination declaration) 1. Copy this page, or print out the decontamination declara- KNF Micro AG tion from our website http://www.knf.com/downloads. - Page 15 Diaphragm Pump NMP 03 Decontamination declaration KNF worldwide Find our local KNF partner on: www.knf.com KNF Micro BA 309215-309218_NMP03-EN-0916_Rev01 Translation of original Operating and Installation Instructions, English...
