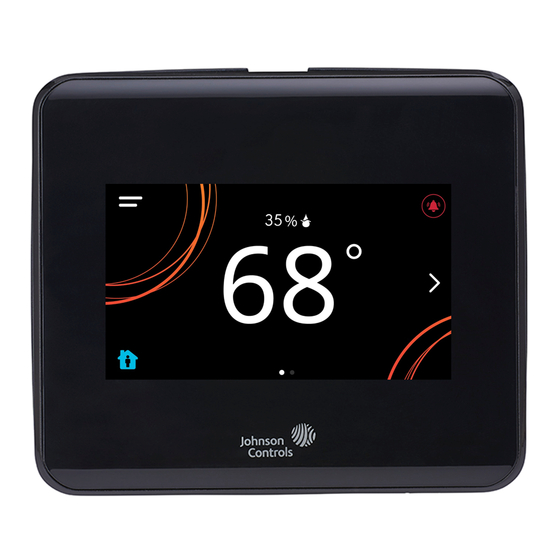

Johnson Controls TEC3000 Series Quick Start Manual

Johnson Controls TEC3000 Series Quick Start Manual

On/off or floating fan coil thermostats
Hide thumbs Also See for TEC3000 Series:

Advertisement

North American emissions
compliance
United States
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Canada
This Class (B) digital apparatus meets all the requirements
of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la Classe (B) respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
Parts included
• One TEC3000 Series Thermostat Controller with integral
mounting base
• One installation instructions sheet
Location considerations
For networked models, locate the TEC3000 Series
Thermostat Controller:
• On a partitioning wall, approximately 5 ft (1.5 m) above
the floor in a location of average temperature, to allow
for vertical air circulation to the TEC
• Away from direct sunlight, radiant heat, outside walls,
outside doors, air discharge grills, stairwells, and from
behind doors
• Away from steam or water pipes, warm air stacks,
unconditioned areas (not heated or cooled), or sources
of electrical interference

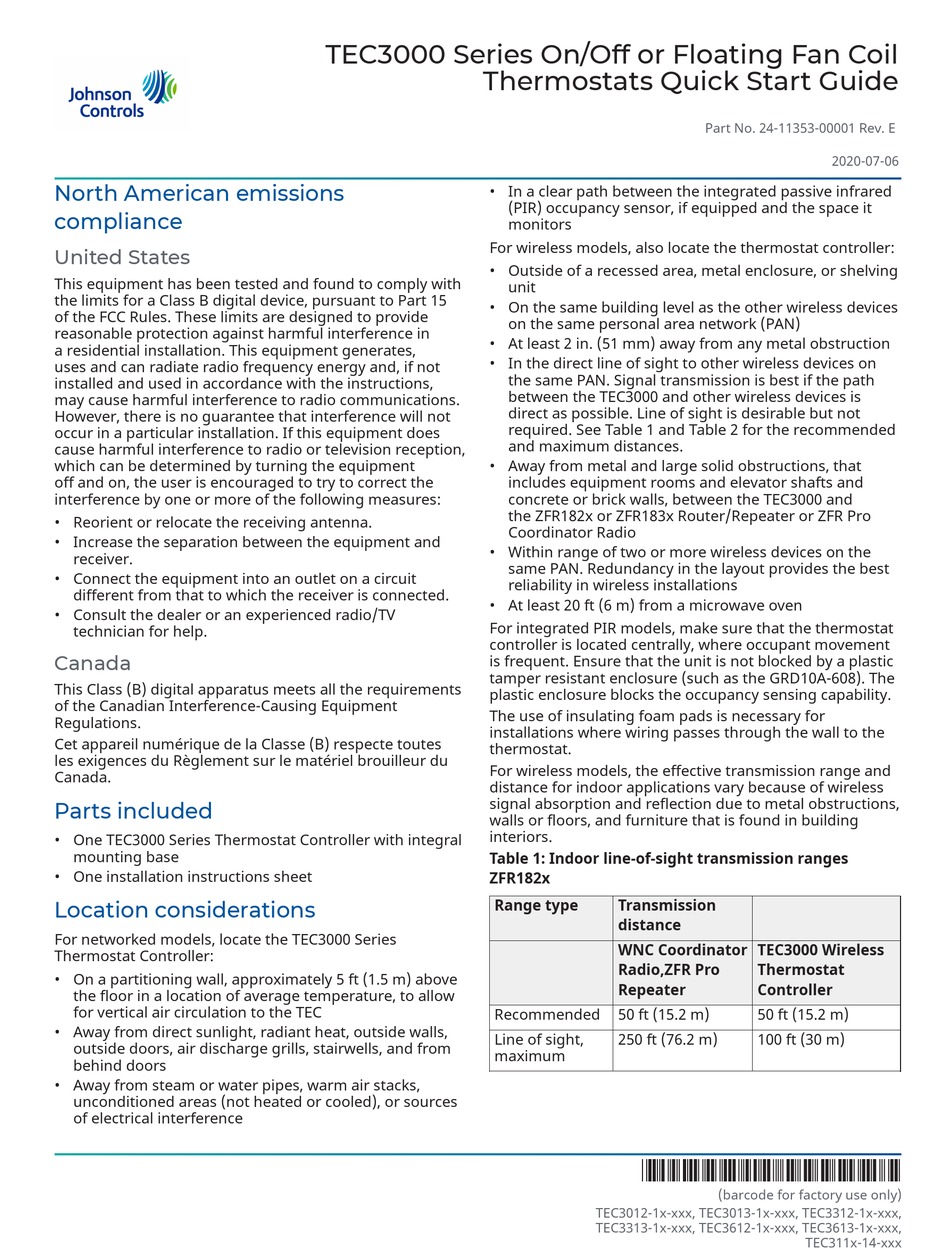

TEC3000 Series On/Off or Floating Fan Coil
Thermostats Quick Start Guide
• In a clear path between the integrated passive infrared
For wireless models, also locate the thermostat controller:
• Outside of a recessed area, metal enclosure, or shelving
• On the same building level as the other wireless devices
• At least 2 in. (51 mm) away from any metal obstruction
• In the direct line of sight to other wireless devices on
• Away from metal and large solid obstructions, that
• Within range of two or more wireless devices on the
• At least 20 ft (6 m) from a microwave oven
For integrated PIR models, make sure that the thermostat
controller is located centrally, where occupant movement
is frequent. Ensure that the unit is not blocked by a plastic
tamper resistant enclosure (such as the GRD10A-608). The
plastic enclosure blocks the occupancy sensing capability.
The use of insulating foam pads is necessary for
installations where wiring passes through the wall to the
thermostat.
For wireless models, the effective transmission range and
distance for indoor applications vary because of wireless
signal absorption and reflection due to metal obstructions,
walls or floors, and furniture that is found in building
interiors.
Table 1: Indoor line-of-sight transmission ranges
ZFR182x
Range type
Recommended
Line of sight,
maximum
(PIR) occupancy sensor, if equipped and the space it
monitors
unit
on the same personal area network (PAN)
the same PAN. Signal transmission is best if the path
between the TEC3000 and other wireless devices is
direct as possible. Line of sight is desirable but not
required. See Table 1 and Table 2 for the recommended
and maximum distances.
includes equipment rooms and elevator shafts and
concrete or brick walls, between the TEC3000 and
the ZFR182x or ZFR183x Router/Repeater or ZFR Pro
Coordinator Radio
same PAN. Redundancy in the layout provides the best
reliability in wireless installations
Transmission
distance
WNC Coordinator
Radio,ZFR Pro
Repeater
50 ft (15.2 m)
250 ft (76.2 m)
*241135300001E*
TEC3012-1x-xxx, TEC3013-1x-xxx, TEC3312-1x-xxx,
TEC3313-1x-xxx, TEC3612-1x-xxx, TEC3613-1x-xxx,
Part No. 24-11353-00001 Rev. E
2020-07-06
TEC3000 Wireless
Thermostat
Controller
50 ft (15.2 m)
100 ft (30 m)
(barcode for factory use only)
TEC311x-14-xxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEC3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Johnson Controls TEC3000 Series

  • Page 1 Parts included walls or floors, and furniture that is found in building interiors. • One TEC3000 Series Thermostat Controller with integral mounting base Table 1: Indoor line-of-sight transmission ranges • One installation instructions sheet...
  • Page 2: Installing The Thermostat Controller

    Figure 2. Pull the top edge of the cover and open the thermostat controller as illustrated in Figure 2. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 3 Note: If multiple wires are inserted into the terminals, make sure to correctly twist the wires together before inserting them into the terminal connectors. Carefully push any excess wire back into the wall. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 4: Terminal Identification

    There is no support for an On and Off VAV. HC/TRI on TB1 must be jumpered to COM on TB2 for low- side switching or to 24 VAC on TB2 for high-side switching. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 5: Wiring Diagrams

    Wiring diagrams See Table 3 for terminal identification. Figure 5: Low-side switching on/off wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 6 Figure 6: High-side switching on/off wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 7 Figure 7: Low-side switched floating wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 8 Figure 8: High-side switched floating wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 9: Setup And Adjustments

    Important: If lockout levels are used, some icons are hidden. Table 5 provides details of these levels. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 10: Customizing The Home Screen

    Indicates that the unit is set to • Temperature degrees. • Humidity • Off Button • Hold Button • Setpoint • Alarms Standby • Occupancy Status • Unit Status • Date/Time TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 11 Setpoint Temperature Displays the current setpoint temperature. Indicates that the Quiet Show Hold button is set to No. Heating Mode Indicates that heating mode is selected. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 12: User Lockout

    You need to start from the Exclamation point Indicates that an error has home screen to perform any of the following tasks. occurred. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 13: Setting The Control Mode

    The Quiet option has no effect on equipment Voltage, Full Speed Voltage, and Minimum Command. with single-speed fans. Start Voltage is the voltage output at which the fan begins TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 14: Dehumidification Control

    COS and exposes the value to the network as the supply temperature. Dehumidification control The TEC3000 controller support dehumidification control on fan coil devices under three configurations: • Four-pipe fan coil • Four-pipe fan coil with reheat TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 15: Setting The Local Schedule

    TEC or as an input from the includes runtime initiated when the Fan Mode is set to On and other overrides. The fan does not turn on if the TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 16: Menus And Submenus

    Max Cooling Setpoint* Min Cooling Setpoint* Max Setpoint* Min Setpoint* Scheduling Schedule Options Set Schedule Optimal Start Enable Temp Occ Duration Motion Sensor Timeout Manual Occupancy Mode Schedule Source TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 17 Show Temp on Home Show Humidity on Home Show Off Button on Home Show Hold Button Show Setpoint on Home Show Alarms on Home Show Occ Status Show Unit Status Show Date/Time TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 18 Zone Temp Sensor Zone Temp Offset Humidity Offset Reset Sensors For networked models: Zone Temp Alarm Enabled For networked models: Zone Temp Low Limit For networked models: Zone Temp High Limit TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 19 FC Comm Mode BACnet Instance ID* For networked models: N2 Address* BACnet Address* For networked models: MSTP Baud Rate* BACnet Encoding Type BACnet/MSTP Communication Mode For wireless models: Pan ID TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 20 High Fan Off Diff SP* Reheat Reheat Installed Reheat Min Damper Pos* Reheat Fan Required* Changeover Changeover Mode* Supply Temp Type* Changeover Setpoint* Supply Temp Sensor* Supply Temp Offset* TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 21 Heat Stage 1 Reheat Stage 1 Fan % Command Controller Info Model Name Software Version Unit Name Device Name Device Description Commissioning Supply Air Temperature Heat Command Cool Command Supply Fan TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 22: Troubleshooting

    Dirty Filter Equipment connected to the BI Replace the filter in the equipment as explained configured for a Dirty Filter alarm in the manufacturer's instructions. triggers the alarm. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 23 The baseboard and CPU board are Match the baseboard to its corresponding CPU paired incorrectly. An error message board. appears on the TEC indicating the model number of the baseboard and CPU board. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 24 Limit. Zone Temperature Too Hot The Zone Temperature increased Verify that the TEC and the RTU cooling are above the configured Zone Temp enabled and functioning. High Limit. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 25 2.0.2.xxxx (for wireless version. Error code 1025. models) or higher. A reboot is required to clear the Firmware Mismatch fault that occurs. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 26 Air is being forced through the Move the location of the TEC or change the TEC from a nearby vent. venting to prevent air from being forced through the TEC. TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 27 MS/TP Communications Bus Technical Bulletin (LIT-12011034). TEC3000 Series On/off or Floating Fan Coil Thermostats technical specifications Table 10: TEC3000 Series Networked and Wireless On/off or Floating Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability technical specifications Specification Description...
  • Page 28: Repair Information

    Table 10: TEC3000 Series Networked and Wireless On/off or Floating Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability technical specifications Specification Description Transmission 10 mW maximum power (for ZFR Pro2 100 mW maximum wireless models) Transmission range (for wireless 50 ft (15.2 m) recommended indoor...
  • Page 29: Software Terms

    45143 ESSEN MILWAUKEE WI 53202 NO. 32 CHANGJIJANG RD NEW GERMANY DISTRICT WUXI JIANGSU PROVINCE 214028 CHINA Contact information Contact your local branch office: www.johnsoncontrols.com/locations Contact Johnson Controls: www.johnsoncontrols.com/ contact-us TEC3000 Series On/Off or Floating Fan Coil Thermostats Quick Start Guide...
  • Page 30 © 2020 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
