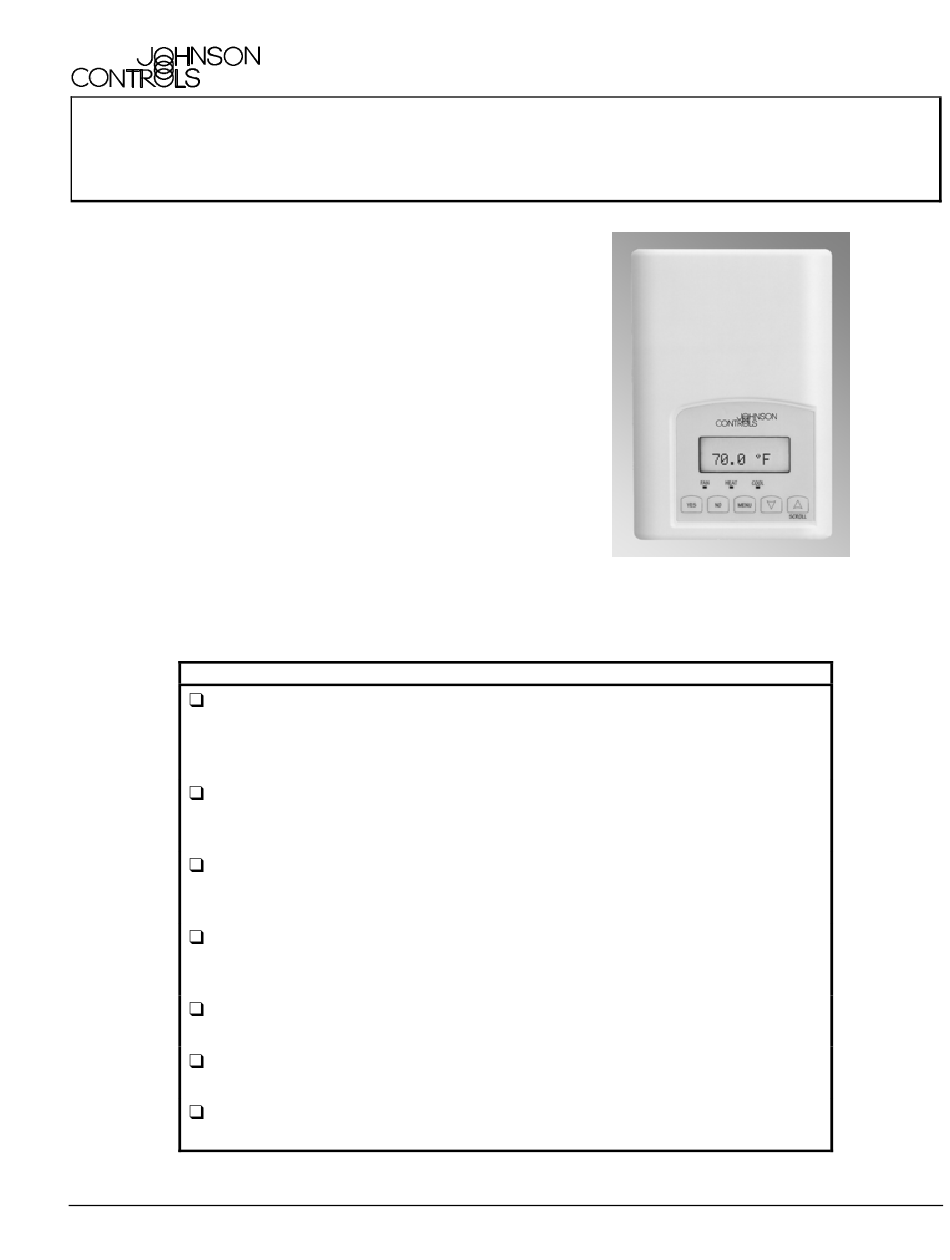

Johnson Controls TEC Series Product Bulletin

TEC2100 Series Networked Thermostats
The TEC2100 Series of thermostats is a family of
highly advanced thermostats specifically designed for
control of equipment such as rooftop units (with and
without economizers), heat pumps, and single and
multi-stage heating/cooling equipment. The TEC2100
features Metasys® system N2 Bus communication
capability that enables remote monitoring and
programmability for efficient space control. The
TEC2100 used an intuitive, plain text, menu driven
backlit display that makes setup and operation quick
and easy.
The TEC Series includes four models: Single-stage
(TEC2101-1), Heat Pump (TEC2102-1), Multi-stage
(TEC2103-1), and Economizer (TEC2104-1). All
thermostats use a unique proportional control
algorithm that virtually eliminates temperature offset
associated with traditional differential-based
thermostats.
Metasys N2 Open
Communication
Liquid Crystal Display
(LCD)
Backlit Display
Five Easy-to-Use Interface
Keys
Two Digital Inputs
Over Twenty Configurable
Parameters
Economizer Output
(TEC2104-1)
© 2003 Johnson Controls, Inc.
Code No. LIT-1201660

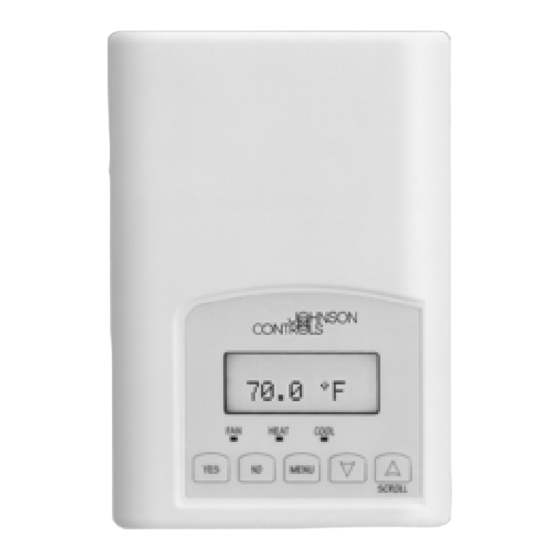

Figure 1: TEC2100 Series Thermostat
Features and Benefits
Provides compatibility with a proven
communication network; N2 Bus is widely
accepted by Heating, Ventilating, and Air
Conditioning (HVAC) control suppliers
Provides real-time control status of the
environment in easy-to-read plain text
messages
Incorporates a low level back light during
normal operation which brightens during user
interaction
Allow for easy adjustment of the thermostat's
many options (eliminates the need for
dipswitches)
Provides additional inputs for service or filter
alarms
Enables the thermostat to adapt to any
installation
Controls economizer operation for single and
multi-stage unitary rooftop equipment
Product Bulletin
Issue Date September 2, 2003
www.johnsoncontrols.com
