Applications

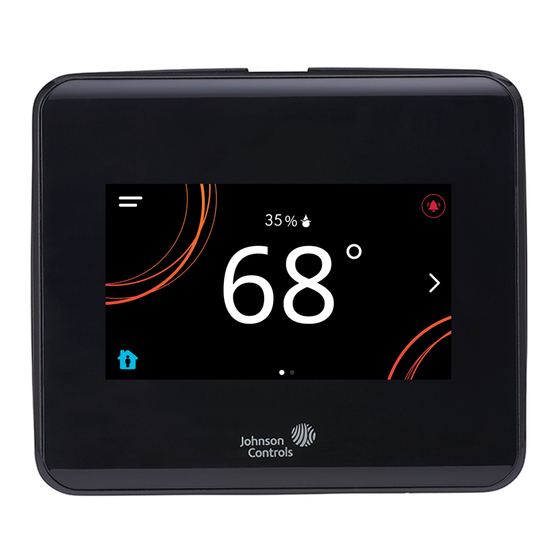

The networked TEC3000 Series Thermostat Controllers are stand-alone and field-selectable
BACnet
MS/TP or N2 networked devices. Wireless networked models of the TEC3000 Series
®
Thermostat Controller are also available. On/Off or Floating Fan Coil and Individual Zone
Thermostat Controllers provide control of the following:
• Local hydronic reheat valves
• Pressure-dependent variable air volume (VAV) equipment with or without local reheat
• Two- or four-pipe fan coils
• Cabinet unit heaters
• Other individual zone equipment using an on/off or floating control input
The networked models feature a field-selectable Building Automation System (BAS) BACnet MS/
TP or N2 communication capability that enables remote monitoring and programming for efficient
space temperature control. The wireless models are compatible with the WNC1800/ZFR182x Pro
Series Wireless Field Bus System that enables communication with a building automation system
(BAS). All models include a USB port configuration that reduces installation time by allowing
simple backup and restore features from a USB drive, which enables rapid cloning of configuration
between like units.
Some models feature built-in occupancy sensing capability. These thermostat controllers maximize
up to 30% energy savings in high-energy usage commercial buildings, such as schools and hotels,
during occupied times by using additional standby setpoints.
All models feature an intuitive onboard touchscreen UI with backlit display that makes setup and
operation quick and easy. Multiple fan configurations are supported for fan coil equipment types,
as follows:
• Single-speed
• Multi-speed (two or three discrete speeds)
• Variable-speed/EC motors (0 to 10 VDC control)
Some models support dehumidification on two-pipe fan coil units with reheat, and four-pipe fan
coil units with or without reheat. When no heating is required, the thermostat controller monitors
space humidity and activates dehumidification control as necessary. Heat and/or reheat is used as
required to maintain the space temperature. For optimal dehumidification performance, use a fan
coil unit that has a multi-speed or variable-speed fan (VSF).
Important: The TEC3000 Series Thermostat Controller is intended to provide an input to
equipment under normal operating conditions. Where failure or malfunction of the thermostat
controller could lead to personal injury or property damage to the controlled equipment or
other property, additional precautions must be designed into the control system. Incorporate
and maintain other devices, such as supervisory or alarm systems or safety or limit controls,
intended to warn of or protect against failure or malfunction of the thermostat controller.
LIT-12013161
2019-08-20
TEC3000 Series On/Off or Floating Fan
Coil Thermostats Installation Guide
TEC3012-1x-xxx, TEC3013-1x-xxx, TEC3310-1x-xxx,
TEC3313-1x-xxx, TEC3612-1x-xxx, TEC3613-1x-xxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEC3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Johnson Controls TEC3000 Series

  • Page 1 For optimal dehumidification performance, use a fan coil unit that has a multi-speed or variable-speed fan (VSF). Important: The TEC3000 Series Thermostat Controller is intended to provide an input to equipment under normal operating conditions. Where failure or malfunction of the thermostat controller could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the control system.
  • Page 2: North American Emissions Compliance

    Important: Le TEC3000 Series Thermostat Controller est destiné à transmettre des données entrantes à un équipement dans des conditions normales de fonctionnement. Lorsqu'une défaillance ou un dysfonctionnement du thermostat controller risque de provoquer des blessures ou d'endommager l'équipement contrôlé ou un autre équipement, la conception du système de contrôle doit intégrer des dispositifs de protection supplémentaires.
  • Page 3: Location Considerations

    50 ft (15.2 m) Line of sight, maximum 250 ft (76.2 m) 100 ft (30 m) Note: • Allow for sufficient clearance to insert a USB drive into the USB port TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 4: Installing The Thermostat Controller

    Security Screw Display USB Port Installing the thermostat controller Use a 1/16 in. (1.5 mm) Allen wrench or Johnson Controls T-4000-119 Allen-Head Adjustment ® Tool (order separately) to remove the security screw if it is installed on the top of the thermostat controller cover as illustrated in Figure 2.
  • Page 5 See Figure 3. Secure the mounting base to the wall surface using two mounting screws (user supplied) as illustrated in Figure 3. Note: Be careful not to overtighten the mounting screws. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 6 Figure 4. Figure 4: Hanging the thermostat controller front cover Wiring About this task: When an existing thermostat controller is replaced, remove and label the wires to identify the ter- minal functions. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 7 Important: Make all wiring connections in accordance with local, national, and regional regulations. Do not exceed the electrical ratings of the TEC3000 Series Thermostat Controller. Important: Use proper ESD precautions during installation and servicing to avoid damage to the electronic circuits of the thermostat controller.
  • Page 8 Otherwise, an operation error occurs after you reattach a cover and base that do not belong together (as shown in the following figure). See the following table for TEC3000 model names and code numbers. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 9 For example, if 0C is listed as the CPU board and the base board, the model is the TEC3612. Use a 1/16 in. (1.5 mm) Allen wrench or Johnson Controls T-4000-119 Allen-Head Adjustment Tool (order separately) to reinstall the security screw on the top of the thermostat controller cover.
  • Page 10 There is no support for an On and Off VAV. HC/TRI on TB1 must be jumpered to COM on TB2 for low-side switching or to 24 VAC on TB2 for high-side switching. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 11 Figure 7: Low-side switching on/off wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 12 Figure 8: High-side switching on/off wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 13 Figure 9: Low-side switched floating wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 14 Figure 10: High-side switched floating wiring diagram TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 15 Figure 11: Floating control (pressure-dependent VAV) Figure 12: Floating control (pressure-dependent VAV with changeover sensor/switch) Figure 13: Floating control (pressure-dependent VAV with changeover sensor/switch and reheat) TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 16 Figure 14: Floating control two-pipe heating and cooling hydronic valve control fan coil application Figure 15: Floating control two-pipe heating and cooling hydronic valve control with changeover fan coil application Figure 16: Floating control (on/off two-pipe and four-pipe fan coil applications) TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 17 Figure 18: Floating control two-pipe heating and cooling hydronic valve control fan coil application Figure 19: Floating control two-pipe heating and cooling hydronic valve control with changeover fan coil application Figure 20: AUX contact wiring TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 18: Setup And Adjustments

    The other available page is displayed as an empty dot. In the modern theme, the cooling, or blue, and heating, or orange, circles show whether the cooling or heating mode is active. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 19: Customizing The Home Screen

    • Off Button • Hold Button • Setpoint • Alarms • Occupancy Status • Unit Status • Date/Time To customize the Home screen: Press the Menu icon. Press Display Settings. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 20: Touchscreen Icons

    Indicates that the thermostat controller detected a supervisory Communication (for controller and both are online. Networked Models) Indicates that the thermostat controller did not detect a No Signal supervisory controller. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 21 Show Hold button is set to No. Temperature Heating Mode Indicates that heating mode is selected. Cooling Mode Indicates that cooling mode is selected. Auto Mode Indicates that Auto mode is selected. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 22 Adjusts the fan override between On, Auto, and Quiet for Variable-speed Fans variable-speed fans. Auto Quiet Fan Overrides for Adjusts the fan override between Low, Medium, High, Auto, and Multi-speed Fans Quiet for multi-speed fans. Medium High Auto Quiet TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 23 Save Saves the current configuration and parameter settings. Delete Deletes the scheduled event. Clear Clears the password entry on the keypad screen. Exclamation point Indicates that an error has occurred. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 24: User Lockout

    Insert the USB drive into the right side of the TEC. See Figure 1 for the USB port location. Press the Menu icon. Scroll down the menu and press Update. Press Backup. A message appears stating that the file is saved locally and on a USB drive. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 25 16. After selecting N2 in Step 6, press Save. 17. Press the back arrow to return to the previous screen. 18. Press N2 Address. 19. Enter the N2 address through the keypad. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 26: Configuring The Thermostat Controller

    During normal operation, press the Menu icon once to access the following parameters: • Fault Status • Setpoints • Schedule • Display Settings • Setup • Trend • Status • Update TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 27 Floating (Incremental) mode when the Unit Type is not set to VAV. For VAV mode, only floating actu- ators are supported and this option is unavailable. To change the Heating/Cooling Device Type: 1. Press the Menu icon. 2. Press Setup. 3. Press Equipment Setup. 4. Press General. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 28 5. Press Medium Speed On Cmd and adjust accordingly. 6. Press High Speed On Cmd and adjust accordingly. 7. Press Save and the back arrow to return to the previous screen. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 29: Setting The Control Mode

    • Auto—Fan cycles on demand with the controller entering cooling, heating, or dehumidification modes • Smart—Fan cycles on demand with the controller entering cooling or heating modes during unoccupied periods but is continuously running during occupied and standby periods TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 30 In installations with small zones and over- sized equipment, set the Equipment Size parameter to Oversized. To set the Equipment Size parameter: Press the Menu icon. Press Control Setup. Press Tuning. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 31 Heating or Cooling for Changeover Mode, the controller defaults to monitor-only mode for RSEN or COS and exposes the value to the network as the supply temperature. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 32: Temperature Setpoints

    Press the Menu icon. Press Setpoints. Select the setpoint to adjust and change as desired. Press Save and the back arrow to return to the previous screen. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 33 Common Setpoint. Otherwise, this setting Mode = Common works the same as when Occ Setpoint Select = Setpoint Offset and Heat Setpoint Cool Setpoint Mode = Individual Setpoints. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 34: Configuring Occupancy

    • Temporary occupancy binary input Occupancy is determined using a top-down decision matrix as shown in Table 8. Enumerations may not match TEC3000 Series Networked and Wireless On/Off or Floating Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability Installation Instructions (LIT-12013161) and TEC3000 Series Field-Selectable BACnet MS/TP or N2 Networked Thermostat Controllers Technical Bulletin (LIT-12011956) for NAE releases prior to 7.x.
  • Page 35: Selecting Schedule Source

    See Table 9 for scheduling information. Once the Occupancy Schedule command is set, the effective occupancy is determined by settings shown in the Occupancy Determination table. See Table 8. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 36: Setting The Local Schedule

    Occupied. As a result, a daily event at 12:00 AM must be scheduled if you do not want the controller to transition to Occupied Mode at midnight. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 37 The screen resets to the Event 1 Set Schedule screen. Note: If you do not select Save at this point, the event is not saved and you must repeat the event selection sequence. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 38: Overriding The Occupancy Mode

    The TEC supports an advanced optimal start algorithm. The algorithm works in conjunction with a local schedule to pre-heat or pre-cool the zone before scheduled occupancy periods begin, in order TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 39: Pid/Prac+ Automatic Control Tuning

    PID is used in conjunction with a Multi-Stage Controller (MSC) for all occupied and standby control. Additionally, the PID features Johnson Controls proprietary PRAC+ (Pattern Recognition Adaptive Control) automatic tuning, which continuously tunes the controller parameters to automatically optimize the control performance to match the equipment and zone.
  • Page 40: Configurable Binary Inputs

    Fan Lock must be manually reset from the Faults menu. • Service—Input from the equipment to display a service warning on the thermostat • Dirty Filter—Input from the equipment to display a dirty filter fault on the thermostat TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 41: Aux Control

    • Occupied Fan NO—Output is normally open, but is closed when occupied with the fan running • Occupied Fan NC—Output is normally closed, but is open when occupied with the fan running TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 42: Commissioning Mode

    The configuration menu can be accessed through Setup > Input Setup. All AIs can be configured to support the following options: • Relative Humidity—Sets up the AI to accept a 0-10 VDC input when connected to a humidity sensor. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 43 NET- Override network point at least every 15 minutes. The following table provides a list of point descriptions and the suggested write interval ranges. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 44: Available Fault Diagnostics

    If the monitoring occurs while heating, a heating ineffective alarm is generated. If you set the supply air temperature offset value set to 0, this alarm is disabled. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 45: Menus And Submenus

    Min Heating Setpoint* Max Cooling Setpoint* Min Cooling Setpoint* Max Setpoint* Min Setpoint* Scheduling Schedule Options Set Schedule Optimal Start Enable Temp Occ Duration Motion Sensor Timeout Manual Occupancy Mode Schedule Source TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 46 Show Temp on Home Show Humidity on Home Show Off Button on Home Show Hold Button Show Setpoint on Home Show Alarms on Home Show Occ Status Show Unit Status Show Date/Time TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 47 Zone Temp Offset Humidity Offset Reset Sensors Zone Temp Alarm Enabled (for TEC networked models) Zone Temp Low Limit (for TEC networked models) Zone Temp High Limit (for TEC networked models) TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 48 FC Comm Mode BACnet Instance ID* N2 Address* (for networked models) BACnet Address* MSTP Baud Rate* (for networked models) BACnet Encoding Type BACnet/MSTP Communication Mode Pan ID (for wireless models) TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 49 Medium Speed On Cmd* High Speed On Cmd* Reheat Reheat Installed Reheat Min Damper Pos* Reheat Fan Required* Changeover Changeover Mode* Supply Temp Type* Changeover Setpoint* Supply Temp Sensor* Supply Temp Offset* TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 50 Heat Stage 1 Reheat Stage 1 Fan % Command Controller Info Model Name Software Version Unit Name Device Name Device Description Commissioning Supply Air Temperature Heat Command Cool Command Supply Fan TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 51 TE-6311V-2 Flush TE-6310F-0 TE-6310F-1 Outside air 3 in. (76 mm) TE-6313P-1 Strap-mount 3 in. (76 mm) TE-631S-1 TE-6314P-1 Wall Well 6 in. (152 mm) TE-631AM-2 8 in. (203 mm) TE-6312M-1 TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 52 4 in. (102 mm) TE-634GV-2 8 in. (203 mm) TE-6341V-2 Outside air 3 in. (76 mm) TE-6343P-1 TE-6344P-1 Wall Well 8 in. (203 mm) TE-6342M-1 6 in. (152 mm) TE-634AM-2 TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 53: Troubleshooting

    Control Setup, and select Inputs to reset the sensors. 3. If the problem persists, order replacement units and return the affected devices to Johnson Controls under the RMA program. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 54 Zone Temp Unreliable All sources of zone Order replacement units and return temperature are unreliable, the affected devices to Johnson including the onboard sensor. Controls under the RMA program. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 55 Controls under the RMA program. An unknown error has Order replacement units and return prevented the controller from the affected devices to Johnson turning on. Controls under the RMA program. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 56 Verify that the cooling elements on the has not decreased below rooftop are functioning properly. the configured Supply Air Temperature Alarm Offset while cooling has been active for at least the Supply Air Temperature Alarm Delay. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 57 3. Check the placement of supply temperature sensor or switch. 4. Verify that the changeover is set up correctly for the type of sensor attached (sensor or switch). TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 58 10 minutes to a more or decreases too much the unoccupied space. appropriate time for the equipment when the unit is active in configuration. unoccupied mode. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 59 4. Restore the settings from the newly TEC device. edited backup file on the TEC. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 60: Repair Information

    Technical Bulletin (LIT-12011034). Repair information If the TEC3000 Series Thermostat Controller fails to operate within its specifications, replace the unit. For a replacement thermostat controller, contact the nearest Johnson Controls representative. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 61: Technical Specifications

    Technical specifications Table 17: TEC3000 Series Networked and Wireless On/Off or Floating Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability Specification Description Power requirements 19 to 30 VAC, 50/60 Hz, 4 VA at 24 VAC nominal, Class 2 or safety...
  • Page 62 Table 17: TEC3000 Series Networked and Wireless On/Off or Floating Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability Specification Description Ambient Operating 32°F to 122°F (0°C to 50°C); 95% RH maximum, noncondensing conditions Storage -22°F to 122°F (-30°C to 50°C); 95% RH maximum, noncondensing...
  • Page 63: Software Terms

    Your use of this product constitutes an agreement to such terms. Product warranty This product is covered by a limited warranty, details of which can be found at www.johnsoncontrols.com/buildingswarranty. TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide...
  • Page 64 © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
