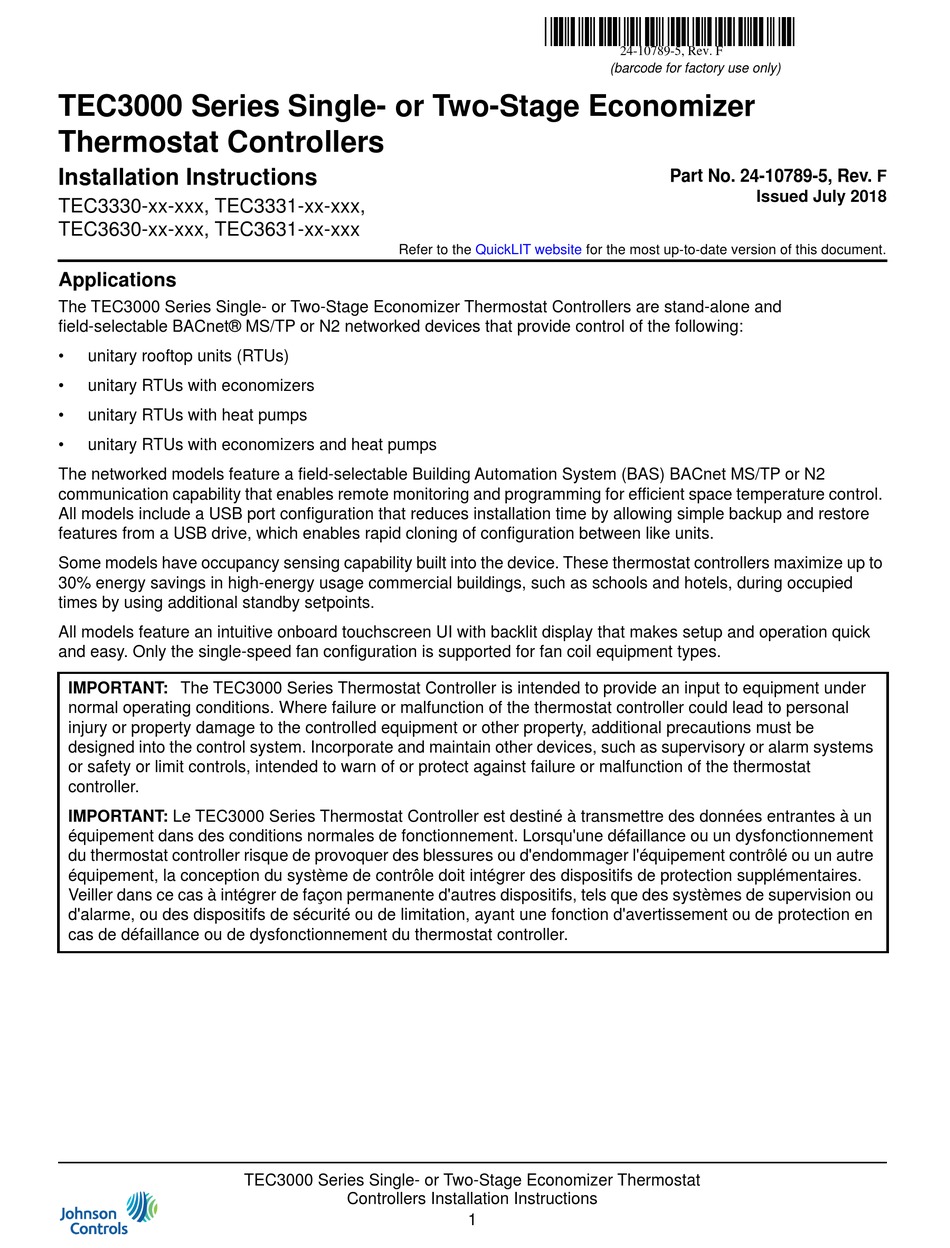

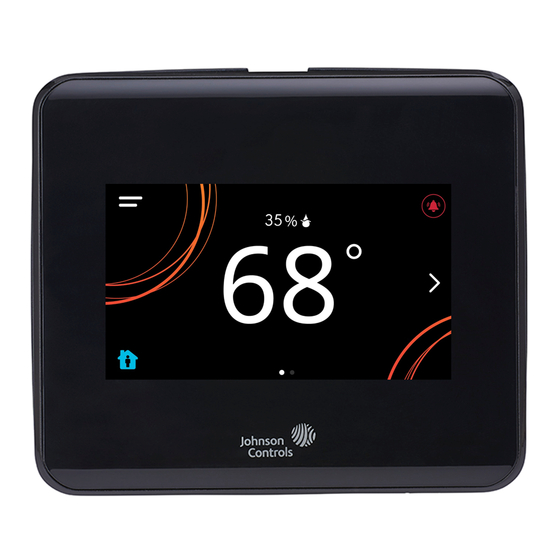

TEC3000 Series Single- or Two-Stage Economizer
Thermostat Controllers
Installation Instructions
TEC3330-xx-xxx, TEC3331-xx-xxx,
TEC3630-xx-xxx, TEC3631-xx-xxx
Applications
The TEC3000 Series Single- or Two-Stage Economizer Thermostat Controllers are stand-alone and
field-selectable BACnet® MS/TP or N2 networked devices that provide control of the following:
•
unitary rooftop units (RTUs)
•
unitary RTUs with economizers
•
unitary RTUs with heat pumps
•
unitary RTUs with economizers and heat pumps
The networked models feature a field-selectable Building Automation System (BAS) BACnet MS/TP or N2
communication capability that enables remote monitoring and programming for efficient space temperature control.
All models include a USB port configuration that reduces installation time by allowing simple backup and restore
features from a USB drive, which enables rapid cloning of configuration between like units.
Some models have occupancy sensing capability built into the device. These thermostat controllers maximize up to
30% energy savings in high-energy usage commercial buildings, such as schools and hotels, during occupied
times by using additional standby setpoints.
All models feature an intuitive onboard touchscreen UI with backlit display that makes setup and operation quick
and easy. Only the single-speed fan configuration is supported for fan coil equipment types.
IMPORTANT: The TEC3000 Series Thermostat Controller is intended to provide an input to equipment under
normal operating conditions. Where failure or malfunction of the thermostat controller could lead to personal
injury or property damage to the controlled equipment or other property, additional precautions must be
designed into the control system. Incorporate and maintain other devices, such as supervisory or alarm systems
or safety or limit controls, intended to warn of or protect against failure or malfunction of the thermostat
controller.
IMPORTANT: Le TEC3000 Series Thermostat Controller est destiné à transmettre des données entrantes à un
équipement dans des conditions normales de fonctionnement. Lorsqu'une défaillance ou un dysfonctionnement
du thermostat controller risque de provoquer des blessures ou d'endommager l'équipement contrôlé ou un autre
équipement, la conception du système de contrôle doit intégrer des dispositifs de protection supplémentaires.
Veiller dans ce cas à intégrer de façon permanente d'autres dispositifs, tels que des systèmes de supervision ou
d'alarme, ou des dispositifs de sécurité ou de limitation, ayant une fonction d'avertissement ou de protection en
cas de défaillance ou de dysfonctionnement du thermostat controller.
Refer to the
TEC3000 Series Single- or Two-Stage Economizer Thermostat
Controllers Installation Instructions
*24107895F*
24-10789-5, Rev. F
(barcode for factory use only)
QuickLIT website
for the most up-to-date version of this document.
1
Part No. 24-10789-5, Rev.
Issued July 2018
F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEC3330 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls TEC3330 Series

Summary of Contents for Johnson Controls TEC3330 Series

  • Page 1 *24107895F* 24-10789-5, Rev. F (barcode for factory use only) TEC3000 Series Single- or Two-Stage Economizer Thermostat Controllers Installation Instructions Part No. 24-10789-5, Rev. Issued July 2018 TEC3330-xx-xxx, TEC3331-xx-xxx, TEC3630-xx-xxx, TEC3631-xx-xxx Refer to the QuickLIT website for the most up-to-date version of this document. Applications The TEC3000 Series Single- or Two-Stage Economizer Thermostat Controllers are stand-alone and field-selectable BACnet®...

  • Page 2: North American Emissions Compliance

    North American Emissions Compliance United States This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Installing The Thermostat Controller

    Installing the Thermostat Controller 1. Use a 1/16 in. (1.5 mm) Allen wrench or Johnson Controls® T-4000-119 Allen-Head Adjustment Tool (order separately) to remove the security screw if it is installed on the top of the thermostat controller cover. See Figure 2.
  • Page 4 Note: Be careful not to overtighten the mounting screws. Figure 3: Mounting Hole Locations, Dimensions, in. (mm) (Left) and Securing the Thermostat Controller Mounting Base to the Wall (Right) 4-1/16 (103) 3-1/4 (83) Wiring When an existing thermostat controller is replaced, remove and label the wires to identify the terminal functions. Risk of Electric Shock.
  • Page 5 IMPORTANT: Make all wiring connections in accordance with local, national, and regional regulations. Do not exceed the electrical ratings of the TEC3000 Series Thermostat Controller. IMPORTANT: Use proper ESD precautions during installation and servicing to avoid damage to the electronic circuits of the thermostat controller.
  • Page 6 CPU board and the base board, the model is the TEC3611. 6. Use a 1/16 in. (1.5 mm) Allen wrench or Figure 6: Installing the Security Screw from the Johnson Controls T-4000-119 Allen-Head Adjustment Thermostat Controller Cover Tool (order separately) to reinstall the security screw (Shown without Occupancy Sensor) on the top of the thermostat controller cover.
  • Page 7 Table 2: Terminal Identification (See Figure 7 for Wiring Diagram) Terminal Label Function TEC3330, TEC3331 TEC3630, TEC3631 24 V 24 VAC hot from the sensor Cooling stage 1 Cooling stage 2 Economizer Auxiliary binary output Auxiliary W1 OB Heating 1 (RTU mode)/Reversing valve (O/B) (Heat Pump mode) Power for W1 and W2 W2 SUP Heating 2 (RTU mode)/Supplemental heat (Heat Pump mode)
  • Page 8 Note: Only one transformer is required for each TEC. Figure 7: Staged Wiring Diagram - Rooftop Unit (See Table 2 for Terminal Identification) Outdoor Air Temp Heat 1 W2 SUP W1 OB Cool 2 Cool 1 24 V Common NET COM R SEN Supply/Aux Thermistor...
  • Page 9 Note: Only one transformer is required for each TEC. Figure 8: Staged Wiring Diagram - Heat Pump (See Table 2 for Terminal Identification) Outdoor Air Temp W2 SUP W1 OB Compressor Compressor 24 V Common NET COM R SEN Supply/Aux Thermistor Thermistor 24 V...

  • Page 10: Setup And Adjustments

    Figure 9: AUX Contact Wiring 19 to 30 VAC AUX Contact Load Figure 10: Binary Input Wiring Dry Contact Dry Contact Setup and Adjustments IMPORTANT: Table 10 provides a full list of TEC3000 menu settings. In the upcoming sections, step-by-step instructions are included on how to access and adjust the more commonly used menus.

  • Page 11: Customizing The Home Screen

    Customizing the Home Screen Customizing the Home screen settings include: • Brightness • Units • Time Zone • Date • Enable Backlight • Time • Time Format • Date Format You can also show or hide these items on the Home screen: •...
  • Page 12 Table 3: Touchscreen Icons (Part 2 of 2) Icon Icon Name Description Displays the current setpoint. Hold mode is not enabled. No Hold/Hold Displays the active setpoint. Hold mode is not enabled. Hold/Hold Proceeds to the next screen. Right Arrow Adjusts the fan override between On, Auto, and Quiet for single-speed fans.

  • Page 13: User Lockout

    User Lockout You can select from three different levels of access at the local display to manage functionality through the supervisory controller. This lockout is independent of any display or passcode settings. The existing temporary occupancy capability is unaffected by this feature. User lockout hides the icons that are not operable. The lockout levels are described in Table 4.
  • Page 14 6. Press Confirm to save locally and on USB. The setting files are named based on the TEC3000 model name, date, and time stamp (for example, TEC3311-00_2015-10-08T1). The files are saved locally and on the USB drive’s root directory. See Troubleshooting if the settings are not backed up correctly. 7.

  • Page 15: Configuring The Thermostat Controller

    16. Press to return to the previous screen. 17. Press N2 Address. 18. Enter the N2 address through the keypad. 19. Press Save. Configuring the Thermostat Controller Use the Menu icon on the home screen to access and change the basic operating parameters of the thermostat controller.

  • Page 16: Configuring Economizer

    5. If the thermostat controller is in rooftop mode, press Number of Heating Stages and adjust the number of heating inputs on the equipment being controlled. 6. Press to save and to return to the previous screen. Configuring Economizer If the equipment has an analog (between 0 to 10 V) input for an economizer damper command, configure the economizer as follows: 1.

  • Page 17: Setting The Fan Mode

    4. Press Control Mode and select Cooling, Heating, or Auto as desired. 5. Press to save and to return to the previous screen. Setting the Fan Mode The Fan Mode informs the controller how to handle the fan. There are two options for fan configuration: a Fan Mode available to the installer through the menu system, and a fan override available as an option to the end user from the Fan icon on the home screen.

  • Page 18: Temperature Setpoints

    Temperature Setpoints The thermostat controller provides a flexible setpoint configuration to give power to the building owner while being easy to use by the occupant. In addition to a simple up/down offset adjustment on the home screen for the occupant, there are six temperature setpoints on the TEC. The six temperature setpoints are Cooling and Heating setpoints for Occupied, Unoccupied, and Standby modes.

  • Page 19: Configuring Occupancy

    Table 5: Setpoint Operation Mode of Setpoint Details Operation Occ Setpoint Select = In this mode, the TEC has one setpoint, Common Setpoint, for heating and cooling. There is Setpoint Offset and also a common Setpoint Offset (warmer/cooler adjust) that is only applied to Common Heat Cool Setpoint Mode = Setpoint.

  • Page 20: Selecting Schedule Source

    Enumerations may not match the TEC3000 Series On/Off or Floating Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability Installation Instructions (Part No. 24-10787-6), TEC3000 Series Proportional Fan Coil and Individual Zone Thermostat Controllers with Dehumidification Capability Installation Instructions (Part No.

  • Page 21: Setting The Local Schedule

    If the OCC-CONFIG is set to External, the NET-OCC object is used to control the unit externally. If the OCC-CONFIG is set to Schedule, the internal schedule commands the LOCAL-OCC object, which sets the Occupancy Schedule command. Note: If you do not have a schedule in the Schedule object and you have the OCC-CONFIG set to Schedule, you can control the unit with the LOCAL-OCC object externally;...
  • Page 22 4. Press Set Schedule. 5. Select the days to which the schedule should apply. Note that if events are already set for the selected days, they appear in the corresponding event box. If any events conflict between selected days, an asterisk appears in the event box.

  • Page 23: Overriding The Occupancy Mode

    8. Set the time to the time at which the event should occur and press Save. Figure 14: Setting the Event Time (Left) and Viewing the Event Time (Right) 9. Press Save to save the event and press the Return icon to return to the main scheduler screen. Figure 15: Returning to the Main Menu 10.

  • Page 24: Enabling Optimal Start

    PID is used in conjunction with a Multi-Stage Controller (MSC) for all occupied and standby control. Additionally, the PID features Johnson Controls proprietary PRAC+ (Pattern Recognition Adaptive Control) automatic tuning, which continuously tunes the controller parameters to automatically optimize the control performance to match the equipment and zone.

  • Page 25: Configurable Binary Inputs

    PRAC+ automatic tuning can also be disabled. When disabled, the controller parameters remain at their last values until automatic tuning is re-enabled. To disable automatic tuning: 1. Press the Menu icon. 2. Press Control Setup. 3. Press Tuning. 4. Press Temp Control Setup. 5.

  • Page 26: Aux Control

    Setting both BIs to the same function is supported for all except Occupancy, Fan Lock, Open Door, and Open Window. If both BIs are set the same for those four, BI2 is ignored and only BI1 is used. The Open Door option works in conjunction with a motion sensor, either built into the TEC or connected to another BI configured for Motion NO/NC mode.

  • Page 27: Commissioning Mode

    This option is also exposed to the BAS through the point AUX-MODE. Commissioning Mode The thermostat controller has a built-in commissioning mode, which is designed to allow you to quickly test equipment wiring and functionality. Commissioning mode temporarily disables the control logic, and allows you to manually command any individual output.

  • Page 28: Menus And Submenus

    Menus and Submenus In the following table, the * indicates that the menus depend on your configuration. Table 10: Menus and Submenus (Part 1 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) Setpoints Occ Cooling Setpoint 72°F (22°C) 55 to 85°F (13 to 30°C)
  • Page 29 Table 10: Menus and Submenus (Part 2 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) Schedule Schedule Options — Set Schedule See Scheduling Optimal Start Enable Yes or No Temp Occ Duration 120 minutes 0 to 300 minutes Motion Sensor Timeout 15 minutes...
  • Page 30 Table 10: Menus and Submenus (Part 3 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) Control Setup Frost Protection Yes or No (Cont) Aux Mode Not Used Not Used, Occupied NO, Occupied NC, Occupied Fan NO, Occupied Fan NC, On, Load Shed Rate Limit 0.066°F...
  • Page 31 Table 10: Menus and Submenus (Part 4 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) Control Setup Temp Control Setup Automatic PID Automatic PID Tuning, Manual PID Tuning Tuning, Deadband Override, On/Off (Cont) Control (Single-stage Models) Reset PID Tuning Yes or No...
  • Page 32 Table 10: Menus and Submenus (Part 5 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) Control Setup Cool Period* 60 seconds 30 to 120 seconds (Cont) *Values only appear when the Temp control equals Manual PID Tuning. Econ Prop Band* 160°F 5 to 10°F (-15 to -1.11°C)
  • Page 33 Table 10: Menus and Submenus (Part 6 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) Equipment Setup General Number of Compressor One-Stage Not Used, One-Stage, Two-Stage Lead/Lag Equalize Runtime Yes or No Number of Heating Stages* Two-Stage Not Used, One-Stage, Two-Stage * Heat pump unit,...
  • Page 34 Table 10: Menus and Submenus (Part 7 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) — Trend EFF-ZNT -50 to 250°F (-45.56 to 121.11°C) — EFF-SETPOINT 45 to 100°F (7.22 to 37.78°C) — EFF-ZNH 0 to 100%RH —...
  • Page 35 Table 10: Menus and Submenus (Part 8 of 9) Level 1 Level 2 Level 3 Available Values (LCD Screen Name) (Default Values) System Status Occupancy Source Occupancy Sensor Occupancy BI Temp Occ BI Temp Occ Occ Override Local Schedule BAS Schedule Occupancy Sensor Unit Status Idle...

  • Page 36: Troubleshooting

    Johnson Controls under the RMA program. Internal Sensor Fail An internal sensor has failed on the Order replacement units and return the affected TEC. devices to Johnson Controls under the RMA program. TEC3000 Series Single- or Two-Stage Economizer Thermostat Controllers Installation Instructions...
  • Page 37 Calibration Corrupt Factory calibration data is lost or is not Order replacement units and return the affected installed. devices to Johnson Controls under the RMA program. Zone Temp Unreliable All sources of zone temperature are Order replacement units and return the affected...
  • Page 38 Controller Fault The controller has detected an internal Order replacement units and return the affected fault that it cannot recover. devices to Johnson Controls under the RMA program. An unknown error has prevented the Order replacement units and return the affected controller from turning on.
  • Page 39 Table 12: Troubleshooting Details (Part 1 of 2) Symptom Probable Causes Solutions The controller displays Idle with a Unit The outdoor air temperature is too 1. If Cooling and Heating Lockout Status of Cooling Unavailable due to warm for heating or too cold for Setpoints are inadequate, adjust OA Temp despite being above cooling cooling.

  • Page 40: Repair Information

    For common MS/TP troubleshooting information, refer to the MS/TP Communications Bus Technical Bulletin (LIT-12011034). Repair Information If the TEC3000 Series Thermostat Controller fails to operate within its specifications, replace the unit. For a replacement thermostat controller, contact the nearest Johnson Controls representative. TEC3000 Series Single- or Two-Stage Economizer Thermostat Controllers Installation Instructions...

  • Page 41: Technical Specifications

    The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
  • Page 42 507 E. Michigan Street, Milwaukee, WI 53202 Metasys® and Johnson Controls® are registered trademarks of Johnson Controls. All other marks herein are the marks of their respective owners. © 2018 Johnson Controls. TEC3000 Series Single- or Two-Stage Economizer Thermostat Controllers Installation Instructions Published in U.S.A.
