Rotem RLD 7.2 Installation And User Manual

Two channel light dimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

RLD 7.2/RLD-14
Two Channel Light Dimmer
Installation and User Manual
P/N: 110036

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLD 7.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Rotem RLD 7.2

Summary of Contents for Rotem RLD 7.2

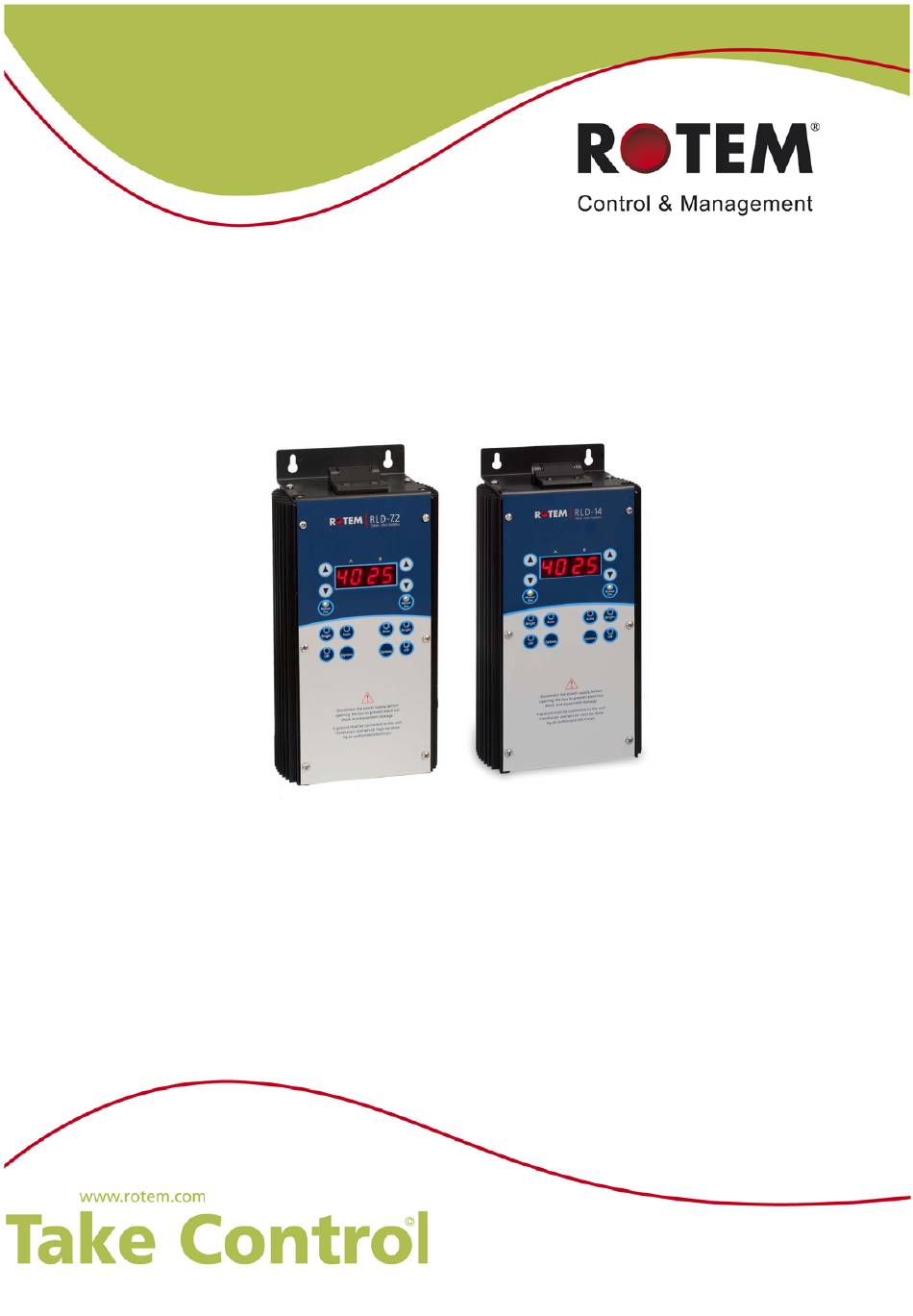

  • Page 1 RLD 7.2/RLD-14 Two Channel Light Dimmer Installation and User Manual P/N: 110036...
  • Page 2 Neglecting to provide such a backup will be regarded as the user’s willingness to accept the risk of loss, injury and financial damage. In no event will ROTEM be liable to a user or any third party for any direct, indirect, special, consequential or incidental damages, including but not limited to any damage or injury to...

  • Page 3: Table Of Contents

    Specifications ..................... 13 Environmental Protection ..................13 Installation ....................14 RLD Wiring Diagram ....................14 6.1.1 RLD 7.2 Wiring ......................15 6.1.2 RLD 14 Wiring ......................17 Configuring the Channel Levels ................18 6.2.1 Using an Analog Output Card .................. 18 6.2.2 Using a Communication Card ..................

  • Page 5: Front Matter

    Read this manual before operating your Rotem product. Using this equipment for any other purpose or in a way not within the operating recommendations specified in this manual will void the warranty and may cause personal injury.

  • Page 6: Document Information

    Rotem will not accept responsibility for damage resulting from the use of this manual. Rotem also reserves the right to make changes and improvements to its products and/or the associated documentation without prior notice.

  • Page 7: Introduction To The Rld-7.2 And Rld-14

    3 INTRODUCTION TO THE RLD-7.2 AND RLD-14 The RLD-7.2 and RLD-14 units enable controlling the light and brightness in the poultry pen. The Rotem Platinum, AC-2000 and SuperGuard Controllers support the RLD. This manual is meant to be used by either a poultry farmer or authorized personnel who own a poultry pen.

  • Page 8: Abbreviations And Terms

    3.3 Abbreviations and Terms Abbreviations/Terms Meaning Description Light Emitting Diode: An electronic device used to indicate the status of various functions on the front panel. A value permanently stored in memory and is used to define the Default parameter in the absence of a user-defined value. Restart The procedure that renews the device state.
  • Page 9 1. Arrow keys: These keys change values of output voltage (in percentage) 2. Channels: This specifies which channel is being dealt with. Note that the buttons are duplicated since each one is dedicated to each channel separately. 3. Display: Both values of voltage and parameters are displayed here. 4.

  • Page 10: Using The Rld Digital

    4 USING THE RLD DIGITAL The following sections detail how to use the RLD. After setting the parameters, RLD automatically backs them up. In cases when the power shuts down and goes back on, the controller continues operating as in its last saved state. •...

  • Page 11: System Parameter 3 - Low Limit

    NOTE: The unit must be set to Auto Mode when working with a controller (refer to Auto Mode, page 12). CAUTION Platinum Controllers only suppport channels 1 – 4. 4.1.3 System Parameter 3 – Low Limit The "Lo" parameter defines the minimum brightness limit (0%-99%). This parameter prevents lights burning out;...

  • Page 12: Auto Mode

    Pressing the "Auto" button enables connecting the RLD-14 to a controller. There are two ways to connect the RLD-14 to a controller: • Via an analog output card 0-10 VDC (All Rotem Controllers) • Via a communication card (Platinum Controller only)

  • Page 13: Specifications

    5 SPECIFICATIONS Input Voltage • RLD-14 One/Two phase, 230 VAC 50/60 Hz • RLD-7.2 One phase,110 VAC 50/60 Hz Output Maximal Load (Per Channel) 30 Amps Maximal Power (Per Channel) • RLD-14 230 VAC, 7200 VA • RLD-7.2 110 VAC, 3600 VA 0-10 VDC Analog Input Impedance 10 KOhm Operating Temperature Range...

  • Page 14: Installation

    6 INSTALLATION WARNING! ONLY an authorized electrician may install the RLD. Power must be disconnected to avoid electrical shock and damage. To avoid exposing the RLD to harmful gases or high humidity, it is recommended to install it in the service room. NOTE: Installation Category (Over voltage Category) II CAUTION...

  • Page 15: Rld 7.2 Wiring

    6.1.1 RLD 7.2 Wiring Figure 2: RLD 115V Single Phase Wiring  Key:  1: Neutral  2: 115 VAC  3: Neutral  4: Safety ground RLD | 3.0/4.01...
  • Page 16 Figure 3: RLED 115V Two Phase Wiring  Key:  1: Neutral  2: 115 VAC Phase A  3: 115 VAC Phase B  4: Neutral  5: Safety ground RLD | 3.0/4.01...

  • Page 17: Rld 14 Wiring

    6.1.2 RLD 14 Wiring Figure 4: RLD 230V Single Phase Wiring  Key:  1: Neutral  2: 230 VAC  3: Neutral  4: Safety ground RLD | 3.0/4.01...

  • Page 18: Configuring The Channel Levels

    Figure 5: RLD 230V Two Phase Wiring  Key:  1: Neutral  2: 230 VAC Phase A  3: 230 VAC Phase B  4: Neutral  5: Safety ground 6.2 Configuring the Channel Levels The following sections detail how to configure the channel levels. •...
  • Page 19 Figure 6: RLD (Board Version 2.1) to RAOC-8 (Analog Output) Wiring Diagram Figure 7: RLD (Board Version 1.3.1) to RAOC-8 (Analog Output) Wiring Diagram 2. To control both channels simultaneously, short "0-10V A" and "0-10V B". 3. To configure the channel levels go to the: Analog output table (Platinum and SuperGuard/Piguard) System parameters (AC-2000) RLD | 3.0/4.01...

  • Page 20: Using A Communication Card

    6.2.2 Using a Communication Card 1. Connect the RLD to an RCLP card. NOTE: Verify that parameter "ch" is set to "1 - 8" (refer to System Parameter 2 – Channel, page 10). 2. Configure the channels. There are two numbering options: Different numbers to each channel, with up to 8 different channels (when using multiple RLD units).

  • Page 21: Troubleshooting

    7 TROUBLESHOOTING CAUTION To ensure proper Light Dimmer operation, do not connect any inductive devices to the output (for example transformers, reactors, chokes). Problem Description Troubleshooting 1. Check the power. 2. Check the main fuse F3 and F1 (when When Power is connected the seven- working with 230 VAC).

  • Page 22: Parts Catalog

    8 PARTS CATALOG This image cannot currently be displayed. Description RLD-7.2 Part Number RLD-14 Part Number Front Panel SP-RLD/E-122099 SP-RLD/E-122099 Sticker SP-RLD-350187 SP-RLD-350188 Door Hinge SP-RLD/E-122044 SP-RLD/E-122044 Square Seal SP-RLD/E-200025 SP-RLD/E-200025 Flat Cable SP-RLD/E-141023 SP-RLD/E-141023 Fuses: 0.1a 250V 5*20mm 190007 190004 Bus (s504) lf (218)

This manual is also suitable for:

Rld-14
