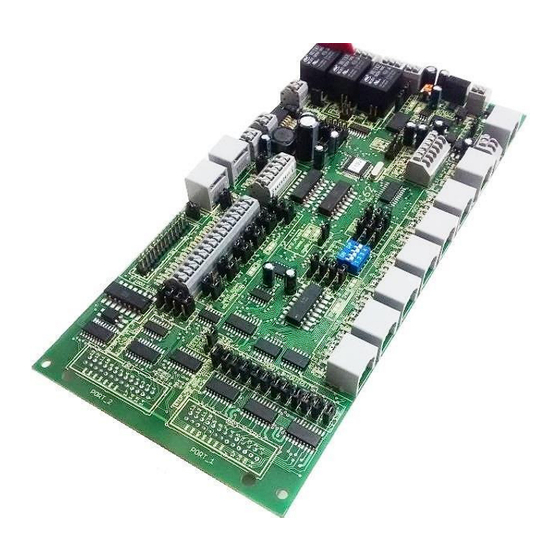

Dual port multifunction cnc board rev. 5.6
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

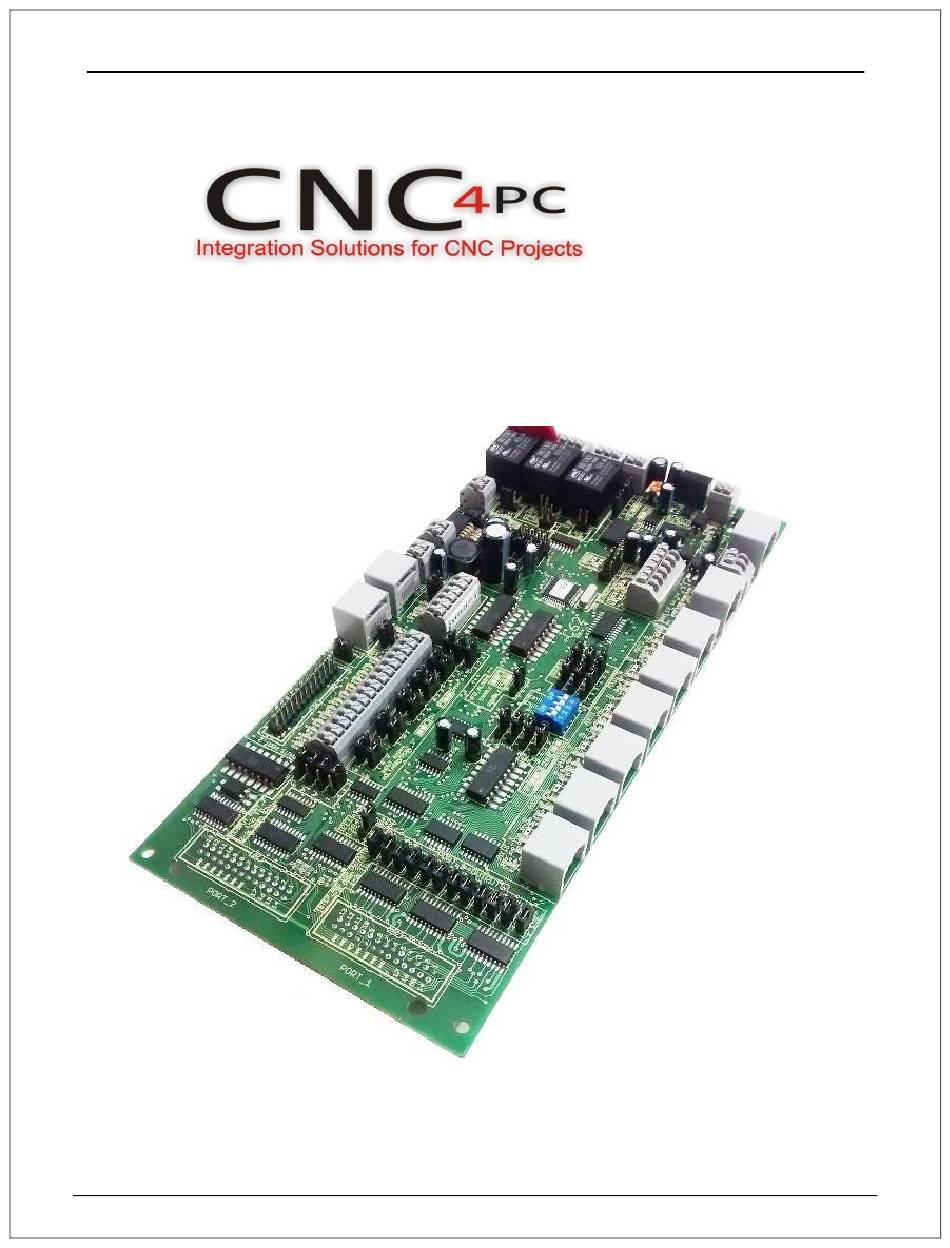

USER'S
MANUAL
VER.1
C62- DUAL PORT MULTIFUNCTION CNC
BOARD Rev. 5.6
DECEMBER 2018
User's Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CNC4PC C62

Summary of Contents for CNC4PC C62

  • Page 1 USER’S MANUAL VER.1 C62- DUAL PORT MULTIFUNCTION CNC BOARD Rev. 5.6 DECEMBER 2018 User’s Manual Page i...

  • Page 2: Table Of Contents

    USER'S MANUAL TABLE OF CONTENTS CONTENTS PAGE # FEATURES ........................1 I/O SPECIFICATIONS ....................2 BOARD DESCRIPTION ....................3 POWER TERMINALS AND CONFIGURATION JUMPERS ........... 4 Power terminal ......................4 Output 5V Source ......................4 Output 12 / 24V Source....................4 Input terminals for port_1 and port_2 ................

  • Page 3: Features

    FEATURES • Connects directly to the motion controller or Parallel Ports. • IEEE 1284 Standard compatible. • Built-in PWM-Based Speed Control. • Two Built-in Electromechanical Relays with NO and NC positions for spindle control. • RJ45 Connector for Easy VFD Connection. •...

  • Page 4: I/O Specifications

    PINS PORT1 PORT2 TOTAL INPUT OUTPUT TOTAL I/O SPECIFICATIONS Inputs are jumper selected to be TTL or +24vdc and Outputs are jumper selected to be TTL or Open Collector. OPT-ISOLATED DIGITAL INPUT TTL SPECIFICATIONS Numbers of inputs On-state voltage range 2 to 5VDC Maximum off-state voltage 0.8V...

  • Page 5: Board Description

    OPTOISOLATED DIGITAL INPUT SPECIFICATIONS Numbers of inputs On-state voltage range 5 to 24V DC Typical signal delay Less than 500uS OPEN COLLECTOR OUTPUT SPECIFICATIONS Number of outputs Maximum Supported output voltage 30VDC Typical output current (DIR and STEP outputs) 30mA Typical output current (general purpose pins) 500mA Maximum supported frequency...

  • Page 6: Power Terminals And Configuration Jumpers

    POWER TERMINALS AND CONFIGURATION JUMPERS Power terminal This input requires an external power 12VDC / 24VDC@1000mA if not using the board to supply power to external devices. Output 5V Source 5V@200mA can be sourced to sensors or other cards requiring Output 12 / 24V Source 24V@300mA can be sourced to sensors or other cards requiring...
  • Page 7 PORT_1 INPUT 5V INPUT 12V / 24V Jumper position changed PORT_2 INPUT 5V INPUT 12V / 24V Jumper position changed User’s Manual Page 5...

  • Page 8: Select Jumper Com For The Inputs Of Port_1 And Port_2

    Select JUMPER COM for the inputs of port_1 and port_2 Set the Jumper to COM = +5VDC, GND or 12VDC / 24VDC to determine the common for the input signals to be used. COM = 5V PORT_2 PORT_1 COM = GND with 5V User’s Manual Page 6...
  • Page 9 COM = GND with 12V / 24V Jumper position changed COM = 12V / 24V User’s Manual Page 7...

  • Page 10: Controller Selection Jumpers (Ieee1284/Ss)

    Isolate Input Controller selection jumpers (IEEE1284/SS) Some motion controllers are not IEEE1284 compatible, set the jumper select the compatibility. Set it Non-Compatible if pull-up resistors in the motion controllers activate outputs when not supposed to. Compatible (IEEE1284) Not Compatible (IEEE1284) User’s Manual Page 8...

  • Page 11: Ttl Or Open Collector Outputs Can Be Used For Driver Connection

    TTL or open collector outputs can be used for driver connection. Use TTL if driver takes +5vdc, or open collector if driver takes +12vdc or +24vdc signals. Open Collector Jumper position changed Output terminal for general purpose These outputs are open collector In this terminal, can be connected relay, led or lamps, alarm, etc.

  • Page 12: Select Jumper For Output Port_2

    Select Jumper for OUTPUT port_2 Use TTL if driver takes +5vdc, or open collector if driver takes +12vdc or +24vdc signals. OPEN COLLECTOR Jumper position changed DRIVER DISCONNECTION JUMPERS Set the jumper to use the driver disconnect detection feature that may be available on the C34 board.

  • Page 13: Typical Connections

    TYPICAL CONNECTIONS Connection with the terminal of output source of 12V / 24V Connection with the terminal of output source of 5V User’s Manual Page 11...

  • Page 14: Led Indicator

    LED INDICATOR The standby LED lights indicates that the system is ready but disabled. When Status LED, (Green LED) lights, it indicates that the system is enabled. There are 4 possible error sources: a driver fault, E-STOP error, SCHP error or VFD alarm.
  • Page 15 VFD Alarm: Alarm signal generated by the VFD. ( See VFD ALARM JUMPERS section) GND VFD: Ground of VFD when it is powered with external source of 24V Ext. 12VDC or 24VDC: External 12VDC or 24VDC power supply used to enable the VFD.

  • Page 16: Pinout

    The VFD Alarm monitoring feature can be enabled or disabled: For the Variable speed control go to http://cnc4pc.com/Tech_Docs/VARIABLE_SPEED_CONTROL.pdf For Configure the control software go to http://cnc4pc.com/Tech_Docs/CONFIGURATION_OF_CONTROL_SOFWARE.pdf For Dipswitch configuration go to http://cnc4pc.com/Tech_Docs/DIPSWITCH_CONFIGURATION.pdf For Replacing Potentiometer go to http://cnc4pc.com/Tech_Docs/Replacing_a_Potentiometer.pdf PINOUT User’s Manual...
  • Page 17 RJ45 Distribution RJ45_7 RJ45_8 RJ45_9 RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN RJ45 PIN P.P. PIN 1_13 2_17 1_12 E-STOP 2_16 1_11 2_11 1_15 1_15 2_14 2_11 12/24V 12/24V 12/24V Supported connection Supported connection Supported connection C15, C5, C8, C9, C47, C16, A32, A61 C41S, C6, C36S, C54, C56, C37...

  • Page 18: Wiring Sample

    10.0 WIRING SAMPLE Note: This wiring is just to illustrate a sample product application. Specific wiring may vary from system to system. It is the user’s responsibility to implement it correctly. User’s Manual Page 16...

  • Page 19: Connecting A Pendant

    11.0 CONNECTING A PENDANT Set the pendant enable jumper in ENABLE position if a pendant is connected to the PIN HEADER connector. Note: when is connect the pendant, must set jumper of common in GND of port_2. If not connects a pendant, set jumper on 2-3. 12.0 WIRING DIAGRAMS Different kind of sensors and switches using different voltages can be connected using the diagrams that follow:...

  • Page 20: Wiring Diagram To Connect Npn Open Collector Proximity Sensors

    12.1 Wiring diagram to connect NPN open collector proximity sensors Using isolate power supply 12V / 24V, common positive Set jumpers 12 / 24V User’s Manual Page 18...
  • Page 21 Using the terminal of output 12V / 24V of the board, common positive Set jumpers 12V / 24V User’s Manual Page 19...
  • Page 22 Using the terminal of output 5V of the board, common positive Set jumpers 5V User’s Manual Page 20...
  • Page 23 Using the terminal of output 12V / 24V of the board, common GND. Set jumpers 12V / 24V User’s Manual Page 21...
  • Page 24 Using the terminal of output 5V of the board, common GND. Set jumpers 5V User’s Manual Page 22...

  • Page 25: Wiring Diagram To Connect Npn Proximity Sensors

    12.2 Wiring diagram to connect NPN proximity sensors Using isolate power supply 12V / 24V, common positive Note: you can use the terminal output of 12V / 24V Source of the board lest use a power supply 12V / 24V. Set jumpers 12V / 24V User’s Manual Page 23...
  • Page 26 Using the terminal of output 12V / 24V of the board, common GND. Set jumpers 12V / 24V User’s Manual Page 24...
  • Page 27 Using the terminal of output 5V of the board, common GND. Set jumpers 5V User’s Manual Page 25...

  • Page 28: Wiring Diagram To Connect Pnp Open Collector Proximity Sensors

    12.3 Wiring diagram to connect PNP open collector proximity sensors Using isolate power supply 12V / 24V, common positive Note: you can use the terminal output of 12V / 24V external of the board lest use a power supply 12V / 24V. Set jumpers 12V / 24V User’s Manual Page 26...
  • Page 29 Using the terminal of output 24V of the board, common GND. Set jumpers 12V / 24V User’s Manual Page 27...
  • Page 30 Using the terminal of output 5V of the board, common GND. Set jumpers 5V User’s Manual Page 28...

  • Page 31: Wiring Diagram To Connect Pnp Proximity Sensors

    12.4 Wiring diagram to connect PNP proximity sensors Using power supply 12V / 24V, common positive Note: you can use the terminal output of 5V or 12V / 24V Source of the board lest use a power supply 5V or 12V / 24V. Set jumpers 12V / 24V User’s Manual Page 29...
  • Page 32 Using the terminal of output 12V / 24V of the board, common GND. Set jumpers 12V / 24V User’s Manual Page 30...
  • Page 33 Using the terminal of output 5V of the board, common GND. Set jumpers 5V User’s Manual Page 31...

  • Page 34: Dimensions

    13.0 DIMENSIONS All dimensions are in Millimeters. Fixing holes (4mm). Disclaimer: Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
