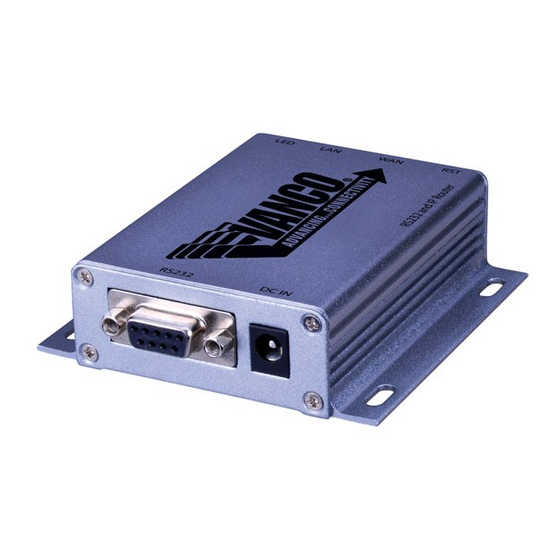

- Page 1 RS-232 and IP Router Vanco Part Number: RS232-IP Technical Support www.vanco1.com • techsupport@vanco1.com • 800-626-6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters. - Page 3 FEATURES The Vanco RS232-IP is a LAN/Wi-Fi to Serial adapter that allows for remote access, configuration, and the ability to control any serial device over an IP network. Based on the universal serial interface with built-in TCP/IP protocol, the RS232-IP enables seamless communication via serial port, Ethernet, or any wireless network interface.
-
Page 4: Specifications
Frequency Bandwidth Optional ........20MHz,40MHz, Automatic PACKAGE CONTENTS Please check the packaging and make sure the following items are contained in the shipping carton: • RS232-IP Unit • 5V Power Supply • Male-to-Female DB9 (RS232) Cable • Cat5e Patch Cable •... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 1. RS232 (DB9 Female) 2. Power Supply Input 3. Antenna Screw Terminal 4. Reset (RST) 5. WAN RJ45 6. LAN RJ45 7. Wifi Status 800-626-6445... - Page 6 RS-232 Connection Pinout Function Input/ Description Number Output Input Data receiving input Output Data sending ouput Input Ground www.vanco1.com...
- Page 7 LAN Interface and WAN Connections The RS232-IP utilizes two network interfaces with a WAN port and LAN port. The interface uses a standard RJ45 connector as shown below: The following table shows the pin definitions of RJ-45: Pinout Function Direction Description...
-
Page 8: Connect And Operate
In this mode, LAN is enabled and WIFI/WAN functions and ports are closed. Through the appropriate settings, the data between the computer and the LAN port on the RS232-IP can be achieved through the network through category cables. Ethernet can be configured as a dynamic IP address (DHCP) or can also be configured as a static IP address (STATIC). - Page 9 Connect a single Cat5e/6 to the RJ45 jack on the RS232-IP - A PC and the RS232-IP can be connected to the same LAN via an ethernet switch or router Connect a computer either directly to the RS232-IP LAN port or to the network the RS232-IP is connected to, and set the network segment to be the same as the RS232-IP’s segment: 192.168.16.XX (Default:...
- Page 10 Under the NetMode drop-down menu, select ETH-SERIAL Here you can change the settings as needed for the RS232-IP to communicate through the network. Once changes are completed, select Apply for changes to take effect NOTE: After changes have been applied, you may need to sign back into the user interface using the new IP information and address.
- Page 11 In this mode, WIFI is enabled with WAN and LAN ports closed. Through the appropriate settings, the data between a computer or 3rd party control system and the WIFI on the RS232-IP can be achieved through the network. WIFI CLIENT can be configured as a dynamic IP address (DHCP), or can also be configured as a static IP address (STATIC).
- Page 12 Enter the default IP address of 192.168.16.254 into any web browser to enter the user interface. • Username: admin • Password: admin Under the NetMode drop-down menu, select WIFI(CLIENT)-SERIAL NOTE: After changes have been applied, you may need to sign back into the user interface using the new IP information and address.
- Page 13 Once you are back on the settings page, you can add the password for network (if applicable), and change the settings as needed for the RS232-IP to communicate through the network. Once changes are complete select Apply for changes to take effect.
- Page 14 Default Mode In this mode, WIFI is enabled as well as the WAN and LAN ports are enabled. The RS232-IP also can work in the AP (access point) mode. This setting allows elements from all the modes to be used and set up accordingly, and can even act as a wireless/wired Ethernet router.
-
Page 15: Systems Settings
SYSTEMS SETTINGS • Current: Shows current status • Updated: Shows the current revision parameters • Submit: Submits the revision • Serial Configure: Serial configuration format - Baud rate, data bits, parity bit, stop bit. )For example: 15200,8,n,) • Serial Framing Length: The Length of Serial Framing (typically remains unchanged) •... - Page 16 TCP Server In this mode, the RS232-IP is on a specified port, waiting for a TCP/IP Client connection. When connected, all TCP/IP data is sent directly to the serial port end, and the data of the serial end is sent to TCP Client end.
- Page 17 UDP Server In this mode, the module opens the local designated port. Once received and the data sent to the port, the module will send the data to the serial port and record the remote IP, port. The module will only record the last information on the remote connection.
- Page 18 SYSTEM MANAGEMENT Language Settings: English, Chinese Administrator Settings: Change username and password from default System Reboot: Restore the RS232-IP to factory default settings SETTINGS MANAGEMENT Export, Import, or load settings saved on a computer www.vanco1.com...
-
Page 19: Firmware Update
Select Apply NOTE: DO NOT TURN OFF THE COMPUTER OR RS232-IP UNTIL THE UPDATE IS COMPLETED. When in WIFI (AP)-SERIAL mode, allows the user to check the status of the RS232-IP as well as monitor the stations associated with the AP. -
Page 20: Safety Precautions
SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. • Unpack the equipment carefully and save the original box and packing material for possible future shipment •... - Page 21 SAFETY AND NOTICE RS232-IP has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the RS232-IP should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
-
Page 22: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. -
Page 23: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 24 Vanco® International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
