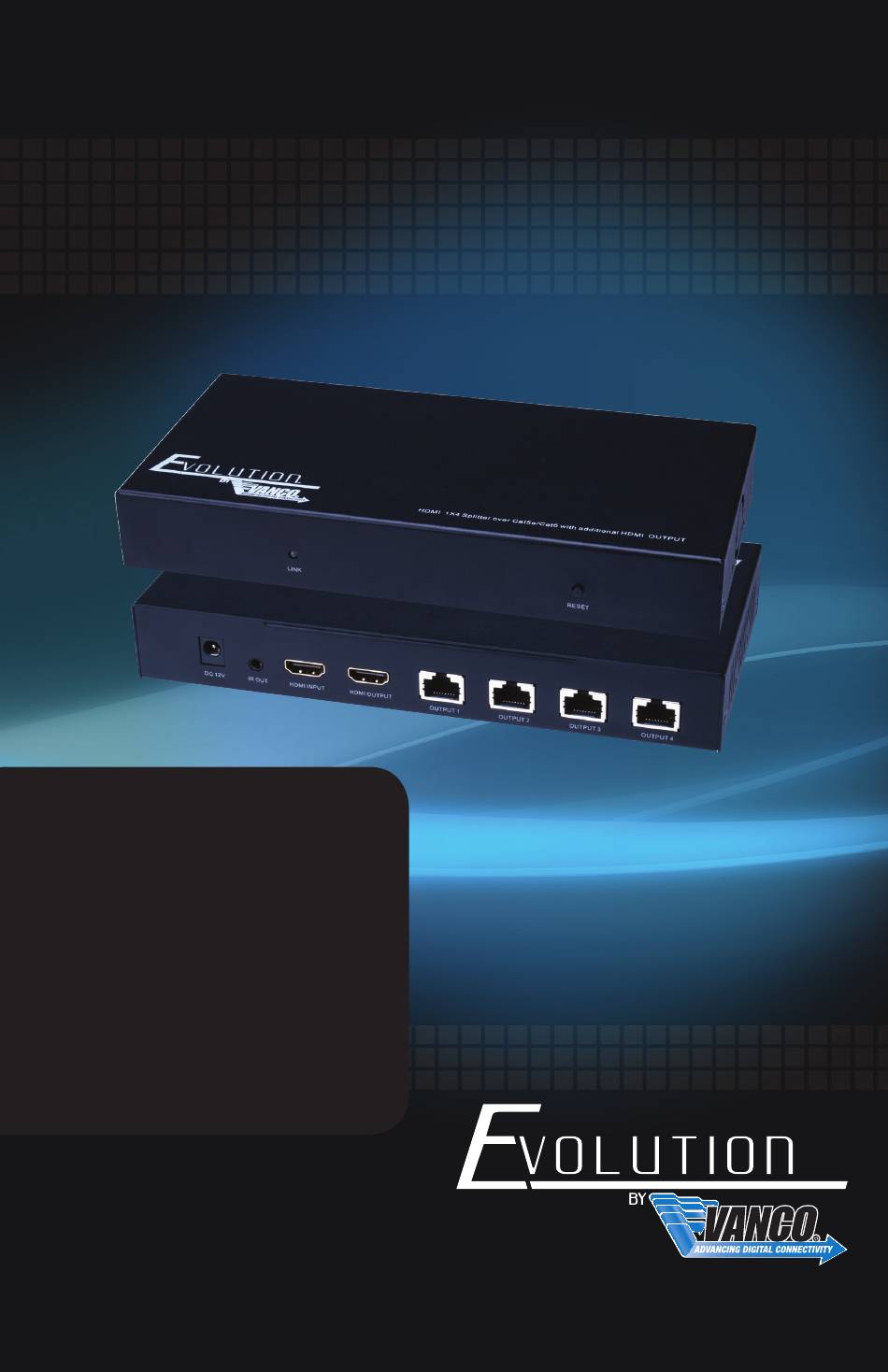

- Page 1 1x4 4K HDMI® S P L I T T E R with UTP POE Ports and HDMI Pass Through 1x4 4K HDMI® Splitter with UTP PoE Ports and HDMI Pass Through Part Number: EV4K1014 www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
-
Page 3: Package Contents
FEATURES INTRODUCTION The EV4K1014 is an HDMI splitter that allows one HDMI input to be split and sent to up to five displays simultaneously. With four outputs over UTP, and one output over HDMI, the EV4K1014 allows for a local display connected, or to daisy chain additional units to gain more outputs. -
Page 4: Specifications
SPECIFICATIONS Power Supply ............12V, 3A Audio Formats ............PCM, Dolby True HD and DTS Master HDMI Interface Standard ..........HDMI 2.0b, HDCP 1.4/2.2 Remote IR ..............20-60kHz wide frequency carrier ESD Protection ............Human Body model: +/- 4kv (contact discharge) Dimensions ............... -
Page 5: Connection Diagram
Receiver 1. Reset Button: Resets connection without having to disconnect cabling or power cycling 2. Cat6 Input: Connect Cat5e/6 to the EV4K1014 Splitter, homerun recommended with no coupling, punch down, or patch panels for best performance; receivers require no power supply as the main splitter and receivers feature PoE 3. - Page 6 DYNAMIC EDID MODE The EV4K1014 Splitter works on dynamic EDID. It will generate a mixture EDID from all of the displays to ensure HDMI source’s video format can be displayed on all display devices. Keep in mind, the lowest common resolution will be used if a mixture of different resolution displays are connected.
-
Page 7: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 8 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
