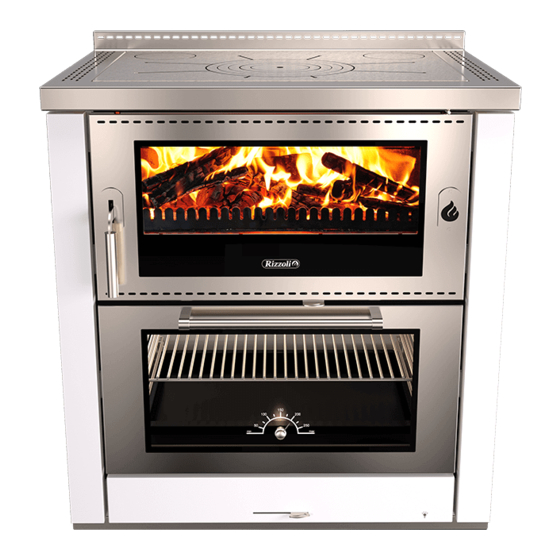

M - MZ - ML RANGE
Operational Manual for USA/Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rizzoli M Series

Summary of Contents for Rizzoli M Series

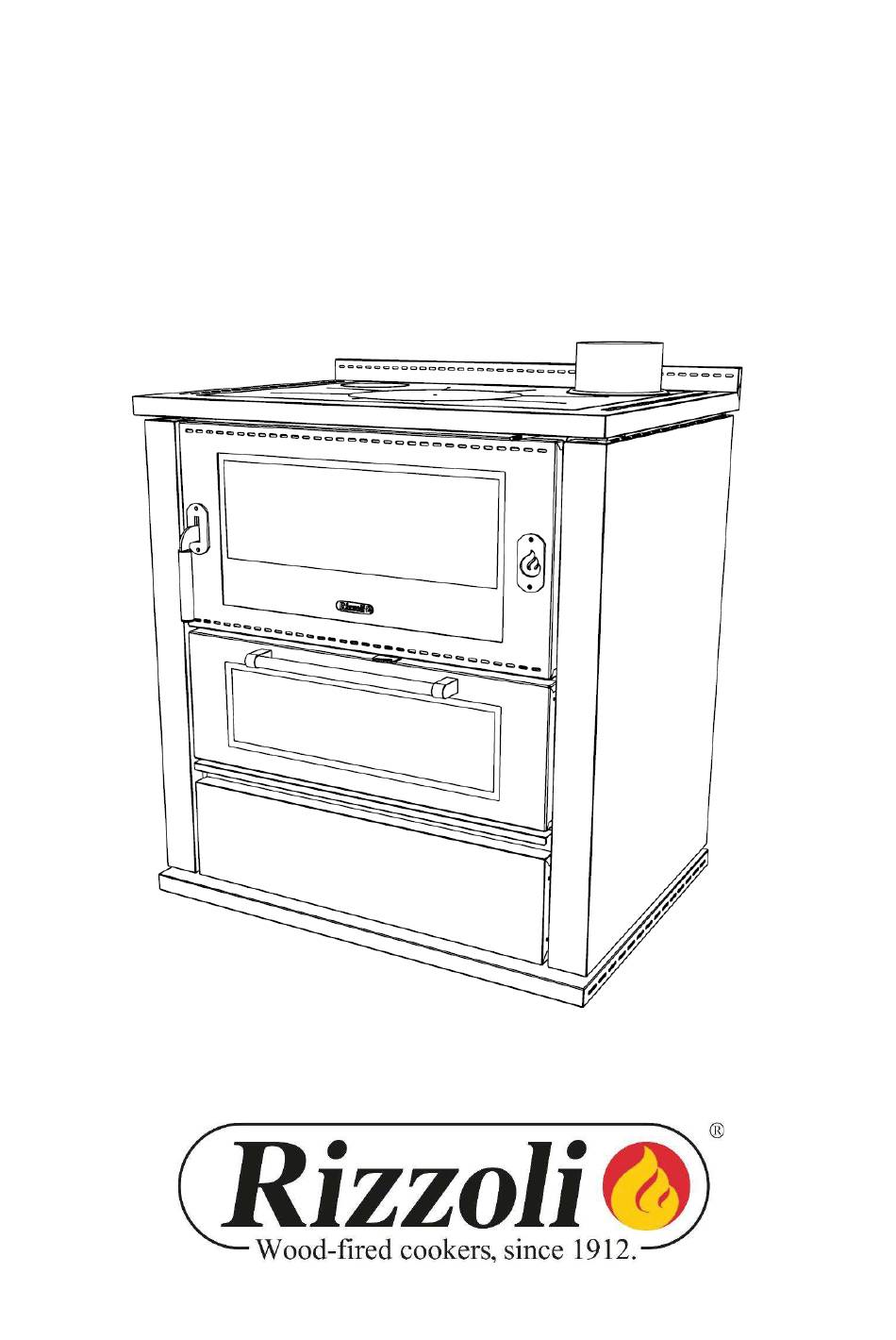

  • Page 1 M - MZ - ML RANGE Operational Manual for USA/Canada...

  • Page 3: General Instructions

    Your choice fell upon a Rizzoli cooker, result of a tradition started in 1912 when Carlo Rizzoli began the production of wood fired cookers with the typical style of the valley in the dolomites. Year after year Rizzoli continued to refine its cookers using even more advanced technologies, but without losing contact with the elegance, the beauty and the functionality of the original product.
  • Page 4 • The first lightings of the cooker and the first seasonal lightings must be done with temperate fire in order to prevent possible breakings of the internal parts. • After a long period in which you do not use the cooker, check carefully that obstructions are not present and that the cooker works regularly.
  • Page 5 Door opening lever Oven thermometer 1.6 ACCESSORIES Together with the wood fired cookers Rizzoli you will find some accessories that simplify the installation, the maintenance and the daily use of the device. • Ash drawer • Sponge for fire door cleaning •...

  • Page 6: Installation

    Be sure that the cookers that have to be framed has the minimum safety distances to flammable or high temperature sensible materials, see table 2.2 (T). Rizzoli also produces spacer to reduce distances. If the cooker is framed between not sensible to heating materials, it is necessary anyway to keep a minimum distance of 0.08”...
  • Page 7 2.3 CHIMNEY Chimney has a main importance for a correct working. Wood fired cookers are built to insure the maximum efficiency, anyway the performances of the cooker are deeply influenced by the chimney. If the chimney has defects or does not match the building laws, it is not insured the correct working of the device. To build the chimney you must use suitable materials, made to work with high temperatures and according to fireproof laws: it is not important the kind of material, on condition that it is right and that the chimney is isolated.

  • Page 8: Chimney Flue

    Chimney must be dimensioned in a correct way according to the type of cooker it is connected with, minding the environmental and general conditions of the place in which it is placed. The section of the chimney must permit the flow of the fumes produced by the cooker without difficulties, but it must not be too big otherwise the chimney will experience problems in heating itself and this may generate problems like weak draught and condensation.
  • Page 9 2.8 FLUE OUTLET POSITION M-MZ-ML Range models are endowed with the predisposition of the flue outlet in the upper and rear parts, right or left. The choice of the side must be done when ordering the cooker. After the delivery, it is still possible to change the position from right to left and from left to right but it is necessary to make some variations inside the cooker in addition to the replacement of the flue connector.

  • Page 10: Air Intake

    The air intake in the room must have a minimum surface of 80 cm . On demand, Rizzoli can give specific valves which can allow the automatic opening of the air intake only when it is necessary for the correct working of the device in order to warrant a maximum depression of 4 Pa in the place of installation.
  • Page 11 Are also possible other solutions for the connection but they must be decided together with Rizzoli. WARNING! Aspiring hoods or extracting air fans in the room may generate problems to the device if there is not a suited air intake or in case of air intake sub-dimensioned.
  • Page 12 WARNING! For the correct working of the device verify that the passage of comburent air is not obstructed or, in case of connection with external air intake, that the air aspiration grill is not obstructed. 2.11 PLINTH REGULATION (MZ) The plinth of MZ Range cookers can be regulated in order to match the space in which the cooker is inserted. It is possible to adjust the level of the cooker by operating on the levelling pins that can be regulated in height.
  • Page 13 Picture 14 - Regulation of the telescopic plinth. 2.13 DOOR OPENING VARIATION M-MZ-ML Range cookers are predisposed with the rightwards fire door opening, if not indicated leftwards at the order. It is possible to change the opening also after the installation. The operation must be done by experienced people.
  • Page 14 first lighting must be done with moderate fire, using little wood broken in small pieces. In the next lightings you can progressively increase the load of combustible. During the first lightings some smell due to processing residuals might happen. This phenomenon is normal, it requires the ventilation of the room and will disappear quickly.

  • Page 15: Air Regulation

    3.2 STARTING To allow an easier lighting of the cooker with cold chimney, the M-MZ-ML Range wood fired cookers have two devices useful for starting. The starting key is ruled by a rod: extracting the rod, the key opens. This creates a direct connection between the combustion chamber and the chimney, in order to obtain an improved draught.
  • Page 16 Picture 19 - The valve is open in correspondence of the position marked by letter “A”, while is closed in the position Picture 18 - Regulation of the air intake lever (M-MZ Range). marked with letter “B” (M-MZ Range). Picture 21 - The valve is open in correspondence of the position marked by letter “A”, while is closed in the position Picture 20 - Regulation of the air intake lever (ML Range).

  • Page 17: Oven Cooking

    3.4 PLATE COOKING The radiant plate is designed to allow a fast and simple cooking. The hotter part is situated in correspondence with the hotplate, this is the best part for placing a pot which must get warm quickly. The external parts of the plate are better to keep foods warm.
  • Page 18 3.8 TELESCOPIC PULLOUT FOR BAKING PAN Picture 23 - Instructions for the variation of the position of the telescopic pullout. All the wood fired cookers have a telescopic pullout for endowed baking pan system. In this way, it is possible to extract the baking pan without the necessity to sustain it, ensuring a better practicality.
  • Page 19 3.10 FIRE DOOR PROTECTION (OPTIONAL) On M-MZ-ML Range cookers it is possible to have on demand a steel protection which could be placed on the fire door. This protection is designed to shield the door when the cooking operations require the continuous presence of the user in front of the cooker or in presence of children.

  • Page 20: Maintenance

    Also in these situations, an accurate cleaning will restore the state of the product as it was new. On request Rizzoli gives specific products to clean stainless steel. For enamelled or painted parts, do not use abrasive or aggressive solution and in case of stains pour some oil and wait while it absorbs the halo, then clean with a soft rag.
  • Page 21 Picture 25 - Unhooking the oven door from the cooker. 4.6 FUME-CIRCUIT INSPECTION In the wood fired cookers, the combustion fumes are forced to turn completely around the oven. For this reason, M-MZ-ML Range wood fired cookers are endowed with a double inspection to clean the fume-circuit. The cleaning must be done at least after six months of normal use of the cooker as the cleaning of the chimney, according to the use it might be necessary a more frequent cleaning.

  • Page 22: Chimney Cleaning

    Picture 26 – Fume-circuit inspection. 4.7 CHIMNEY CLEANING The cleaning of the chimney must be done by experienced technicians at least every six months of normal use of the cooker. Anyway, cleaning must be done every time it becomes necessary according to the use or to the combustible used.

  • Page 23: Extraordinary Maintenance

    4.9 PLATE CLEANING AND MAINTENANCE Radiating plates in special steel need regular maintenance, in particular they need cleaning after every use that brings moisture or dust on the plate itself. With cold cooker you have to remove all the pots and boilers that could maintain moisture on the plate. Together with the device are given some exclusive products, studied for the cleaning and the maintenance of the plate: the abrasive sponge, the plate cleaner and the oil for plate care.
  • Page 24 5. WHAT TO DO IF… Problems Effects Possible solutions • Verify that the air regulations is at its maximum opening • Verify that ash or other residuals do not obstruct the grill • Verify that the grill is not inserted correctly (the flat part is up) •...

  • Page 25: Technical Data

    6. TECHNICAL DATA 6.1 TECHNICAL DATA Model M 60 - MZ 60 - ML 60 M 70 - MZ 70 M 80 - MZ 80 - ML 80 Weight 352 lbs 396 lbs 463 lbs Nominal power 27,297 BTU/hr 27,297 BTU/hr 27,297 BTU/hr Efficiency 80.2 %...

  • Page 26: Warranty

    7.1 DECLARATION OF PERFECTLY MADE PRODUCT Rizzoli warrants that the device has passed all the quality controls and internal tests. Rizzoli also warrants that the device is working, without imperfections due to building or due to materials. This device is the result of the multi-decennial experience of Rizzoli, who warrants a perfectly made product.
  • Page 27 7.9 COMPETENT LAW COURT In case of controversy will be competent the law-court of Bolzano (Italy) only. NOTE Rizzoli S.r.l. is constantly working to improve its products, for this reason the contents of this booklet may vary without notice.
  • Page 28 INDEX INSTRUCTIONS pag. 3 GENERAL INSTRUCTIONS pag. SAFETY INSTRUCTIONS pag. RECOMMENDED COMBUSTIBLES pag. OTHER COMBUSTIBLES pag. PARTS OF COOKERS pag. ACCESSORIES pag. INSTALLATION pag. 6 GENERAL NOTES pag. SAFETY DISTANCES pag. CHIMNEY pag. DIMENSIONS AND CORRECT FORMS OF CHIMNEY pag. FLUE pag.
  • Page 29 pag. 24 WHAT TO DO IF… TECHNICAL DATA pag. 25 TECHNICAL DATA pag. 25 SAFETY DISTANCES SINGLE WALL PIPE pag. 25 REGULATIONS AT NOMINAL POWER pag. 25 WARRANTY pag. 26 DECLARATION OF PERFECTLY MADE PRODUCT pag. 26 GENERAL CLAUSES pag. 26 WARRANTY MODALITIES pag.
  • Page 31 2” (5.08 cm) 8” (20.32 cm) 8” (20.32 cm) 6” (15.24 cm) 36” (91.44 cm) pipe b) Non-combustible materials / Rizzoli spacer /*with wall and side protector Top on sides Connector pipe Sides A Back C Top E 0.08” - 0.08”...
  • Page 32 Part:2 Installation Instructions US and Canada Rizzoli Cook Stoves ML80 ML60 Tested and Certified to UL 1482, ULC-S627 Tested to: EN 12815 PLEASE READ ALL INSTRUCTIONS BEFORE YOU INSTALL YOUR NEW STOVE. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

  • Page 33: Safety Instructions

    SAFETY INSTRUCTIONS Read all instructions carefully. 1. The installation of this stove must comply with your local building codes. Please observe the clearance to combustible. SEE Table 2.2(T) Safety Distances 2. Always connect this stove to a chimney and vent outside. This stove requires approved masonry or factory build 6"...

  • Page 34: Installation Instruction

    INSTALLATION INSTRUCTION NOTE: FLOOR EMBER PROTECTION IS REQUIRED FOR SPARK AND ASH SHIELDING, NOT FOR LIMITING FLOOR TEMPERATURE FROM THE RADIANT HEAT OF THE APPLIANCE. 1. Proper clearances must be maintained for adequate air circulation. Adequate ventilation must be provided while operating this stove.
  • Page 35 Chimney connector systems and clearances Chimney connector shall not pass through attic or roof space, closet or similar concealed space, or a floor, or ceiling. When passage through a wall, or partition of combustible is desired, the installation shall conform to CAN/CSA-B365, Installation Code for Solid-Fuel-Burning Appliances and Equipment: Page 4...
  • Page 36 Page 5...

  • Page 37: Operation Of The Stove

    OPERATION OF THE STOVE 1. Burn wood only. The wood should be natural, air dried (seasoned) for at least six (6) months. Before lighting open draft, located on front left or right side of stove. Light wood using paper, twigs, etc. NEVER USE ANY FLAMMABLE LIQUIDS OR GASOLINE TO START OR FRESHEN UP A FIRE IN THE STOVE.

  • Page 38: Operating Safety Precautions

    CAUTION: HOT WHILE IN OPERATION. KEEP CHILDREN, ANIMALS, CLOTHING AND FURNITURE AWAY FROM THE STOVE. DO NOT TOUCH HOT STOVE. CONTACT MAY CAUSE SKIN BURNS. TRAIN CHILDREN TO STAY A SAFE DIS-TANCE FROM THE UNIT. CHILDREN SHOULD BE ALL THE TIME CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM WITH THE STOVE.
  • Page 39 Some example of clearance reduction; • Using heat shields on back and sidewalls allowing at least 1" of space away from the walls for ventilation. The inch spacing is necessary to ensure air circulation between the protection and the wall so that the wall is not subject to high temperatures. The spacer used must be non-combustible. Another method to achieve the same type of protection is using brick or masonry with 1"...
  • Page 41 !" !" !" !" & !" !" (&%!" !" ", " )* (""!" !" #, " (".-( #, " (".- #", " " &#")) + &%" (, " (" &% !" + &%" (, " (" &(1 $ 2 ' !"...
  • Page 43 !" 9#" ): !" !" & !" !" !" *+ (""!" !" #- " (".!( #- " (".! & #"- " %'. " , '%" (- " " '#"** & , '%" (- " ("('% !" , '%" (- " ("('( 1 &...
