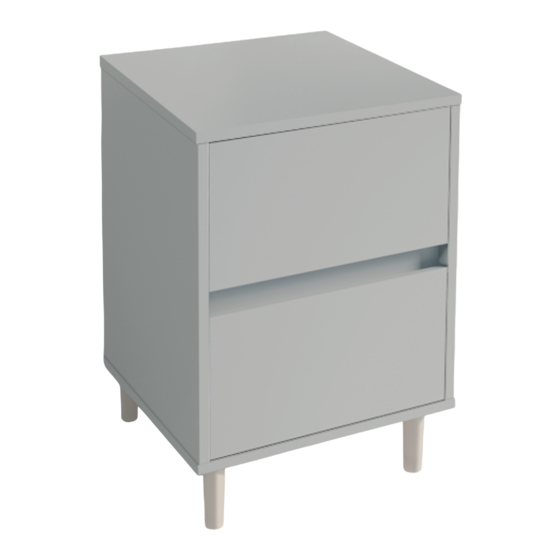

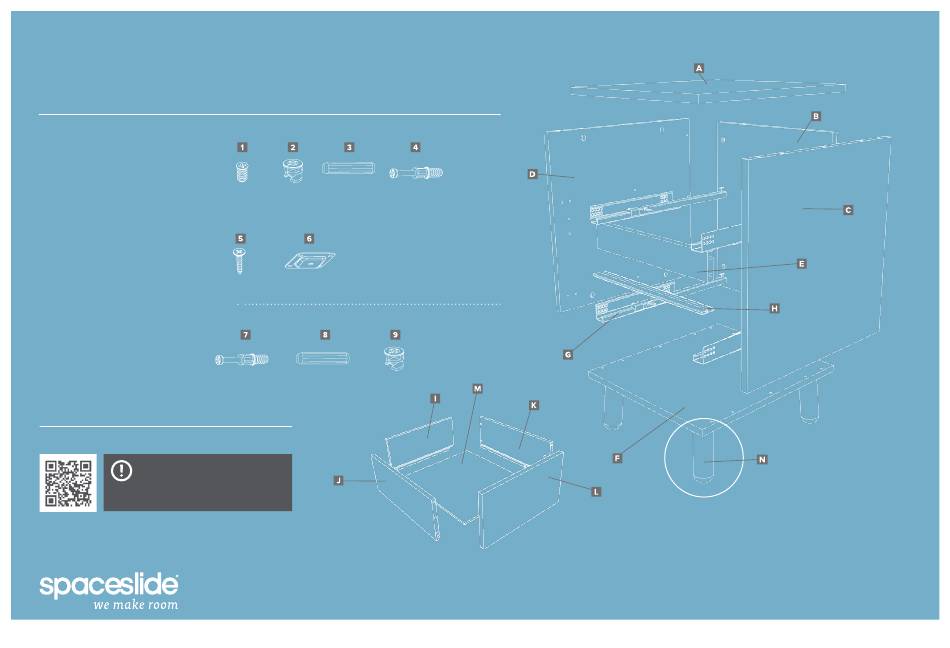

BEDSIDE UNIT & DRAWER BOX
(450mm wide)
Assembly Instructions
CONTENTS:
A
1x Top panel
B
1x Back panel
C
1x Side panel (right)
D
1x Side panel (left)
E
1x Drawer infill panel
F
1x Base
G
4x Soft close drawer runners
(2x left, 2x right)
H
1x Metal infill strip
2x Drawer backs
I
J
2x Drawer sides (left)
K
2x Drawer sides (right)
L
2x Drawer fronts
M
2x Drawer bases
N
4x Legs (Bedside unit only)
RECOMMENDED TOOLS:
Pozi screwdriver
We recommend assembling on a
soft surface (e.g a carpet). If this
isn't possible, use a protective cover
on your hard surface floor.
Page 1 of 4
BEDSIDE UNIT / DRAWER BOX PACK
12x
14x
20x
Euro
Cams
Wooden
screws
dowels
16x
4x
*Wood screws and leg brackets
Wood screws
Leg brackets
are used on the bedside unit only.
*
*
DRAWER PACK
4x
16x
4x
Dowels
Wooden
Cams
dowels
www.spaceslide.co.uk/diy-installation-and-information
14x
Dowels
Call: 0800 9803499
Legs required for the
bedside unit only.
SS_INSTRUC_BU_10.2018_V2.1
V2.1
