CHEST OF DRAWERS
& TALL BOY
Assembly Instructions
CHEST OF DRAWERS & TALL BOY

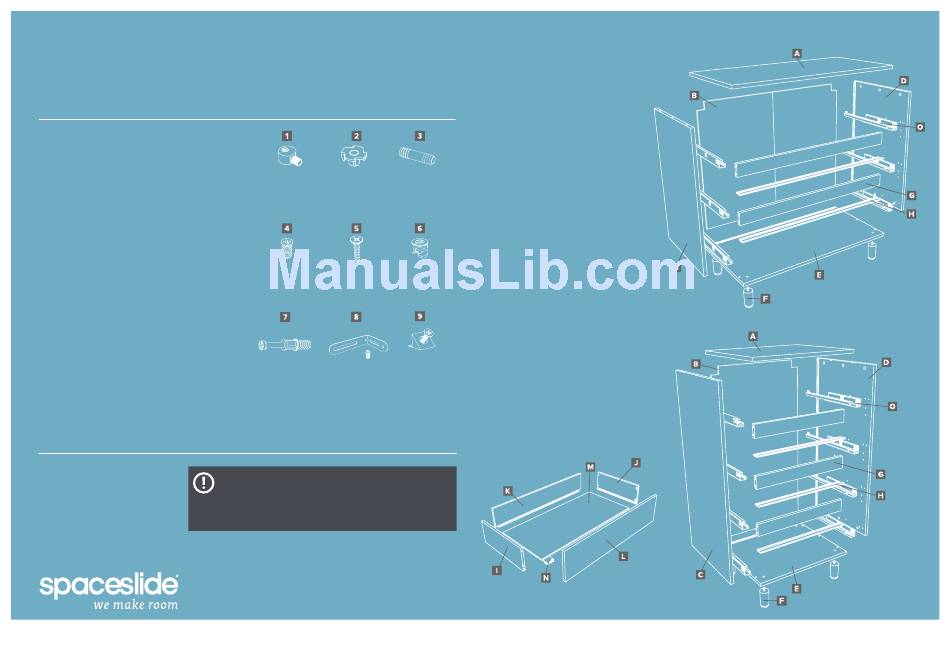

CONTENTS:
1x Top panel
A
2x Back panels
B
(1x for Tall Boy)
1x Side panel (left)
C
1x Side panel (right)
D
1x Base
E
4x Legs
F
2x Drawer infills
G
(3x for Tall Boy)
2x Infill covers
H
(3x for Tall Boy)
3x Drawer sides (left)
I
(4x for Tall Boy)
3x Drawer sides (right)
J
(4x for Tall Boy)
3x Drawer backs
K
(4x for Tall Boy)
3x Drawer fronts
L
(4x for Tall Boy)
3x Drawer bases
M
(4x for Tall Boy)
6x Soft close clips (3x left, 3x right)
N
(8x for Tall Boy, 4x left, 4x right)
6x Soft close drawer runners (3x left, 3x right)
O
(8x for Tall Boy, 4x left, 4x right)
RECOMMENDED:
Screwdriver & Hammer
• TOOLS:
• TWO PERSON BUILD
Page 1 of 5
12x
4x
One piece
T-nuts
connectors
(16x for Tall Boy)
(16x for Tall Boy)
18x
12x
Euro Screws
Wood Screws
(24x for Tall Boy)
(16x for Tall Boy)
(24x for Tall Boy)
20x
2x
Dowels
Wall mounting
Drawer bottom
(24x for
brackets
support brackets
Tall Boy)
Drawers only)
We recommend you use the Wall Mounting
Brackets provided to fix the Chest of Drawers/
Tall Boy to a wall (where possible). This will
prevent the unit being pulled over.
Use suitable fixings.
www.spaceslide.co.uk/diy-installation-and-information
12x
Plastic
dowels
20x
Cams
12x
(Chest of
Call: 0800 9803499
CHEST OF DRAWERS
TALL BOY
V2
SS_INSTRUC_COB_TB_05.2016
Advertisement
Table of Contents
Related Manuals for spaceslide CHEST OF DRAWERS
Summary of Contents for spaceslide CHEST OF DRAWERS
- Page 1 RECOMMENDED: We recommend you use the Wall Mounting Screwdriver & Hammer • TOOLS: Brackets provided to fix the Chest of Drawers/ • TWO PERSON BUILD Tall Boy to a wall (where possible). This will prevent the unit being pulled over.
- Page 2 PLEASE NOTE THE CHEST OF DRAWERS AND TALL BOY ARE THE SAME IN CONSTRUCTION. WE HAVE USED THE CHEST OF DRAWERS AS AN EXAMPLE. Use hammer to tap T-nuts (2) into place. Fix the Wall Mounting Brackets with the screw provided in the pack.
- Page 3 PLEASE NOTE THE CHEST OF DRAWERS AND TALL BOY ARE THE SAME IN CONSTRUCTION. WE HAVE USED THE CHEST OF DRAWERS AS AN EXAMPLE. Note: Tall Boy back panel is one complete panel Bottom Bottom Bottom Slide back panel (B) in place.
- Page 4 PLEASE NOTE THE CHEST OF DRAWERS AND TALL BOY ARE THE SAME IN CONSTRUCTION. WE HAVE USED THE CHEST OF DRAWERS AS AN EXAMPLE. CHEST OF DRAWERS ONLY x4 (per drawer) Drawer back Push/tap sides (J&I) onto back panel (K).
- Page 5 PLEASE NOTE THE CHEST OF DRAWERS AND TALL BOY ARE THE SAME IN CONSTRUCTION. WE HAVE USED THE CHEST OF DRAWERS AS AN EXAMPLE. USE SUITABLE WALL FIXINGS WALL MOUNTING BRACKETS We recommend you use the Wall Mounting Brackets provided to fix the Chest of Drawers/Tall Boy to a wall (where possible).
