TOWER UNIT 3 DRAWERS
(450 & 600mm wide)
Assembly Instructions

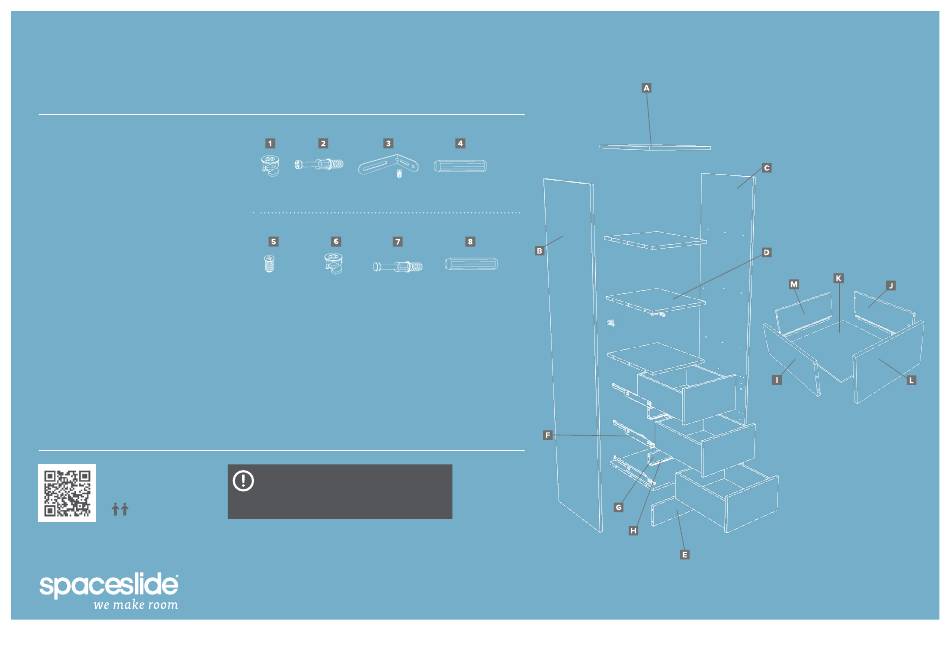

CONTENTS:
A
1x Top panel
B
1x Side panel (left)
C
1x Side panel (right)
D
4x Shelves
E
1x Plinth panel
F
6x Soft close drawer runners
(3x left, 3x right)
G
2x Drawer infill panels
H
2x Metal infill strips
I
3x Drawer sides (left)
J
3x Drawer sides (right)
K
3x Drawer bases
L
3x Drawer fronts
M
3x Drawer backs
RECOMMENDED:
• TOOLS:
Screwdriver
• TWO PERSON BUILD
Page 1 of 5
TOWER UNIT PACK
22x
22x
2x
Cams
Dowels
Wall mounting
brackets
DRAWER PACK
18x
6x
6x
Euro Screws
Cams
Dowels
We recommend you use the wall mounting
brackets provided to fix the Tower Unit to a
wall (where possible). This will prevent the
unit being pulled over. Use suitable fixings.
https://www.spaceslide.co.uk/diy-installation-and-information
20x
Wooden
dowels
24x
Wooden dowels
Call: 0800 9803499
V2.1
SS_INSTRUC_TU_DR_10.2018_V2.1
Advertisement
Table of Contents
Related Manuals for spaceslide TOWER UNIT 3 DRAWERS 450mm
Summary of Contents for spaceslide TOWER UNIT 3 DRAWERS 450mm
- Page 1 • TOOLS: Screwdriver brackets provided to fix the Tower Unit to a wall (where possible). This will prevent the • TWO PERSON BUILD unit being pulled over. Use suitable fixings. V2.1 Page 1 of 5 SS_INSTRUC_TU_DR_10.2018_V2.1 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 2 Lay panels (B&C) on a flat surface. Fit cams & dowels to both panels. Place the cams in the holes. (Apply to all shelves). FIX THROUGH THESE HOLES HIGHLIGHTED Insert the screws into the holes shown on both sides (B & C). Page 2 of 5 SS_INSTRUC_TU_DR_10.2018_V2.1 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 3 2 - Attach drawer infill panels onto the side panel (C) and tighten the cams. metal strip to the drawer infill (G). Attach shelves (D) onto side panel (C). Attach the other side panel (B). Page 3 of 5 SS_INSTRUC_TU_DR_10.2018_V2.1 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 4 2 – Place the other drawer side (J) over the base and fasten the 3 – Turn the drawer around and add the drawer front (L) . groove then hold the back panel (M) in place. back panel (M). (Repeat on all drawers). Page 4 of 5 SS_INSTRUC_TU_DR_10.2018_V2.1 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 5 Use suitable fixings. Fix the wall mounting bracket to both sides of the Tower Unit. (Use suitable fixings when attaching to the wall). Page 5 of 5 SS_INSTRUC_TU_DR_10.2018_V2.1 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
