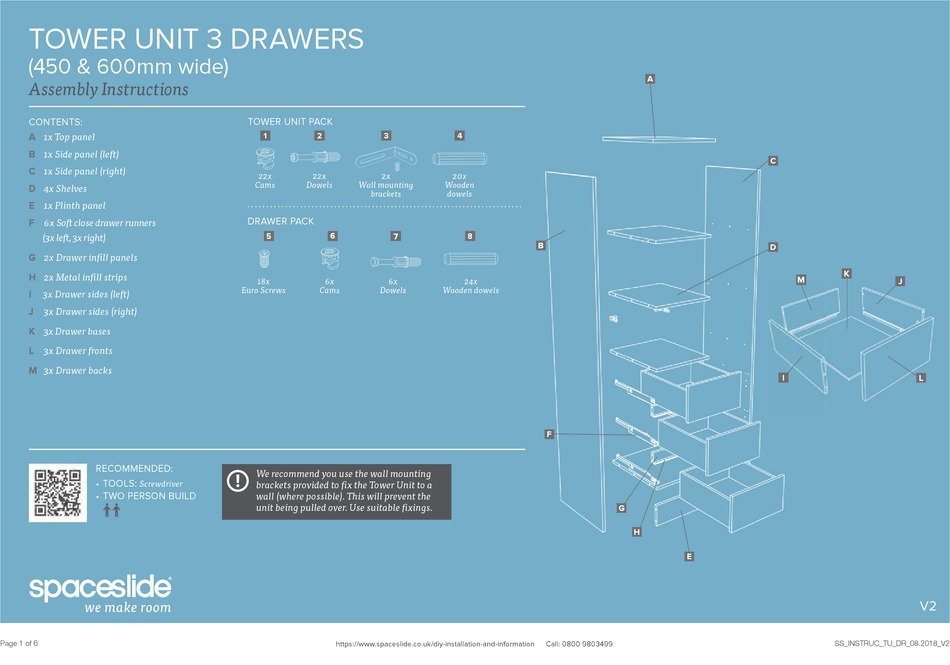

TOWER UNIT 3 DRAWERS
(450 & 600mm wide)
Assembly Instructions
CONTENTS:
A
1x Top panel
B
1x Side panel (left)
C
1x Side panel (right)
D
4x Shelves
E
1x Plinth panel
F
6x Soft close drawer runners
(3x left, 3x right)
G
2x Drawer in ll panels
H
2x Metal in ll strips
I
3x Drawer sides (left)
J
3x Drawer sides (right)
K
3x Drawer bases
L
3x Drawer fronts
M
3x Drawer backs
RECOMMENDED:
• TOOLS:
Screwdriver
• TWO PERSON BUILD
Page 1 of 6
TOWER UNIT PACK
22x
22x
2x
Cams
Dowels
brackets
DRAWER PACK
18x
6x
6x
Euro Screws
Cams
Dowels
We recommend you use the wall mounting
brackets provided to x the Tower Unit to a
wall (where possible). This will prevent the
unit being pulled over. Use suitable xings.
https://www.spaceslide.co.uk/diy-installation-and-information
20x
Wooden
dowels
24x
Wooden dowels
Call: 0800 9803499
V2
SS_INSTRUC_TU_DR_08.2018_V2
Advertisement
Table of Contents
Related Manuals for spaceslide TOWER UNIT 3 DRAWERS 450mm
Summary of Contents for spaceslide TOWER UNIT 3 DRAWERS 450mm
- Page 1 We recommend you use the wall mounting • TOOLS: Screwdriver brackets provided to x the Tower Unit to a wall (where possible). This will prevent the • TWO PERSON BUILD unit being pulled over. Use suitable xings. Page 1 of 6 SS_INSTRUC_TU_DR_08.2018_V2 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 2 Lay panels (B&C) on a at surface. Fit cams & dowels to both panels. Place the cams in the holes. (Apply to all shelves). FIX THROUGH THESE HOLES HIGHLIGHTED Insert the screws into the holes shown on both sides (B & C). Page 2 of 6 SS_INSTRUC_TU_DR_08.2018_V2 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 3 (G). 2 - Attach drawer in ll panels onto the side panel (C) and tighten the cams. Attach shelves (D) onto side panel (C). Attach the other side panel (B). Page 3 of 6 SS_INSTRUC_TU_DR_08.2018_V2 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 4 1. Turn the switch to adjust the height of the drawer on each side. 2. Push the button to lock the drawer runner (F) onto the drawer. Reverse the operation to remove the drawer. Page 4 of 6 SS_INSTRUC_TU_DR_08.2018_V2 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 5 1 – Lay drawer side (I) on a at surface, insert the base (K) into the groove then hold the back panel (M) in place. 2 – Place the other drawer side (J) over the base and fasten the back panel (M). 3 – Turn the drawer around and add the drawer front (L) . (Repeat on all drawers). Page 5 of 6 SS_INSTRUC_TU_DR_08.2018_V2 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
- Page 6 Use suitable fixings. Fix the wall mounting bracket to both sides of the Tower Unit. Use two people to stand up right. (Use suitable fixings when attaching to the wall). Page 6 of 6 SS_INSTRUC_TU_DR_08.2018_V2 https://www.spaceslide.co.uk/diy-installation-and-information Call: 0800 9803499...
