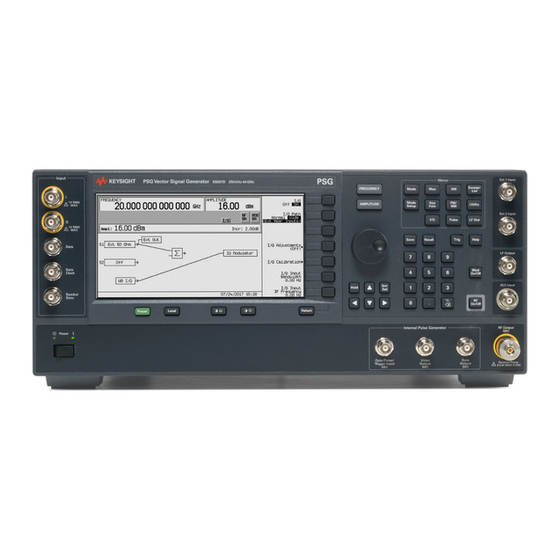

Keysight Technologies E8267D Installation Note
  1. Manuals
  2. Brands
  3. Keysight Technologies Manuals
  4. Recording Equipment
  5. E8267D
  6. Installation note

Keysight Technologies E8267D Installation Note

Psg signal generators add option 005 (internal hard drive)
Hide thumbs Also See for E8267D:

Advertisement

Quick Links

Download this manual
Keysight E8267D PSG Signal Generators
Add Option 005 (Internal Hard Drive)
Kit Part Number: E8251-60387
Notice: This document contains references to Agilent.
Please note that Agilent's Test and Measurement busi-
ness has become Keysight Technologies. For more in-
formation, go to www.keysight.com.
Installation Note
Part Number: E8251-90387
Printed in USA August 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the E8267D and is the answer not in the manual?

Questions and answers

Related Manuals for Keysight Technologies E8267D

Summary of Contents for Keysight Technologies E8267D

  • Page 1 Add Option 005 (Internal Hard Drive) Kit Part Number: E8251-60387 Notice: This document contains references to Agilent. Please note that Agilent’s Test and Measurement busi- ness has become Keysight Technologies. For more in- formation, go to www.keysight.com. Installation Note Part Number: E8251-90387...
  • Page 2 The information contained in this document is subject to change without notice. Keysight Technologies makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 3 Estimated Verification Time: ....0.5 hours Introduction This upgrade kit adds Option 005 (Internal Hard Drive) to the E8267D (Vector) PSG Signal Generators. Installation includes the following major steps, starting on page 1.

  • Page 4: Installation Kit Parts List

    Installation Kit Parts List Item Quantity Description Part Number Installation Note E8251-90387 Screw M3x0.5 8mm-LG 0515-1521 Internal Hard Drive (Option 005) E8251-60115 Entitlement Certificate 5964-5143 Entitlement Certificate Envelope 5967-7169 Tools Required • TORX T-10 driver • TORX T-15 driver • TORX T-20 driver •...

  • Page 5: Safety Considerations

    Safety Considerations Before you disassemble the signal generator, turn the power switch off WARNING and unplug the power cord. Failure to unplug the signal generator can result in personal injury. Electrostatic discharge (ESD) can damage or destroy electronic components. All CAUTION work on electronic assemblies should be performed at a static-safe workstation.
  • Page 6 6. Tilt the signal generator forward and slide the outer cover (6) back to remove it from the frame. Remove the Inner Top Cover Refer to Figure 1. Using a T-10 driver, remove the screws (1) from the inner-top cover (2). There eleven screws for E8267D. 2. Remove the inner-top cover.
  • Page 7 Figure 1 Outer Cover Removal...
  • Page 8 Figure 2 Inner Top Cover Removal...
  • Page 9 Install the A34 Internal Hard Drive Refer to Figure 1. Position the signal generator with the RF deck on top and the rear panel facing you. 2. Using the T-10 drive, install the screw (1) to attach the A34 Internal Hard Drive to the A19 Power Supply.
  • Page 10 Re-Assemble the Signal Generator Refer to Figure 1 Figure 1. Reinstall the inner and outer instrument covers by reversing the order for removal. 2. Torque all T-10 screws to 9 in-lbs. 3. Torque all T-15 and T-20 screws to 21 in-lbs.
