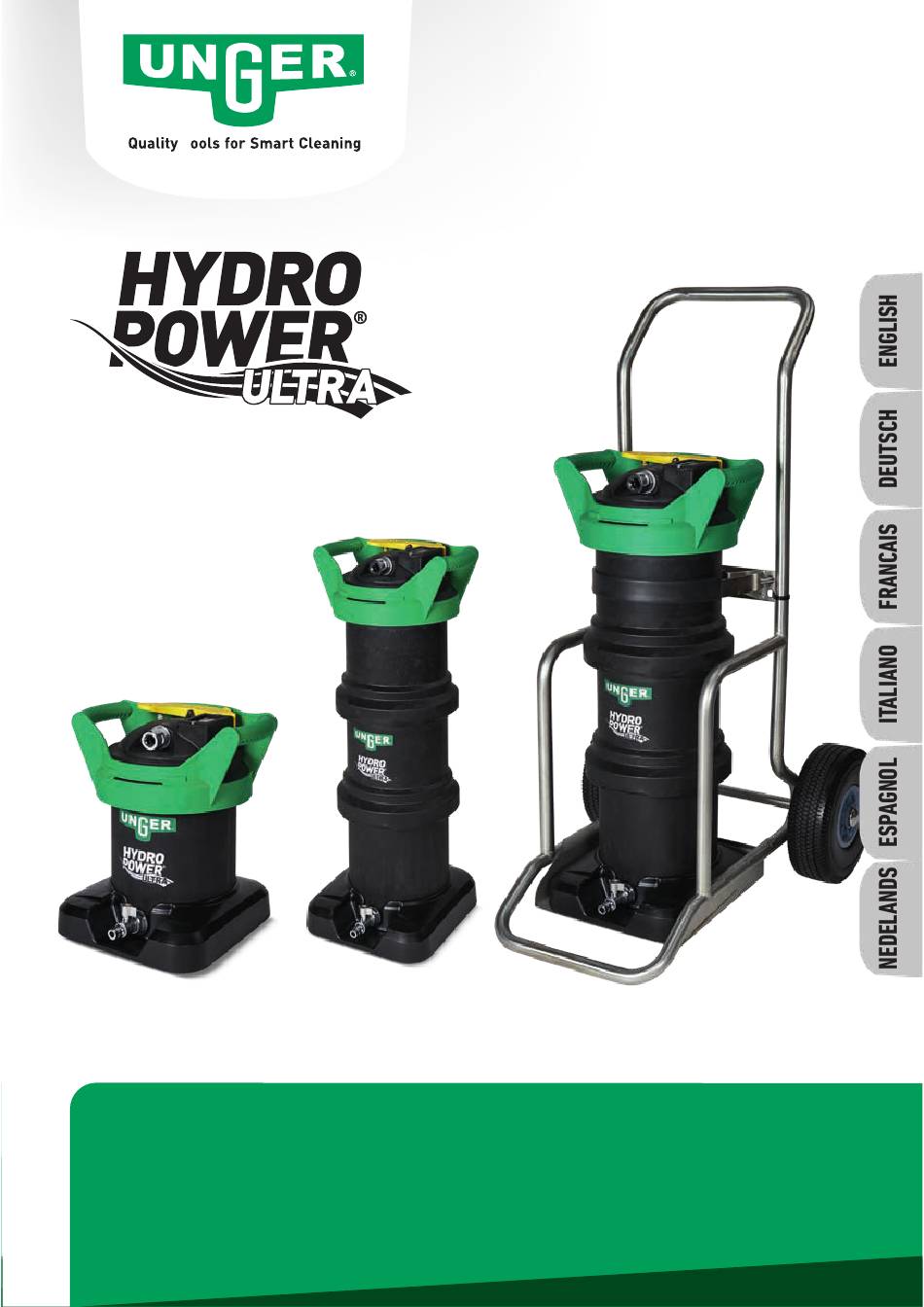

T
DIUH1
OPERATING INSTRUCTIONS • BEDIENUNGSANLEITUNG
MODE D'EMPLOI • BEDIENINGSHANDLEIDING
INSTRUCCIONES DE MANEJO • ISTRUZIONI PER L'USO

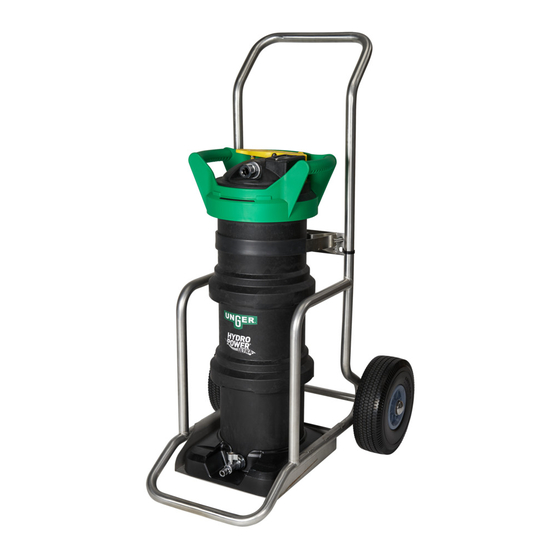

Ion exchange resin filter
Ionentauscher-Harzfilter
Filtre résine échangeur d'ions
Ionen-uitwisselaar-harsfilter
Filtro in resina a scambio ionico
Filtro de resina de intercambio de iones
DIUH2
DIUH3
V1.2 08/20
1
Advertisement
Related Manuals for unGer HYDRO POWER ULTRA
Summary of Contents for unGer HYDRO POWER ULTRA
- Page 1 Ion exchange resin filter Ionentauscher-Harzfilter Filtre résine échangeur d‘ions Ionen-uitwisselaar-harsfilter Filtro in resina a scambio ionico Filtro de resina de intercambio de iones DIUH1 DIUH2 DIUH3 OPERATING INSTRUCTIONS • BEDIENUNGSANLEITUNG MODE D’EMPLOI • BEDIENINGSHANDLEIDING INSTRUCCIONES DE MANEJO • ISTRUZIONI PER L’USO V1.2 08/20...
- Page 2 HydroPower® Ultra Content ......................4 ......................16 ......................28 ......................40 ......................52 ......................64 www.ungerglobal.com...
- Page 3 HydroPower® Ultra Quick Guide CONNECT CONNECT CONNECT OPEN PRESS OPEN CHECK TDS <10 PPM = START CLEANING...
-
Page 4: Table Of Contents
HydroPower® Ultra Table of contents 1. Introduction ....................5 2. Safety regulations ..................6 3. Shipping & Packing ................... 8 4. System Overview ..................9 5. Installation & Operating instructions ............. 10 6. Resin Change ................... 12 7. Technical data ..................14 Tips for cleaning with pure water ............... -
Page 5: Introduction
• Usage of loose resin (Overfill, expansion of resin, resin flows into waterline) • Vessel is opened incorrectly. • Replacing spare parts that are not included in the official UNGER spare parts pricelist. • Performing unauthorised modifications to the design. -
Page 6: Safety Regulations
2.1 General Please observe the applicable rules and regulations, as well as the effective accident prevention regulations. Unger is not liable for any occurring water damage. Make sure that the area of application has sufficient water drainage. Close feed valve in case of prolonged shut-down times (e.g. weekends). - Page 7 HydroPower® Ultra Saftey regulations 2.5 Attention (General hazards) Purified water is delivered to the waterfed pole by flexible hose from the HydroPower Ultra system. This introduces a risk of tripping both to worker and ® general public. Identify work area with appropriate signage. Any surface that becomes wet must be identified with appropriate signage to direct pedestrians and workers away from work area.
-
Page 8: Shipping & Packing
3. Shipping & Packing 3.1 Receiving inspection of Ultra Resin Packs UNGER Ultra Resin Packs are carefully checked and packed prior to dispatch. However, damages caused by shipment cannot be ruled out. Check packing for exterior damage while delivering person is still present. -
Page 9: System Overview
HydroPower® Ultra System Overview 4. System Overview 4.1 What is Pure Water? Pure Water is water in its purest form, physically processed to remove the minerals that would otherwise lead to limescale spots and streaks. Such impurities are referred to as TDS (Total Dissolved Solids) and are measured in ppm (parts per million). -
Page 10: Installation & Operating Instructions
(see page 7 (1). If well water system is source, it is recommended water quality analysis be performed prior to application. UNGER recommends testing the onsite water supply for TDS (total dissolved solids) (5) prior to working. Higher TDS levels reduce the DI system‘s capacity. Conversely, lower TDS levels will increase the amount of water the system is able to produce. - Page 11 Stop use when TDS meter reads 010 ppm and change resin. Adjust flow at waterfed pole brush head by: a. Tap water valve or b. Waterfed pole control (on/off) valve (e.g. UNGER HiFlo Control). 11. You are ready to start cleaning. 5.3 During operation 1. Periodically inspect the HydroPower Ultra system during use.
-
Page 12: Resin Change
Raw water quality can be determined in various ways: a) Information from responsible water works (indication of overall hardness). b) By measuring the mineral content with UNGER TDS-Meter (5). 6.2 Resin Change - Ultra Resin Pack REMOVE USED ULTRA RESIN PACKS 1. - Page 13 HydroPower® Ultra Resin change 1. Insert the new Ultra Resin Packs with circular movements until they are completely seated in the tank (fig. F). CHECK: The green border of the upper resin pack must sit flat on the inner edge. 2.
-
Page 14: Technical Data
HydroPower® Ultra Dynamic Flow Control Technical Data 6.3 Dynamic Flow Control The ideal water flow for regular glass cleaning in this system is 120l/hour. Depending on the regional water pressure it is possible that more water is produced than consumed. 30mm To make the performance of HydroPower Ultra independend from incoming... -
Page 15: Tips For Cleaning With Pure Water
HydroPower® Ultra Tips for cleaning with pure water After cleaning I see stains or smudges on the window. What could be causing this ? The cleaning was not thorough enough: Make sure to wash off all visible dirt and residues. Rinse thoroughly. Cleaning detergent residues on the surface: If the window was previously cleaned using traditional method, it may take up to 2-3 rounds of cleaning with pure water to achieve perfect results to remove all residues of soap out of the glass. - Page 16 Unger Germany GmbH Unger UK Ltd. Unger Enterprises Inc. Piepersberg 44 F1 Deansgate, 62-70 Tettenhall Road 425 Asylum Street D-42653 Solingen Wolverhampton, WV1 4TH Bridgeport, CT 06610 GERMANY UNITED KINGDOM Fon +49 (0)212 / 22 07–0 Fon +44 (0)1902 306 633 Tel.: (1) 800.431.2324...
- Page 17 Quality Tools for Smart Cleaning CLEANING WITH PURE WATER: TWICE AS FAST AND SAVING COSTS NEW!
- Page 18 (parts per million). Water is HOW IS PURE WATER CREATED? identified as 100 % demineralised (pure) if the TDS value is 0 ppm. The new deionising filter UNGER HydroPower Ultra ® produces 100 % pure water instantly using an ion exchange process.
- Page 19 CRYSTAL CLEAR ADVANTAGES OF CLEANING WITH PURE WATER EASY Easy to operate and simple resin change. FAST Twice as fast as traditional glass cleaning - just one process. COST-SAVING Half the labour costs. No rental for cherry picker. SAFE Safe working from the ground up to the 6th floor, with no cherry picker or ladder whatsoever.
- Page 20 Quality Tools for Smart Cleaning START CLEANING WITH PURE WATER NOW What do you need to be able to clean glass with pure water? A pure water cleaning system consists of various components: a pure water filter, a water-fed pole including a hose, an angle adapter and a brush.
- Page 21 NEW! • Ultra resin packs can be changed as easily as a coffee pad in a coffee * In comparison with standard DI systems (e.g. UNGER HydroPower ® machine filters).Source: test results from the independent testing laboratory Miontec GmbH, 2019.
- Page 22 TDS-METER • Integrated digital measuring device displays the water hardness of the pure water coming out NEW! ULTRA RESIN PACKS • Intuitive colour coded system • KeyLock function eliminates risk of operating errors WATER CONNECTIONS • Stable quick-fit metal hose connector •...
- Page 23 EVOLUTIONARY POLE TECHNOLOGY FOR PROFESSIONALS The water-fed nLite poles can be used to ® clean windows and facades, solar panels, signs, vehicles etc. The system offers everything you need to be able to work up to a height of 20 m, while standing safely on the ground.
- Page 24 Terms of delivery and payment: All prices are recommended retail prices, excluding VAT. Piepersberg 44 The general terms of delivery and payment of UNGER Germany GmbH D-42653 Solingen apply · No responsibility accepted for accuracy; subject to change without notice.
