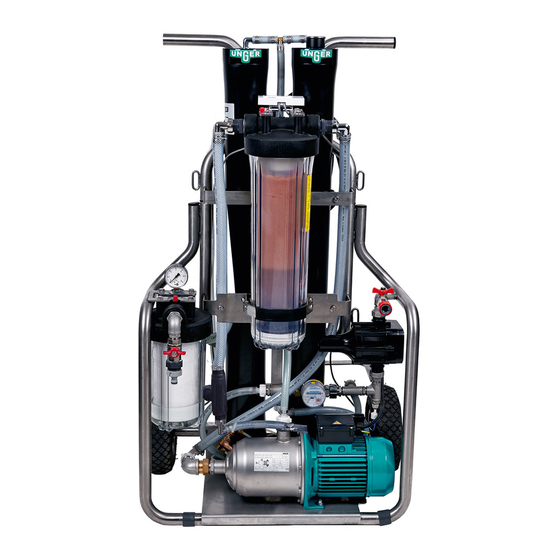

unGer RO60C Operating Instructions Manual

Reverse osmosis filter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
T
OPERATING INSTRUCTIONS • BEDIENUNGSANLEITUNG
MODE D'EMPLOI • BEDIENINGSHANDLEIDING
INSTRUCCIONES DE MANEJO • ISTRUZIONI PER L'USO
Umkehr-Osmose-Filter
Reverse osmosis filter
Filtre à osmose inverse
Filtro a osmosi inversa
Filtro de ósmosis de inversión
Omkeerosmosefilter
RO60C
RO60S
1
V1.1 01/20
V2.0 08/19

Advertisement

Table of Contents
loading

Related Manuals for unGer RO60C

Summary of Contents for unGer RO60C

  • Page 1 Umkehr-Osmose-Filter Reverse osmosis filter Filtre à osmose inverse Filtro a osmosi inversa Filtro de ósmosis de inversión Omkeerosmosefilter RO60C RO60S OPERATING INSTRUCTIONS • BEDIENUNGSANLEITUNG MODE D’EMPLOI • BEDIENINGSHANDLEIDING INSTRUCCIONES DE MANEJO • ISTRUZIONI PER L’USO V2.0 08/19 V1.1 01/20...

  • Page 2: Table Of Contents

    6.2.1 Filter cartridges ..................... 22 6.3 Anti-freeze protection ..................... 22 7. Preparation of the filter for storage ................ 23 8. The integrated resin filter (RO60C) ................24 9. TDS meter ........................25 10. Pump control system ....................25 We thank you for your decision to purchase this high value reverse osmosis filter. To ensure many years of enjoyment, we ask you to follow the instructions provided for the use and operation of the system.

  • Page 3: Safety Regulations

    RO-Reverse osmosis filter Safety regulations 1 Safety regulations 1.1 General Please observe the applicable rules and regulations, as well as the effective ac- cident prevention regulations. We are not liable for any occurring water damage. The fed water must comply with the specifications of the German Drinking Water Ordinance.

  • Page 4: Operating Temperatures, Pressures And Connections

    Opening/disassembly of housing other than by Unger. • Replacing connections and hoses, other than by Unger. • Replacing spare parts that are not included in the official Unger spare parts price list. • Performing unauthorised modifications to the design. •...

  • Page 5: General Information On Reverse Osmosis

    0.2 ml/l iron); the maximum silicate (SiO2) content may not exceed 20 mg/l. In ad- dition, the feed water must not contain any barium and strontium. RO60C and RO60S are already equipped with a carbon pre-filter as standard equipment.

  • Page 6: Function Of Reverse Osmosis

    2 months • RO60C: approx. 76.000 litres of water = approx. 150 working hours or approx. 30 working days or approx. 1,5 months You can use ph-test stripes to test the chlorine level of the water. To check if the pre-filter works correct, test the water at the concentrate outlet on the back of the filter.

  • Page 7: Technical Data

    3.1. Scope of delivery RO60S Robust stainless steel trolley RO60C Water supply connection RO60C: 4.5“ x 10“ combi pre-filter (sediment & chlorine) RO60S: 4.5“ x 10“ standard pre-filter Pressure gauge water inlet downstream pre-filter Double membrane RO60C: 4.5“ x 20“ secondary resin filter RO60S: 4.5“...

  • Page 8: Shipping & Packing

    RO-Reverse osmosis filter Shipping & packing 4. Shipping & packing The water treatment system has been carefully checked and packed prior to dispatch. However, damage during shipment cannot be ruled out. Thus, each system should be checked for intactness when accepting the goods while the delivery person is present.
  • Page 9 7-9 bar (depending on the water temperature). 8. The system must now be flushed again for 5 minutes to remove any remaining bubbles. Press the red button on the resin filter (RO60C) or the carbon pre-filter (RO60S) (6) to vent 9.

  • Page 10: Description Of Use Of The Osmosis System

    6. Description of use of the osmosis system Depending on raw water quality and temperature, the maximum permissible yield is RO60C: at 15°C approx. 700l/h, at RO60S: approx. 750l/h.). In practice this means that the permeate output of the osmosis can deviate widely, depending on the raw water temperature.

  • Page 11: Preparation Of The Filter For Storage

    This must be requested from an au- thorised dealer when required. 1. (RO60C only): Before you perform the following steps, the resin filter must be bridged without fail, since it will be damaged by the membrane protection agent.

  • Page 12: The Integrated Resin Filter (Ro60C)

    RO-Reverse osmosis filter RO60C: Resin filter 8. RO60C: The integrated resin filter 8.1. Use • A reverse osmosis system filters the water to a purity of approx. 95-98%. In order to achieve 100% filtering, this unit has an additional resin filter. This is important in areas with very hard water or on special surfaces.

  • Page 13: Tds Meter

    Press the “POWER“ button to activate the unit. • RO60C: To show the value of the incoming pure water in the resin filter, press “IN“. This value shows the quality of the water after filtering through the osmosis filter. The value of the filtered, outgoing water downstream the resin filter is shown with “OUT“.
  • Page 14 www.ungerglobal.com...
  • Page 16 Déclaration de conformité EU conformément à la directive sur les machines 2006/42/CE, EMV 2014/30/EU L’osmose inverse type RO60C/RO60S avec le numéro du constructeur : cf. plaque signalétique, a été développée, conçue et fabriquée conformément aux directives CE mentionnées ci-dessus. La documentation technique est complète.

This manual is also suitable for:

Ro60s
