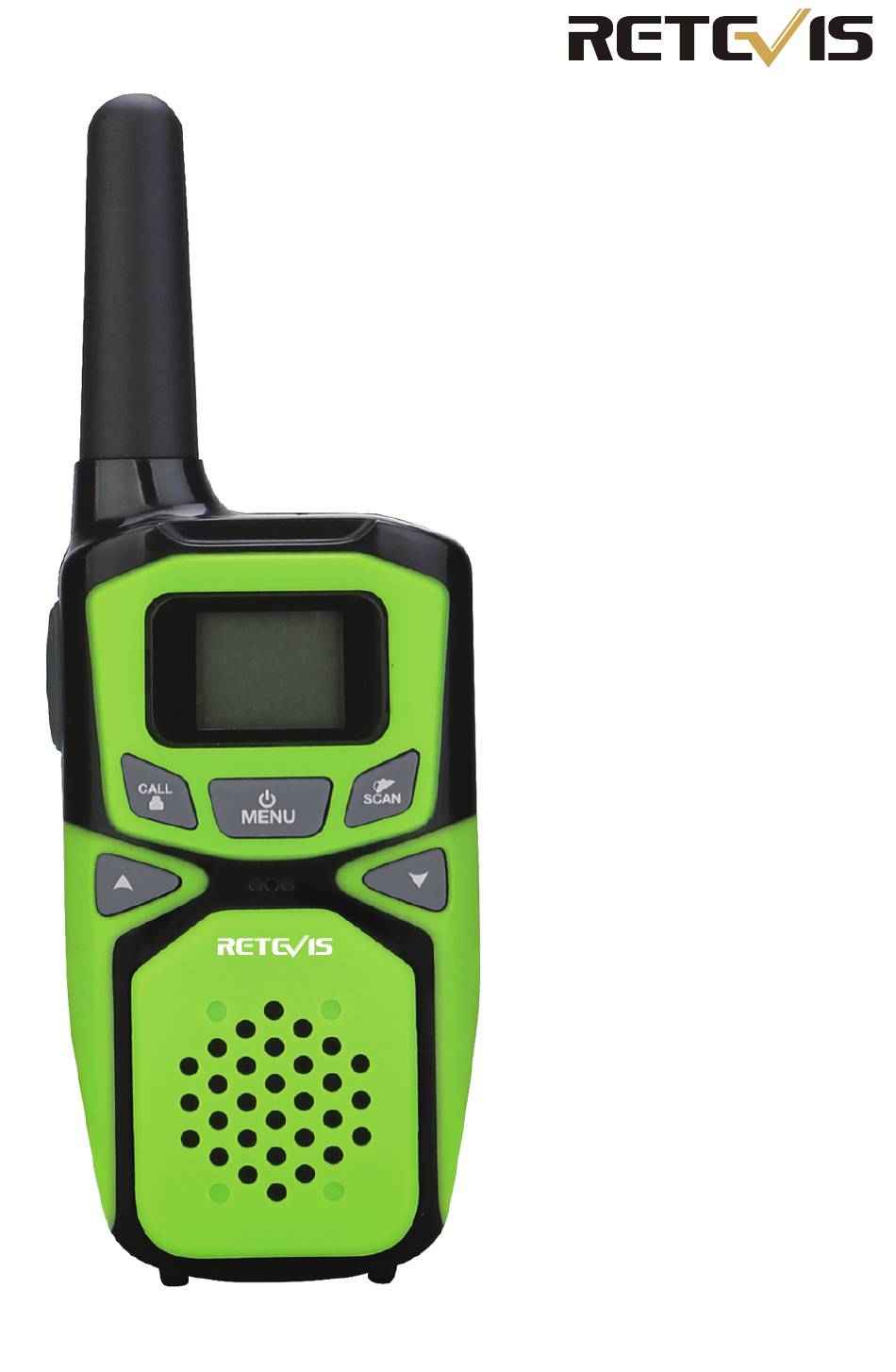

- Page 1 RA15 Kids Walkie Talkie User’s Guide...
- Page 3 1.Antenna 9.Up Button 2.LCD screen 10. Call/Lock Button 3.Menu/Power Button 11.Push to talk 4.NOAA/Scan Button 12.Wrist Strap Connection 5.Down Button 13.Belt Clip 6.Microphone 14.Battery Compartment 7.Speaker 15.Battery Latch 8.External Speaker/ Microphone/Charge Jack...
-
Page 4: Backlit Lcd Display
Backlit LCD Display Features • 22 Channels • Weather Alert • 121 Privacy Codes (38 CTCSS codes/83 DCS codes) • Hands-Free Operation （VOX） • Scan Channels, privacy codes • Backlit LCD Display • Call Ringtone 1.Battery Level Indicator Ten selectable tones 2.VOX Icon •... -
Page 5: Installing Batteries
Installing Batteries To install or replace batteries: 1.Remove belt clip by releasing belt clip latch and sliding clip up. 2.Pull up on the battery door latch to remove the battery compartment cover. 3.Insert the supplied three AA rechargeable batteries or non-recharge- able alkaline batteries. -
Page 6: Turning On Your Radio
Turning on Your Radio Press and hold the Menu/Power button until you hear a series of audible tones indicating the radio is on. Your radio is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode except when the Talk, Call or Mode/Power buttons are pressed. -
Page 7: To Adjust Volume
Listening for Response Listening Release the Talk button to receive incoming transmission. Your radio is always in Standby mode while the Talk or Call buttons are not pressed. To Adjust Volume Press the Up or Down button at the standby Volume Level mode. -
Page 8: Privacy Codes
Privacy Codes Your micro TALK radio incorporates two advance coded squelch systems that can help to reduce interference from other users on any given channel. CTCSS (Continuous Tone Coded Squelch System) provides 38 privacy codes and DCS (Digitally Coded Squelch) provides 83 privacy codes. - Page 9 Set DCS Privacy Codes To select a DCS privacy code: 1.After selecting a channel, press the Menu/Power button until the DCS icon appears and the small numbers flash on the display. 2.Press using the Up or Down button to select a DCS privacy code.
- Page 10 To set VOX sensitivity: 1.Press the Mode/Power button until the VOX icon flash and the current sensitivity level is displayed. The current VOX sensitivity level is displayed with letters “LE” and a Number 1 through 3, with Number 3 being VOX Sensitivity Level the most sensitive level and Number 1 being the least sensitive level.
-
Page 11: Roger Beep Tone
Roger Beep Tone Your listener will hear an audible tone when you release the Talk button. This alerts the other party that you are finished talking and it is OK for them to speak. To turn roger beep on or off: 1.Press the Menu/Power button until the Roger Beep icon flashes. -
Page 12: Channel Scan
Channel Scan Your micro TALK radio can automatically scan channels. To scan channels: 1.Press and release the Scan button until the Scan icon and the channel numbers appear on the display. 2.Press and hold the Scan button to begin scanning channels. - Page 13 During scanning (while receiving an incoming transmis- sion), you can choose from the following: a.Press the Menu/Power button to enter the new setting and proceed to other functions. b.Press and hold the Menu button to enter the new setting and return to Standby mode. c.Press PTT or Call/Lock button to enter the new setting and return to Standby mode.
-
Page 14: Product Features
Product Features TECHNICAL PARAMETERS Product number RA15 Frequency range FRS(US)/FRS&GMRS(CA) Channel number Channel spacing 12.5KHz Working voltage 3.7V Frequency stability ±2.5ppm Operating temperature range -20℃~50℃ The antenna impedance 50Ω Overall dimensions 161*33*56.6mm Weight 90g（Without battery） TRANSMITER RF power ≤0.5W Modulation method 11kΦF3E... - Page 15 RF energy, which when used improperly, can cause biological damage. All Retevis two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure levels. In addition, manufacturers also recommend specific operating instructions to users of two-way radios.
- Page 16 CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
- Page 17 collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area. IC Requirements: Licence-exempt radio apparatus This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’...
- Page 18 •When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.
- Page 19 •Turn off your radio before removing (installing) a battery or accessory or when charging battery. •Turn off your radio when you are in a potentially hazardous environments: Near electrical blasting caps, in a blasting area, in explosive atmospheres (inflammable gas, dust particles, metallic WARNING powders, grain powders, etc.).
- Page 20 Approved Accessories •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations.
- Page 21 Guarantee Model Number: Serial Number: Purchasing Date: Dealer: Telephone: User’s Name: Telephone: Country: Address: Post Code: Email: Remarks: 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’ s warranty from the date of purchase. Further details, Please Contact Us：...
- Page 22 Shenzhen Retevis Technology Co.,Ltd. Add: 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web: www.retevistoys.com E-mail: info@retevistoys.com Facebook: facebook.com/retevistoys MADE IN CHINA...
