Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-E1RM20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FUXTEC FX-E1RM20

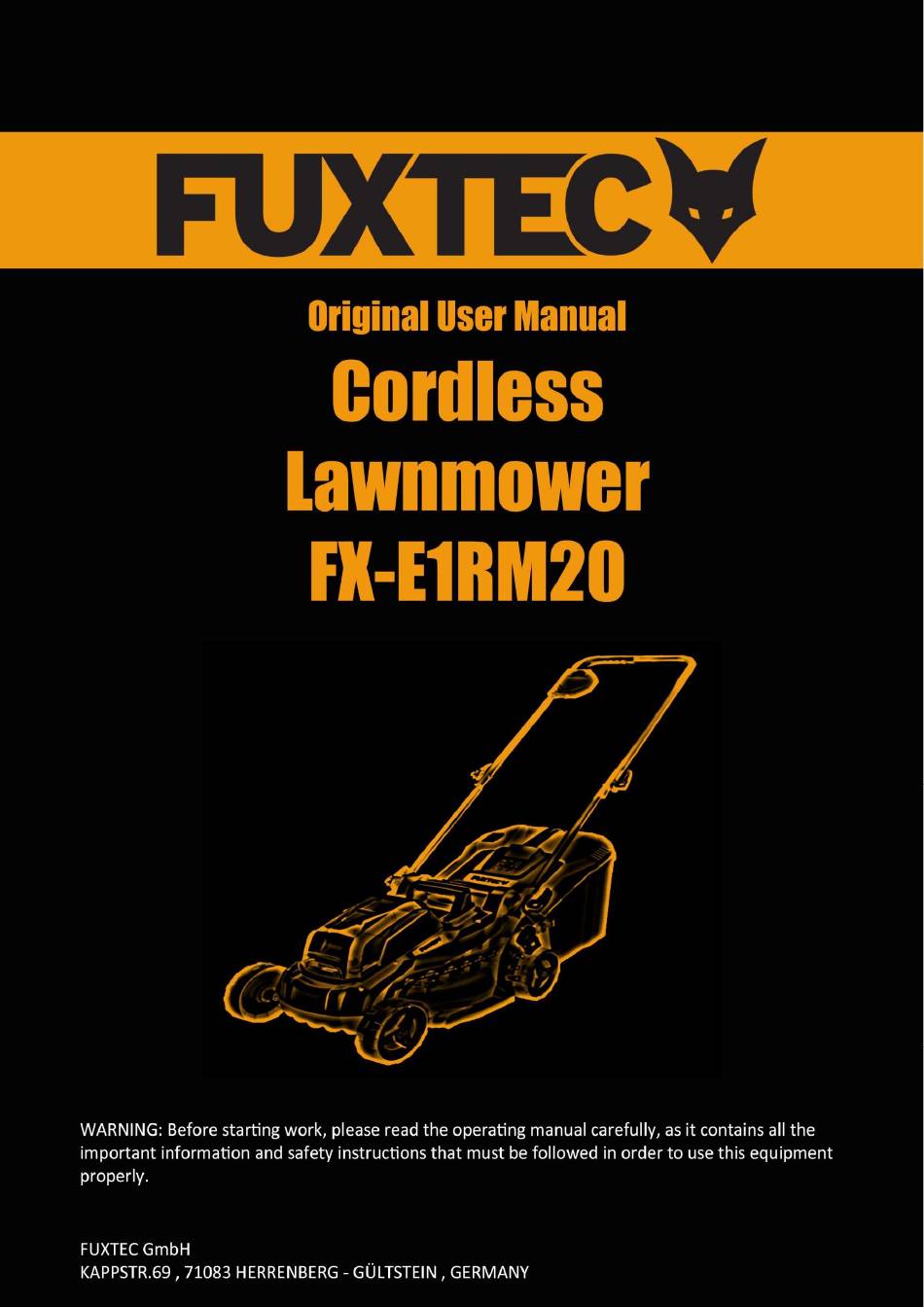

  • Page 1 Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20...
  • Page 2: Table Of Contents

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Content Introduction and safety ........................... 3 Intended use ............................3 General safety instructions for power tools..................3 Workplace Safety ..........................3 Electrical Safety ........................... 3 Safety of Persons ..........................4 Use and treatment of the power tool ....................5 Use and handling of the cordless tool ....................
  • Page 3: Introduction And Safety

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Introduction and safety Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance. Intended use This device is intended exclusively for mowing lawns in private areas.
  • Page 4: Safety Of Persons

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 - Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded. - Keep power tools away from rain or moisture. The penetration of water into a power tool increases the risk of electric shock.
  • Page 5: Use And Treatment Of The Power Tool

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Use and treatment of the power tool - Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.
  • Page 6: Safety Instructions For Lawn Mowers

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 - The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
  • Page 7: During Operation

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 - When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The wearing of personal protective equipment reduces the risk of injury.
  • Page 8: Safety Instructions For Li-Ion Batteries

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 - Keep the charger clean. There is a risk of electric shock from soiling. - Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage.
  • Page 9: Presentation

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 - The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.
  • Page 10 Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Figure 2: Charger and rechargeable battery (dual charger as shown on the the right is included) 9. Battery 10. Battery level indicator 11. Push button to display the charging capacity 12. Locking button (locks in place when inserted into charger or mower) 13.
  • Page 11 Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Figure 3: Lawn Mower 15. Locking lever for the lower linkage 16. Holding device for the lower linkage Figure 4: Lawn Mower 17. Screw for connecting the upper linkage with the lower linkage...
  • Page 12 Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Figure 5: Grass catcher basket 19. Grass catcher basket 20. Rail for attachment to lawnmower Figure 6: Battery compartment including batteries 21. Ensure that the safety key is correctly seated (circuit breaker)
  • Page 13 Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Figure 7: Close up of the height adjustment lever Figure 8: Close-up of the safety button and the on/off switch or handle.
  • Page 14: Switching The Device On/Off

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Figure 9: Close up of the bottom of the lawnmower 23. Screw for fixing the blade to the lawnmower 24. Blade 25 Holes on the blade (ensure correct positioning) Switching the device on/off Insert the batteries in the rails provided.
  • Page 15: Disposal

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 this leads to strong roots and a firm grass leaf. If you rarely cut the grass, strongly growing grass species and other weeds (such as clover, daisies) will develop. The average height of a lawn is about 4-5 cm. Only a third of the total height should be mowed;...
  • Page 16: Technical Data

    Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20 Technical Data Lawn Mower Idling speed 3,900 min Nominal voltage 2× 20 V Working width 330 mm Cutting heights 25–65 mm Setting options Grass catcher box volume Granted sound power level (L 88.5 dB (A)
  • Page 17: Declaration Of Conformity

    Any manipulation or change of the device not being explicitly authorized by us in advance renders this document null and void. Storage of the technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany, T. Gumprecht, Management Herrenberg, 7 January 2020...
  • Page 18 Original User Manual FUXTEC 20V Cordless Lawnmower FX-E1RM20...
