240-volt electric dryer
Hide thumbs

Advertisement

Table of Contents
Power Supply Cord
WARNING
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.

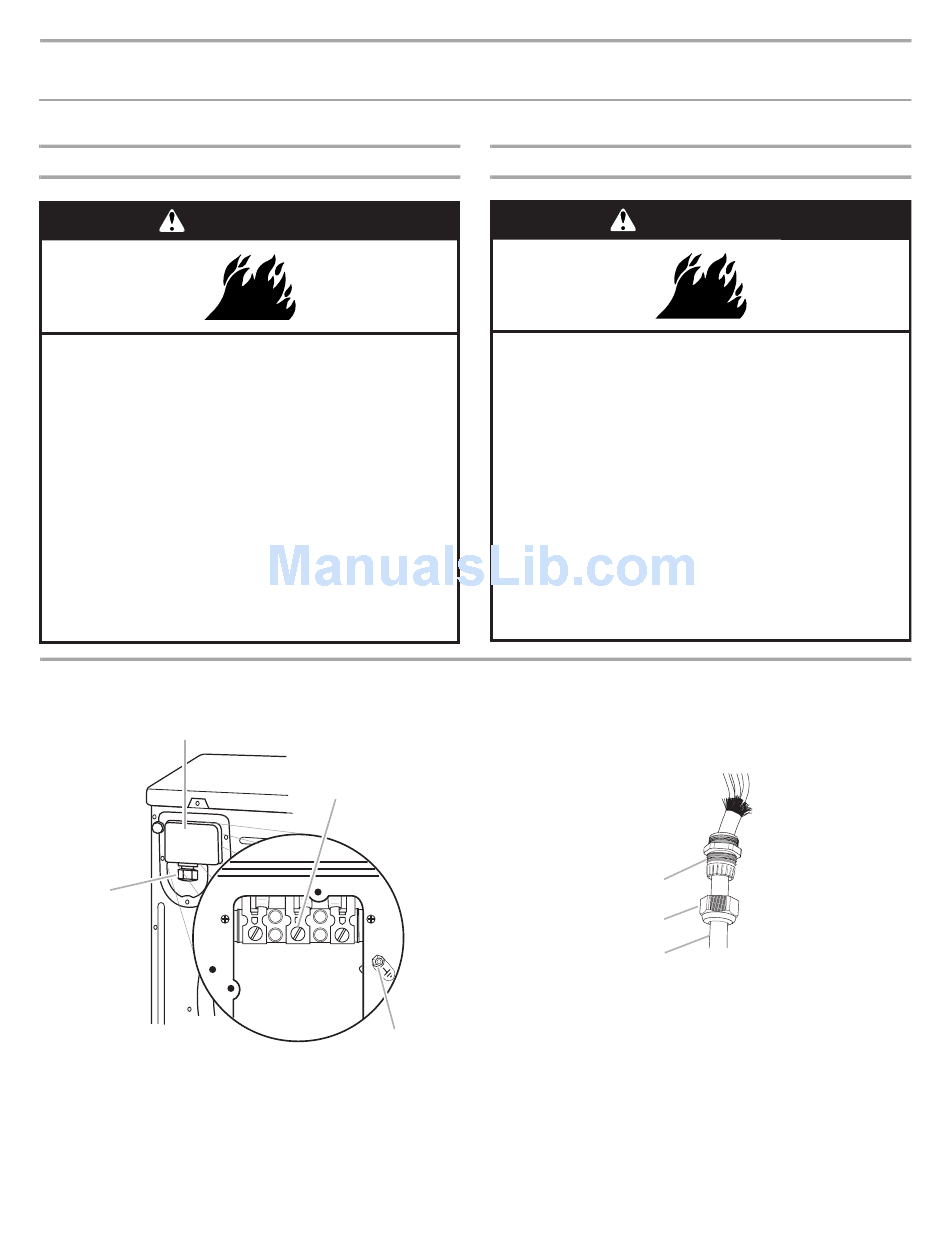

1. Disconnect power.
2. Remove the terminal block cover.
A
B
A. Terminal block cover
B. Strain relief
C. Center, terminal block screw
D. External ground conductor screw
8

INSTALLATION INSTRUCTIONS

Electrical Connection

C
D
Direct Wire
WARNING
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
3. Unscrew the strain relief from the terminal block cover.
4. Unscrew the strain relief nut from the strain relief.
5. Put the power supply cord through the strain relief nut, then
the strain relief. Be sure that the wire insulation on the power
supply cord is inside the strain relief.
A
B
C
A. UL listed strain relief
B. Strain relief nut
C. Power cord
