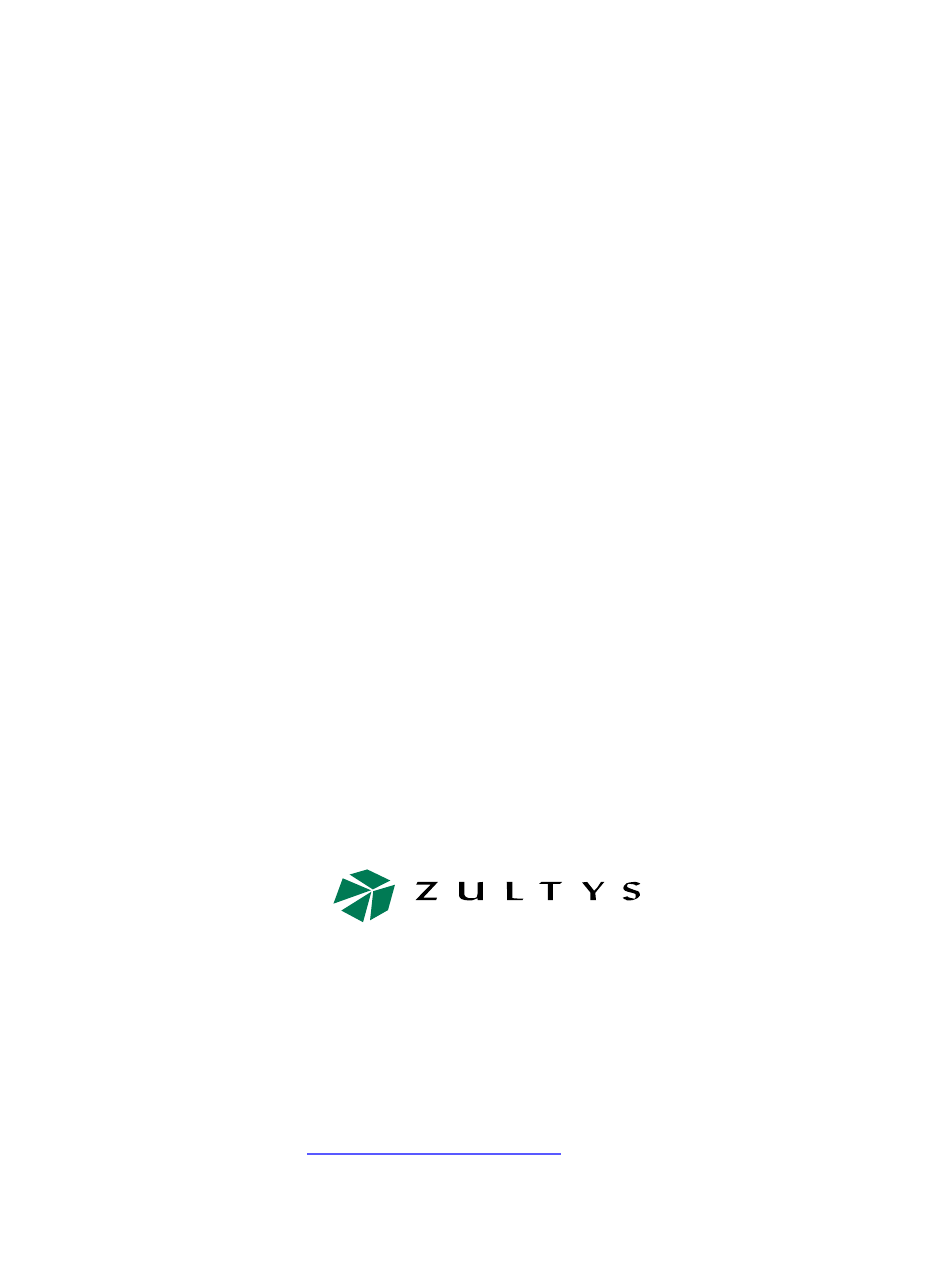

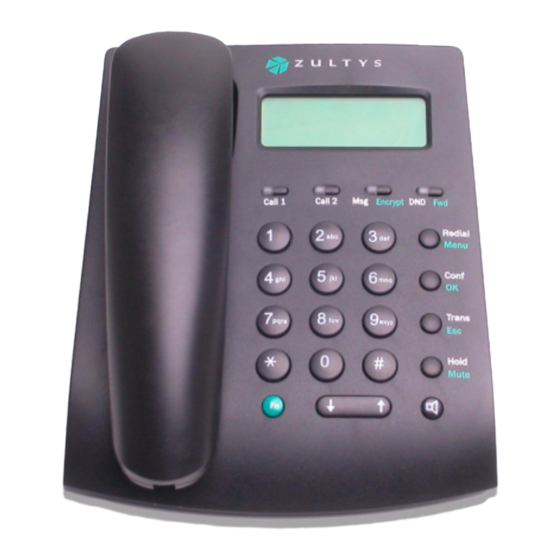

ZIP2x2
and
ZIP2x1
User's Manual
Manual Part Number 90-18213
Zultys Technologies
771 Vaqueros Avenue
Sunnyvale CA 94085-5327
USA
+1-408-328-0450
http://www.zultys.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIP2x2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zultys ZIP2x2

Summary of Contents for Zultys ZIP2x2

  • Page 1 ZIP2x2 ZIP2x1 User’s Manual Manual Part Number 90-18213 Zultys Technologies 771 Vaqueros Avenue Sunnyvale CA 94085-5327 +1-408-328-0450 http://www.zultys.com...
  • Page 2 This document contains proprietary information which is protected by copyright. The contents of this manual and the associated software are the property of Zultys Technologies, and all rights are reserved. No part of this document may be photocopied, reproduced, stored in any computer format, translated to another language, or publicly displayed without the prior written consent of Zultys Technologies.

  • Page 3: Table Of Contents

    1.2 Features ..........2 1.2.1 Switch Functionality (ZIP2x2) ....... 4 1.2.2 Display Description .
  • Page 4 ZIP2x2 User’s Manual Chapter 3 Installation 3.1 Preparing the Phone for Use ......11 3.1.1 Wall or Desk Mounting .
  • Page 5 Contents 5.3.1 Handset ..........40 5.3.2 Speaker .
  • Page 6 ZIP2x2 User’s Manual 6.5.1 Quality of Service ........60 6.5.2 Mute .
  • Page 7 8.6.2 Ping ..........120 8.6.3 Loop Ethernet Ports (ZIP2x2 only) ......122 8.6.4 Buttons and Keys .
  • Page 8 ZIP2x2 User’s Manual B.1 Call Appearance Buttons ....... 131 B.1.1 Message and Encrypt Button ....... 132 B.1.2 DND and Forward Button .
  • Page 9 Contents E.4.3 Manufacture Panel ........163 E.4.4 Logs Panel .
  • Page 10 ZIP2x2 User’s Manual viii...

  • Page 11: Introduction

    This manual can be used by a user who wants to understand in detail how features and functions of the phone operate. End users who do not need the depth of information contained in this manual (which is about 200 pages) should refer to the ZIP2x2 User ’s Guide. One guide is shipped with each phone.

  • Page 12: What This Manual Does Not Include

    Features The ZIP2x2 and ZIP2x1 are SIP based IP phones with a large number of features. The top of the phone is shown in figure 1-1; the top and side panels are shown in figure 1-2. The ZIP2x2 phone is referred to as a “two by two”...
  • Page 13 • critical operational parameters are protected by password • 100 memory phone book plus 64 location memory for last numbers received or dialled • based on highly stable Linux operating system The ZIP2x2 provides these additional features:...

  • Page 14: Switch Functionality (Zip2X2)

    1.2.1 Switch Functionality (ZIP2x2) The ZIP2x2 phone uses an Ethernet switch (not a hub) to connect the PC port and the phone itself to the LAN. Therefore, the ZIP2x2 phone can control the QoS to ensure that voice packets always have priority.

  • Page 15: Leds

    Call 1, Call 2, Msg | Encrypt, and DND | Fwd. Documentation Overview 1.3.1 Organization This user’s manual describes: • how to install the ZIP2x2 and ZIP2x1 phones • how to provision the phone for use within the network • how to make and receive calls •...

  • Page 16: Forms Of Documentation

    These minor releases may have more capabilities than the current formal release. The features in that software may or may not be described in this manual. This manual is available only in PDF format. You can download the PDF file from the Zultys web site at: http://www.zultys.com...

  • Page 17: Receiving The Phone

    — the carrier may need to inspect them. Warning Do not attempt to use the ZIP phone or its accessories if it or they appear damaged. Immediately report the damage to Zultys or a local Zultys sales representative. Package Contents 2.2.1 Unpacking the Phone If the phone box has not been damaged in transit, unpack it carefully.

  • Page 18: Serial Numbers

    • there is a discrepancy between the packing slip and the equipment received • the equipment does not function correctly Your supplier will arrange for repair or replacement, at Zultys’s discretion. In certain cases, Zultys may require a claim settlement.

  • Page 19: Returning Items For Repair Or Replacement

    If it is inconvenient to obtain supplies from Zultys, use a strong, double-walled shipping carton. Place about 70 mm (3 in) of cushioning material around all sides of the equipment. Zultys is not responsible for any damage that occurs during shipment back to your supplier or to the factory.

  • Page 20: Shipping

    The method of shipment which Zultys will return repaired merchandise back to your facility will be the same method by which you shipped the merchandise to Zultys. For example, if you shipped merchandise to Zultys by ground shipment, Zultys will return the merchandise to you by ground shipment.

  • Page 21: Installation

    Preparing the Phone for Use Before you can use your ZIP2x2 or ZIP2x1 phone, you must mount it, insert the handset, supply power to the phone, and connect the phone to your network. In addition to all of the features supplied by the ZIP2x1, the ZIP2x2 can use Power over Ethernet and has an additional Ethernet circuit that can connect another device to the network.

  • Page 22: Power

    LAN or isolated within a network. 1. You should use the ac adapter provided by Zultys. This ac adapter has an output rating of 7 Vdc, 850 mA, and is marked LPS or (for US) NEC Class 2. The plug should be 2.0 mm or 2.1 mm with the center positive. Zultys does not warrant operation of the ZIP2x2 or ZIP2x1 with any adapter other than those supplied by Zultys.
  • Page 23 8.3.2 on page 86. 1. If you do not expect the ZIP2x2 to receive power from the network, you can actually use either port to connect to the phone system.
  • Page 24 ZIP2x2 User’s Manual 3.1.4.3 Cascading (ZIP2x2) The ZIP2x2 has a very efficient network switch incorporated in it so you can cascade the phones as shown in figure 3-3. Figure 3-3 Cascading Phones Connect the LAN port on the phone to the LAN and connect another phone to the PC port. At the second phone in the chain, connect the LAN port to the first phone in the chain.

  • Page 25: Power On

    3. Installation Press the Update button Select Log Out to exit the web interface utility. Figure 3-4 displays the Web Interface panel with this configuration. You can perform this procedure through the phone Menu (section 8.5.4 on page 113) or with configuration file commands (section C.4.6 on page 151).

  • Page 26: Initial Indications

    ZIP2x2 User’s Manual Figure 3-5 Connecting a Headset to the Phone Using an External Switch Box server contains configuration files that fully provision your phone and contains addresses for network elements used by the phone, so that the phone can register with the SIP server. The exact sequence for start up is described in chapter 4, starting on page 25.

  • Page 27: Copyright

    Linux operating system. 3.2.3 Copyright Once the operating system is loaded, the phone starts flashing the LEDs again and displays the Zultys logo, followed by copyright information: ZIP 2x2 Phone © 2004 Zultys Technologies The phone holds each display for about one second while the phone continues to initialize.
  • Page 28 ZIP2x2 User’s Manual • flashes orange and off four times • red on for one second • green on for one second • orange on for one second • off for one second Observe the LEDs and verify that they all function.

  • Page 29: Communicating With The Network

    3. Installation After you press all 24 buttons in proper order, the phone displays a completion message: Completed If you do not press a button during a 10 second period, the phone displays a timeout message: Keypad test time d out In either case, the phone resumes the power up sequence 10 seconds after displaying one of these messages.
  • Page 30 ZIP2x2 User’s Manual 3.2.5.3 Connecting to the TFTP Server Once the phone has its IP address, it tries to locate the TFTP server if it is programmed with the address of the TFTP server or if it obtained the address from the DHCP server. The phone...

  • Page 31: Satisfactory Connections

    Other systems may connect your phone directly to an NTP server. 1. The ZIP2x2 sends the second request 500 ms after the first request. It sends the third request 1.0 s after that, the fourth request 2.0 s after that, and thereafter every four seconds.
  • Page 32 ZIP2x2 User’s Manual If the phone connects to an NTP server, it needs to know the difference between the local time and GMT. Instead of asking for a location, the phone therefore displays: Enter difference in time from GMT }-8:00 Use the Up and Down keys to select the correct time difference.
  • Page 33 3. Installation Press the OK button when you have entered the time. The phone shows the idle display, as described in section 5.4.1 on page 40. You can subsequently alter the date and time using the menu as described in section 8.4.4 on page 90, or you can cycle power on the phone to obtain the same screen.
  • Page 34 ZIP2x2 User’s Manual...

  • Page 35: Provisioning The Phone

    The phone also supports the use of configuration files that can deliver a common set of phone parameters to various phones throughout a network. This chapter describes the components used to configure the ZIP2x2 and ZIP2x1 phones, the booting and configuration process, and the method for updating the software that operates the ZIPphones.

  • Page 36: Configuration Files

    TFTP server every time the phone is booted. Each ZIP2x2 and ZIP2x1 phone has a unique MAC address that identifies the device. A TFTP server uses this address to pass configuration data to the device. ZIP phones can access two configuration files: a common configuration file and a specific configuration file.
  • Page 37 [SIP_CONFIG] phone_sip_port=5060 rtp_start_port=33000 ;The Device ID is the user portion of the SIP URI device_id=West ;The Display Name is sent in SIP messages display_name=Zultys ZIP2x2 register_w_proxy=yes proxy_addr=10.1.32.224 proxy_port=5060 voice_mail_uri=258 registration_expires=3600 session_expires=3600 [AUDIO_INFO] ext_ring_tone=0 ext_cust_ring= int_ring_tone=0...

  • Page 38: Web Interface Configuration Utility

    ZIP2x2 User’s Manual [GENERAL_INFO] software_version=1.0.0 ;The message displayed on the LCD in idle mode greeting_message=ZIP2x2 SIP Phone password=985897 time_fmt=%H:%M date_fmt=%m/%-d/%Y date_time_order=0 ;This is the offset from GMT, in minutes timezone=-480 country=USA language=ENGLISH clear_settings=2 Figure 4-1 Format for Configuration File (Continued) 4.2.2.4...

  • Page 39: Boot Process

    4. Provisioning the Phone Web Interface panels provide an update button to download changes to your phone. Many changes take affect when you download them to the phone. Some changes require that you reboot the phone to become enabled. When you have made at least one change that requires a phone reboot, a Restart Phone option appears in the menu on the left side of the panel.

  • Page 40: Boot Process Description

    ZIP2x2 User’s Manual Fixed IP Address Assignment. This option fixes the phone’s IP address and subnet mask and the IP address of the default gateway and all of the various network servers that the phone will access. Figure 4-4 displays the configuration commands that specify this option.

  • Page 41: Updating Software

    TFTP site. The phone looks first in the root directory of the TFTP site, then in the subdirectory of the TFTP site where the specific configuration file may be stored, if one is specified. The software name for ZIP2x2 software is: ZIP2x2_<version>.bin For example: ZIP2x2_0_1_4.bin...

  • Page 42: Ladder Diagram

    4.4.4 Ladder Diagram Figure 4-5 shows the messages used in this process for the ZIP2x2. The process for the ZIP2x1 is identical, except for the names of the configuration files. The following steps describe the process when the TFTP address it obtained from the DHCP server. If the TFTP server is fixed by the configuration file or the web interface, the phone accesses the specified TFTP server and continues with Step 5.
  • Page 43 Action. ZIP2x2 receives TFTP data (ZIP2x2_common.cfg) from the TFTP Server Description. The ZIP2x2 receives the common configuration file and reads it. It is possible that the specific configuration file for a phone is located in a directory that is not the TFTP root directory.

  • Page 44: Summary

    Step 10 Action. The ZIP2x2 receives TFTP data (ZIP2x2_version.bin) from the TFTP Server Description. After downloading the software version the ZIP2x2 reboots and repeats all of the steps (except for retrieving software). At this point, the ZIP2x2 performs a checksum verification and compares the new software version file name with the version information stored internally to the .bin file.
  • Page 45 4. Provisioning the Phone The phone displays this message if it found the software file but the file had been corrupted. Contact the system administrator to resolve this. You will not be able to use the phone until you resolve the problem.
  • Page 46 ZIP2x2 User’s Manual...

  • Page 47: Interacting With The Phone

    A phone that has two lines has two such sets of circuits and can allow two simultaneous calls. The ZIP2x2 and ZIP2x1 phones have a single circuit to connect to the switch. All calls take place over this same circuit, or line. Dedicated software and hardware inside the phone and the switch permit you to have two simultaneous conversations.
  • Page 48 ZIP2x2 User’s Manual Figure 5-1 Keys and Buttons on Keypad Important Do not press the Fn key and another button or key simultaneously. The phone can read only a single button or key being pressed at a time. The Fn key is green and the label on the card that shows the alternative function of the button is also green.

  • Page 49: Description Of Buttons

    5. Interacting with the Phone When you change the volume, the phone remembers the value you set and uses it in the future. When you power down the phone and restore power, the phone retains the same setting. There are three individual volume settings: When the phone is idle, the volume keys control the volume of the ringer.

  • Page 50: Handset And Speaker

    ZIP2x2 User’s Manual When you press the Fn key, it does not lock the selection of secondary use of the buttons. Therefore, if you want to select another secondary function, you must press the Fn button again. For example, suppose you want to enable encryption and then mute the call. You would: Press and release Fn, then press and release Msg | Encrypt to enable encryption.

  • Page 51: Incoming Call

    5. Interacting with the Phone For example: Sales support 02/16/2005 08:08 You can program the greeting message and the format in which the date and time are shown. 5.4.2 Incoming Call When your phone receives a call, the phone displays: x: To <your_name>...
  • Page 52 ZIP2x2 User’s Manual 5.4.3.4 Display on LCD When you access the menu, the top row on the LCD shows the menu item. The second and third rows show menu choices. The currently selected item has an arrow in the first row of the display.

  • Page 53: Data Backup

    5. Interacting with the Phone When you next enter a menu, the phone puts the arrow in the second row and points to the currently selected item. In the above example, if you press the OK button, the phone will display the arrow on the second row pointing at Austria.
  • Page 54 ZIP2x2 User’s Manual...

  • Page 55: Using The Phone

    C h a p t e r 6 Using the Phone Going Off Hook and On Hook You can use the handset or speaker for any call and easily switch between them – even during the same call. Subsequent sections detail the processes for making and terminating a call. This section briefly describes how to select between the two audio paths.

  • Page 56: Disconnecting The Handset

    ZIP2x2 User’s Manual 6.1.5 Disconnecting the Handset The phone cannot detect whether a handset is connected or not. Therefore if you connect or disconnect a handset during a call, the phone does not change its state. Making a Call To make a call, you normally want the phone to be in the idle state (see section 5.4.1 on page 40).
  • Page 57 6. Using the Phone • The phone selects speaker mode and provides dial tone to the speaker. The phone shows: 1. Call • The number on the first row is the call appearance that has been reserved for this call. Enter the digits.

  • Page 58: Dialling A Number Without Dial Tone

    ZIP2x2 User’s Manual 6.2.2 Dialling a Number without Dial Tone You can make a call without having to hear a dial tone or the digits being dialled. This mode is called “hot key dialling”. Enter the digits. The phone shows the digits on the screen. As you enter the digits, the phone does not play the DTMF sounds for the digits.

  • Page 59: Dialling Using A Sip Address

    A SIP address is normally written as: SIP:name@domain For example: SIP:john.doe@zultys.com With the ZIPphone, you must not write “SIP:” because the phone will automatically insert that for you. Also, when you call an address that is within the same domain as your phone, you do not need to enter the domain name.
  • Page 60 ZIP2x2 User’s Manual 3. d, e, f, 3; or D, E, F, 3 4. g, h, i, 4; or G, H, I, 4 5. j, k, l, 5; or J, K, L, 5 6. m, n, o, 6; or M, N, O, 6 7.

  • Page 61: Editing A Number

    6. Using the Phone 6.2.5.7 Editing the Address Use the Up and Down keys as described in section 6.2.6 on page 51. 6.2.5.8 Sending the Address To send the address (and initiate the call), lift the handset, press the speaker key, or press a call button.

  • Page 62: Making A Call Without A Sip Proxy

    Making a Call Without a SIP Proxy The ZIP2x2 and ZIP2x1 phones are intended for use with a telephone system but it is possible to use it without one. You might do this if you have two phones either directly connected or isolated on a network.

  • Page 63: Call Proceeding And Call Answered

    1. Calling Bonnie Hopkins 0:17 1. Calling Zultys Technolog 0:17 The phone will continue to use this name instead of the number for future displays during this call. If you have dialled the person using a SIP address, the phone will display this instead of a number.

  • Page 64: Ringback

    ZIP2x2 User’s Manual 6.3.2 Ringback 6.3.2.1 ZIP to SIP Phone Calls or ZIP to ISDN Calls When you make a call to another SIP phone, the ringback that you hear is generated by your phone. The tones will be those for the country that you selected.

  • Page 65: Network Busy

    6. Using the Phone 6.3.4 Network Busy If the network is busy, the phone either plays the fast busy tone (congestion tone) for your country or the fast busy tone that is generated by the phone network at the far end. This depends whether your server can detect if the network is busy.

  • Page 66: Network Failure

    ZIP2x2 User’s Manual • the quality of service indicator and the duration of the call on the bottom row If there is at least one call appearance has an active call or is ringing, you can display a summary of the activity on each call appearance by pressing the OK button: 1.

  • Page 67: Before You Answer

    6. Using the Phone The phone plays a ringing tone on the speaker if you have no active calls and you have adjusted the volume to be greater than zero. If you set the volume to zero, the phone plays no ring sound. The phone can play different ring tones for calls that originate from outside the enterprise and those that originate inside the enterprise.

  • Page 68: Rejecting The Call Or Not Answering

    ZIP2x2 User’s Manual 6.4.4 Rejecting the Call or Not Answering 6.4.4.1 Rejecting Calls You can reject a call by pressing the DND button. Once you have pressed the DND button, the function remains active until you press the DND button again. See section 7.2 on page 71 for more details.

  • Page 69: During A Call

    6. Using the Phone The phone lights the LED for the call appearance continuously green. The display is identical to that shown when you make a call as described in section 6.3.5 on page 55. Important If you press the call appearance button of a new call while you have an existing conversation, you will drop the first call unless you press Hold beforehand.

  • Page 70: Quality Of Service

    ZIP2x2 User’s Manual 6.5.1 Quality of Service The phone displays the voice quality of your call on the bottom left corner of the LCD when the display is in normal mode. The Quality of Service Indicator is a QoS icon, followed by a maximum of four signal bars.
  • Page 71 6. Using the Phone 6.5.3.1 Placing a Call on Hold If you want to put the conversation on hold, press the Hold button. The LED on the call appearance button flashes green for 500 ms and off for 500 ms. The phone is silent.

  • Page 72: Transferring A Call

    ZIP2x2 User’s Manual Important If you press a call appearance button without first pressing Hold, you will terminate the current call. 6.5.3.4 To Resume the Conversation To resume talking with the person on hold, do one of the following: If you have only one call on hold (only one call appearance button is flashing green and off): optionally take the phone off hook b.

  • Page 73: Transferred By The Other Party

    6. Using the Phone The phone updates the display to indicate which call is being transferred. For example, suppose you received a call on appearance 1. You answered it and used call appearance 2 to transfer the call. The display might look like: 1.

  • Page 74: Ending A Call

    ZIP2x2 User’s Manual Ending a Call 6.6.1 You Terminate the Call Do one of the following: Go on hook. The phone ends the call, makes the handset and speaker quiet, and turns off the LED for the call appearance. Press the call button that is lit continuously green.

  • Page 75: Dialling A Phone Book Entry

    Press OK to display a list of contacts in your phone book. Press the Up and Down keys to select a contact, then press OK or take the phone off hook, or press a call appearance button. Section 8.2 on page 79 describes the ZIP2x2 and ZIP2x1phone book.

  • Page 76: Conference Calls

    ZIP2x2 User’s Manual Conference Calls The phone allows you to hold a conversation with two other people simultaneously. A conversation with more than one other person is called a conference. This is a feature that is supported on the phone such that the function will operate on any phone system that can support multiple call appearances to the phone.

  • Page 77: Placing A Conference Call On Hold

    6. Using the Phone Press the OK button to scroll through the list of people on the conference call. In summary mode, the display changes to: 1. 4083280 02:29 2. Bonnie 02:38 02/1/2005 17:59 The phone displays the name or number of the person on the conference call together with how long the call has been on the call appearance.
  • Page 78 ZIP2x2 User’s Manual The phone plays dial tone that can be heard by the other participant. d. The phone flashes the LED on the call appearance button green to indicate it has reserved the call appearance. Dial a name or number using the keypad or by selecting a recent number either called or received.

  • Page 79: Terminating A Conference Call

    6. Using the Phone The phone changes that call appearance button to be solid green and you can talk with the calling party. d. If you do not want the person that has called to join the conference call: • Press the call appearance button that is lit continuously green.
  • Page 80 ZIP2x2 User’s Manual...

  • Page 81: Special Functions

    C h a p t e r 7 Special Functions Voice Messages When you have voice mail messages, the LED on the Msg button serves as a Message Waiting Indicator (MWI) and flashes red for 500 ms and off for 500 ms. The LED can become lit while you are in the middle of a conversation, if someone leaves you a voice mail while you are using the phone.

  • Page 82: Forward

    ZIP2x2 User’s Manual Forward 7.3.1 Description When the phone forwards a call, it redirects an incoming call to another destination (name or number). The destination can be another extension within the enterprise or an external number. You can turn on and off forwarding to instruct the phone to forward calls: •...

  • Page 83: Configuring

    7. Special Functions 7.3.5 Configuring Press the Fwd button. The display changes to: Forward }off all calls on no answer when busy This example shows five rows, though in practice the display can show only three rows at once. As you press Up and Down keys, the display scrolls through the list of choices. Press the OK button to select a choice or the Esc button to cancel.

  • Page 84: Individual Calls

    It becomes active only during a call as described in the sections below. ZIP2x2 and ZIP2x1 encryption is based on open standards. To encrypt the conversation, each person use a device that supports these open standards, such as another ZIP phone or a compatible phone.
  • Page 85 7. Special Functions If the device that you are calling cannot support encryption, the call will not complete. Your phone plays the fast busy tone (congestion tone) and flashes the LED on the call appearance button and the Encrypt button flashes green (250 ms) and red (250 ms). The display changes to: 1.
  • Page 86 ZIP2x2 User’s Manual If the far end phone rejects the request to enable encryption, your phone beeps three times through the audio channel you are using, and displays: 1. Can’t Encrypt 4083280450 The phone holds this display for two seconds, until you press a key, or go on hook.

  • Page 87: Holding, Transferring, And Forwarding Calls

    7. Special Functions 7.4.3 Holding, Transferring, and Forwarding Calls 7.4.3.1 Calls on Hold When you put a call on hold, the other person’s device now communicates with the call manager system, whereas it previously communicated with your phone. Similarly, when you transfer a call or forward a call, the other person’s device now communicates with someone else’s phone.

  • Page 88: Conference Calls

    ZIP2x2 User’s Manual 7.4.4 Conference Calls 7.4.4.1 General All calls that comprise a conference call must be encrypted or not encrypted. You cannot mix calls on a conference call that are encrypted or not encrypted because this makes the entire conference subject to eavesdropping and is therefore not secure.

  • Page 89: The Menu

    C h a p t e r 8 The Menu Introduction When you press the Menu button, the phone displays: Menu }Phone book Information User Settings Pswd Settings Self Test This example shows six rows, though in practice the display can show only three rows at once. As you press the Up and Down keys, the display scrolls through the list of choices.

  • Page 90: Search

    ZIP2x2 User’s Manual When you select Menu | Phone Book the display shows: Phone Book }Search Add new contact Edit Delete This example shows five rows, though in practice the display shows three rows at once. As you press the Up and Down keys, the display scrolls through the list of choices. The options include: Search.

  • Page 91: Add New Contact

    8. The Menu The phone looks at the contact’s name to find a match. If you have not entered a name for the contact, the phone displays the address (SIP URI or number). The SIP URIs are sorted within the alphabetical list. Numbers are at the end of the list. If the contact is not the one you wanted: Use the Up and Down keys to scroll through the list of names.
  • Page 92 ZIP2x2 User’s Manual To a number, type a string of digits such as: Address: }1485 You should not append a # character to the end of the phone string. You can enter punctuation characters, for example: Address: }9-(408)328-0450 The phone stores the characters that you enter, but when you dial, the phone sends only the digits to the phone system.

  • Page 93: Edit

    8. The Menu The display shows: Select Location The phone shows a list of unused memory locations, and points to the lowest location that is free. 10. Use the Up and Down keys to select a memory location and press the OK button. 11.

  • Page 94: Delete

    ZIP2x2 User’s Manual The phone places the cursor at the end of the name, address, or number. Edit it as described in section 6.2.6 on page 51. If you did not earlier enter a name or an address, the phone still allows you to edit these later, allowing you to complete them as required.

  • Page 95: Information

    8. The Menu Information This allows you to view data about the phone. You cannot change any part of the configuration in this menu. When you select Menu | Information the display shows: Information }Times Communications Manufacture This example shows five rows, though in practice the display can show only three rows at once. As you press the Up and Down keys, the display scrolls through the list of choices.

  • Page 96: Communications

    Info | Comms ---- 100F PC signifies the switched port on the ZIP2x2. The ZIP2x1 does not display a PC parameter. b. LAN signifies the port that you connect to the switch. –––– signifies there is no connection.

  • Page 97: Manufacture

    8. The Menu You interpret the LEDs as follows: LED on Call 1 indicates the status of the PC circuit. b. LED on Call 2 indicates the status of the LAN circuit. TFTP Address. This is what has been configured manually or obtained by DHCP . If the DHCP server did not specify the TFTP address, the phone indicates this: Info | Comms }TFTP Address...

  • Page 98: User Settings

    ZIP2x2 User’s Manual Versions. You can update the software version. Later versions may include more features or better support for existing features. The boot code permanently resides on the phone and you cannot modify it. You may need to provide the hardware version and date of manufacture if you need support on the phone.

  • Page 99: Lcd Contrast

    This setting determines the message that the top row of the display shows when the phone is idle (see section 5.4.1 on page 40). When shipped from the factory, the greeting message is set to ZIP2x2 SIP Phone To change the greeting message: Select Menu |User Settings | Greeting.

  • Page 100: Clear User Settings

    ZIP2x2 User’s Manual 8.4.3 Clear User Settings This parameter determines the settings that the phone uses each time it powers up. When you select this, the phone displays: Clear Settings }never next power on each power on This example shows four rows, though in practice the display can show only three rows at once.

  • Page 101: Audio

    8. The Menu The phone restarts and shows the display described in section 3.2.3 on page 17. The phone operates from that point forward. The phone will overwrite configuration parameters with data received from the DHCP server and TFTP server but will not destroy user settings such as phone lists.
  • Page 102 ZIP2x2 User’s Manual 8.4.5.1 External Ring Tone The external ring tone specifies the ring tone for calls received from phones outside your enterprise. To configure the external ring tone: Select Menu | User Settings | Audio | External Ring. The display shows:...
  • Page 103 8. The Menu To configure the External Call Answer behavior: Select Menu | User Settings | Audio | Extl Call Answ. The display shows: Extl call answer }ring phone auto answ spkr auto answ hook Select an option using the Up and Down keys. Select Ring Phone to program the phone to plays the external ring tone until you take the phone off hook or a system call handling routine sends the call to an operator or your voice mail.
  • Page 104 ZIP2x2 User’s Manual 8.4.5.5 Call Disconnect This parameter programs the phone’s behavior after the other party disconnects a call. You can program the phone to remain silent or play a busy tone. To configure the call disconnect behavior: Select Menu | User Settings | Audio | Call disconnect. The display shows:...
  • Page 105 8. The Menu 8.4.5.7 Hold Reminder Tone This parameter specifies the tone that the phone plays when a call is on hold. This tone is played once every 30 seconds. Select Menu | User Settings | Audio | Hold reminder. The display shows: Hold reminder }off beep...
  • Page 106 ZIP2x2 User’s Manual 8.4.5.9 Startup Tone This parameter specifies the tone that the phone emits when you power up the phone. Select Menu | User Settings | Audio | Startup Tone. The display shows: Startup Tone }none white noise bleep bleep...
  • Page 107 8. The Menu After the phone has found all the custom tones available, it lists them and displays: External ring }Alarm1 Aleluya Use the Up and Down keys to scroll between the choices. Press the OK button to select a sound or the Esc button to return to the previous menu.

  • Page 108: Timeouts

    ZIP2x2 User’s Manual • The phone displays this message if the HTTP server denies access: External ring Retrieving list Error:unauthorize • The phone displays this message if the HTTP server forbids access: External ring Retrieving list Error: forbidden • The phone displays this message if there is an error with the HTTP server...

  • Page 109: Regional Options

    8. The Menu As you press the Up and Down keys, the display scrolls through the list of choices. 8.4.6.1 Event Timer The phone displays messages about the status of a call or a problem. Some of these messages are displayed temporarily.
  • Page 110 ZIP2x2 User’s Manual The display changes to: Set | Regional }country language date and time time format date format This example shows six rows, though in practice the display can show only three rows at once. As you press the Up and Down keys, the display scrolls through the list of choices.
  • Page 111 8. The Menu 8.4.7.2 Language This parameter specifies the language that the phone uses to display phone settings and menu options on the LCD. Select Menu | User Settings | Regional Optns | Country. The phone displays the languages menu: Set | Language }English French...

  • Page 112: Factory Defaults

    ZIP2x2 User’s Manual 8.4.7.4 Time Format This parameter specifies the format used by the LCD to display time. Select Menu | User Settings | Regional Optns | Time Format. The phone displays the time format menu: Set | Time Frmt...

  • Page 113: Pswd Settings

    8. The Menu Select Yes and press OK to restore the factory defaults. This will restart your phone. Press Esc or select No then press OK to return to the User Settings menu without resetting the phone to the factory defaults. Pswd Settings This allows you to alter the communication parameters of the phone.
  • Page 114 ZIP2x2 User’s Manual This corresponds to the word “zultys.” When you select Menu | Pswd Settings | Password the display shows: PSettings | Pswd }Enter password ******* Enter your password, then press the OK button. The phone displays the star characters shown above as you enter the password.

  • Page 115: Ip Settings

    8. The Menu 8.5.2 IP Settings When you select Menu | Pswd Settings | IP Communications, the display shows the parameters needed by the phone to communicate with the network. Each parameter is protected and cannot be changed unless you previously entered your password. After entering your password, you can modify any of the parameters.
  • Page 116 ZIP2x2 User’s Manual • address of the NTP server (you can specify this as an IP address or an FQDN) • address of the TFTP server (you can specify this as an IP address or an FQDN) If you enable DHCP you should not ordinarily modify these parameters on the phone. If the server does not provide all of these parameters, or if you want to make a change to one of the parameters, you can set it from the appropriate menu.
  • Page 117 8. The Menu 8.5.2.5 Primary DNS This panel displays the IP address for the server that provides address resolution (DN to IP address) for the phone. The address was either obtained dynamically through DHCP or is a static address that you manually configure. To access this panel, select Menu | Pswd Settings | IP Settings | Primary DNS.
  • Page 118 ZIP2x2 User’s Manual 8.5.2.9 TFTP Address This is the IP address for the file server that provides configuration information for the phone. The phone obtained this address from the source specified in the TFTP Server panel, as described in section 8.5.2.8.

  • Page 119: Sip Settings

    8. The Menu 8.5.3 SIP Settings When you select Menu | Pswd Settings | SIP Settings, the display shows the parameters needed by the phone to communicate with the SIP proxy and registrar servers. Each of these parameters is locked and you cannot change any of them unless you have previously entered the password.
  • Page 120 ZIP2x2 User’s Manual Select Address and press the OK button to access the IP Address of the Outbound Proxy. Outbound proxy Address }10.1.30.194 Select Port and press the OK button to access the port of the Outbound Proxy. Outbound proxy...
  • Page 121 8. The Menu Select Registration and press the OK button to access the registration parameter which, if set to Yes, programs the phone to register with the backup proxy at start up. Default value is No. Backup proxy Registration 8.5.3.3 Registrar Server This menu accesses the configuration information for the registrar server.
  • Page 122 ZIP2x2 User’s Manual 8.5.3.5 Receive Port This is the TCP or UDP port number the phone uses to receive SIP messages. The default value of 5060 is used if you leave this field blank. To access this panel, select Menu | Pswd Settings | SIP Settings | Receive Port.

  • Page 123: Vlan

    8. The Menu To access this panel, select Menu | Pswd Settings | SIP Settings | SIP Validation. Validate request URI in SIP msgs? 8.5.4 VLAN You configure VLANs on the switch that is built into the phone to match your network, optimize performance, and obtain the best speech quality.
  • Page 124 ZIP2x2 User’s Manual Press the OK button. If you have defined a second VLAN (that is, you entered a VLAN ID for the definition of B), the phone prompts you to define a third VLAN (C), and so on. You can only configure VLANs A through F through the menu.

  • Page 125: Names & Numbers

    8. The Menu The phone defaults to having all ports members of VLAN A. PC and LAN are untagged members of the VLAN and the VLAN ID is 1. When you create another VLAN, the phone defaults to excluding all ports from the other VLAN.
  • Page 126 ZIP2x2 User’s Manual To access this panel, select Menu | Pswd Settings | Names & Numbers | Device ID. PSettings Device ID 8.5.5.2 Domain Name Domain Name specifies the domain name for the enterprise. This parameter has no default value and you must therefore complete this panel.

  • Page 127: Audio

    8. The Menu PSettings Voice mail }5500 8.5.6 Audio This selection allows you to control the way speech and ringing tones are handled on the phone. The phone is supplied with four standard tones to announce ringing that most businesses will find acceptable.
  • Page 128 ZIP2x2 User’s Manual To access this panel, select Menu | Pswd Settings | Audio | Encryption. Audio | Encrypt }normally on normally off always on never on This example shows five rows, though in practice the display can show only three rows at once.

  • Page 129: Self Test

    8. The Menu 8.5.6.4 Sound URL This setting specifies the location of WAV files that are used for custom ring tones for internal and external calls and second call tones. By controlling the WAV stored in that location, you can ensure that only appropriate files are played to announce incoming calls.

  • Page 130: Ping

    ZIP2x2 User’s Manual This example shows eight rows, though in practice the display can show only three rows at once. As you press the Up and Down keys, the display scrolls through the list of tests. The following sections describe each self test.
  • Page 131 8. The Menu The phone sends up to 99 messages to the host, each one second apart. Each message has 24 bytes of optional data (the total message length is 32 bytes) and the phone increments the sequence numbers, starting with 1, and continues incrementing the numbers during the test. After receiving a reply to the first message, the phone displays: }10.1.40.25 01: reply =...

  • Page 132: Loop Ethernet Ports (Zip2X2 Only)

    If you press OK or Esc, the phone displays the Self Test menu shown in section 8.6.1 on page 119. Caution Remove all cables from the back of the ZIP2x2 before proceeding. You must not connect the phone to your network with a loop on the Ethernet ports of the phone. 8.6.4 Buttons and Keys This option tests the buttons and keys on the phone.

  • Page 133: Leds

    8. The Menu The phone waits 10 seconds for you to press a button or key. If you do not press a button or key in 10 seconds, the phone exits this menu selection. Push each button and key on the keypad in proper sequence, starting with the Call 1 button in the top left corner of the keypad and proceeding right.

  • Page 134: Lcd

    ZIP2x2 User’s Manual The phone immediately lights the Call 1 LED in the following order: red, green, orange, and off. Each time you press any button except Menu, Esc, or OK, the next LED to the right of the previous LED displays red, green, orange, and off. After the DND/Fwd LED is lit, Call 1 is the next LED that displays its colors.

  • Page 135: Audio

    Each transition takes one to two seconds; the test time for the transitional screens is about 15 s. Finally, the phone fills the display with the Zultys logo: The phone transitions the contrast from its current value, to the maximum value, then to the minimum value, and back to the original value.

  • Page 136: Audio Return

    Audio Return The Audio Return test generates audio feedback to evaluate the audio paths on the phone. This test is normally performed before the phone is shipped and should be executed by the user only as instructed by Zultys technical support.

  • Page 137: Appendix A Menu Structure

    A p p e n d i x A Menu Structure Phone Book (section 8.2) Search Add new contact Edit Delete Information (section 8.3) Times ⇒ ⇒ ⇒ •Offset from GMT •Powered on •Connected ⇒ •Registered •Total talk time Communications ⇒...
  • Page 138 ZIP2x2 User’s Manual User Settings (section 8.4) LCD Contrast Greeting Clear settings ⇒ ⇒ •never •next power on •each power on Date and time Audio ⇒ ⇒ ⇒ •external ring tone •internal ring tone •extl call answ ⇒ ⇒ ⇒...
  • Page 139 A. Menu Structure Self Test (section 8.6) Ping Loop switch Buttons & keys LEDs Audio Audio Return...
  • Page 140 ZIP2x2 User’s Manual...

  • Page 141: Call Appearance Buttons

    A p p e n d i x B LED Summary Call Appearance Buttons The LEDs on the call appearance buttons can be off or can show red, green, or orange. Figure B-1 shows what the LEDs show for various phases of a call. The figure shows where you can find more details about that state.

  • Page 142: Message And Encrypt Button

    ZIP2x2 User’s Manual The time reference for all LEDs is the same, so that the first quarter second for each LED starts simultaneously. This provides a more uniform display. For example, if the phone receives a call on call appearance 1 it will flash its LED. If another call comes in 250 ms later, the LED on the second call appearance button will flash synchronously with the first LED.

  • Page 143: Appendix C Configuration Files

    A p p e n d i x C Configuration Files Introduction The ZIP2x2 and ZIP2x1 phones obtain their configuration from three possible sources: • what is saved in the phone’s memory • what is saved in a common configuration file •...

  • Page 144: Specific Configuration File

    ZIP2x2 User’s Manual C.2.2 Specific Configuration File The specific configuration file sets parameters for an individual phone within an enterprise. Parameters normally set within a specific configuration file customize phone features for the person using the phone, such as the greeting message, audio characteristics, and LCD options.

  • Page 145: Parameter Entries

    [NET_CONFIG] use_dhcp=yes tftp_cfg_dir=./ZIP2x2 Figure C-2 Configuration File Example The name of the parameter and the parameter value must be on the same line. The name of the parameter is not case sensitive; it can be entered in either upper or lower case. However, parameter values are case sensitive.
  • Page 146 ZIP2x2 User’s Manual Description of equivalent menu or button Parameter Description command default_gateway Parameter is IP address of default gateway that is used for manual section 8.5.2.4 on configuration when use_dhcp is set to ‘no’ or DHCP does not page 106 provide the default gateway (DHCP option 3).
  • Page 147 The default values of ./ZIP2x2 or ./ZIP2x1 is valid only if your TFTP server contains a directory by that name and if the specific configuration file resides in that directory.
  • Page 148 ZIP2x2 User’s Manual [NET_CONFIG] use_dhcp=yes ip_addr= subnet_mask= default_gateway= primary_dns= secondary_dns= domain=zultys.com sntp_server_addr= tftp_server_addr= tftp_cfg_dir=./ZIP2x2 dscp_setting=0 Figure C-4 Sample Configuration File – Network Settings...

  • Page 149: Sip Configuration

    The proxy password authenticates the phone to proxy section 8.5.3.1 on servers that require authentication. page 109 Default value is zultys. backup_proxy_addr Backup SIP server proxy address value. If primary proxy section 8.5.3.2 on server fails to operate, the phone attempts to switch to page 110 backup proxy.
  • Page 150 ZIP2x2 User’s Manual Description of equivalent menu or button Parameter Description command fwd_condition Selects the initial call forwarding mode. Valid settings range section 7.2 on from 0 to 3, as follows: page 71 0 - no calls are forwarded 1 - all calls are forwarded...
  • Page 151 C. Configuration Files Description of equivalent menu or button Parameter Description command rtp_start_port Specifies the starting port number for RTP/RTCP section 8.5.3.4 on transmissions. Valid settings range from 1026 to 64528. The page 111 starting port must always be an even number. Should not be set to same value as phone_sip_port or proxy_port.
  • Page 152 ZIP2x2 User’s Manual [SIP_CONFIG] phone_sip_port=5060 rtp_start_port=33000 ;The Device ID is the user portion of the SIP URI device_id=West ;The Display Name is sent in SIP messages display_name=Zultys ZIP2x2 ;This must always be set to “yes” register_w_proxy=yes proxy_addr=10.1.32.224 proxy_port=5060 voice_mail_uri=258 registration_expires=3600 Figure C-6 Sample Configuration File –...

  • Page 153: General Information

    C. Configuration Files C.4.3 General Information General information parameters configure miscellaneous phone settings. All general information parameters are optional. Figure C-7 lists the General Information configuration parameters. Description of equivalent menu Parameter Description command clear_settings Determines the frequency that settings are cleared when the section 8.4.3 on phone is powered on.
  • Page 154 ZIP2x2 User’s Manual Description of equivalent menu Parameter Description command digits_timeout Specifies the time in seconds that the phone waits after the last section 8.4.6.2 on digit is dialled before sending the number to the SIP server if the page 99 # button is not pressed.
  • Page 155 12 hour format: display hours and minutes %l:%M%f Figure C-8 Time Format Strings Supported by the ZIP2x2 and ZIP2x1 C.4.3.2 Programming Restrictions: Date Format Figure C-9 lists the valid date formats when you select a time format that does not display seconds.
  • Page 156 %m-%-d-%Y 2003/10/06 %Y/%m/%d 2003-10-06 %Y-%m-%d Figure C-9 Date Format Strings Supported by the ZIP2x2 and ZIP2x1 C.4.3.3 Sample Configuration File Figure C-10 displays the General Information settings section from a sample configuration file. [GENERAL_INFO] software_version=1.0.0 ;The message displayed on the LCD in idle mode...

  • Page 157: Hardware Configuration

    C. Configuration Files C.4.4 Hardware Configuration Hardware configuration parameters adjust LCD and volume characteristics. Figure C-11 lists the hardware configuration parameters. Description of equivalent menu Parameter Description command handset_volume Adjusts the handset volume. Values range from 0 (silent) to 20 none (loud).

  • Page 158: Audio Information

    ZIP2x2 User’s Manual C.4.5 Audio Information Audio information parameters configure ring tone styles. Figure C-13 lists the Audio Information configuration parameters. Description of equivalent menu Parameter Description command codec Specifies speech encoding method. Valid settings are 0, 1, 2, and section 8.5.6.1 on...
  • Page 159 C. Configuration Files Description of equivalent menu Parameter Description command hold_tone This tone is played once every 30 seconds when you have a call section 8.4.5.7 on that is on hold. Valid settings range from 0 to 2 as follows: page 95 0 - off 1 - beep...
  • Page 160 ZIP2x2 User’s Manual Description of equivalent menu Parameter Description command ring_tone2 Specifies the call waiting tone that is played when you are talking section 8.4.5.6 on on the phone and the phone receives another call. Valid settings page 94 range from 0 to 5 as follows:...

  • Page 161: Vlan Configuration

    Defines inclusion status of the circuits for VLAN B through VLAN section 8.5.4 on circuits_c H: Phone, PC, and LAN respectively for the ZIP2x2; Phone and page 113 circuits_d LAN respectively for the ZIP2x1. Valid settings for each digit circuits_e include T (tagged), U (untagged), and E (excluded);...
  • Page 162 Default value is –1 for each VLAN setting. valn_id_h Figure C-15 VLAN Configuration Parameters (Continued) C.4.6.2 Sample Configuration File Figure C-16 displays the VLAN settings section from a sample configuration file for a ZIP2x2. [VLAN_CONFIG] mode=1 vlan_id_a=1 circuits_a=UUU vlan_id_b=-1 circuits_b=EEE...

  • Page 163: Locations

    C. Configuration Files C.4.7 Locations Location parameters configure the deployment location for the phones that are controlled by your system. You can specify an identifier and a time zone location for each location in the configuration file. C.4.7.1 Specifying a Location Each location requires two settings: the identifier and the time zone.
  • Page 164 ZIP2x2 User’s Manual [LOCATIONS] L1=Sunnyvale:Vaqueros T1=PST+8:00 L2=Moscow T2=MST-3:00 L3=Chicago T3=PST+8:00 def_location=Sunnyvale:Vaqueros Figure C-17 Sample Configuration File – Locations Settings...

  • Page 165: Appendix D Acronyms

    A p p e n d i x D Acronyms automatic call distributor channel associated signalling class of service DHCP dynamic host configuration protocol do not disturb domain name service DTMF dual tone multi-frequency FQDN fully qualified domain name Greenwich Mean Time ICMP Internet control message protocol IEEE...
  • Page 166 ZIP2x2 User’s Manual VLAN virtual local area network...

  • Page 167: Appendix E Web Interface Configuration Utility

    A p p e n d i x E Web Interface Configuration Utility Introduction The Web Interface Configuration Utility provides a method to configure your phone by accessing your web browser. This configuration method is convenient for users that do not have access to configuration files through a TFTP server.

  • Page 168: Interface Structure

    The Address bar, located below the Zultys banner, lists the name of the current panel and the web interface path required to display this panel. The data entry section provides information about your phone and data entry boxes for setting parameter values.

  • Page 169: Add Entry Panel

    E. Web Interface Configuration Utility E.3.1 Add Entry panel The Add Entry panel, shown in figure E-3, adds contacts into empty phone book memory locations. To access the Add Entry panel, select Phone Book | Add Entry from the menu. Figure E-3 Phone Book –...
  • Page 170 ZIP2x2 User’s Manual Figure E-4 Phone Book – Edit panel Figure E-5 Phone Book – Delete panel...

  • Page 171: Information

    E. Web Interface Configuration Utility Information The Information menu displays circuit status, operational, and manufacturing information about the phone. You cannot change any parameter settings directly from Information menu panels. Section 8.3 on page 85 describes the menu commands that accesses this information directly from the phone.

  • Page 172: Communications Panel

    Status of Ethernet Circuits. This data is updated in real time; the display may change as the phone receives data packets. • PC signifies the switched port on the ZIP2x2. The ZIP2x1 does not display a PC parameter. • LAN signifies the port that you connect to the switch.

  • Page 173: Manufacture Panel

    E. Web Interface Configuration Utility E.4.3 Manufacture Panel The Manufacture panel, as shown in figure E-8, displays information concerning the manufacture of your phone To access the Manufacture panel, select Information | Manufacture from the interface menu. Figure E-8 Information – Manufacture panel MAC Address.

  • Page 174: User Settings Menu

    ZIP2x2 User’s Manual Figure E-9 Current RTP Status Log E.4.4.2 RTP History Log The RTP History Log, as shown in figure E-10, displays the RTP settings of the most recent 32 sessions routed through the phone. To access the RTP History Log panel, select Information |Logs | RTP History Log from the interface menu.
  • Page 175 E. Web Interface Configuration Utility Figure E-10 RTP History Log LCD contrast. The LCD contrast parameter alters the contrast of the LCD to improve readability. The combo box contains the current LCD contrast value. To change the LCD contrast, select the desired value in the combo box.
  • Page 176 ZIP2x2 User’s Manual Figure E-11 User Settings – General Info panel Event timer. The Event Timer parameter determines the period that the phone displays status messages. The combo box contains the current value. Section 8.4.6.1 on page 99 describes the equivalent menu command.

  • Page 177: Date And Time

    E. Web Interface Configuration Utility • On each power on: The phone takes its user settings from the configuration file saved on the TFTP site every time that the phone powers up. This is useful if the phone is in a common area and users may change the settings from those desired by the system administrator.
  • Page 178 ZIP2x2 User’s Manual Figure E-13 User Settings – Audio panel External ring tone. This parameter determines the tone that the phone plays when you receive a call from outside of your enterprise. When you select custom, you must select the WAV file that provides the custom sound in the adjacent data entry box.

  • Page 179: Regional Settings

    E. Web Interface Configuration Utility seconds after the other party disconnects from the call. Select Silent to program the phone to disconnect the phone without playing any tone. Section 8.4.5.5 on page 94 describes the equivalent menu command. Second call tone. This parameter determines the sound that the phone plays when you receive a call while you are talking on the phone.

  • Page 180: Factory Defaults

    ZIP2x2 User’s Manual Language. This selection determines the language that the phone uses to display information on the LCD. Select the desired language in the data entry box. Section 8.4.7.2 on page 101 describes the equivalent menu command. Date and time. This selection determines the order that the phone displays the time and the date.

  • Page 181: Network Setup

    E. Web Interface Configuration Utility E.6.1 Network Setup The Network Setup panel determines the network mode of the phone and provides parameter settings that incorporate the phone into your network. Figure E-16 Network Setup panel Default Gateway. This parameter is the IP address of the default gateway. The phone uses the address entered in this box if DHCP mode is not enabled (IP communications panel) or DHCP does not return a value for the default gateway.
  • Page 182 ZIP2x2 User’s Manual Use TFTP Server. This parameter determines the source of the TFTP server address. When set to From DHCP , the phone obtains the TFTP server address from the DHCP server. When set to Fixed address, the phone uses the TFTP address that you enter in this panel. Section 8.5.2.8 on page 107 describes the equivalent menu command.
  • Page 183 E. Web Interface Configuration Utility — IP address of the DNS server — IP address of the secondary DNS server — address of the NTP server — address of the TFTP server When you disable DHCP , you must enter these parameters manually. Phone Address.

  • Page 184: Sip Communications

    ZIP2x2 User’s Manual In Normal Network mode, you can configure the phone with up to eight VLANs, referred to as A, B, C, D, E, F, G, and H. Each Ethernet circuit can be on a different VLAN. The following restrictions must be considered when configuring the VLANs through the Web Interface: •...
  • Page 185 E. Web Interface Configuration Utility Figure E-19 Protected Settings – SIP Communications panel Registrar Port. This parameter specifies the SIP Registrar server port. The default value is 5060. Section 8.5.3.3 on page 111 describes the equivalent menu command. Phone SIP Port. This panel displays the TCP or UDP port number the phone uses to receive SIP messages.

  • Page 186: Names And Numbers

    ZIP2x2 User’s Manual Invite Retransmissions. This parameter specifies the number of unsuccessful INVITE transmissions before the phone switches to the backup proxy. Section 8.5.3.7 on page 112 describes the equivalent menu command. Non-Invite Retransmissions. This parameter specifies the number of unsuccessful retransmissions (other than INVITE) before the phone switches to the backup proxy.

  • Page 187: Audio

    E. Web Interface Configuration Utility E.6.4 Audio The Audio panel, as shown in figure E-21, controls the way that the phone handles speech and ringing tones. The Audio panel displays the configuration options for the following parameters: Figure E-21 Protected Settings – Audio panel Codec.
  • Page 188 ZIP2x2 User’s Manual Figure E-22 Protected Settings – Password panel E.6.5.2 Backup Configuration The Backup Configuration panel, as shown in figure E-23, allows you to store your phone’s configuration settings, as listed in the flash memory, to a file on your local PC or network. You can then restore the saved configuration from the Restore Configuration panel.
  • Page 189 E. Web Interface Configuration Utility Figure E-23 Maintenance – Backup Configuration panel Figure E-24 Maintenance – Restore Configuration panel...
  • Page 190 ZIP2x2 User’s Manual...

  • Page 191: Index

    I n d e x Symbols call disconnect setting configuration file configuration command ..149 commands ... . . 135–154 #, sending ..... . . 48 menu .
  • Page 192 ZIP2x2 User’s Manual DHCP encryption setting handset volume setting configuration options ..25 configuration command ..139 configuration command ..147 connecting to server ..19 menu .
  • Page 193 Index on hook ......45 key click tone setting MAC address configuration command ..149 menu .
  • Page 194 ....11 returning to Zultys ... . 9 configuration command ..137 warning definition .
  • Page 195 ..... . 2 ZIP2x2 features ..... . 2...
  • Page 196 ZIP2x2 User’s Manual...
