UC2024 and UC2724 Service Manual

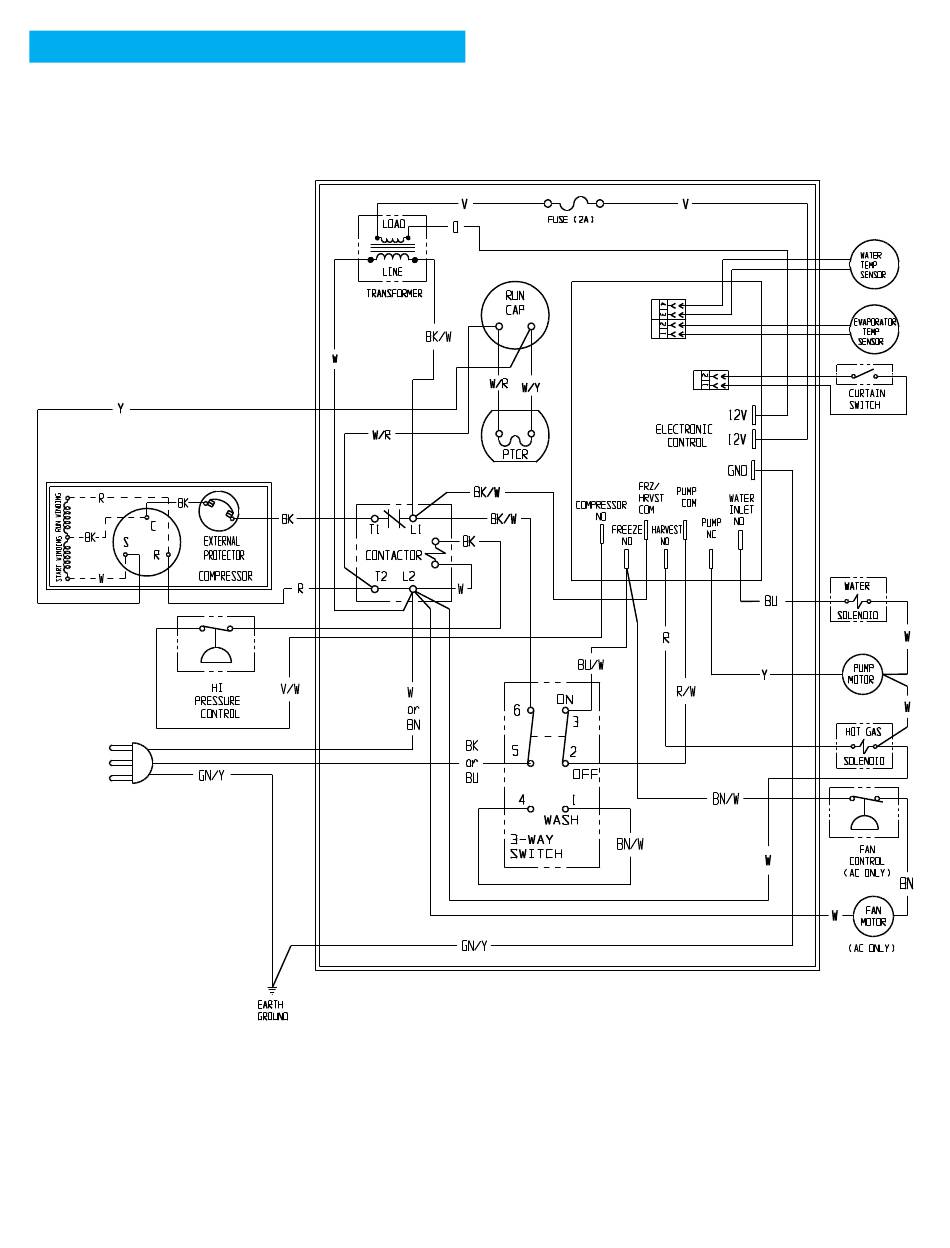

Wiring Diagram UC2724
Shown in ice making mode
November 2019
Page 39
