KNOW YOUR CYBORG RX
1
7 6
8
9
13
2
3
4
5
10
12
11
14
15
Your Cyborg RX marker has been CNC milled from a solid billet of 6061 aircraft
grade aluminium, representing the highest quality workmanship available in
aluminium manufacturing. The milling has been performed by a 3D surfacing
machine, with each marker taking many hours to produce.
Please take the time to learn the parts of your Cyborg, it will help you when
reading this manual.

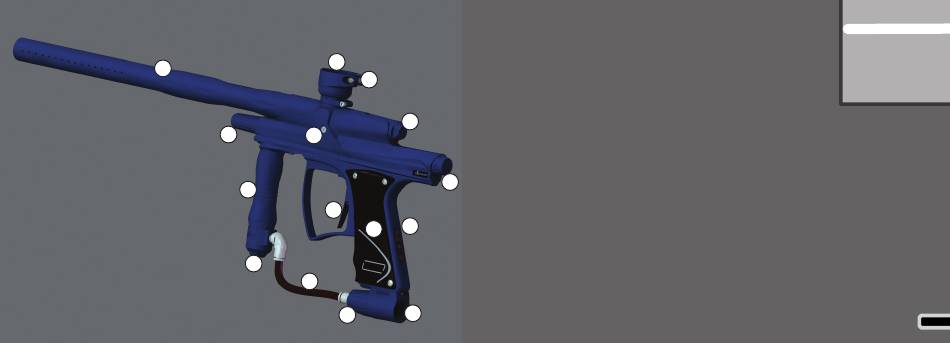

Numbered basic parts as shown in the figure on the left:
1. Matchstik 2 piece barrel
2. Feed clamp lever (used to affix your loader)
3. Feed clamp adjuster screw
4. Bolt assembly, twist anti clockwise and pull to remove
5. Drivetrain, unscrew to remove (note: bolt must be removed first)
6. Eye covers and screws
7. LPR (Low Pressure Regulator)
8. Gladiator Inline (High Pressure Regulator)
9. Velocity adjustment screw (anti clockwise to increase velocity)
10. Trigger with screw adjustments
11. OLED display used to view gun status/settings
12. Membrane pad with power and programming buttons
13. Air hose
14. Venting ASA, screw your air system in here
15. Venting ASA on/off cap (used to turn the air on or off)
