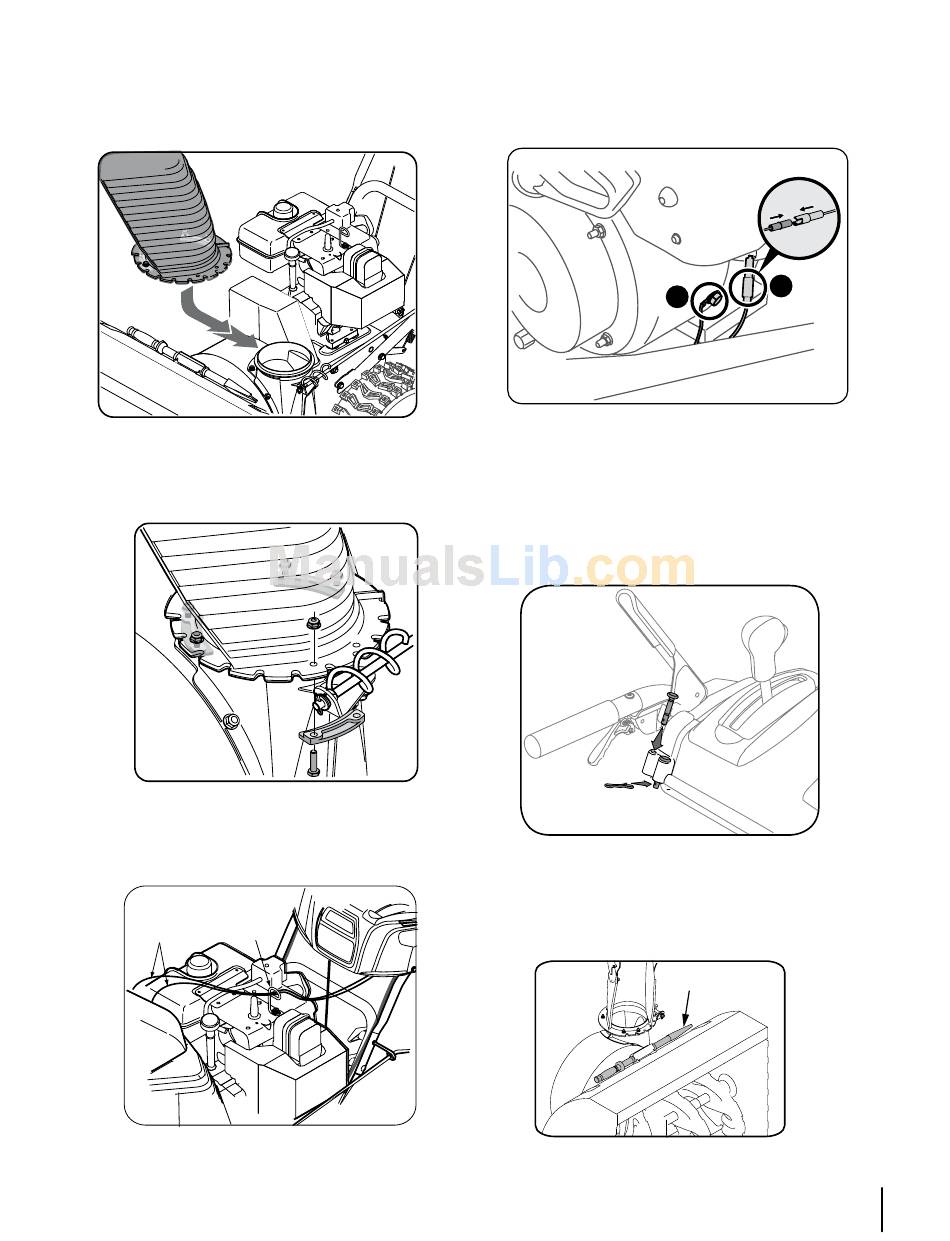

2. Place chute assembly onto chute base as shown in Figure
3-4. Make sure that the chute notches engage with the
spiral end of chute directional control, and the two flange
keepers are beneath the flange on the chute base.
Figure 3-4
3. Secure flange keeper removed earlier with lock nuts
and screws. Tighten down nuts securing the other two
flange keepers. See Figure 3-5.
Figure 3-5
4. Check that the chute cables are properly routed
through the cable guide on top of engine shroud. See
Figure 3-6.
Cable
Chute
Guide
Cables
Figure 3-6
Headlight Harness
If not already done, wrap the wires of the headlight wire
harness around the lower right handle; then attach the
wires to the engine as shown in Figure 3-7.
Figure 3-7
Set-Up
Shear Pins
A pair of replacement auger shear pins and bow tie cotter pins
have been included with your snow thrower. There are holes
provided in the plastic dash panel for convenient storage of the
shear pins. Push the pins through the holes in the dash panel
and secure with the bow-tie cotter pins. See Fig. 3-8.
Figure 3-8

Chute Clean-Out Tool

The chute clean-out tool is fastened to the top of the auger
housing with a mounting clip and a cable tie at the factory. Cut
the cable tie before operating the snow thrower. See Fig. 3-9.
Figure 3-9
s
ectiOn
B
A
Cleanout Tool
3 — a & s -u
sseMbly et p
7
