Cub Cadet 928 SWE Operator's Manual

Cub Cadet 928 SWE Operator's Manual

28/33/45" two stage snow thrower
Hide thumbs Also See for 928 SWE:
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL

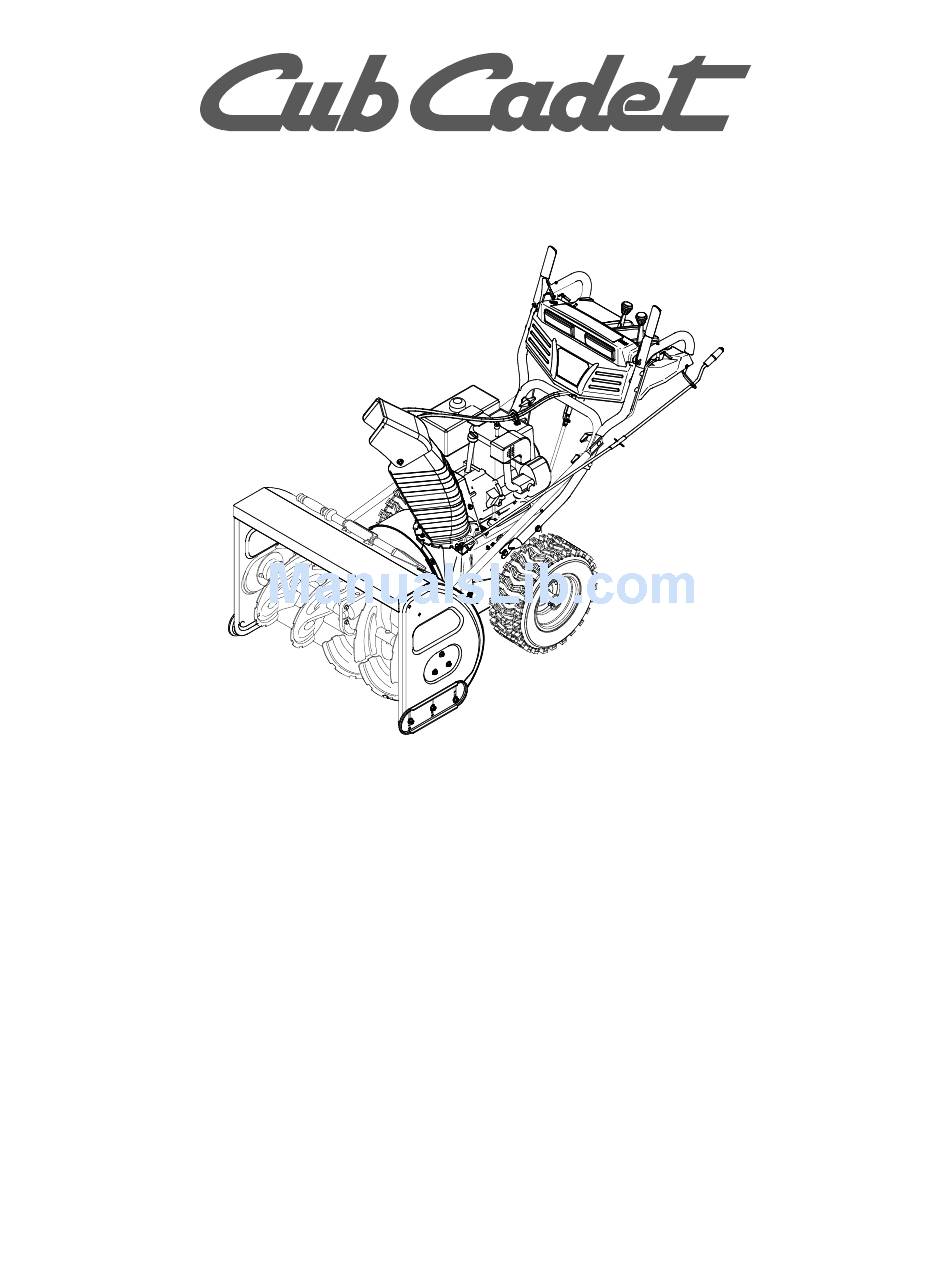

33" Model Shown
IMPORTANT:
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]
PRINTED IN U.S.A.
Two Stage
Snow Thrower
28" Snow Thrower — Model 928 SWE
33" Snow Thrower — Model 933 SWE
45" Snow Thrower — Model 945 SWE
Read safety rules and instructions carefully before operating equipment
FORM NO. 769-01792
(7/05)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 928 SWE and is the answer not in the manual?

Questions and answers

Related Manuals for Cub Cadet 928 SWE

Summary of Contents for Cub Cadet 928 SWE

  • Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com] PRINTED IN U.S.A.
  • Page 2 If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call your Cub Cadet dealer. If you need assistance in locating a dealer in your area, contact the Customer Dealer Referral Line by calling:...
  • Page 3 SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol—heed its warning.

  • Page 4: Safety Labels

    Maintenance And Storage Do not operate machine while under the influence of alcohol or drugs. Never tamper with safety devices. Check their proper Muffler and engine become hot and can cause a burn. Do operation regularly. not touch. Disengage the control handle and stop engine. Wait until Exercise extreme caution when operating on or crossing the auger/impeller come to a complete stop.

  • Page 5: Loose Parts

    SECTION 2: ASSEMBLING YOUR SNOW THROWER Assembling Handle NOTE: This Operator’s Manual covers several models. Snow thrower features vary by model. Not all • Remove the lower plastic wing nut, belleville features discussed in this manual are applicable to all washer and carriage bolt from each side of the snow thrower models.
  • Page 6 Attaching Chute Crank Engine • Remove the internal cotter pin from the upper chute Alternator crank. Slide the upper chute crank through the Lead upper chute crank bracket and into the sleeve on the lower chute crank. • Align the hole in the upper chute crank with the hole in the sleeve (If necessary, use a pair of pliers to Lamp Wire assist in aligning holes).
  • Page 7 If you experienced resistance rolling the unit, either • Reattach the spring to the actuator bracket. when repositioning the shift lever from 6 to R2 or when • Repeat the wheel drive and auger control tests to attempting to move the machine with the drive control verify proper adjustment.
  • Page 8 SECTION 3: KNOWING YOUR SNOW THROWER WARNING: Be familiar with all the controls on the snow thrower and their proper operation. Know how to stop the machine and disengage them quickly. Compare Figure 9 below with your equipment and be familiar with its controls before starting it. Shift Lever Wheel Drive Control/ Auger Control Lock...

  • Page 9: Before Starting

    Chute Crank Skid Shoe The chute crank is located on the left The skid shoe position is normally determined by the side of the snow thrower. Use it to surface from which snow has to be removed. Loose change the direction in which snow is surfaces (e.g.

  • Page 10: Operating Tips

    If your home electrical system is grounded, but Recoil Starter: With engine running, pull starter a three-hole receptacle is not available, one rope with a rapid, continuous full arm stroke three should be installed by a licensed electrician before or four times. Pulling the starter rope will produce a using the electric starter.

  • Page 11: Shift Rod

    Chute Clean-Out Tool The chute clean-out tool is conveniently fastened to the Chute Clean-Out Tool rear of the auger housing with a mounting clip. Never Clip use your hand to clean a clogged chute or chute opening; use this clean-out tool instead. •...

  • Page 12: Chute Assembly

    Wheel Drive Control Chute Assembly If you are uncertain about correct adjustment, proceed The distance snow is thrown can be adjusted by as follows: adjusting the angle of the chute assembly. Refer to page 9 for instructions. • Drain the gasoline out of your snow thrower’s engine, and place a piece of plastic film under the The remote chute control cables have been pre- gas cap to avoid spillage.

  • Page 13: General Recommendations

    SECTION 6: MAINTAINING YOUR SNOW THROWER WARNING: Before lubricating, repairing, or inspecting, disengage all clutch levers and Shear Pins stop engine. Wait until all moving parts have Bearing Vent Plug come to a complete stop. Disconnect the spark plug wire and ground it against the engine to prevent unintended starting.
  • Page 14 Wheel Drive Control / Auger Control Lock • Remove the six self-tapping screws from the frame cover underneath the snow thrower. The cams on the ends of the control rods which interlock • Visually inspect the friction wheel rubber for the wheel drive and auger drive controls must be excessive wear, cracks, or loose fit on the friction lubricated at least once a season or every 25 hours of...

  • Page 15: Replacing Belts

    SECTION 7: SERVICING YOUR SNOW THROWER WARNING: Before servicing, repairing, or inspecting, disengage all clutch levers and stop Shave Plate engine. Wait until all moving parts have come Carriage Bolts to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting.
  • Page 16 • Remove the large shoulder bolt and washer on the • Place the new auger belt in the pulley groove. left hand side of the engine pulley. See Figure 19. Position the pulley and belt inside the belt keepers on the rear of the auger housing. See Figure 21. Engine Pulley Brake Bracket Assembly...

  • Page 17: Changing Friction Wheel

    Drive Belt • Tip the snow thrower up and forward, so that it rests on the housing. • Repeat the first five steps from the above "Auger • Remove the six screws from the frame cover Belt" sub-section to split the snow thrower. underneath the snow thrower.
  • Page 18 • Remove the four hex tapp screws securing the friction wheel to the bearing/extrusion plate Sprocket Shaft assembly. See Figure 25. • With its recessed face toward the extrusion plate, Spacer position the new friction wheel so that its four screw holes align with the extrusion plate holes;...
  • Page 19 Auger control cable in need of adjustment. Refer to Final Adjustments in Assembly Section. Auger belt loose or damaged. Refer to Adjustments. Shear bolt(s) sheared. Replace shear bolt(s). NOTE: For repairs beyond minor adjustments listed above, contact your Cub Cadet dealer.
  • Page 20 SECTION 10: ILLUSTRATED PARTS LISTS...
  • Page 21 REF. PART REF. PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 05244A Housing, Bearing ......732-0858 Spring, Extension ....... 05845C Housing, Double D Bearing ..736-0169 Washer, Lock, 3/8 ....... 618-0257 Gear Box Assembly, Auger ..736-0174 Washer, Wave, .625 x .885 x .015 618-0281A Bracket Assembly, Auger Brake ..
  • Page 22 NOTE: Please add the applicable color code below to the part number to order a replace- ment part. For instance, if a part, numbered 700-xxxx, is painted Cub Yellow, the part num- ber to order would be 700-xxxx-0716. Cub Yellow: 0716 Cub Beige: 0499 Powder Black: 0637...
  • Page 23 WHEEL TABLE S. T. Model Description Wheel Ass’y Tire Valve Bearing 28" S.T. — 928 SWE 16 x 4.80 x 8 X-Trac — LH 634-04179 734-2038 734-1532 16 x 4.80 x 8 X-Trac — RH 634-04180 33" S.T. — 933 SWE 16 x 6.50 x 8 X-Trac —...
  • Page 25 Graphic, Starting Instr/Drive Control ..777I22363 Graphic, Drive/Auger Lock ....... 777D09462 Graphic, Cub Cadet ......... 777D09460 Graphic, 928 SWE — 28" S.T. Only ..777D09463 Graphic, 933 SWE — 33" S.T. Only ..777D09465 Graphic, 945 SWE — 45" S.T. Only ..736-0105 Washer, Belleville, .375 x .87 x .063 ...
  • Page 27 REF. PART NUMBER DESCRIPTION QTY. 684-0123A Bracket, Belt Cover ..... 710-0191 Screw, Hex Cap, 3/8-14 x 1.25 GR8 710-0237 Screw, Hx Cap, 5/16-24 x .625 GR5 710-0607 Screw, Hx Wash Hd Tapp, ..5/16-18 x .5 710-0672 Screw, Hx Cap — 28" S.T. Only — 5/16-24 x 1.25 GR5 710-1245B Screw, Hx Cap —...
  • Page 28 30 31 ‘B’ ‘A’ ‘A’ ‘B’...
  • Page 29 REF. PART NUMBER DESCRIPTION QTY. 684-0102 Panel, Handle ........ 710-0276 Screw, Carriage, 5/16-18 x 1.0 ..710-0458 Screw, Carriage, 5/16-18 x 1.75 ..710-0459A Screw, Hex Cap, 3/8-24 x 1.5 GR5 710-0597 Screw, Hex Cap, 1/4-20 x 1.0 GR5 710-0599 Screw, Hx Wash Hd Tapp .....
  • Page 31 Damage resulting from the installation or use of any part, acces- as identified. No other express warranty, whether written or oral, sory or attachment not approved by Cub Cadet for use with the product(s) except as mentioned above, given by any person or entity, including covered by this manual will void your warranty as to any resulting damage.
  • Page 32 MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by Cub Cadet LLC with Routine maintenance items such as lubricants, filters, blade respect to new merchandise purchased and used in the United States, its sharpening, tune-ups, brake adjustments, clutch adjustments,...
