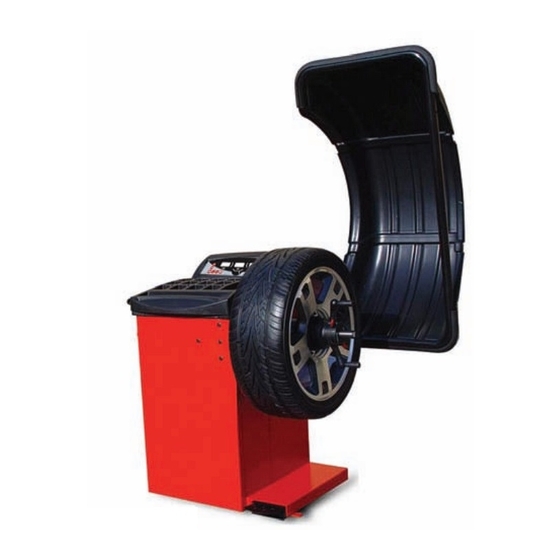

  • Page 1 WHEEL BALANCER EEWB502B/C EEWB503B EEWB304B Service Manual...
  • Page 2 All information contained or disclosed in this document is con- sidered confidential and proprietary by Snap-on Equipment. All manufacturing, use, reproduction, and sales rights are reserved by Snap-on Equipment and the information contained herein shall not be used in whole or in part without the express written consent of Snap-on Equipment.

  • Page 3: Table Of Contents

    Table of Contents CHECKOUT, CALIBRATION AND MAINTENANCE GENERAL ................................1 SHAFT IMBALANCE, WHEEL ADAPTER TO SHAFT REMOUNT TEST ............1 BALANCER DIAGNOSTICS (TROUBLESHOOTING) ..................1 TROUBLESHOOT USING CORRECT DIAGNOSTICS PROCEDURES ............1-2 TOOLS REQUIRED WHEN SERVICING THE Y2K BALANCERS ..............1-2 FUNCTIONS OF SNAPON / JBC VPI BALANCERS ..................1-3 SERVICE CODES .............................1-3 F/P CODE DESCRIPTIONS OF THE BALANCER ...................1-4 F/P 1 TOGGLE FINE WEIGHT MODE ......................
  • Page 4 ENCODER REMOVAL ...........................1-18 VIBRATORY MEMBER REMOVAL .........................1-19 VIBRATORY INSTALLATION ..........................1-19 DIAMETER SAPE / POTENTIOMETER VPI II, III IV & SOT LD ..............1-19 DIAMETER SAPE / POTENTIOMETER ADJUSTMENT ................1-20 SAPE GAUGE ..............................1-20 DISTANCE SAPE / POTENTIOMETER VPI III, IV ..................1-21 DISTANCE SAPE / POTENTIOMETER INSTALLATION ................1-21 DISTANCE SAPE / POTENTIOMETER VPI I, II &...

  • Page 5: Checkout, Calibration And Maintenance

    CHECKOUT, CALIBRATION AND MAINTENANCE gENERAL This book incorporates all motorized “y2Kb/c” balancers manufactured in Conway Arkansas. The test codes for each digital display balancer are alike, and so are the results. The JBC balancer uses “F” to begin any service procedure, the Snapon balancer begins all service procedures with a “P” code. All “F/p” codes run parrallel.

  • Page 6: Troubleshoot Using Correct Diagnostics Procedures

    Checkout and maintenance Be supplied with correct power and ground. Give a display output. Accept Keypad input. Process commands through the Computer. Receive and process encoder/transducer inputs. Brake Display proper weight amount and location. The technician should watch a machine work and make performance assessments based on what is seen. If subsystem failure is suspected, use diagnostic tests to confirm the failure.

  • Page 7: Functions Of Snapon / Jbc Vpi Balancers

    Checkout and maintenance FUNCTIONs OF sNApON / JBC VpI BALANCERs All the service codes are entered using F/p codes. The procedure for activating an F/p code is described below. F/p> key, the left window displays letter “F/p” and right window displays current Press and release the <...

  • Page 8: F/P Code Descriptions Of The Balancer

    Checkout and maintenance F/p CODE DEsCRIpTIONs OF THE BALANCER F/P 1 TOGGLE FINE WEIGHT MODE When F/p 1 is activated, the machine displays “FIN” “ON” for one second (round off 0.05 oz or 1 gram). Toggle F/p 1 again changes back to the normal round off and display changes to “FIN” “OFF” for one sec- ond (round off 0.25 oz or 5 gram).

  • Page 9: F/P 14 User Calibration Procedure

    Checkout and maintenance F/P 14 USER CALIBRATION PROCEDURE The JBC vPI and SOT balancers feature a user calibration program which requires only a few minutes to complete. Perform this procedure when the balancer has been moved, disturbed, or whenever accuracy is questioned.

  • Page 10: F/P 36 Toggle Angles Of Left And Right Weights

    Checkout and maintenance F/P 36 TOGGLE ANGLES OF LEFT AND RIGHT WEIGHTS. Begin procedure by mounting a tire and wheel assembly. Enter all wheel parameters and spin the tire and wheel assembly. After F/p36 is activated, machine displays “pOs” “ANg” first. Once the shaft moves, machine displays encoder position in integer form (from 0 to 511) in left window and angle in floating form (from 0.00 to 359) in right window.

  • Page 11: F 52 Read Output Voltage Of The Width Potentiometer

    Checkout and maintenance F 52 READ OUTPUT VOLTAGE OF THE WIDTH POTENTIOMETER This function is only available with the JBC vPI System III balancer. Slide the SAPE in the home position. <F> key, toggle the <Up / DOWN> arrow keys until “F” Press and release the “52”...

  • Page 12: F79 Calibration Of Width Sape

    Checkout and maintenance F79 CALIBRATION OF WIDTH SAPE Note: This procedure is part of the F80. Press and release the <F> key, toggle the <uP / DOWN> ar- row keys until “F” “79” is displayed and press <ENTER> to ac- tivate function of F79.

  • Page 13: F/P 80 Sape Gauge Calibration

    Checkout and maintenance F/P 80 SAPE GAUGE CALIBRATION To calibrate the SAPE gauge. make sure the SAPE arm is in the home position as shown in (80-1). NOTE: WEIGHT TRAY MUST BE INSTALLED Activate the gauge calibration program. Press and re- lease the <F/p>...
  • Page 14 Checkout and maintenance The display will change to “sAp” “E-1” “FIN” for one sec- ond and the changes to “dis” “to” “FLA”. Pull the distance gauge to the outside flange of the backing collar, use the flat head of the calibration weight as an in- dex (80-5).

  • Page 15: F/P 83 Factory Calibration Procedure

    Checkout and maintenance F/P 83 FACTORY CALIBRATION PROCEDURE NOTE: THE F80 CALIBRATION MUST BE DONE BEFORE THIS OPERATION. A balanced tire and wheel assembly can be substituted if a Pruefrotor is not available. The calibration proce- dures are the same and can easily be performed. However custom parameters must be used for this proce- dure if using a balanced tire and wheel assembly Beginning with a balanced Tire and Wheel assembly •...
  • Page 16 Checkout and maintenance Attach the 3.5 ounce weight (100 gr) on the inside of the Prue- frotor/Tire & Wheel. (Figure 3-15) • Spin the Pruefrotor/Tire & Wheel by lowering the hood or pressing the enter key. • Displays “CAL” ‘2” when the shaft reaches 90 RPm’s. The ma- chine is taking data and doing calculations.

  • Page 17: F/P 84 Empty Shaft Calibration Procedure

    Checkout and maintenance F/P 84 EMPTY SHAFT CALIBRATION PROCEDURE <F/p> key, turn the shaft until the display reads “F/p” “84” is displayed. The display Press and release the changes to “CAL” “SHF” for one second. Then it displays “SPN” “1“. Spin the empty shaft by pressing the <ENTER>...

  • Page 18: F/P 90 Match Balance

    Checkout and maintenance F/P 90 MATCH BALANCE matches the tire to the wheel. See operators manual for detailed information. F/P 91 OPTIMIZATION See operators manual for details. F/P 92 SPLIT WEIGHT See operators manual for details. F/P 94 SPOKE MODE See operators manual for details.

  • Page 19: Servicing The Balancer

    Checkout and maintenance sERVICINg THE BALANCER NOTE: BEFORE OPENING THE MACHINE FOR SERVICE, DISCONNECT ELECTRICAL SUPPLY LINE AND USE THE LOCKOUT / TAGOUT PROCEDURE. DANgEROUs HIgH VOLTAgEs ARE pREsENT IN THIs EQUIpMENT The balancer is supplied with 110/230 vAC . It is critical to have the proper input voltage in order for the balancer to operate correctly.

  • Page 20: Main Processor Replacement

    Checkout and maintenance MAIN pROCEssOR REpLACEMENT Before flashing the new main PCB on an IBP Processor, check and adjust the SAPE potentiometers for the correct voltage settings (F/p 50, F/p51, F52) see chart below. The distance setting is very critical for correct operation before flashing.

  • Page 21: To Access The Inside Of The Machine

    Checkout and maintenance make sure all the SAPE arms are in the home position. Remove the “dummy plug” from the secure disk slot and install the new software. Please NOTE that the secure disk will only go in one way DO NOT FORCE the media into the opening. Power up the balancer.

  • Page 22: Transducer Removal

    Checkout and maintenance TRANsDUCER REMOVAL • The transducers are held in place with setscrews and jam nuts. • Disconnect the power from the rear of the machine. • Remove the display panel. • Remove the weight tray. • using a 2.5mm hex key remove the preload plate. (Figure 3-26) •...

  • Page 23: Encoder Removal

    Checkout and maintenance ENCODER REMOVAL All Balancers • Disconnect power. Screw • Remove weight tray. • Disconnect the 10 Pin ribbon cable from the encoder PCB. Encoder • Remove the phillip screw holding the encoder PCB to the shaft tube. NOTE: BE CAREFuL NOT TO LET FOREIGN DEBRIS FALL INSIDE THE TuBE.

  • Page 24: Diameter Sape / Potentiometer Vpi Ii, Iii Iv & Sot Ld

    Checkout and maintenance DIAMETER sApE / pOTENTIOMETER VpI II, III IV & sOT LD • Disconnect the power from the rear of the machine. • Remove the Display panel. • Remove the weight tray. • Disconnect the 2D SAPE harness from the main Proces- sor Board.

  • Page 25: Distance Sape / Potentiometer Vpi Iii, Iv

    Checkout and maintenance DIsTANCE sApE / pOTENTIOMETER VpI III, IV • Disconnect the power from the rear of the machine. • Remove the weight tray. • Disconnect the 1D SAPE belt from the distance rod. • Remove the 10mm nut holding the SAPE wheel to the frame.

  • Page 26: Distance Sape / Potentiometer Vpi I, Ii & Sot Ld

    Checkout and maintenance DIsTANCE sApE / pOTENTIOMETER VpI I, II & sOT • Disconnect the power from the rear of the machine. • Remove the weight tray. • Disconnect the 1D SAPE return spring from the lower base assembly. • Remove the 10mm nut holding the SAPE wheel to the frame.

  • Page 27: Electric Brake Pedal Adjustment

    Checkout and maintenance ELECTRIC BRAKE pEDAL ADJUsTMENT Early model JBC vPI System III balancers • Remove the two screws securing the brake pedal assembly. • Remove the weight tray. • Remove the cover from the electronic box. • Attach a vOm to each lead of the microswitch. •...

  • Page 28: Hood Switch / Cam / Spring

    Checkout and maintenance HOOD sWITCH / CAM / spRINg (VPI SYSTEM II & SOT LOW DIGITAL) • Disconnect the power from the rear of the machine. • Remove the weight tray. • Disconnect the Hood Switch from the Power Supply Board and remove the wiring from the connector. •...

  • Page 29: Chapter 2 Diagnostic Codes

    CHApTER 2 DIAgNOsTIC CODEs gENERAL OVERVIEW: ____________________________________________________ Balancers that have been manufactured since 2000 contain diagnostic codes to aid the technician in trouble- shooting and repair of the balancer. There are 5 different types of diagnostic codes (Start up Errors, Error Codes, H Codes, E Codes and IBP Codes).

  • Page 30: In Field Reprogramming Of Balancer

    Chapter 2 Diagnostic Codes Some notes about the operations of the wheel balancer: All measured angular positions are related to the mass to balance the wheel; they are not the positions of the imbalance mass itself. If the balancer is in service mode, some of the normal behavior is changed: •...

  • Page 31: Self-Test During Start-Up (Crt/Hna/Hwt)

    Chapter 2 Diagonostic Codes 2.3 SELF-TEST DuRING START-uP (CRT/HNA/HWT) A series of tests is accomplished after the machine has been turned on. If a test is not successful: • a series of audible signals is given, or • an error code is read out. On HNA/HWT or CRT models, a three-tone signal is given once, if the machine is operative.
  • Page 32 Chapter 2 Diagnostic Codes Disable left SAPE Affected models : models with 1D-, 2D-SAPE or geodata Service Codes : C80 (& C81) to calibrate SAPE C92 to check distance and diameter of actual calibration During the second attempt the inner SAPE gauge arm was again not re-placed to home position. Inner and outer SAPE gauge arms are turned off.
  • Page 33 Chapter 2 Diagonostic Codes Check Optima outer scanner E364 Affected models : models with optima hardware Service Codes : C123 Right side scanner self test fail or CCD not calibrated or zero mark not detected.Balancing is not possible since wheel data cannot be scanned.Problem during power up. Switch power off and on again. Should the problem not go away please call service.
  • Page 34 Chapter 2 Diagnostic Codes there is a fault in the inner scanner CCD board there is a fault in the camera controller board the supply voltage is configured too high on the power interface board Corrective actions:- check all items above switch power off and on again;...
  • Page 35 Chapter 2 Diagonostic Codes there is a fault in the motor power supply board§ there is a fault in the inner scan- ner motor there is a fault in the camera controller board motor drivers Corrective actions:- check all items above 22.7 Check Optima inner motor missing steps E376...
  • Page 36 Chapter 2 Diagnostic Codes there is a fault in the outer scanner CCD board there is a fault in the camera controller board Corrective actions: check the connections§ check the outer scanner CCD board check the camera controller board switch power off and on again; should the problem not go away please call ser- vice 23.3 Check Optima outer scanner memory...
  • Page 37 Chapter 2 Diagonostic Codes 23.7 Check Optima outer motor missing steps E386 Affected models : models with optima hardware Service Codes : C123 Possible causes: - the outer scanner movement is not smooth or it is striking the frame the motor power supply is not configured properly there is a fault in the motor power supply board§...
  • Page 38 Chapter 2 Diagnostic Codes Corrective actions: check the connections check the rear scanner CCD board check the camera controller board switch power off and on again; should the problem not go away please call ser- vice 24.3 Check Optima rear scanner memory E392 Affected models : models with optima hardware Service Codes : C123...
  • Page 39 Chapter 2 Diagonostic Codes Possible causes: - the rear scanner movement is not smooth or it is striking the frame the motor power supply is not configured properly there is a fault in the motor power supply board there is a fault in the rear scanner motor there is a fault in the camera controller board motor drivers the cable connecting the camera controller board and the rear scanner motor is partially unplugged or damaged...
  • Page 40 Chapter 2 Diagnostic Codes locked or damaged the cable connecting the camera controller board and the rear shift scanner mo- tor is unplugged, damaged or missing there is a fault in the motor power supply board there is a fault in the rear shift scanner motor there is a fault in the camera controller board motor drivers Corrective actions:- check all items above...
  • Page 41 Chapter 2 Diagonostic Codes 30.1 Hardware tests - Common Errors C10F02 C10F07 C10F18 Affected models : All models Service Codes: All codes available for the model A hardware tests couldn't executed successfully. C10F02: Test returned with an error. No valid test results available. C10F07: Test function reported an unknown error.

  • Page 42: Service Codes

    Chapter 2 Diagnostic Codes sERVICE CODEs 2.4 H CODES (CRT/HNA/HWT) ui_error.h revision 1.11 Description Internal code(s) Wheel running conditions cannot be improved by optimisation Further optimisation not recommended but feasible Weight minimization is recommended, optimisation can achieve no further improvement The correction plane cannot be re-located using the gauge arm Indexing position does not match correction plane 0x492215...

  • Page 43: E Codes (Crt/Hna/Hwt)

    Chapter 2 Diagonostic Codes 2.5 E CODES (CRT/HNA/HWT) ui_error.h revision 1.11 Description Internal code(s) Rim dimensions entered incorrectly Wheel guard is not closed Gauge arm not in home position Outer gauge arm not in home position Range of electrical unbalance compensation exceeded (residual adapter unbalance) 0x812560, Calibration weight not attached to flange...
  • Page 44 Chapter 2 Diagnostic Codes 0x441350, The inner gauge arm for distance and rim diameter is defective 0x441351, 0x441360, 0x441361 0x441370, The outer gauge arm for rim width is defective 0x441371 0xC30E01 ASA: Status of an activeted order has changed due to network manager or E101 shop management software activities.
  • Page 45 Chapter 2 Diagonostic Codes OPTImA outer scanner not calibrated E383 OPTImA outer motor current sink or power supply failure E384 OPTImA outer scanner zero mark not detected E385 OPTImA outer motor missing steps E386 OPTImA outer laser current sink or power supply failure E387 E388 OPTIMA outer laser modulation failure...

  • Page 46: Structure Of An Error Code

    Chapter 2 Diagnostic Codes 2.6.1 STRuCTuRE OF AN ERROR CODE A complete error code consists of 6 hexadecimal digits. EXAmPLE: Command language (Commands coming from the UI) Critical error (will be recorded in user mode) BL_BAL_ERROR_FailCaluser ID: 2-digit hexadecimal value and indicates the software module which detected the error. Module Priority ID: Represents the kind of error (message only, critical error).

  • Page 47: Priority Id

    Chapter 2 Diagonostic Codes Power clamp Incremental potentiometer Rim light Balancing algorithm Balancing calibration Behind the spokes placement <not used> Optimisation Measurement control Command language (Commands coming from the UI) Calculator Message Server (Message service from BK to UI) Message Server (User messages from BK to UI) Sleep command Balancing Kernel : Test state machine (eg self-test during start-up) Event system...

  • Page 48: Error Id

    Chapter 2 Diagnostic Codes 2.9.4 ERROR ID The table lists the error codes and gives some examples for an error. Error ID Limits Not complete Invalid job mod 2D, Brake : module gets invalid event. mod 49, Drive system : Internal error, command not valid in actual mode of operation mod 66, meas Control :...
  • Page 49 Chapter 2 Diagonostic Codes Error in expression mod C3, user Interface : Communication Error between balancing kernel and user interface (BK -> uI). This error can be cleared by pressing STOP or Escape. This error can caused by a bad connection of the RS2- 32-E serial line.
  • Page 50 Chapter 2 Diagnostic Codes Bad parameter for the frequency of beep command Bad parameter for the volume of beep command Bad parameter for the sound file of beep command Bad parameter for the repetition of a beep Sound file corrupted RS232-E : Wrong parameter for ioctl call.
  • Page 51 Chapter 2 Diagonostic Codes I2C_busy I2C_no_Acknowledge No Acknowledge from device I2C_ERROR_NO_ACK_FROm_START I2C_ERROR_NO_ACK_FROm_STOP I2C_ERROR_NO_ACK_FROm_SEND1 I2C_ERROR_NO_ACK_FROm_SEND2 2C_ERROR_NO_ACK_FROm_RECEIvE ERROR_I2C_SyNCHRONOuS_ORDER_TImEOuT ERROR_I2C_ASyNCHRONOuS_ORDER_TImEOuT ERROR_I2C_ORDER_HAS_FAILED ERROR_DS_uSER_BREAK Drive system : Timeout during speed up - hand-spin only! speed does not settle after start command ERROR_DS_SPEED_NOT_REACHED Drive system : Speed slows down during measuring - speed falls below limit while measuring Drive system : Wheel speeds up in reverse turn - Hand-spin only! main shaft rotating backwards on start command...
  • Page 52 Chapter 2 Diagnostic Codes 0.05 v - Second Potentiometer : voltage below measuring range (AD value : 0..10) 0.037 v(for IBP) 4.45 v - 3.36 Second Potentiometer : voltage above measuring range (AD value : 1014..1024) V(for IBP) 0.05 v - Third Potentiometer : voltage below measuring range (AD value : 0..10) 0.037 v(for...
  • Page 53 Chapter 2 Diagonostic Codes BL_BAL_ERROR_NoConverge BL_BAL_ERROR_ResultInvalid BL_BAL_ERROR_ToomuchLoops BL_BAL_ERROR_NoCaluser BL_BAL_ERROR_FailCaluser BL_BAL_ERROR_SideCaluser Distance of the virtual left plane from the reference plane out of range c1 value too low, if a user calibration tool assumed c2 value too low, if a user calibration tool assumed c1 value too low, if a 100g weight and calibration rotor assumed c2 value too low, if a 100g weight and calibration rotor assumed c1 value too high, if a calibration rotor only assumed...

  • Page 54: Ibp Codes

    Chapter 2 Diagnostic Codes Power fail detected OPTImA hardware main board fault detected OPTImA hardware inner scanner fault detected OPTImA hardware outer scanner fault detected OPTImA hardware rear scanner fault detected ERROR_SELFTEST ASA: Status of an activated order has changed due to network manager or shop management software activities.
  • Page 55 Chapter 2 Diagonostic Codes BK_ERROR_SAPE_2D_HIGH_vOLT xxx-361 001-043 BK_ERROR_SAPE_3D_LOW_vOLT xxx-370 001-044 BK_ERROR_SAPE_3D_HIGH_vOLT xxx-371 001-045 BK_ERROR_SAPE_1D_INvALID_CAL 001-046 BK_ERROR_SAPE_2D_INvALID_CAL 001-047 BK_ERROR_SAPE_3D_INvALID_CAL 001-048 BK_ERROR_SIDE_CAL_BAL xxx-512 001-050 BK_ERROR_SIDE_CAL_uSER xxx-512 001-051 BK_ERROR_NO_CAL_uSER xxx-510 001-052 BK_ERROR_FAIL_CAL_uSER xxx-511 001-053 BK_ERROR_vIRT_DIm_OuTOFRANGE xxx-530 001-054 E623 BK_ERROR_C1_100G_LOW xxx-565 001-055 BK_ERROR_C2_100G_LOW xxx-566 001-056 BK_ERROR_C1_0G_HIGH xxx-570...
  • Page 57 Notice: The information contained in this document is subject to change without notice. Snapon Equipment makes no warranty with regard to this material. Snapon Equipment shall not be liable for errors contained herein or for incidental consequential damages in connection with furnishings, performance, or use of this material. This document contains proprietary information which is protected by copyright and patents.
