Fitting Instructions:
Tiger XR, Tiger XR
Tiger 800, Tiger 800XC, Tiger 800 XR, Tiger 800 XR
Tiger 800 XR
, Tiger 800 XC
T
A9501275, A9508148, A9508201, T2350294, T2353172, T2351090, T2351055,
T2351047 and T2356829
Thank you for choosing this Triumph genuine accessory kit. This accessory kit is the product of Triumph's use of proven
engineering, exhaustive testing, and continuous striving for superior reliability, safety and performance.
Completely read all of these instructions before commencing the installation of the accessory kit in order to become
thoroughly familiar with the kit' s features and the installation process.
These instructions should be considered a permanent part of your accessory kit, and should remain with it even if your
accessory-equipped motorcycle is subsequently sold.
A9508148

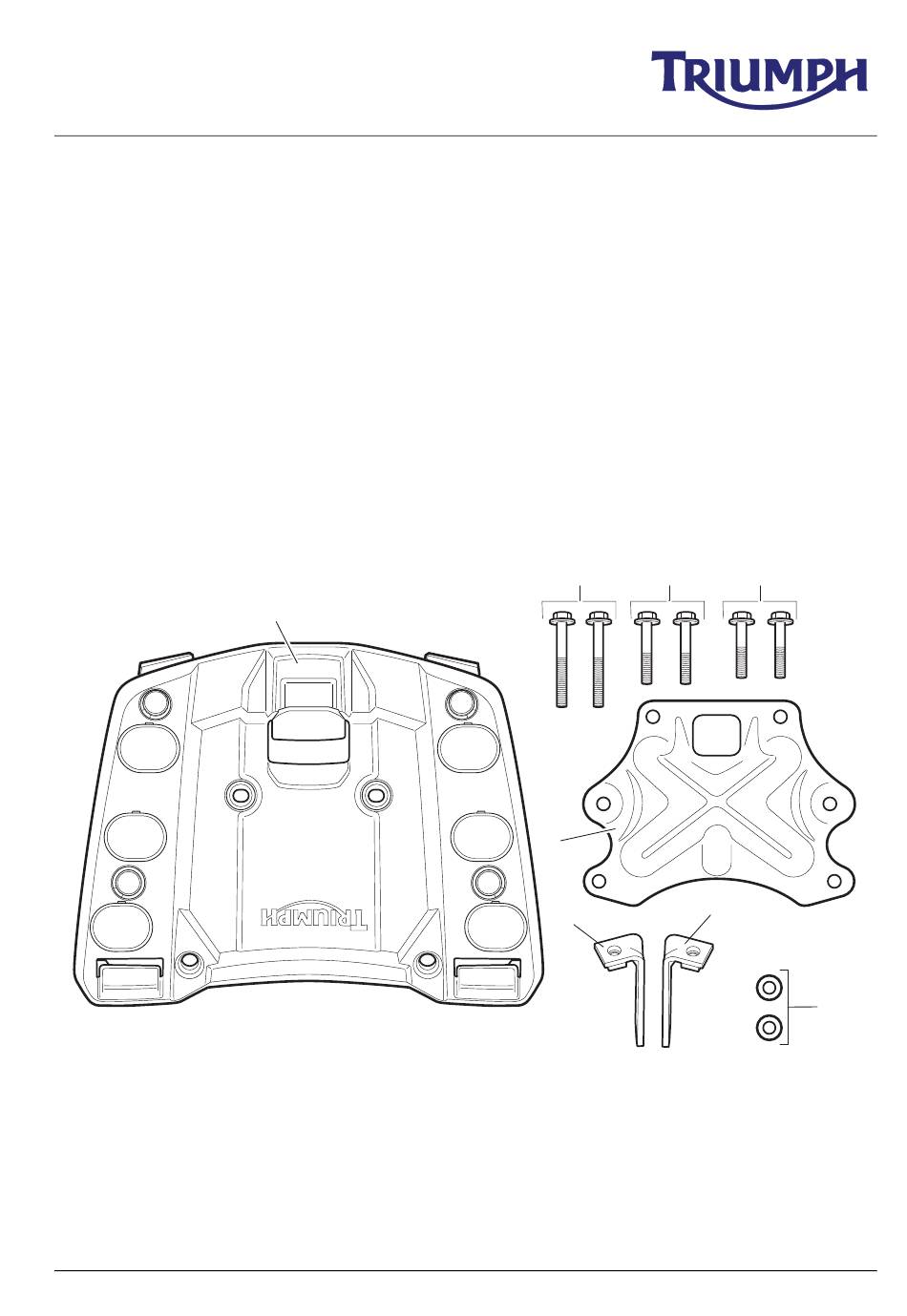

Parts Supplied:
1.
Sliding carriage
2.
Bolt, M8 x 65 mm
3.
Bolt, M8 x 45 mm
4.
Bolt, M8 x 40 mm
Publication part number A9900551 issue 13
© Triumph Designs Ltd. 2019
, Tiger XR
, Tiger XC, Tiger XC
T
X
, Tiger 800 XR
A
1
, Tiger XC
A
, Tiger 800 XC
X
LRH
X
2
6
7
1 off 5.
Spacer
2 off 6.
Carriage plate
2 off 7.
Carriage plate mounting bracket LH
2 off 8.
Carriage plate mounting bracket RH
1 of 10
,
X
,
X
3
4
8
5
2 off
1 off
1 off
1 off
Advertisement
Related Manuals for Triumph A9501275
Summary of Contents for Triumph A9501275
- Page 1 A9501275, A9508148, A9508201, T2350294, T2353172, T2351090, T2351055, T2351047 and T2356829 Thank you for choosing this Triumph genuine accessory kit. This accessory kit is the product of Triumph's use of proven engineering, exhaustive testing, and continuous striving for superior reliability, safety and performance.
- Page 2 A9501275, T2350294, A9508201, T2353172, T2351090, T2351055, T2351047 and T2356829 T1008 Part Supplied: Top box 1 off 2 of 10...
- Page 3 Remove the four fixings, retain for re-use and applicable are listed at the start of the instruction. They remove the rear rack moulding. should not be fitted to any other Triumph model or to other manufacturer’ s motorcycle. Fitting accessory kit to a Triumph model not listed, or to any other manufacturer’...
- Page 4 Retain the bolts for Always use the correct replacement lock nut as re-use if the motorcycle is to be returned to its recommended in the Triumph parts catalogue. original condition. Using the carriage plate mounting brackets,...
- Page 5 Remove the nuts, bolts, rear pannier mounting Always use the correct replacement lock nut as hooks and the rear pannier mounting plates, from recommended in the Triumph parts catalogue. the left and right hand sides, noting the orientation Using the carriage plate mounting brackets from the of the hooks.
- Page 6 All Motorcycles 14. Tighten the rear grab handle bolts to 20 Nm. 10. Remove the rear grab handle bolts and retain for re-use. 1. Nuts 2. Rear grab handle bolts T0966 3. Carriage plate 1. Rear grab handle bolts 15. Remove the two M8 x 45 mm bolts, retaining them 11.
- Page 7 17. Fit the sliding carriage to the carriage plate using the Fitting the Lock Barrel to Top Box - A9501275, two M8 x 45 mm bolts to the front and the two A9508201, T2350294, T2353172, T2351090, M8 x 40 mm bolts to the rear. Tighten to 20 Nm.
- Page 8 Mounting the Top Box - A9501275, A9508201, Position the top box such that the mounting slots on the bottom of the top box locate with the mounting T2350294, T2353172, T2351090, T2351055, hooks on the sliding carriage. T2351047 and T2356829 Remove the rubber cover from the sliding carriage and retain for re-use if the top box is removed for any reason.
- Page 9 Top Box Operation Warning To unlock the lid of the top box, insert the key. Turn To prevent detachment of the top box while riding, after the key to the UNLOCK position, then operate the fitting always grasp the top box and pull firmly upwards lid latch handle and lift to open the lid.
- Page 10 Warning Only operate this Triumph motorcycle at high speed in Warning closed-course on road competition or on closed-course race tracks. High speed operation should only be...
